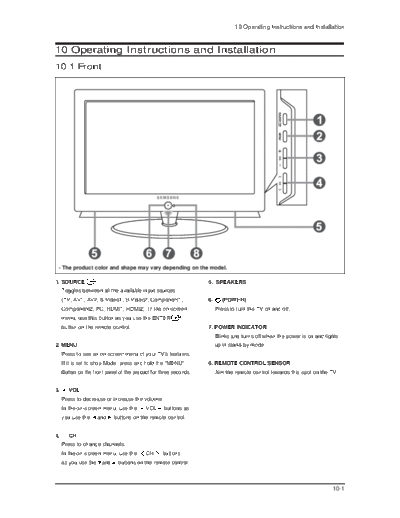

Image preview - the first page of the document

>> Download 05_Operation Instruction & Installation documenatation <<

Text preview - extract from the document

10 Operating Instructions and Installation

10 Operating Instructions and Installation
10-1 Front

- The product color and shape may vary depending on the model.

1. SOURCE 5. SPEAKERS
Toggles between all the available input sources
(TV, AV1, AV2, S-Video1, S-Video2, Component1, 6. (POWER)
Component2, PC, HDMI1, HDMI2). In the on-screen Press to turn the TV on and off.
menu, use this button as you use the ENTER
button on the remote control. 7. POWER INDICATOR
Blinks and turns off when the power is on and lights
2. MENU up in stand-by mode.
Press to see an on-screen menu of your TV's features.
If it is set to shop Mode. press and hold the "MENU" 8. REMOTE CONTROL SENSOR
Button on the front panel of the product for three seconds. Aim the remote control towards this spot on the TV.

3. VOL
Press to decrease or increase the volume.
In the on-screen menu, use the VOL buttons as
you use the and buttons on the remote control.

4. CH
Press to change channels.
In the on-screen menu, use the CH buttons
as you use the and buttons on the remote control.

10-1
10 Operating Instructions and Installation

10-2 LNS4096D/LNS4696D/LNS5296D Connection Panel

1. COMPONENT IN 1,2 6. ANT 1 IN(AIR) / ANT 2 IN(CABLE)
Connect Component video/audio. Connect to an antenna or cable TV system.

2. DVI IN, HDMI/DVI IN 1,2 7. SERVICE
onnect to the HDMI jack of a device with an HDMI Connectors for service only.
output.
8. AV OUT
Use the HDMI/DVI terminal for DVI connection to an Connect to the audio input jacks on your Amplifier/
external device with a DVI output. You should use Home theater.
the DVI to HDMI cable or DVI-HDMI adapter (DVI to
HDMI) for video connection, and the DVI-IN 9. PC IN
'R-AUDIO-L' terminal for audio. Connect to the video and audio output jacks on your
PC.
- HDMI/DVI IN terminal does not support PC.
- No sound connection is needed for an HDMI to 10. POWER INPUT
HDMI connection. Sound connection is only Connect the supplied power cord.
needed for HDMI to DVI.
11. KENSINGTON LOCK
3. DIGITAL AUDIO OUT (OPTICAL) The Kensington lock (optional) is a device used to
Connect to a Digital Audio component. physically fix the system when used in a public
place.
4. D-Net (IEEE1394) S400 MPEG If you want to use a locking device, contact the
Connect to external IEEE1394 digital products such dealer where you purchased the TV.
as digital VCRs and camcorders. Two jacks are - The place of the Kensington Lock may be different
provided for this purpose, which allow for a high depending on its model.
degree of flexibility for connecting your D-Net
controlled system.

5. AV IN 1
Video and audio inputs for external devices, such as
a camcorder or VCR.
S-VIDEO
Connect an S-Video signal from a camcorder or
VCR.

10-2
10 Operating Instructions and Installation

10-3 LNS4095D Connection Panel

1. COMPONENT IN 1,2 7. AV OUT
Connect Component video/audio. Connect to the audio input jacks on your Amplifier/
Home theater.
2. DVI IN, HDMI/DVI IN 1,2
onnect to the HDMI jack of a device with an HDMI 8. PC IN
output. Connect to the video and audio output jacks on your
PC.
Use the HDMI/DVI terminal for DVI connection to an
external device with a DVI output. You should use 9. POWER INPUT
the DVI to HDMI cable or DVI-HDMI adapter (DVI to Connect the supplied power cord.
HDMI) for video connection, and the DVI-IN
'R-AUDIO-L' terminal for audio. 10. KENSINGTON LOCK
The Kensington lock (optional) is a device used to
- HDMI/DVI IN terminal does not support PC. physically fix the system when used in a public
- No sound connection is needed for an HDMI to place.
HDMI connection. Sound connection is only If you want to use a locking device, contact the
needed for HDMI to DVI. dealer where you purchased the TV.
- The place of the Kensington Lock may be different
3. DIGITAL AUDIO OUT (OPTICAL) depending on its model.
Connect to a Digital Audio component.

4. AV IN 1
Video and audio inputs for external devices, such as
a camcorder or VCR.
S-VIDEO
Connect an S-Video signal from a camcorder or
VCR.

5. ANT 1 IN/ANT 2 IN
Connect to an antenna or cable TV system.

6. SERVICE 1/SERVICE 2
Connectors for service only.

10-3
10 Operating Instructions and Installation

10-4 LNS4096D/LNS4696D/LNS5296D Remote Control

10-4
10 Operating Instructions and Installation

10-5 LNS4095D Remote Control

10-5
10 Operating Instructions and Installation

Memo

10-6
