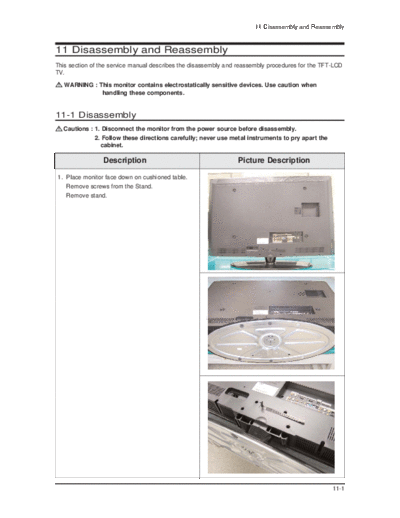

Image preview - the first page of the document



>> Download 06_Disassembly & Reassembly documenatation <<

Text preview - extract from the document

                                                                      11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD
TV.

   WARNING : This monitor contains electrostatically sensitive devices. Use caution when
              handling these components.


11-1 Disassembly
  Cautions : 1. Disconnect the monitor from the power source before disassembly.
             2. Follow these directions carefully; never use metal instruments to pry apart the
               cabinet.

                 Description                                    Picture Description

1. Place monitor face down on cushioned table.
   Remove screws from the Stand.
   Remove stand.




                                                                                                  11-1
11 Disassembly and Reassembly


                Description                       Picture Description

2. Remove the screws of rear-cover.




3. Lift up the rear-cover.
   Remove the screws of IP board's shield case.




11-2
                                                           11 Disassembly and Reassembly


                 Description                           Picture Description

4. Remove the screws of main board's shield case.
   Disconnect the cable of fan before lifting up the
   shield case of main board.




5. Remove the screws of boards and power inlet.




                                                                                    11-3
11 Disassembly and Reassembly


                 Description           Picture Description

6. Remove the screw of Side AV assy.
   Lift up Left and Right speaker.




7. Remove the screws of BKLT




11-4
                                                       11 Disassembly and Reassembly


                Description                        Picture Description

8. Lift up the BKLT.




9. Remove the screws of panel's BKLT and lift up
   the panel.




    Another MOSEL models are almost same to
    disassemble.




                                                                                11-5
11 Disassembly and Reassembly

11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.




11-6
