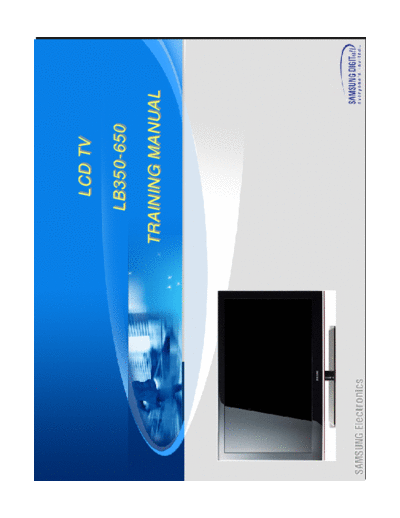

Image preview - the first page of the document
>> Download Samsung LN22B460B2DXZA Training Book documenatation <<
Text preview - extract from the document
LCD TV
LB350-650
TRAINING MANUAL
Inside of
New Models
CONTENTS
I. Introduction
II. Inside of Models
III. Board description
IV. Disassembly
V. Trouble Shooting
VI. Software Relating
VII. Appendix
Introduction
Best Picture Quality
Simple Function, New Design
Acceptable Price
Support HDMI
New Functions
II. Inside of New Model
MODELS
ITEMS FHD HD HD HD B350
32"/37"/40"/46" 26"/32" 19"/22" 26"/32"
Panel Resolution 1920*1080 1366*768 1366*768 1366*768
1 Scart in back, 1 1 Scart in back, 1 1 Scart & 1 AV in 1 Scart & 1 Common
A/V AV in Side AV in Side back AV with component in
Back
S-Video X
1 component in back
component
480i/p,/576i/p,720p,1080i
PC 1 Dsub in back
2 HDMI in back, 1 2 HDMI in back, 1 1 HDMI in back 2 HDMI in back
HDMI
Side HDMI Side HDMI
Tuner 1 RF DTV tuner DVB-T/C DVB-T only
Sound Output 10W 5W/10W 3W 5W
PIP X
Dolby Digital Plus
Sound option
SRS
DNIe X
PCB SIZE 192*195 192*195 192*158 192*122
Headphone X X O X
Remocon TM950 TM940
Anynet+ O X
Remote Controller Type
TOOLS [RF]
TM950
P tu S ze
ic re i TM940
P c u e Mode
itr POWER TV
TOOLS [PC]
Sound Mode POWER TV
P c u e Mode
itr
Se T r
l ep ime
Sound Mode
SRS TruSurround HD
Se T r
l ep ime
Ene y Sav ng
rg i
Ene y Sav ng
rg i
Dua I-I
l I
Au Ad u tmen
to j s t PRE-CH
Add t Fa rt
o vo ie PRE-CH MUTE
TOOLS [HDM , AV
I ,
MUTE
I ,
TOOLS [HDM , AV Sca t
r, t
Scar , Componen ]
t SOURCE P
Componen ]
t P
SOURCE
P c u e Mode
itr
P tu S ze
ic re i CHL S
IT MENU FAV.CH
Sound Mode
P c u e Mode
itr CHL S
IT MENU FAV.CH TOOLS RETURN
Se T r
l ep ime
Sound Mode TOOLS RETURN
Ene y Sav ng
rg i
Se T r
l ep ime
SRS TruSurround HD
TOOLS [RF] I FO
N EX T
I
Ene y Sav ng
rg i
I FO
N EX T
I P c u e Mode
itr
TOOLS [PC] Sound Mode TX/ IX
T M SRS .S ZE
P I
P tu S ze
ic re i T M
TX/ IX GUIDE SUBT. DUAL GUIDE SUBT.
Se T r
l ep ime
P c u e Mode
itr
Ene y Sav ng
rg i
Sound Mode
Add t Fa rt
o vo i e
Se T r
l ep ime
SRS TruSurround HD
Ene y Sav ng
rg i
Au Ad u tmen
to j s t
II. Inside of New Model
B350 : HD 26"/32"
CABINET
C/Front : New Design, High Glossy
C/Rear : Decoration, Holder-Boss,
Guide-Stand all New
User Key Pad : Touch Type
II. Inside of New Model
B450
HD 19",22"26 2"
",3
CABINET
C/Front : A450
C/Rear : New Decoration,
Holder-Boss, Guide-Stand
II. Inside of New Model
B460
HD, 32"
CABINET
C/Front : PDP B450 Design
C/Rear , Decoration, Holder-Boss,
Guide-Stand all New
Stand Type : Rectangular Glass Type
User Key Pad : Touch Type
II. Inside of New Model
B530
FHD 32",37",40",46"
CABINET
C/Front : A550 P3
C/Rear, New Decoration,
Holder-Boss, Guide-Stand
Stand : Rectangular Mold-Stand
II. Inside of New Model
B650
HD: 19"/22"
CABINET
C/Front : New, Toc
C/Rear : New, High glossy
Stand : New
(Black Mold Stand + Crystal Neck)
User Key Pad : Touch Type
II. Inside of New Model
Control & Connection Panel
New Model
II. Inside of New Model
Last year Model
II. Inside of New Model
Control & Connection Panel
II. Inside of New Model
Control & Connection Panel
II. Inside of New Model
Control & Connection Panel
II. Inside of New Model
II. Inside of Models 26"/32"/37"/40"/46" Europe
Block Diagram
Input Jack
PCMCIA
SPDIF out
ANT
TS iDTV
DTV NIM Tuner
SIF
ATV Half Tuner CVBS ATV
MSTAR
RX/TX Saturn4
Sub Micom
(371-BGA)
CEC Micom
HDMI 1,2,3 HDMI 1
3D Comb
HDMI 2 Multi Decoder Flash Memory
MX25L6405
HDMI 3 (NTSC/PAL/SECAM
USB MPEG-2 AV/4/H.264)
(Down Load) De-interlacer DDR2
64MB * 2 Display Panel
Scaler FHD 1920x1080
PC R,G,B,H/V Sync
LVDS Out Or
EEPROM
(10bit-dual) AT24C512
HD 1366x768
Caption/TTX
EXT RGB/FB 10bit Process LVDS
CVBS Sound Process
USB 2.0
COMPONENT SXGA Output
HDMI 1.3 X 3
SIDE AV
EXT_out
I2S L
Audio AMP Speaker
IR / Key NTP3200 R
FUNCTION KEY
VIDEO AUDIO BUS I2C NORMAL SIGNAL
II. Inside of Models 26"/32"/37"/40"/46" Asia
Block Diagram
Input Jack
PCMCIA
SPDIF out
ANT
TS iDTV
DTV NIM Tuner
SIF
ATV Half Tuner CVBS ATV
MSTAR
RX/TX Saturn4
Sub Micom
(371-BGA)
CEC Micom
HDMI 1,2,3 HDMI 1
3D Comb
HDMI 2 Multi Decoder Flash Memory
MX25L6405
HDMI 3 (NTSC/PAL/SECAM
USB MPEG-2 AV/4/H.264)
(Down Load) De-interlacer DDR2
64MB * 2 Display Panel
Scaler FHD 1920x1080
PC R,G,B,H/V Sync
LVDS Out Or
EEPROM
(10bit-dual) AT24C512
HD 1366x768
Caption/TTX
COMPONENT 10bit Process LVDS
Sound Process
USB 2.0
COMPONENT SXGA Output
HDMI 1.3 X 3
SIDE AV
EXT_out
I2S L
Audio AMP Speaker
IR / Key NTP3200 R
FUNCTION KEY
VIDEO AUDIO BUS I2C NORMAL SIGNAL
II. Inside of Model 19"/22" Europe
Block Diagram
Input Jack
PCMCIA
SPDIF out
ANT
TS iDTV
DTV NIM Tuner
SIF
ATV Half Tuner CVBS ATV
MSTAR
RX/TX Saturn4
Sub Micom
(371-BGA)
CEC Micom
HDMI 1 HDMI 1
3D Comb
Multi Decoder Flash Memory
MX25L6405
(NTSC/PAL/SECAM
USB MPEG-2 AV/4/H.264)
(Down Load) De-interlacer DDR2
64MB * 2 Display Panel
Scaler FHD 1920x1080
PC R,G,B,H/V Sync
LVDS Out Or
EEPROM
(10bit-dual) AT24C512
HD 1366x768
Caption/TTX
EXT RGB/FB 10bit Process LVDS
CVBS Sound Process
USB 2.0
COMPONENT SXGA Output
MAX9728
HDMI 1.3 X 3 Head Phone
AV
EXT_out
I2S L
Audio AMP Speaker
IR / Key NTP3200 R
FUNCTION KEY
VIDEO AUDIO BUS I2C NORMAL SIGNAL
II. Inside of Model 19"/22" Asia
Block Diagram
Input Jack
PCMCIA
SPDIF out
ANT
TS iDTV
DTV NIM Tuner
SIF
ATV Half Tuner CVBS ATV
MSTAR
RX/TX Saturn4
Sub Micom
(371-BGA)
CEC Micom
HDMI 1 HDMI 1
3D Comb
Multi Decoder Flash Memory
MX25L6405
(NTSC/PAL/SECAM
USB MPEG-2 AV/4/H.264)
(Down Load) De-interlacer DDR2
64MB * 2 Display Panel
Scaler FHD 1920x1080
PC R,G,B,H/V Sync
LVDS Out Or
EEPROM
(10bit-dual) AT24C512
HD 1366x768
Caption/TTX
10bit Process LVDS
COMPONENT
Sound Process
USB 2.0
COMPONENT SXGA Output
MAX9728
HDMI 1.3 X 3 Head Phone
AV
EXT_out
I2S L
Audio AMP Speaker
IR / Key NTP3200 R
FUNCTION KEY
VIDEO AUDIO BUS I2C NORMAL SIGNAL
II. Inside of B350 Models 26"/32"
Block Diagram
Input Jack
PCMCIA
SPDIF out
ANT
TS iDTV
DTV NIM Tuner
SIF
ATV Half Tuner CVBS ATV
MSTAR
Saturn4
(371-BGA)
Micom
HDMI 1,2 HDMI 1
3D Comb
HDMI 2 Multi Decoder Flash Memory
MX25L6405
(NTSC/PAL/SECAM
USB MPEG-2 AV/4/H.264)
(Down Load) De-interlacer DDR2
64MB * 2 Display Panel
Scaler FHD 1920x1080
PC R,G,B,H/V Sync
LVDS Out Or
EEPROM
(10bit-dual) AT24C512
HD 1366x768
Caption/TTX
EXT RGB/FB 10bit Process LVDS
CVBS Sound Process
USB 2.0
COMPONENT SXGA Output
HDMI 1.3 X 3
EXT_out
I2S L
Audio AMP Speaker
IR / Key NTP3200 R
FUNCTION KEY
VIDEO AUDIO BUS I2C NORMAL SIGNAL
II. Inside of New Model
Inner Feature
IP Board, Main Board, TCON Board,Panel
IP B'D'
MAIN
B'D'
TCON
B'D'
SPEAKER SPEAKER
New Function : Audio Description
Audio description [From Wikipedia, the free encyclopedia]
Audio description refers to an additional narration track for blind and
visually impaired consumers of visual media, including television and movies,
dance, opera, and visual art.
For simplicity, this article focuses on the most common venues for
description: TV and film.
The description narrator talks through the presentation, describing what is
happening on the screen during the natural pauses in the audio (and
sometimes during dialogue if deemed necessary).
The sound is monaural, by its nature not the best quality audio.
The visual interfaces used to turn on SAP are a problem for blind people.
New Function : Audio Description
New Function : Dolby Digital Plus
Audio encoding/compression
Dolby Digital (also known as AC-3): is a lossy audio compression format.
It supports channel configurations from mono up to six discrete channels
(referred to as "5.1"). This format first allowed and popularized surround
sound. It was first developed for movie theater sound and spread to
Laserdisc and DVD. It has been adopted in many broadcast formats including
all North American digital television (ATSC), DVB-T, direct broadcast satellite,
cable television, DTMB, IPTV, and surround sound radio services. It is also
part of both the Blu-ray and the now defunct HD DVD standards. Dolby
Digital is used to enable surround sound output by most video game
consoles. Several personal computers support converting all audio to Dolby
Digital for output.
Dolby Digital Plus: audio codec based on Dolby Digital that is backward
compatible, but more advanced. The DVD Forum has selected Dolby Digital
Plus as a standard audio format for HD DVD video. It supports data rates up
to 6 Mbyte/s, an increase from Dolby Digital's 640 kbit/s maximum. Dolby
Digital Plus is also optimized for limited data rate environments such as
Digital broadcasting.
New Function : SRS TruSurround HD
Dialog Clarity. Audio creators today have more sound tools than ever to
work with, and more channels to put sound in. So naturally, they create rich,
dense audio for any purpose--movies, TV, music and games. Problem is,
with such heavily layered audio tracks, sometimes the vocals and dialog get
lost in the shuffle ... or buried under sound effects. Dialog Clarity boosts the
frequency range of the human voice in a way that makes the human voice
rise above the audio effects, so you can hear clearly every word you're
supposed to hear.
Immersive Surround Sound. This is the core technology of all the
TruSurround suites, and it processes any multichannel input, sending it to
two or three TV speakers after some very sophisticated processing. This
allows the listener to perceive enveloping surround sound from just the TV
speakers or external speaker bar. Rear and surround channels are processed
separately from front channels, and through our study of psychoacoustics
and knowing the difference between how sound is perceived front to back,
we process and adjust the surround channels' waveforms so they are
perceived as coming from behind the listener.
, and the restoration really is magic.
New Function : SRS TruSurround HD
Improved Bass. We know small speakers cannot reproduce deep bass. It's
physically impossible. But bass sounds are always accompanied by overtones,
and if your ears are given all the overtones, your perception will fill in the
`missing fundamental.' SRS patented bass technology was developed based
on an amazing combination of psychoacoustic understanding and technical
know-how, managing to restore the sensation of deep bass. It identifies the
signals that cannot be reproduced, and restores and boosts the overtones.
It's all in your head, courtesy of some nifty audio wave processing, and the
restoration really is magic.
High Frequency Clarity. Techniques used in digital compression or
broadcast transmission can reduce the clarity of audio content, leaving you
with a rather lackluster audio experience. SRS' premium high definition
technology restores clarity by enhancing the high frequency content,
bringing into focus the rain falling or wind howling in a movie scene or the
cymbals and acoustic guitar strumming in your favorite song.
New Function : Self Diagnosis
1. Picture Test
Color Bar Test Pattern
2. Sound Test
Internal / External Speak
3. Signal Information
Frequency
Service ID
Multiplex
Network
Bit error level
Signal Strength
New Function : Self Diagnosis
New Function : Alternative Software
OSD Menu Tree
Project Name: Saturn4 DVB
Created:
Product: LCD TV
System: DVB(2009)
Date: 2008-11-26
OSD MENU
TREE
II. Inside of New Model
Key parts
SCALER : SEMS12
SOUND AMP : NTP3200
. Inside of New Model
SCALER: SEMS12
GENERAL DESCRIPTION
The SEMS12 is a highly integrated controller IC for LCD/PDP DTV applications
with resolutions up to full-HD (1920 x 1080). It is configured with an integrated
triple-ADC/PLL, a multi-standard TV video and audio decoder, a motion adaptive
video de-interlacer, a scaling engine, the MStarACE-3 color engine, an advanced
2D graphics engine, a transport processor, a high-definition (HD) MPEG video
decoder, a high-definition (HD) H.264 video decoder, a RealVideo decoder, a
JPEG video decoder, an MPEG-4 decoder, and a 24-bit DSP for MPEG audio
decoding, a DVI/HDCP/HDMI receiver, and a peripheral control unit providing a
variety of HDTV control functions.
For digital TV application, the SEMS12 comprises an MPEG-2 transport processor
with advanced section filtering capability, an MPEG-2 (MP@HL profile) video
decoder, an MPEG-4 decoder, an H.264 video decoder, and an audio DSP
decoder for MPEG audio streams, MPEG layer I and II digital audio decoder with
analog audio outputs that are designed to support existing and future DVB-T
programs while handling conditional access. Furthermore, it is also possible to
decode JPEG, RealVideo streams, and MP3 formats from external sources such
as USB interface.
. Inside of New Model
SCALER: SEMS12
FEATURES
Transport Stream De-multiplexer
1. Two external TS inputs and one internal TS data path
2. Supports both parallel and serial TS interface, with or without sync
signal Maximum TS data rate is 104 Mb/sec for serial or 13 MB/sec for
parallel 32 general purpose PID filters and section filters for each
transport stream de-multiplexer
3. One video PES and two audio PES channels
4. Supports MHEG5, DVB subtitle and digital teletext
MPEG-2 Video Decoder
1. ISO/IEC 13818-2 MPEG-2 video MP@HL
2. Automatic frame rate conversion
3. Supports resolution in HDTV (1080i, 720p) and SDTV
4. MPEG-1, MPEG-2 (Layer I/II), Dolby1 Digital (AC-3), AAC and HE-AAC
audio decoder
5. Optionally supports Dolby Digital Plus (E-AC-3)2 decoding
. Inside of New Model
SCALER: SEMS12
MPEG-4 Video Decoder
1. ISO/IEC 14496-2 MPEG-4 ASP video decoding
2. Supports resolution in HDTV (1080p@30fps) for MPEG-4
H.264 Decoder
1. Fully compliant with ITU-T H.264, ISO/IEC 14496-10 (main and high
profile up to level 4.0)
2. Supports all DVB, ATSC, HDTV, DVD, VCD resolutions (e.g. 1080p,
1080i, 720p, D1)
3. Supports picture size from 80x96 pixel to 1920x1088 pixel
4. Decodes up to 1080p@30 fps
5. Reads streams from Transport and from files
6. Supports stream types of CABAC and CAVLC
7. Processing of ES and PES streams, extraction and provision of time
stamps
8. Allegro H.264 certification test suite proven
9. ITU-T H.264 conformance tests proven
10.Error detection and concealment
. Inside of New Model
SCALER: SEMS12
NTSC/PAL/SECAM Video Decoder
1. Supports NTSC-M, NTSC-J, NTSC-4.43, PAL (B,D,G,H,M,N,I,Nc), and
SECAM
2. Automatic TV standard detection
3. Motion adaptive 3-D comb filter for NTSC/PAL
4. Eight configurable CVBS & Y/C S-video inputs
5. Supports Closed Caption (analog CC 608/analog CC 708/digital CC
608/digital CC 708), V-chip and SCTE
6. Two CVBS video outputs
Digital Audio Interface
1. I2S digital audio input & output
2. S/PDIF digital audio input & output
3. HDMI audio channel processing capability
4. Programmable delay for audio/video synchronization
. Inside of New Model
SCALER: SEMS12
Multi-Standard TV Sound Processor
1. Supports BTSC/A2/EIA-J demodulation in NTSC and
A2/NICAM/FM/AM demodulation in PAL
2. Supports MTS Mode Mono/Stereo/SAP in BTSC/ EIA-J and
Mono/Stereo/Dual in A2/NICAM
3. L/R audio line-in x6 and SIF audio input
4. L/R speaker and 2 additional L/R audio line-out
5. Built-in audio sampling rate conversion (SRC)
6. Built-in audio output DAC's
7. Supports audio description (AD)
8. Audio processing for loudspeaker channel, including volume,
balance, mute, tone, EQ, virtual stereo/surround, and treble/bass
9. Supports MP3 decoding
10.Optionally supports Dolby Digital (AC-3) encoding at SPDIF
output
11.Optional advanced sound3 available (Dolby, SRS4, BBE5... etc)
. Inside of New Model
SCALER: SEMS12
Analog RGB Compliant Input Ports
1. Three analog ports support up to 1080P
2. Supports PC RGB input up to UXGA@60Hz
3. Supports HDTV RGB/YPbPr/YCbCr
4. Supports Composite Sync and SOG (Sync-on-Green) separator
5. Automatic color calibration
VIF Input Support
1. Multi-standard analog TV receiver applications
2. Digital low IF architecture
3. Stepped-gain PGA with 25 dB tuning range and 1 dB tuning
resolution
4. Maximum IF gain of 37 dB
5. Programmable TOP to accommodate different tuner gain to
optimize noise and linearity performance
. Inside of New Model
SCALER: SEMS12
DVI/HDCP/HDMI Compliant Input Port
1. Three DVI/HDCP/HDMI input ports support up to 225MHz @ 1080P
60Hz with 12-bit deep-color resolution
2. Single link on-chip DVI 1.0 compliant receiver
3. High-bandwidth Digital Content Protection (HDCP) 1.1 compliant
receiver
4. High Definition Multimedia Interface (HDMI) 1.3 compliant receiver
with CEC (Consumer Electronics Control) support
5. Long-cable tolerant robust receiving
High-Performance Scaling Engine
1. Fully programmable shrink/zoom capabilities
2. Nonlinear video scaling supports various modes including Panorama
. Inside of New Model
SCALER: SEMS12
Video Processing & Conversion
1. 3-D motion adaptive video de-interlacers with edge-oriented adaptive
algorithm for smooth low-angle edges
2. Automatic 3:2 pull-down & 2:2 pull-down detection and recovery
3. MStar 3rd Generation Advanced Color Engine (MStarACE-3) automatic
picture enhancement gives:
a. Brilliant and fresh color
b. Intensified contrast and details
c. Vivid skin tone
d. Sharp edge
e. Enhanced depth of field perception
f. Accurate and independent color control
4. sRGB compliance allows end-user to experience the same colors as
viewed on CRTs and other displays
5. 3-channel gamma curve adjustment
6. 10-bit internal data processing
. Inside of New Model
SCALER: SEMS12
Hardware JPEG
1. Supports sequential mode, single scan
2. Supports both color and grayscale picture
3. Operates in scan unit; hardware decoder will handle the bit stream
after scan header
4. Supports programmable region of interest (ROI)
5. Supports format: 422/411/420/444/422T
6. Decoded picture will be stored in DRAM with UYVY format
7. Supports scaling down ratio: 1/2, 1/4, 1/8, applied to height and
width simultaneously
Output Interface
1. Supports up to 10-bit dual LVDS full-HD (1920 x 1080) panel interface
2. Supports 2 data output formats: Thine & TI data mappings
3. Compatible with TIA/EIA With 6/8 bits optional dithered output
4. Spread spectrum output frequency for EMI suppression
. Inside of New Model
SOUND AMP:NTP3200
Features
Stereo (20W 2)
Wide Supply Voltage Range (7.5V~24V)
Floating Point Operation
16 Programmable Bi-quad Filters
Speaker Compensation
DC cut, LPF, HPF
Parametric Equalizer
100 dB Dynamic Range
Adaptive Loudness Compensator based on Psycho Acoustics
Dynamic range control
Loudness
Protection Circuit
OCP (Over Current Protection)
OTP (Over Temperature Protection)
UVP (Under Voltage Protection)
. Inside of New Model
SOUND AMP:NTP3200
Description
The NTP-3200 is a single chip full digital audio amplifier including power
stage for stereo amplifier system. NTP-3200 is integrated with versatile
digital audio signal processing functions, high-performance, high-fidelity
fully digital PWM modulator and two high-power full bridge MOSFET
power stages.
The NTP-3200 receives digital serial audio data with sampling frequency
from 8KHz to 192KHz. It delivers 2 x 20 watt in stereo mode without heat
sink. The NTP-3200 has mixer and Bi-Quad filters which can be used to
implement the essential audio signal processing functions like loudness
control, loud speaker response compensation and parametric equalizers.
All the functions of the NTP-3200 can be controlled by internal register
values via I2C host interface bus.
. Inside of New Model
SOUND AMP:NTP3200
Package
56 pin MLF 8mm by 8mm
. Inside of New Model
SOUND AMP:NTP3200
PIN DESCRIPTIONS
. Inside of New Model
SOUND AMP:NTP3200
PIN DESCRIPTIONS
. Inside of New Model
SOUND AMP:NTP3200
PIN DESCRIPTIONS
. Board description
BOARD
DESCRIPTION
. Board description
CONTENTS
1. MAIN BOARD LAYOUT
2. MAIN BOARD PIN CHARACTERISTIC
3. IP BOARD INPUT CHARACTERISTIC
4. POWER OUTPUT CHARACTERISTIC
5. INVERTER OUTPUT CHARACTERISTIC
6. ENVIRONMENTAL CHARACTERISTIC
7. IP BOARD LAYOUT
8. IP BOARD PIN CHARACTERISTIC
. Board description
1. MAIN BOARD LAYOUT
FHD 32"/37"/40"/46" MAIN BOARD
192*195
. Board description
1. MAIN BOARD LAYOUT
HD 26"/32" MAIN BOARD
192*195
Mirror
. Board description
1. MAIN BOARD LAYOUT
HD 19"/22" MAIN BOARD
LVDS
9P
Audio AMP
Flash is in the
Bottom
192*158
Normal
. Board description
1. MAIN BOARD LAYOUT
HD B350 26"/32" MAIN BOARD
Audio AMP
is in the
Bottom
192*122
Mirror
1. MAIN BOARD LAYOUT
FHD 32"~46" ASIA DTV MAIN BOARD
Difference
is only
Input Jack
comparing
with
Europe
FHD Model
1. MAIN BOARD LAYOUT
HD 19"~22" ASIA DTV MAIN BOARD
Difference
is only
Input Jack
comparing
with
Europe HD
Model
. Board description
2. MAIN BOARD PIN CHARACTERISTIC
Main Board power supply : 26" ~ 46"
PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14
NAME HSYNC SW_POWER GND A5V GND GND B13VS B13VS GND GND GND GND B5V B5V
PIN 15 16 17 18 19 20 21 22 23 24 25 26
NAME B5V B5V GND GND GND B13V B13V B13V ANA_D ING
IMM SW_INVERTER GND PWM_D ING
IMM
PIN 27 28 29 30
NAME NC LAMP_DETECT NC NC
12 13 14 15 16
Main Board power supply : B350 26" ~ 32" SW_INV D ing
imm LAMP_DET GND GND
PIN 1 2 3 4 5 6 7 8 9
NAME SW_POWER A13V GND GND GND A5V A5V SW_POWER SW_INVERTER
Main Board power supply : 19" ~ 22"
PIN 1 2 3 4 5 6 7 8 9 10 11
NAME SW_POWER A5V GND A13V GND GND A5V A5V GND A13V A11V
SPEAKER CONNECTOR
PIN 1 2 3 4
NAME L- OUT L+ OUT R- OUT R+ OUT
. Board description
Dimming
Analog Dimming ; Current Amplitude Control
PW Dimming
M
1. I -PWM ; DC(0~3.3V) signal
2. E -PW ; Pulse signal
M
-
ON/OFF I M
-PW
PWM IC
(0~3 )
.3v COMP. LX1691A
I M
-PW + (4 p n DD_CLK
i )
E-PWM
OSC
GND
DET_5V Sync Sync C r
t
I t rna PWM
ne l
Sync + du y
t
Ex rna PWM
te l
. Board description
LAMP DETECT
When TV set turns If the pin has low If it is low level If it is low level
on, main Micom level for 600ms, during 4Sec, then during 4Sec, then
checks this pin 3 Micom makes Micom makes Micom makes
times with 200ms inverter switch off inverter switch off inverter switch off
interval after 2 sec and on after 500ms and on after 500ms and on after 500ms
wait. wait. wait. wait.
V
2sec 500ms 500ms 500ms
Turn On t
200ms interval for check
This Lamp detection function is always working on after booting,
and Inverter off and on control can be shown only 3 times.
. Board description
2. MAIN BOARD PIN CHARACTERISTIC
CN3002-Front control
PIN 1 2 3 4
NAME IR GND A5V LED_STB
PIN 5 6 7 8
NAME NC _
KEY INPUT1 KEY INPUT2
_ GND
FUNCTING DEFINE:
-- A5V Front control board power supply
-- KEY INPUT1,2 key control, form the Menu , channel up/down Etc.
-- IR remote control signal
-- LED_STB control the timing and standby LED color
. Board description
2. MAIN BOARD PIN CHARACTERISTIC
CN6001_T - HD LVDS Digital Signal
PIN 1 2 3 4 5 6
NAME PANEL_VCC PANEL_VCC PANEL_VCC PANEL_VCC PANEL_VCC NC
PIN 7 8 9 10 11 12
NAME GND GND _
RESET TCON GND NC GND
PIN 13 14 15 16 17 18
NAME LVDS TX3+
_ LVDS TX3-
_ GND LVDS TXCLK+
_ LVDS TXCLK-
_ GND
PIN 19 20 21 22 23 24
NAME LVDS TX2+
_ LVDS TX2-
_ GND LVDS TX1+
_ LVDS TX1-
_ GND
PIN 25 26 27 28 29 30
NAME LVDS TX0+
_ _
LVDS TX0- GND SDA_TCON SCL_TCON WPN
FANET: Reads the T-CON BD EEPROM
Reduces the tact time including W/B,
F/Option setting and Protects service error
. Board description
1.Sequence Spec_ Power
Rising time _V = 0.9* V _ max
A 220V On
C
(Phase :0 )
Stand By
+5V
A
Power_ On
B
+5V (+ 5V / +13V )
C There is no spec about
+13V
Which vol tage is f as t e r.
Inverter_ On D
Lamp
Cur rent
Spec MIN (msec) MAX (msec)
A 100 1200
B 10 500
C 0.01 20m
D 10 300
. Board description
IP (Integrated Power)
Inverter
Cu r t Con r l
r en to
AC IN & PFC
Transformer 1300V/140mA
EMC (EED4018)
(EER2940x2)
PFC Control
LLC Resonant
Boot-Up
(LX1692B)
(FAN7530)
INV_ON
Vot ge Con r l
la to
STB5.3V/0.2A
5.3V/3.1A
Multi+STB Switch Main
Transformer
(EER3124) Switch 13V/1.2A
Speaker
13V/2.7A
T-con
Flyback
(FSQ0765R)
PS_ON
. Board description
3. IP BOARD INPUT CHARCTERISTIC
3. INPUT CHARACTERISTICS
3.1 INPUT VOLTAGE RANGE 90Vac TO 264Vac , SINGLE PHASE.
NORMAL VOLTAGE: 100-240Vac
3.2 INPUT FREQUENCY RANGE 47Hz TO 63Hz.
NORMAL FREQUENCY: 50-60Hz
3.3 MAX INPUT AC CURRENT 2.0Arms @90VAC.
3.4 INRUSH CURRENT PEAK INRUSH CURRENT AT ANY ALLOWABLE OPERATING
TEMPERATURE SHALL NOT OPEN LINE FUSE, RECIFIER DIODE
OR CAUSE PERMANENT DAMAGE TO THE SUPPLY.
3.5 DPMS DISSAPATION LESS THAN 0.9 WATT AT 5V/40mA, AT 230Vac/60Hz.
OR NO LOAD 0.5W MAX AT 230Vac/60Hz
. Board description
4. POWER OUTPUT CHARACTERISTIC
4. POWER OUTPUT CHARACTERISTICS
4.1 . Power Output Voltage
Min ( Vrms ) NOM ( Vrms ) Max ( Vrms )
Parameter
+13Vdc 12.5 13.0 13.2
+5.3Vdc 5.03 5.3 5.56
+5.3VSBdc 5.03 5.3 5.56
The output voltage is measured at the connector at the output end of the cable.
4.2 . Power Output Current
Min ( Arms ) NOM ( Arms ) Max ( Arms )
Parameter
+13Vdc 0.2 - 1.6
+5.3Vdc 0.5 - 2
+5.3VSBdc 0.01 - 0.6
The minimum and maximum continuous output current are listed in this section
. Board description
4. POWER OUTPUT CHARACTERISTIC
4-3. Output Ripple / Noise
Tested with 0.1uF and 47uF capacitance at output connector terminal for ripple and noise test.
Ripple Voltage (mV p-p)
Parameter
+13Vdc 300
+5.3Vdc 200
+5.3VSBdc 200
4.4. Output Over Voltage Protection
V Max.
Parameter
+13Vdc 17V
+5.3Vdc 8.5V
+5.3VSBdc 8.5V
. Board description
4. POWER OUTPUT CHARACTERISTIC
4.5. Output Over Current Protection
Parameter A Min.
+13Vdc 2.5A
+5.3Vdc 2.8A
+5.3VSBdc 1.5A
4.6. Output Power And Turn-on Delay
The turn-on delay from application of AC input power to the establishment of rated DC power
voltage should not exceed 3 seconds@100Vac under any conditions at CC mode test .
4.7. Output Voltage Hold-up Time
When the power supply is operated at 100% of maximum continuous output load , the minimum
output hold-up time after loss of input power shall be 20.0mS for AC input voltage (100Vac /
60Hz ) and at 45-degrees cut angle
. Board description
5. INVERTER OUTPUT CHARACTERISTIC
5. INVERTER OUTPUT CHARACTERISTICS
5.1.INVERTER INPUT CHARACTERISTICS
PARAMETER SYMBOL MIN. NOM. MAX. UNIT REMARKS
Input Current Iin - - - V
Input Power Pin - - - W
ON/OFF Control 0 - 0.8 V OFF STATE
Von/off
Voltage 2.4 - 5.25 V ON STATE
PARAMETER SYMBOL MIN. NOM. MAX. UNIT REMARKS
PWM Frequency EPWM 140 150 160 Hz PWM FREQUENCY
PWM Signal Duty EPWM 20 - 100 %
. Board description
5. INVERTER OUTPUT CHARACTERISTIC
5.2. INVERTER OUTPUT CHARACTERISTICS
SYMB MA
MIN. NOM. UNIT REMARKS
PARAMETER OL X.
EPWM=100%,All connector ope
Lamp Open Voltage Vopen 1750 - - Vrms
n@ 250C
EPWM=100%,All connector ope
Ignition time Ts 1 - 2 Vrms
n@ 250C
mArm
Lamp Current (max.) Io(max) 7.5 8.0 8.5 EPWM=100%
s
Lamp Frequency f 62 - 65 KHz LOAD : PANEL
NOTE
1). All conditions are at 25 ambient unless otherwise specified .
2). PANEL: NA
. Board description
6. ENVIRONMENTAL CHARACTERISTIC
6. ENVIRONMENTAL CHARACTERISTIC
6.1 TEMPERATURE
Operating: 0 ~ 50
Storage: -20 ~ +70
6.2 HUMIDITY
Operating: 10 ~ 90 % RH
Storage: 5~ 95 % RH
. Board description
7. Power BOARD LAYOUT
19" SMPS Board
DC
Regulation
Inverter
Transformer
AC INPUT
. Board description
7. POWER BOARD LAYOUT
22" SMPS Board
DC
Inverter Regulation
Transformer
AC INPUT
. Board description
7. POWER BOARD LAYOUT
26" IP Board
Inverter
Supply Part
PFC Coil
DC
Regulation AC INPUT
. Board description
7. POWER BOARD LAYOUT
32" IP Board
Inverter
Supply Part
PFC Coil
DC
Regulation AC INPUT
. Board description
7. POWER BOARD LAYOUT
37" IP Board
Inverter
Supply Part
PFC Coil
DC
Regulation AC INPUT
. Board description
7. POWER BOARD LAYOUT
40" IP Board
Inverter
Supply Part
PFC Coil
DC
Regulation
AC INPUT
. Board description
7. POWER BOARD LAYOUT
46" SMPS Board
Inverter
Supply Part
DC
Regulation
PFC Coil
AC INPUT
. Board description
8. IP BOARD PIN CHARACTERISTIC
8. IP BOARD PIN CHARACTERISTICS
8.1 AC INPUT CONNECTOR [PD801S]
PD801S:DAC-11P (DONGIL)
PIN NUMBER SYMBOL RE ARK
M
1 L A Inpu t volt age
C
2 FG GROUND
3 N A Inpu t volt age
C
. Board description
8. IP BOARD PIN CHARACTERISTIC
8.2 POWER OUTPUT CONNECOTR PIN ASSIGNMENT[CNM801]
CN802:SMW200-30C(YEONHO)
PIN NUMBER SYMBOL REMARK
1 POWER ON/OFF POWER SUPPLY ON/OFF
2 H-Sync NC
3 5VSB
4,5,6 GND
7,8 13V(Sound) +13V DC OUTPUT
9,10,11,12 GND
13,14,15,16 5.3V +5.3V DC OUTPUT
17,18 GND
19 13V(MAIN) +13V DC OUTPUT
20 GND
21,22 13V(MAIN) +13V DC OUTPUT
23 Inverter ON/OFF BLU ON/OFF
24 IPWM NC
25 EPWM 20~100%
26 GND S-GND
27 LAMP_DET ERROR (Normal: Hi ; Abnormal :Low)
28,29,30 NC NC
. Board description
8. IP BOARD PIN CHARACTERISTIC
Test Condition of the circuit [Jig Test]
. Board description
8. IP BOARD PIN CHARACTERISTIC
GENERAL REQUIREMENT OF WORLDWIDE STANDARD
1. MEET SAFETY REQUIRMENT.
UL60065, CSA C22.2 NO.60065, IEC 60065 FOR UL,CUL,CB,EK.
2. IMMUNITY TEST (EN55024)
- IEC61000-4-2 ELECTROSTATIC DISCHARGE LMMUNITY TEST (ESD) Level 4 Criterion B
(1) AIR DISCHARGE TEST(WITH SYSTEM) ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
