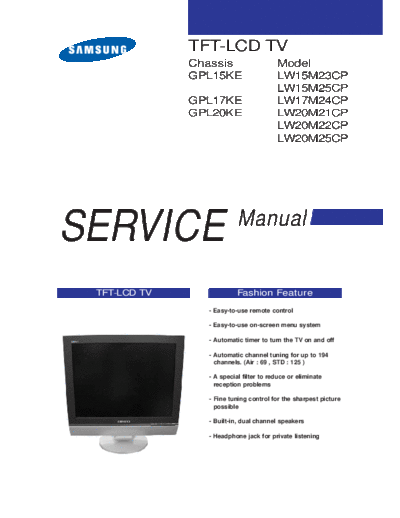

Image preview - the first page of the document
>> Download 01_Cover documenatation <<
Text preview - extract from the document
TFT-LCD TV
Chassis Model
GPL15KE LW15M23CP
LW15M25CP
GPL17KE LW17M24CP
GPL20KE LW20M21CP
LW20M22CP
LW20M25CP
SERVICE Manual
TFT-LCD TV Fashion Feature
- Easy-to-use remote control
- Easy-to-use on-screen menu system
- Automatic timer to turn the TV on and off
- Automatic channel tuning for up to 194
channels. (Air : 69 , STD : 125 )
- A special filter to reduce or eliminate
reception problems
- Fine tuning control for the sharpest picture
possible
- Built-in, dual channel speakers
- Headphone jack for private listening
Samsung Electronics Co.,Ltd.
- This Service Manual is a property of 416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Samsung Electronics Co., Ltd. Gyeonggi-Do, Korea, 443-742
Any unauthorized use of Manual can be Printed in Korea
punished under applicable International P/N : BN82-00131H-01
and/or domestic law. URL : http://itself.sec.samsung.co.kr/
