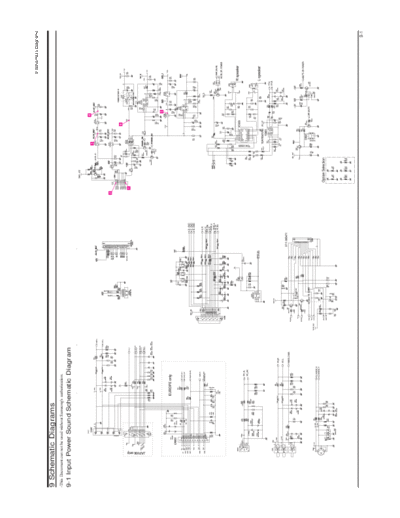

Image preview - the first page of the document
>> Download 15_Schematic Diagram documenatation <<
Text preview - extract from the document
9 Schematic Diagrams
9 Schematic Diagrams
-This Document can not be used without Samsung's authorization.
9-1 Input Power Sound Schematic Diagram
9-1
9 Schematic Diagrams
1 2 3 4
5 6 7 8
9-2
9 Schematic Diagrams
-This Document can not be used without Samsung's authorization.
9-2 UOC III Schematic Diagram
9-3
9 Schematic Diagrams
9
9-4
9 Schematic Diagrams
-This Document can not be used without Samsung's authorization.
9-3 Output Scaler, LVDS Schematic Diagram
9-5
9 Schematic Diagrams
- This Document can not be used without Samsung's authorization.
9-4 IP Board Schematic Diagram(LE15S51BP)
9-6
9 Schematic Diagrams
9-7
9 Schematic Diagrams
9-8
9 Schematic Diagrams
- This Document can not be used without Samsung's authorization.
9-5 IP Board Schematic Diagram(LE20S51BP)
9-9
9 Schematic Diagrams
9-10
