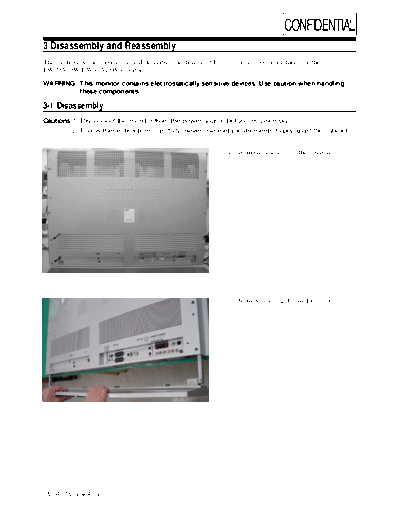

Image preview - the first page of the document
>> Download LW29A13WX_XEC.0000023047.E.06 documenatation <<
Text preview - extract from the document
CONFIDENTIAL
3 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the
LW29A13W/LW40A13W monitor.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
these components.
3-1 Disassembly
Cautions:1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
1. Remove 4 screws of the cover rear.
2. Remove the stand from LCD-TV.
LW29A13W/LW40A13W 3-1
3 Disassembly and Reassembly
CONFIDENTIAL
3. Remove 4 screws of the cover rear.
4. Pull the cover rear.
3-2 Reassembly
Reassembly procedures are in the reverse order of Disassembly procedures.
