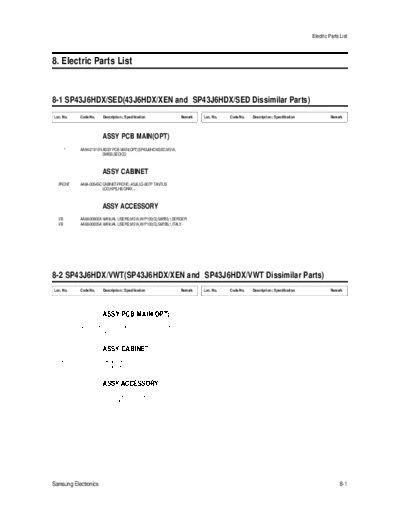

Image preview - the first page of the document
>> Download SP43J6HDX_BWT.0000027750.E.12 documenatation <<
Text preview - extract from the document
Electric Parts List
8. Electric Parts List
8-1 SP43J6HDX/SED(43J6HDX/XEN and SP43J6HDX/SED Dissimilar Parts)
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
ASSY PCB MAIN(OPT)
* AA94-01910NASSY PCB MAIN(OPT);SP43J6HDX/SED,M51A,
SWISS,SEDICO
ASSY CABINET
FRONT AA64-00545C CABINET-FRONT;-,43J6,LG-807P TANTUS
LCD,HIPS,HB,GRAY,-,-
ASSY ACCESSORY
I/B AA68-00802A MANUAL USERS;M51A,W/P100(G),56P,B5,1,GER,GER
I/B AA68-00835A MANUAL USERS;M51A,W/P100(G),56P,B5,1,ITALY,-
8-2 SP43J6HDX/VWT(SP43J6HDX/XEN and SP43J6HDX/VWT Dissimilar Parts)
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
ASSY PCB MAIN(OPT)
* AA94-01910P ASSY PCB MAIN(OPT);SP43J6HDX/VWT,M51A,LITHUA
NIA,VWT
ASSY CABINET
FRONT AA64-00545C CABINET-FRONT;-,43J6,LG-807P TANTUS
LCD,HIPS,HB,GRAY,-,-
ASSY ACCESSORY
I/B AA68-00948A MANUAL USERS;SP43J6HD,-,RUS,-,W/P100(G),
1,-,B5,-,-,M51A,56P
Samsung Electronics 8-1
Electric Parts List
8-3 SP43J6HDX/XEN Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
ASSY PCB MAIN(OPT) C864
C866
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-002273 C-AL;220uF,20%,25V,HR,TP,10x20mm,5m
C870 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
* AA94-01910K ASSY PCB MAIN(OPT);SP43J6HDX/XEN,M51A,NE C901 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C902 2401-000914 C-AL;22uF,20%,16V,GP,TP,5x11,5
AB1 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH C903 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
AR1 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH C904 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C101 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m C905 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C103 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m C907 2305-000411 C-FILM,MPEF;470nF,5%,50V,TP,7.3x4.8x5.5m
C104 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 C909 2305-000411 C-FILM,MPEF;470nF,5%,50V,TP,7.3x4.8x5.5m
C105 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m C911 2305-000411 C-FILM,MPEF;470nF,5%,50V,TP,7.3x4.8x5.5m
C107 2305-000289 C-FILM,MPEF;220nF,5%,63V,TP,-,5mm CN17 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH
C108 2401-000667 C-AL;2.2uF,20%,50V,WT,TP,5x11,5 CN704A 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT,
C109 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 CN705A 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT,
C111 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, CNM01 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5MM,STRAIGH
C112 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5 CNM02 3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
C113 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5 CNM09 3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
C114 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, CNM10 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5MM,STRAIGH
C115 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5 CNM13 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
C116 2401-001176 C-AL;33uF,20%,25V,GP,TP,5x11,5 CNT01 3711-002646 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
C117 2201-000982 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4 D101 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C119 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 D103 0401-001088 DIODE-SWITCHING;BAW76,50V,300mA,DO-35,TP
C120 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 D104 0401-001088 DIODE-SWITCHING;BAW76,50V,300mA,DO-35,TP
C121 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 D601 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C267 2201-000146 C-CERAMIC,DISC;0.1nF,5%,50V,SL,TP,5x3.5, D602 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C270 2201-000375 C-CERAMIC,DISC;0.22nF,5%,50V,RH,TP,12.5x D603 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C290 2201-000376 C-CERAMIC,DISC;0.22nF,5%,50V,SL,TP,6.3x3 D604 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C296 2201-000558 C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3 D901 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C603 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 D902 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C604 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 D903 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C605 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 DZ102 1203-000451 IC-VOLTAGE REGULATOR;33,TO-92,3P,-,PLAST
C606 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 DZ201 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
C607 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7 DZ202 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
C608 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 DZ203 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
C609 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 DZ205 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
C610 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5 DZ603 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
C611 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 DZ604 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
C612 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 DZ901 0403-001331 DIODE-ZENER;MTZJ6.8A,6.29-6.63V,500mW,DO
C613 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 DZ902 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
C614 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 FI102 2904-000301 FILTER-SAW AV;38.9MHz,SIP5K,ST,16dB,B/G,
C615 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 FI103 2903-000181 FILTER-CERAMIC;BR,5.5MHz,-,-,-,TP,TPS5.5
C616 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 FI105 2904-000302 FILTER-SAW AV;38.9MHz,SIP5K,ST,15.4dB,B/
C617 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7 ! IC101 1204-001276 IC-SOUND PROCESSOR;TDA9810,DIP,24P,400MI
C618 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 ! IC601 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1 H/SINK
C619 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5 ! IC602 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1 H/SINK
C620 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 ! IC802 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA H/SINK
C623 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 ! IC803 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA H/SINK
C624 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 ! IC805 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
C629 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ! IC806 1203-000298 IC-POSI.FIXED REG.;7809,TO-220,3P,-,PLAS
C636 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 ! IC904 1001-001038 IC-ANALOG SWITCH;SAA1300,-,SOT-142,9P,-,
C637 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 ! IC905 0904-001121 IC-I/O SUPPORT CHIP;8574,8BIT,DIP,16P,30
C638 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 L101 AA26-10006G TRANS-IF;-,7mG,VIF,-,7mm,8pF,77.8MHz,ST
C639 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 L104 2701-000101 INDUCTOR-AXIAL;1.2uH,10%,2.5x3.4mm
C641 2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5 L105 2701-000120 INDUCTOR-AXIAL;12uH,10%,2.5x3.4mm
C642 2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5 L106 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C643 2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5 L107 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C644 2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5 L108 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C831 2401-002231 C-AL;470uF,20%,50V,WT,TP,13x20mm,5m L109 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
C832 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m L110 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
C833 2401-003034 C-AL;220uF,20%,16V,WT,TP,8x11.5,5 L113 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C835 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m L201 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
C836 2401-002231 C-AL;470uF,20%,50V,WT,TP,13x20mm,5m L276 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
C837 2401-001101 C-AL;330uF,20%,16V,GP,TP,8x11.5,5 L277 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
C838 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m L278 2701-000146 INDUCTOR-AXIAL;2.2uH,10%,2.5x3.4mm
C839 2401-003034 C-AL;220uF,20%,16V,WT,TP,8x11.5,5 L290 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
C840 2401-003034 C-AL;220uF,20%,16V,WT,TP,8x11.5,5 L291 2701-000159 INDUCTOR-AXIAL;22uH,10%,4.2x9.8mm
C841 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m L292 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C842 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 L601 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
C843 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m L602 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
C851 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m L901 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C852 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m LI01 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
C863 2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5 LI02 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
8-2 Samsung Electronics
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
LI03 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, R906 2001-000723 R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
LI04 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, R907 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
LI05 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, R908 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
LI06 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, R909 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
LI07 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, R910 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
LI08 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, R911 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
LI09 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, R912 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
LI10 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, R913 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB AA41-11005E PCB-MAIN;M51A,1L,CEM-1,330x245x1.6T,1A, R914 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
Q101 0504-000137 TR-DIGITAL;KSR1202,NPN,300mW,10K/10K,TO- R915 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
Q102 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R916 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
Q104 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R917 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
Q105 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T R925 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
Q602 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R926 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Q603 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R927 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Q901 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T R928 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
Q902 0504-000117 TR-DIGITAL;KSR1002,NPN,300MW,10K/10K,TO- R929 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
Q903 0504-000117 TR-DIGITAL;KSR1002,NPN,300MW,10K/10K,TO- R930 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Q904 0504-000117 TR-DIGITAL;KSR1002,NPN,300MW,10K/10K,TO- R933 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
Q905 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T S/CASE AA63-40279A SHIELD-CASE-IF;-,SPTE,T0.25,SCT53A,CW764
R101 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM TU01 AA40-10006MTUNER-F/S;TECC2949PG29A(S),PAL-B/G,TR,18
R102 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM VR101 2103-000672 VR-SEMI;20Kohm,25%,1/5W,TOP
R105 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM VR102 2103-000676 VR-SEMI;50Kohm,25%,1/5W,TOP
R106 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R107 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R109 2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
R110 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
ASSY CABINET
R111 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R113 2001-001138 R-CARBON(S);390OHM,5%,1/2W,AA,TP,2.4X6.4 * AA90-00246L ASSY CABINET;43J6,SP43J6HDX/XEN
R116 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R121 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM BC+EG AA60-00016A SCREW-ASSY;WC,HH,+,M3,L10,SWRCH18A,ZPC(S
R122 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM BMLCBT AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
R123 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M BMTCBT AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
R124 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M BR+HMB AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM BSLCBT AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
R126 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM BSS+CF AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
R268 2001-000302 R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM BST+CF AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
R269 2001-000302 R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM CB+HC 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
R601 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. CB+HTA 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
R602 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. CBB+CM 6003-001025 SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
R603 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4 CBB+HT 6003-001025 SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
R604 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. CBBCBT 6003-001025 SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
R605 2001-000908 R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM CC+CB 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
R606 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4 CT+HMB AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
R607 2001-000908 R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM CT+HS 6003-001025 SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
R608 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM EG+CM 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
R609 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM EG+HMB AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
R610 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. HF+CM 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
R611 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. HT+CM 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
R612 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4 HT+JA5 6002-000512 SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
R613 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. HT+SCT 6002-000512 SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
R614 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. LEN+EG AA60-00016A SCREW-ASSY;WC,HH,+,M3,L10,SWRCH18A,ZPC(S
R615 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4 PB+CBT 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R616 2001-000908 R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM PB+CDT 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R617 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM PCB+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R618 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM PCB+KF 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R619 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M PFC+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R620 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M PL+EG 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R621 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M PLC+EG 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R622 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M PM+CM 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
R623 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM PS+EG 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R624 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M SL+HMB 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
R625 2001-001053 R-CARBON(S);1.5OHM,5%,1/2W,AA,TP,2.4X6.4 AA60-00047A SPACER-SIDE,JACK;NEOPRENE,-,BLK,-,43J6,-
R626 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA60-00050A SPACER-FRONT;NEOPRENE HB,-,GRAY,-,43J6,-
R629 2001-000908 R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA61-00176B HOLDER-SIDE,R;-,43J6,AL6063,-,-,GD-906P
R630 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. AA61-00180B HOLDER-CHASSIS;-,43J6,ABS,VO,GRAY,-
R631 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4 AA61-00183B BRACKET-MIRROR,LCD;-,43J6,SECC-1,T1.6,BL
R633 2001-001124 R-CARBON(S);3.9OHM,5%,1/2W,AA,TP,2.4X6.4 AA61-00184B BRACKET-MIRROR,TOP;-,43J6,SECC-1,T1.6,BL
R641 2001-000011 R-CARBON;75KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA61-00296B HOUSING-MECHA,BASE;43J6,HIPS,-,-,BLK,-,-
R642 2001-000011 R-CARBON;75KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA61-00297B BRACKET-BALLAST,CONNECTOR;-,40J3P,SECC-1
R643 2001-000011 R-CARBON;75KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA61-00353A HOLDER-PCB;-,ST43J6,40J3,NYLON 66,-,NTR,
R644 2001-000011 R-CARBON;75KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA61-00360B BRACKET-SIDE,LCD;-,43J6,SECC-1,T1.0,BLK,
R901 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA61-00375B HOLDER-SIDE,L;-,43J6,AL6063,-,-,GD-906P
R902 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA61-20129A HOLDER-WIRE;-,-,NYLON-66,-,NTR,DAFC-2500
R903 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2M AA61-20285A HOLDER-BOX;-,3456,PP,VO,WHT,-
R904 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM AA61-50110A SHAFT-LENS;SVP-403J,BSBM,OD6,L12,-,-,-
R905 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M AA61-60003E SPRING-CS;-,SUS304,0.5,OD8,H9,N5,-,-,-
Samsung Electronics 8-3
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
AA63-00021A SPACER-MIRROR;PVC,-,BLK,-,SVP403J,-
AA63-00021G SPACER-MIRROR;PVC,-,BLK,L420,524J,434J,-
ASSY SPEAKER
AA63-00152B COVER-BACK;-,43J6,-,HIPS,VO,BLK,-,-
AA63-00155B COVER-TOP;-,43J6,LG-807P,HIPS,HB,GRAY,-, * AA96-00301A ASSY SPEAKER;-,8ohm,20W,3001-001142/0011
AA63-00156B COVER-BOT;-,43J6,LG-807P,HIPS,HB,GRAY,-,
AA63-00157B COVER-DUST;-,43J6,-,HIPS,VO,BLK,-,- 3001-001142 SPEAKER;25W,8ohm,89dB,60Hz
AA63-00172B COVER-CAS;-,43J6,-,HIPS,VO,BLK,-,- 3001-001144 SPEAKER;25W,7ohm,88dB,1.6KHz
AA63-00199B COVER-LCD;-,40J3P,-,ABS,V0,BLK,-,- AA39-00086A LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,RE
AA63-00200B COVER-DUCT,TOP;-,43J6,-,HIPS,VO,BLK,-,- AA39-20505A LEAD CONNECTOR-ASSY;-,YSH025-04,REC,4P,9
AA63-00228B COVER-TERMINAL;-,43J6,-,ABS,VO,BLK,-,-
AA64-00545B CABINET-FRONT;-,43J6,LG-807P NO-SILK,HIP
AA64-00546B CABINET-BACK,TOP;-,43J6,-,HIPS,VO,BLK,-, ASSY SPEAKER
AA64-00554B KNOB-FAMILY;-,43J6,GD-906P,ABS,HB,GRAY
AA64-00585B KNOB-MASTER;-,43J6,GD-906P,ABS,HB,GRAY
* AA96-00302A ASSY SPEAKER;-,8ohm,15W,3001-001143,600m
AA64-00809B INDICATOR LED;-,ST-43J6,-,ACRYL,-,CLR,-
AA64-00890B INLAY CONTROL;43J6,-,PS SHEET,T0.3,BLK,-
3001-001143 SPEAKER;15W,8ohm,90dB,150Hz
AA64-00969B INLAY-SCREEN;43J6,-,PS SHEET,T0.5,BLK,-,
AA39-20501C LEAD CONNECTOR-ASSY;-,67096-003,REC,3(2)
AA65-30102A CLAMP-WIRE;NYLON,66,GRAY,-,-,-
AA65-30105A CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE
AA67-00050A SCREEN-FRESNEL;-,43W,-,PMMA,-,T2.0,973*
AA67-00051A SCREEN-LENTICULAR;-,43W,-,PMMA,-,T2.1,9
AA67-00057A MIRROR-FRONT;-,43W,GLASS,T3.0,FSM,-
AA67-10047B LENS-ASSY;40J5,GLASS,-,F1.5/19.4,-,T533, ASSY-COVER,GRILLE
AA63-60123E SPACER-SPONGE,LCD;SPONGE,7,BLK,V0,SVP-40
* AA91-00292A ASSY-COVER,GRILLE;-,-,700G GRAY,43J6
ASSY-LENS,MECHA AA61-00206A MAGNET-GRILLE;43J6,PI15X3T,-,-
AA61-00352B HOLDER-BADGE;-,43J6,ABS,HB,GRAY,LG-807P
AA63-00153B COVER-GRILLE;43J6,HIPS,-,HB,GRAY,-,-
* AA91-00242A ASSY-LENS,MECHA;-,-,DS007,ST-43J6
AA60-00051B SPACER-MAGNET;ST43J6,PS SHEET,-,-,-,-,T1
AA64-00674B BADGE-BRAND;43J6,AL ETCHING,-,-,200,SILV
CBT+CF 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
CD+CBT 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
CF+CM 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
CM+CBT 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR ASSY-FAN
HC+CBT AA60-10050WSCREW-WOOD;W/H,+,M4,20,ZPC(BLK),SWRCH18A
AA63-60131A SPACER-FELT;FELT,T0.5,BLK,80x70,SVP403J, * AA91-00293A ASSY-FAN;-,VO,FAN BLK,43J6
AA61-00406B BRACKET-SCREEN,TOP;-,43J6,AL6063,-,BLK,E
AA61-00405B BRACKET-SCREEN,SIDE;-,43J6,AL6063,-,BLK, FAN+HF 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
AA63-00140B SPACER-FAN;EPDM,-,BLK,880X7X2,PJT,- 3103-001017 FAN-DC;12VDC,120mA,2200rpm,1m^3,2.3P
AA63-00140C SPACER-FAN;EPDM,-,BLK,510X7X2,PJT,- AA39-20014H LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,67
AA63-00309B GRILLE-LAMP;43J6,3R PI2,SECC-1,T0.5,-,- AA61-00178B HOLDER-FAN;-,43J6,ABS,VO,BLK,-
AA63-60001X SPACER-FELT;FELT,T0.5,BLK,330X15,-,-
AA63-60002J SPACER-FELT;FELT,T1.0,BLK,340X40,-,-
AA63-60001V SPACER-FELT;FELT,T0.5,BLK,200X15,-,-
ASSY-FILTER
* AA91-00294A ASSY-FILTER;-,VO,PU-FORM BLK,43J6
ASSY-CABINET BACK,BOT
AA60-00032A SPACER-FILTER;P/U-FOAM V0 16,-,BLK,-,50J
* AA91-00290A ASSY-CABINET BACK,BOT;-,VO,PS BLK,43J6 AA61-00160B HOLDER-FILTER;-,43J6,ABS,VO,BLK,-
BC+CBB AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
CL+CBB AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW
AA63-00170B COVER-LAMP;-,43J6,-,HIPS,VO,BLK,-,-
ASSY-FAN,IN
AA64-00547B CABINET-BACK,BOT;-,43J6,-,HIPS,VO,BLK,-,
AA64-00578B INLAY-LAMP;43J6,-,PS SHEET,T0.3,BLK,-,- * AA91-00309A ASSY-FAN,IN;-,-,FAN-DC 8V,43J6
AA61-10379B BRACKET-COVER;-,SP43J6,SECC-1,T1.0,-,-,-
AA63-00099B SPACER-FELT;43J6,FELT,-,-,-,BLK,T1.0,-,8 3103-001017 FAN-DC;12VDC,120mA,2200rpm,1m^3,2.3P
AA39-20014H LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,67
AA63-00140A SPACER-FAN;436W,CR SPONGE,-,-,-,BLK,-,-,
ASSY-CABINET MAIN
* AA91-00291A ASSY-CABINET MAIN;-,VO,PS BLK,43J6
ASSY TERMINAL BOARD
BG+CM 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR * AA91-00319A ASSY TERMINAL BOARD;-,HIPS,VO,BLK,M51A P
HM+CM 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SPC+CM 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR AA61-00188B HOLDER-TERMINAL;-,43J6,HIPS,VO,BLK,-
SPT+CM 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW AA64-00576C INLAY-TERMINAL,PAL;43J6,-,PS SHEET,T0.5,
SPW+CM 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
AA60-00033A SPACER-LENS;P/U-FOAM V0 16,-,BLK,-,50J6,
AA61-00165B BRACKET-GRILLE;-,43J6,SECC-1,T1.0,BLK,-,
AA61-00173B HOLDER-CABINET,A;-,43J6,HIPS,HB,GRAY,LG-
ASSY-PCB,AUDIO
AA61-00181B HOLDER-MAIN;-,43J6,HIPS,HB,BLK,-
AA95-00197A ASSY-PCB,AUDIO;-,SP403JHA,PLT51A,-,-,-
AA61-00181C HOLDER-MAIN,S;-,43J6,HIPS,HB,BLK,-
AA63-60117A SPACER-FOOT;NEOPRENE,-,BLK,V1,SVP403J,-
C601 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
AA64-00548B CABINET-MAIN;-,43J6,LG-807P,HIPS,VO,GRAY
C602 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
8-4 Samsung Electronics
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
C603 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, C697 2203-000170 C-CERAMIC,CHIP;1.8nF,10%,50V,X7R,TP,2012
C604 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, CB1 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C605 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 CD601 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C606 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 CD602 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C610 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 CD603 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5
C611 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 CD604 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012
C612 2203-000716 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012 CD605 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C613 2203-000716 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012 CD606 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5
C614 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 CD607 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C615 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012 CD608 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C616 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 CD609 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C617 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012 CD610 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C618 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,- CD611 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C619 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,- CD612 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C620 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 CD613 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C621 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 CD615 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C622 2203-000701 C-CERAMIC,CHIP;0.002nF,0.25pF,50V,NP0,TP CD616 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
C623 2203-000701 C-CERAMIC,CHIP;0.002nF,0.25pF,50V,NP0,TP CD618 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
C624 2203-001077 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201 CD619 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C625 2203-001077 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201 CD620 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C626 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 CD621 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C627 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 CD622 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C628 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012 CD623 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C629 2203-001077 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201 CD624 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C630 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 CD625 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5
C631 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 CD626 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C632 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 CD627 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5
C633 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 CD628 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C634 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 CD629 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C635 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 CD630 2203-002442 C-CERAMIC,CHIP;330nF,+80-20%,25V,Y5V,TP,
C636 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 CDB1 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C637 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 CN601A 3711-003626 CONNECTOR-HEADER;NOWALL,20P,1R,2.5mm,ANG
C638 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm CN602A 3711-003626 CONNECTOR-HEADER;NOWALL,20P,1R,2.5mm,ANG
C639 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm D601 0401-000133 DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
C640 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 D602 0401-000133 DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
C641 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012 D603 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C642 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 D604 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C643 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 D605 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C644 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 D606 0401-000005 DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
C645 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 ! IC601 1204-001163 IC-SOUND PROCESSOR;MSP3410D-B4,PLCC,68P,
C646 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 ! IC602 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
C647 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 ! IC603 1201-000407 IC-POWER AMP;7050,DIP,8P,-,SINGLE,-,PLAS
C648 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 ! IC604 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
C649 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 ! ICD601 1204-001198 IC-DECODER;DPL3519A-A2,PLCC,68P,-,PLASTI
C650 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 ! ICD602 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
C651 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, L601 2701-000170 INDUCTOR-AXIAL;3.9uH,10%,3x7mm
C653 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 L602 2701-000170 INDUCTOR-AXIAL;3.9uH,10%,3x7mm
C654 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 L603 2701-000112 INDUCTOR-AXIAL;100uH,10%,3x7mm
C655 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 LD601 2701-000170 INDUCTOR-AXIAL;3.9uH,10%,3x7mm
C656 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 LD602 2701-000112 INDUCTOR-AXIAL;100uH,10%,3x7mm
C657 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 LD603 2701-000170 INDUCTOR-AXIAL;3.9uH,10%,3x7mm
C658 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 PCB AA41-00087A PCB-AUDIO;PLT51A,2L,FR-4,180X245X1.6T,3A
C659 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 Q604 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
C660 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 Q605 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
C661 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 Q606 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
C662 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 Q607 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
C663 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 R603 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
C664 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 R604 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
C665 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 R605 2007-000881 R-CHIP;4.7OHM,5%,1/10W,DA,TP,2012
C666 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 R606 2007-000881 R-CHIP;4.7OHM,5%,1/10W,DA,TP,2012
C667 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 R607 2001-001105 R-CARBON(S);20OHM,5%,1/2W,AA,TP,2.4X6.4M
C668 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 R608 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
C669 2401-002229 C-AL;470nF,20%,50V,WT,TP,5x11,5 R609 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
C670 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 R610 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C679 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 R611 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C680 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 R612 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012
C681 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 R613 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012
C682 2203-002392 C-CERAMIC,CHIP;220nF,+80-20%,50V,Y5V,TP, R614 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
C683 2203-002392 C-CERAMIC,CHIP;220nF,+80-20%,50V,Y5V,TP, R617 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
C684 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 R618 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
C685 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, R619 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C688 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 R620 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C691 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 R621 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C692 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 R622 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C694 2401-002212 C-AL;10uF,20%,25V,WT,TP,5x11,5 R623 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012
C695 2203-002442 C-CERAMIC,CHIP;330nF,+80-20%,25V,Y5V,TP, R624 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012
C696 2203-000170 C-CERAMIC,CHIP;1.8nF,10%,50V,X7R,TP,2012 R625 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012
Samsung Electronics 8-5
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
R626 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012 C928 2401-001469 C-AL;47uF,20%,10V,GP,TP,5x11,5
R632 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C929 2401-001469 C-AL;47uF,20%,10V,GP,TP,5x11,5
R633 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C930 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
R634 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C931 2401-000934 C-AL;22uF,20%,25V,BP,TP,8x11.5,5
R635 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C932 2203-000753 C-CERAMIC,CHIP;330nF,+80-20%,50V,Y5V,TP,
R636 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C999 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
R637 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 CNU01 3711-003543 CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
R638 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 CNU02 3711-002709 CONNECTOR-HEADER;NOWALL,12P,1R,2.5MM,ANG
R639 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 CNU03 3711-003543 CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
R640 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 CT01 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
R641 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 CT02 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
R642 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 CT04 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
R643 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 CT05 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
R644 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 CT06 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
R645 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 CT07 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
R646 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 CT10 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
R647 2007-000328 R-CHIP;11KOHM,5%,1/10W,DA,TP,2012 CT11 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5
R648 2007-000328 R-CHIP;11KOHM,5%,1/10W,DA,TP,2012 CT12 2203-000634 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
R651 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 CT13 2203-001077 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
R652 2007-000221 R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012 CT15 2203-000818 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,201
R653 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 CT16 2203-000818 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,201
R655 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 CT17 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
R656 2007-000221 R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012 CT18 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
R657 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 CT19 2203-000353 C-CERAMIC,CHIP;0.15nF,10%,50V,NP0,TP,201
R660 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 D901 0403-000689 DIODE-ZENER;DTZ5.1A,5.1V,4.84-5.04V,200m
R661 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 D902 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
R664 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012 ! IC901 AA13-30013H IC-MCU;SDA30C264,-,TP,-,64P,SDIP,16MH
R665 2007-000774 R-CHIP;33KOHM,5%,1/10W,DA,TP,2012 ! IC902 1103-001043 IC-EEPROM;24C16,2Kx8BIT,DIP,8P,300MIL,10
R666 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 ! IC903 1102-001010 IC-EPROM;27C040,512Kx8BIT,DIP,32P,600MI
R669 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012 ! ICT01 1204-001626 IC-HOR./VER.PROCESSO;SDA5273-2P,PLCC,68P
R670 2007-000774 R-CHIP;33KOHM,5%,1/10W,DA,TP,2012 ! ICT02 1105-001140 IC-DRAM;44C1004,1Mx4BIT,SOP,20P,300MIL
R671 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 L901 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
R672 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012 L902 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
R673 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012 L903 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
R674 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 PCB AA41-10974A PCB-MICOM;PLT51A,2L,FR-4,245x180x1.6T,A3
R675 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 Q901 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
RB1 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 Q902 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
RB2 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 Q903 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
RB3 2007-000328 R-CHIP;11KOHM,5%,1/10W,DA,TP,2012 Q904 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
RB4 2007-000328 R-CHIP;11KOHM,5%,1/10W,DA,TP,2012 QT01 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
RD601 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R901 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
RD602 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 R902 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
RD604 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012 R903 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
RD605 2007-000774 R-CHIP;33KOHM,5%,1/10W,DA,TP,2012 R904 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
RD610 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012 R907 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
RD611 2007-000774 R-CHIP;33KOHM,5%,1/10W,DA,TP,2012 R908 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
RD627 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 R909 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
RDB1 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 R910 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
RDB2 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 R911 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
RDB3 2007-000328 R-CHIP;11KOHM,5%,1/10W,DA,TP,2012 R912 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
RDB4 2007-000328 R-CHIP;11KOHM,5%,1/10W,DA,TP,2012 R913 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
X601 2801-000186 CRYSTAL-UNIT;18.432MHZ,25PPM,28-AAM,8PF, R914 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
Z601 0403-001317 DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO R915 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
AA63-40273A SHIELD-CASE;-,SPTE,T0.5,-,CX724AHD R916 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R917 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R918 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
ASSY-PCB,MICOM R919
R920
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R921 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
* AA95-00198A ASSY-PCB,MICOM;-,SP403JHP,M51A,-,-,- R922 2007-000766 R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R923 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
C901 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 R924 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
C902 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 R925 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
C903 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 R926 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C907 2203-000858 C-CERAMIC,CHIP;0.039nF,5%,50V,NP0,TP,201 R927 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C908 2203-000858 C-CERAMIC,CHIP;0.039nF,5%,50V,NP0,TP,201 R928 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
C909 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm R929 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
C910 2401-001469 C-AL;47uF,20%,10V,GP,TP,5x11,5 R930 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C911 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 R932 2007-000766 R-CHIP;330OHM,5%,1/10W,DA,TP,2012
C917 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 R935 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
C918 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 R936 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
C919 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 R937 2007-000766 R-CHIP;330OHM,5%,1/10W,DA,TP,2012
C920 2401-001469 C-AL;47uF,20%,10V,GP,TP,5x11,5 R938 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C921 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 R952 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C922 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 R953 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
C923 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 R954 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
C924 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 R955 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
8-6 Samsung Electronics
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
R956 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 C254 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
R957 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 C255 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
R958 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 C256 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT01 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 C257 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT02 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012 C258 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT03 2007-000710 R-CHIP;3.9KOHM,5%,1/10W,DA,TP,2012 C259 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT04 2007-000710 R-CHIP;3.9KOHM,5%,1/10W,DA,TP,2012 C260 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT05 2007-000710 R-CHIP;3.9KOHM,5%,1/10W,DA,TP,2012 C262 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5
RT06 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 C263 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT07 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 C264 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT08 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 C265 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT09 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 C266 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT11 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012 C267 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT12 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C268 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT13 2007-000774 R-CHIP;33KOHM,5%,1/10W,DA,TP,2012 C269 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT14 2007-001118 R-CHIP;680OHM,5%,1/10W,DA,TP,2012 C270 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5
RT15 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C271 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT16 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C272 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
RT17 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 C273 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5
X901 2801-001476 CRYSTAL-UNIT;12.0MHz,50ppm,28-ABQ,S,30oh C274 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
XT01 2802-000121 RESONATOR-CERAMIC;20.48MHz,0.5%,TP,10.0x C275 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
AA63-40273A SHIELD-CASE;-,SPTE,T0.5,-,CX724AHD C276 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C277 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C278 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
ASSY-PCB,PROSCON C279
C280
2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C281 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
* AA95-00301A ASSY-PCB,PROSCON;-,SP403JHAX/THO,PLT51A, C282 2203-000239 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C283 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
AB1A AA39-20516A LEAD CONNECTOR-ASSY;-,-,-,3P,-,-,-,PHR-3 C402 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
AF5A AA39-20025L LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,67 C404 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C200G 2203-000578 C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216 C409 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C201 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 C414 2203-000239 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C203 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 C415 2203-001002 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C204 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 C416 2203-001002 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C205 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 C421 2203-001002 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C206 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 C428 2401-000914 C-AL;22uF,20%,16V,GP,TP,5x11,5
C207 2203-000578 C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216 CF01 2203-000555 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C208 2203-000578 C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216 CF02 2203-000555 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C209 2203-000578 C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216 CF03 2203-000555 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C211 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 CF09 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C212 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 CN203 3711-001283 CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
C213 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 CN204 3711-001283 CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
C214 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 CN205 3711-003543 CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
C215 2203-001172 C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP CN206 3711-001283 CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
C216 2203-001172 C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP CNM09A AA39-20032E LEAD CONNECTOR-ASSY;-,67096-012,S,12P,60
C217 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,- CNM10A AA39-20038F LEAD CONNECTOR-ASSY;-,67096-006,S,6Px2,5
C218 2203-000753 C-CERAMIC,CHIP;330nF,+80-20%,50V,Y5V,TP, CNM11 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.54mm,STRAI
C219 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 CNM11A AA39-20025E LEAD CONNECTOR-ASSY;-,67096-010,S,10P,40
C21H 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 CNM14 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.54mm,STRAI
C220 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 CNM15 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.54mm,STRAI
C221 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 D205 0403-000716 DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
C222 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 ! IC201 1205-001172 IC-INTERFACE;CIP3250A-B1,PLCC,68P,-,PLAS
C223 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 ! IC202 1204-001362 IC-VIDEO PROCESS;VPC3215C-B8,PLCC,43P,-,
C224 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 ! IC203 1203-000346 IC-VOL. SUPERVISORY;7705,SOP,8P,150MIL,P
C225 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 ! IC204 1002-001045 IC-D/A CONVERTER;9280,8BIT,PLCC,68P,-,-,
C226 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 ! IC206 1204-001188 IC-VERTICAL PROCESSO;SDA9272,QFP,208P,28
C227 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 ! IC207 1105-001071 IC-DRAM;9253,212x64BIT,QFP,64P,17.2MIL
C228 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 ! IC208 1105-001071 IC-DRAM;9253,212x64BIT,QFP,64P,17.2MIL
C229 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 ! IC212 0803-000123 IC-TTL;74F125,BUFFER,SOP,14P,150MIL,Q
C230 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L201 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
C233 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L202 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
C234 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm L203 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
C236 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm L204 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
C237 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012 L205 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
C239 2203-000753 C-CERAMIC,CHIP;330nF,+80-20%,50V,Y5V,TP, L206 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-
C243 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L207 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-
C244 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L208 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C245 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L211 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C246 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5 L212 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C247 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L213 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C248 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L214 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
C249 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L215 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C250 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L216 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C251 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L217 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C252 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L218 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
C253 2203-000218 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012 L220 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
Samsung Electronics 8-7
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
L230 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm R57 2007-000947 R-CHIP;47OHM,5%,1/10W,DA,TP,2012
L232 2701-000146 INDUCTOR-AXIAL;2.2uH,10%,2.5x3.4mm R65 2007-000947 R-CHIP;47OHM,5%,1/10W,DA,TP,2012
L233 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
