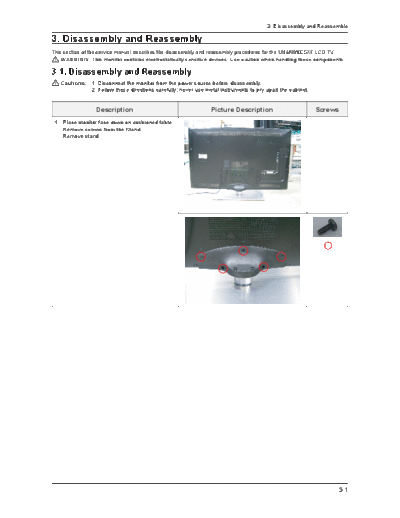

Image preview - the first page of the document



>> Download Disassembly & Reassembly documenatation <<

Text preview - extract from the document

                                                                                       3. Disassembly and Reassemble

3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the UN46B8000XF LCD TV.
    WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these components.

3-1. Disassembly and Reassembly
   Cautions: 1. Disconnect the monitor from the power source before disassembly.
             2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.


                 Description                                    Picture Description                        Screws
 1. Place monitor face down on cushioned table.
    Remove screws from the Stand.
    Remove stand.




                                                                                                                3-1
3. Disassembly and Reassemble


                 Description          Picture Description   Screws
2. Remove the screws of rear-cover.




2-1. Pull out a AC Power Cord




3. Lift up the rear-cover.




3-2
                                                        3. Disassembly and Reassemble


               Description             Picture Description               Screws
4. Remove the cables and screws from                                    Woofer x 2
   SMPS, Main board and Woofer and
   Bracket stand link.




                                                                                 3-3
3. Disassembly and Reassemble


                Description                                 Picture Description   Screws
5. Remove the panel bracket screws from the
   panel.




 Reassembly procedures are in the reverse order of disassembly procedures.




3-4
