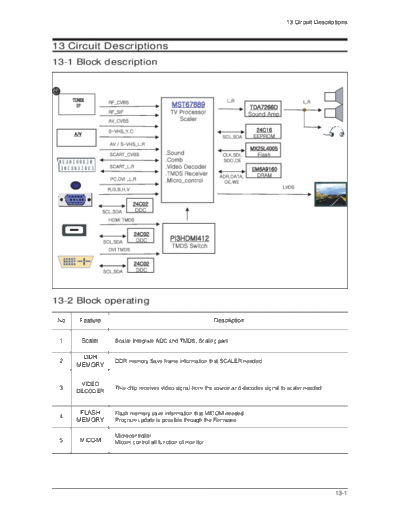

Image preview - the first page of the document



>> Download 225MW[4] documenatation <<

Text preview - extract from the document

                                                                                    13 Circuit Descriptions


13 Circuit Descriptions
13-1 Block description




13-2 Block operating

 No   Feature                                           Description


 1     Scaler   Scaler Integrate ADC and TMDS, Scaling part


        DDR
 2              DDR memory Save frame information that SCALER needed
      MEMORY


       VIDEO
 3              This chip receives video signal from the source and decodes signal to scaler needed
      DECODER


       FLASH    Flash memory save information that MICOM needed
 4
      MEMORY    Program update is possible through the Firmware

                Microcontroller
 5    MICOM     Micom control all function of monitor




                                                                                                      13-1
13 Circuit Descriptions

Memo




13-2
