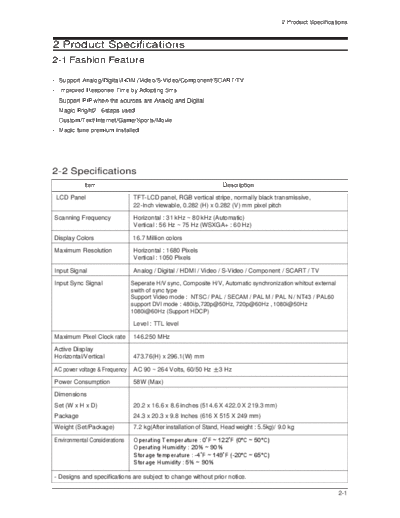

Image preview - the first page of the document
225MW[5]


>> Download 225MW[5] documenatation <<

Text preview - extract from the document
                                                                                         2 Product Specifications


2 Product Specifications
2-1 Fashion Feature

- Support Analog/Digital/HDMI/Video/S-Video/Component/SCART/TV
- Improved Response Time by Adopting 5ms
- Support PIP when the sources are Anaolg and Digital
- Magic Bright2 : 6steps used
  Custom/Text/Internet/Game/Sports/Movie
- Magic tune premium installed




2-2 Specifications
           Item                                                   Description

 LCD Panel                     TFT-LCD panel, RGB vertical stripe, normally black transmissive,
                               22-Inch viewable, 0.282 (H) x 0.282 (V) mm pixel pitch

Scanning Frequency             Horizontal : 31 kHz ~ 80 kHz (Automatic)
                               Vertical : 56 Hz ~ 75 Hz (WSXGA+ : 60 Hz)

Display Colors                 16.7 Million colors

Maximum Resolution             Horizontal : 1680 Pixels
                               Vertical : 1050 Pixels

Input Signal                   Analog / Digital / HDMI / Video / S-Video / Component / SCART / TV
Input Sync Signal              Seperate H/V sync, Composite H/V, Automatic synchronization whitout external
                               swith of sync type
                               Support Video mode : NTSC / PAL / SECAM / PAL M / PAL N / NT43 / PAL60
                               support DVI mode : 480i/p,720p@50Hz, 720p@60Hz , 1080i@50Hz
                               1080i@60Hz (Support HDCP)

                               Level : TTL level

Maximum Pixel Clock rate       146.250 MHz

Active Display
Horizontal/Vertical            473.76(H) x 296.1(W) mm

AC power voltage & Frequency   AC 90 ~ 264 Volts, 60/50 Hz
