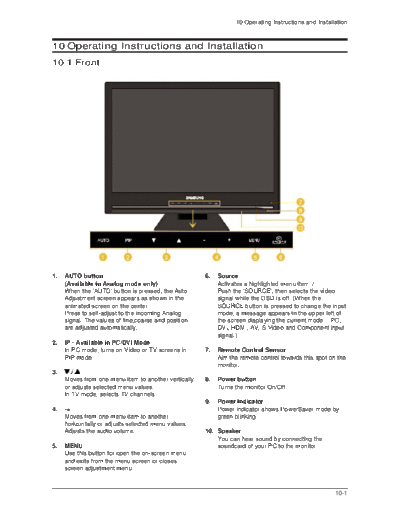

Image preview - the first page of the document

>> Download 225MW[1] documenatation <<

Text preview - extract from the document

10 Operating Instructions and Installation

10 Operating Instructions and Installation
10-1 Front

1. AUTO button 6. Source
(Available in Analog mode only) Activates a highlighted menu item. /
When the 'AUTO' button is pressed, the Auto Push the 'SOURCE', then selects the video
Adjustment screen appears as shown in the signal while the OSD is off. (When the
animated screen on the center. SOURCE button is pressed to change the input
Press to self-adjust to the incoming Analog mode, a message appears in the upper left of
signal. The values of fine,coarse and position the screen displaying the current mode -- PC,
are adjusted automatically. DVI, HDMI, AV, S-Video and Component input
signal.)
2. IP - Available in PC/DVI Mode
In PC mode, turns on Video or TV screens in 7. Remote Control Sensor
PIP mode. Aim the remote control towards this spot on the
monitor.
3.
Moves from one menu item to another vertically 8. Power button
or adjusts selected menu values. Turns the monitor On/Off.
In TV mode, selects TV channels.
9. Power indicator
4. -+ Power indicator shows PowerSaver mode by
Moves from one menu item to another green blinking.
horizontally or adjusts selected menu values.
Adjusts the audio volume. 10. Speaker
You can hear sound by connecting the
5. MENU soundcard of your PC to the monitor.
Use this button for open the on-screen menu
and exits from the menu screen or closes
screen adjustment menu.

10-1
10 Operating Instructions and Installation

10-2 Rear

(The configuration at the back of the monitor may vary from product to product.)

1. POWER
POWER
: Connect the power cord for your monitor to the
POWER on the back of the monitor.

2. DVI/PC IN / HDMI/PC/DVI-D AUDIO IN
1. PC
: Connect the RGB terminal at the back of your
monitor to your computer.
2. DVI-D
: Connect the DVI cable to the DVI-D port on the
back of your monitor.

3. HDMI/PC/DVI-D AUDIO IN
: Connect the HDMI/PC/DVI-D AUDIO IN terminal at
the back of your monitor to your computer's sound
card.

10-2
10 Operating Instructions and Installation

3. COMPONENT IN
1. R - AUDIO - L
: DVD, VCR (DVD / DTV Set-Top Box) sound input
terminal (left/right)

2. PR, PB,Y
: DVD/DTV video input terminal(PR, PB,Y)

4. ANT IN
Connect the CATV cable or TV antenna cable to the
"ANT IN" port on the rear side of the monitor. Make sure
to use a TV antenna cable (sold separately) as the
antenna cable.

5. HDMI IN
HDMI IN
: Connect the HDMI IN terminal at the back of your
monitor to the HDMI terminal of your digital output
device using a HDMI cable.

6. EXT(RGB)
As for EXT(RGB) port of the monitor, it makes TV or
Video signal input and output.

10-3
10 Operating Instructions and Installation

7.
Headphone output terminal

8. Kensington Lock
The Kensington lock is a device used to physically fix the
system when using it in a public place.
(The locking device has to be purchased separately.)
For using a locking device, contact where you purchase
it.

9. S-VIDEO / VIDEO / R - AUDIO - L
1. S-VIDEO
: External device (S-video) input terminal

2. VIDEO
: External device (video) input terminal

3. R - AUDIO - L
: External device sound input terminal

10-4
10 Operating Instructions and Installation

10-3 Using the Stand
10-3-1 Removing the base

1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3. Remove four screws ( A ) and then remove the Stand from the LCD monitor.

10-5
10 Operating Instructions and Installation

10-3-2 Attaching a Base
- This monitor accepts a 100mm x 100mm VESA-compliant mounting interface pad.

A. Monitor

B. Mounting interface pad

1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3. Remove four screws and then remove the stand from the LCD monitor.
4. Align the mounting interface Pad with the holes in the rear cover mounting pad and secure it with four
screws that came with the arm-type base, wall mount hanger or other base.

10-6
