Service Manuals, User Guides, Schematic Diagrams or docs for : Samsung LCD TV 32LE41B SamsungLE32A41B

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

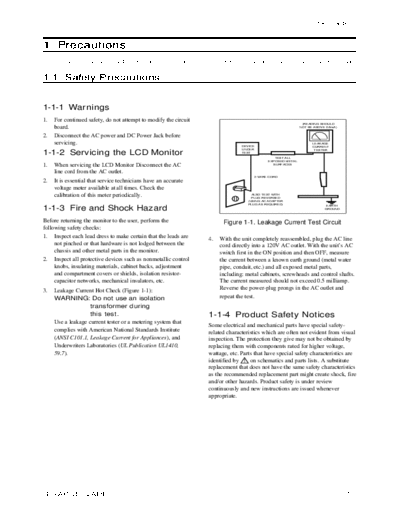

Image preview - the first page of the document
SamsungLE32A41B


>> Download SamsungLE32A41B documenatation <<

Text preview - extract from the document
                                                                                                                          1 Precautions


1 Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1 Safety Precautions


1-1-1 Warnings
1.   For continued safety, do not attempt to modify the circuit
                                                                                                                   (READING SHOULD
     board.                                                                                                       NOT BE ABOVE 0.5mA)


2.   Disconnect the AC power and DC Power Jack before
     servicing.                                                                       DEVICE
                                                                                                                        LEAKAGE
                                                                                                                        CURRENT

1-1-2 Servicing the LCD Monitor
                                                                                      UNDER                              TESTER
                                                                                      TEST
                                                                                                     TEST ALL
                                                                                                  EXPOSED METAL
1.   When servicing the LCD Monitor Disconnect the AC                                               SURFACES

     line cord from the AC outlet.
                                                                                            2-WIRE CORD
2.   It is essential that service technicians have an accurate
     voltage meter available at all times. Check the
     calibration of this meter periodically.                                               ALSO TEST WITH
                                                                                           PLUG REVERSED
                                                                                         (USING AC ADAPTER


1-1-3 Fire and Shock Hazard
                                                                                         PLUG AS REQUIRED)                     EARTH
                                                                                                                              GROUND



Before returning the monitor to the user, perform the                         Figure 1-1. Leakage Current Test Circuit
following safety checks:
1.   Inspect each lead dress to make certain that the leads are         4.   With the unit completely reassembled, plug the AC line
     not pinched or that hardware is not lodged between the                  cord directly into a 120V AC outlet. With the unit's AC
     chassis and other metal parts in the monitor.                           switch first in the ON position and then OFF, measure
2.   Inspect all protective devices such as nonmetallic control              the current between a known earth ground (metal water
     knobs, insulating materials, cabinet backs, adjustment                  pipe, conduit, etc.) and all exposed metal parts,
     and compartment covers or shields, isolation resistor-                  including: metal cabinets, screwheads and control shafts.
     capacitor networks, mechanical insulators, etc.                         The current measured should not exceed 0.5 milliamp.
3.   Leakage Current Hot Check (Figure 1-1):                                 Reverse the power-plug prongs in the AC outlet and
     WARNING: Do not use an isolation                                        repeat the test.
                    transformer during
                    this test.                                          1-1-4 Product Safety Notices
     Use a leakage current tester or a metering system that
                                                                        Some electrical and mechanical parts have special safety-
     complies with American National Standards Institute                related characteristics which are often not evident from visual
     (ANSI C101.1, Leakage Current for Appliances), and                 inspection. The protection they give may not be obtained by
     Underwriters Laboratories (UL Publication UL1410,                  replacing them with components rated for higher voltage,
     59.7).                                                             wattage, etc. Parts that have special safety characteristics are
                                                                        identified by ! on schematics and parts lists. A substitute
                                                                        replacement that does not have the same safety characteristics
                                                                        as the recommended replacement part might create shock, fire
                                                                        and/or other hazards. Product safety is under review
                                                                        continuously and new instructions are issued whenever
                                                                        appropriate.




LE26A41B/LE32A41B                                                                                                                       1-1
1 Precautions

1-2 Servicing Precautions
WARNING:           An electrolytic capacitor installed with the wrong polarity might explode.
Caution:           Before servicing units covered by this service manual, read and follow the Safety Precautions
                   section of this manual.
Note:              If unforeseen circumstances create conflict between the following servicing precautions and any of the safety
                   precautions, always follow the safety precautions.


1-2-1 General Servicing
   Precautions                                                        4.   Check the insulation between the blades of the AC plug
1.    Always unplug the unit's AC power cord from the AC                   and accessible conductive parts (examples: metal panels,
      power source and disconnect the DC Power Jack before                 input terminals and earphone jacks).
      attempting to:                                                  5.   Insulation Checking Procedure: Disconnect the power
      (a) remove or reinstall any component or assembly, (b)               cord from the AC source and turn the power switch ON.
      disconnect PCB plugs or connectors, (c) connect a test               Connect an insulation resistance meter (500 V) to the
      component in parallel with an electrolytic capacitor.                blades of the AC plug.
2.    Some components are raised above the printed circuit                 The insulation resistance between each blade of the AC
      board for safety. An insulation tube or tape is sometimes            plug and accessible conductive parts (see above) should
      used. The internal wiring is sometimes clamped to                    be greater than 1 megohm.
      prevent contact with thermally hot components. Reinstall        6.   Always connect a test instrument's ground lead to the
      all such elements to their original position.                        instrument chassis ground before connecting the positive
3.    After servicing, always check that the screws,                       lead; always remove the instrument's ground lead last.
      components and wiring have been correctly reinstalled.
      Make sure that the area around the serviced part has not
      been damaged.

1-3 Electrostatically Sensitive Devices (ESD) Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The
following techniques will reduce the incidence of component damage caused by static electricity.


1.    Immediately before handling any semiconductor                   6.   Do not remove a replacement ESD from its protective
      components or assemblies, drain the electrostatic charge             package until you are ready to install it. Most
      from your body by touching a known earth ground.                     replacement ESDs are packaged with leads that are
      Alternatively, wear a discharging wrist-strap device. To             electrically shorted together by conductive foam,
      avoid a shock hazard, be sure to remove the wrist strap              aluminum foil or other conductive materials.
      before applying power to the monitor.                           7.   Immediately before removing the protective material
2.    After removing an ESD-equipped assembly, place it on a               from the leads of a replacement ESD, touch the
      conductive surface such as aluminum foil to prevent                  protective material to the chassis or circuit assembly into
      accumulation of an electrostatic charge.                             which the device will be installed.
3.    Do not use freon-propelled chemicals. These can                      Caution: Be sure no power is applied to the
      generate electrical charges sufficient to damage ESDs.                        chassis or circuit and observe all
4.    Use only a grounded-tip soldering iron to solder or                           other safety precautions.
      desolder ESDs.
5.    Use only an anti-static solder removal device. Some             8.   Minimize body motions when handling unpackaged
      solder removal devices not classified as "anti-static" can           replacement ESDs. Motions such as brushing clothes
      generate electrical charges sufficient to damage ESDs.               together, or lifting your foot from a carpeted floor can
                                                                           generate enough static electricity to damage an ESD.




1-2                                                                                                       LE26A41B/LE32A41B
                                                                                                                                                                                                2 Product Specifications


2 Product Specifications
2-1 LE26A41B, LE32A41B Specifications
                                                                                                                                    Description
                Item
                                                                               LE26A41B                                                                                                      LE32A41B

 LCD Panel                                 TFT-LCD panel, RGB vertical stripe, normaly white, 26-Inch viewable, 0.4425 (H) x 0.264(V)mm pixel pitch   TFT-LCD panel, RGB vertical stripe, normaly white, 32-Inch viewable, 0.537(H) x 0.537(V) mm pixel pitch

 Scanning Frequency                        Horizontal : 30 kHz ~ 68 kHz (Automatic)                                                                   Horizontal : 30 kHz ~ 61 kHz (Automatic)
                                           Vertical   : 50 Hz ~ 85 Hz (Automatic)                                                                     Vertical   : 56 Hz ~ 75 Hz (Automatic)

 Display Colors                            16.2 Million colors
 Maximum Resolution                        Horizontal : 1280 Pixels                                                                                   Horizontal :1366 Pixels
                                           Vertical   : 768 Pixels                                                                                    Vertical   : 768 Pixels
 Input Video Signal                        Analog 0.7 Vp-p
