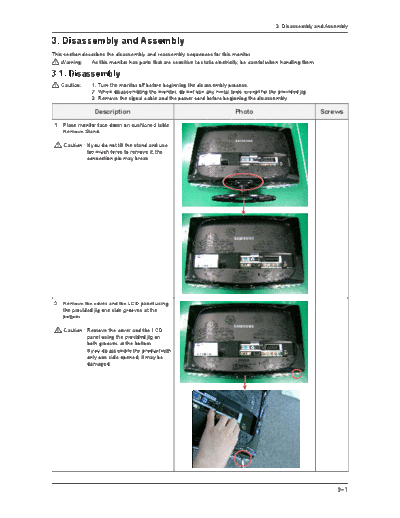

Image preview - the first page of the document



>> Download disassembly__reassembly documenatation <<

Text preview - extract from the document

                                                                                                3. Disassembly and Assembly

3. Disassembly and Assembly
This section describes the disassembly and reassembly sequences for this monitor.
    Warning:    As this monitor has parts that are sensitive to static electricity, be careful when handling them.

3-1. Disassembly
    Caution:     1. Turn the monitor off before beginning the disassembly process.
                 2. When disassembling the monitor, do not use any metal tools except for the provided jig.
                 3. Remove the signal cable and the power cord before beginning the disassembly.

                  Description                                                  Photo                                 Screws
 1. Place monitor face down on cushioned table.
    Remove Stand.

     Caution : If you do not tilt the stand and use
               too much force to remove it, the
               connection pin may break.




 2. Remove the cover and the LCD panel using
    the provided jig one side grooves at the
    bottom.

     Caution : Remove the cover and the LCD
               panel using the provided jig on
               both grooves at the bottom.
               If you disassemble the product with
               only one side opened, it may be
               damaged.




                                                                                                                         3-1
3. Disassembly and Assembly


                Description                 Photo   Screws
3. Insertaflatscrewdriverintothegrooveand
   then lift up and remove the cover.




4. After remove COVER-REAR, then
   disconnect SPEAKER , FUNCTION wire.

5. Disconnect LVDS cable from panel.




3-2
                                                       3. Disassembly and Assembly


               Description                     Photo                   Screws
6. After disconnecting SHIELD-LAMP of left
   side, disassemble lamp wire between panel
   and IP Board.




7. Remove 8 marked SCREW of left picture.
   Disconnect IP board.

 Reassembly procedures are in the reverse
 order of disassembly procedures.




8. Remove the LCD panel.




                                                                             3-3
3. Disassembly and Assembly


                 Description                            Photo   Screws
 Assembly

 9. The assembly is in the reverse order of the
    disassembly.

 10. Connect the disassembled snap and the
     LED module again.




 The assembly is in the reverse order of disassembly.




3-4
