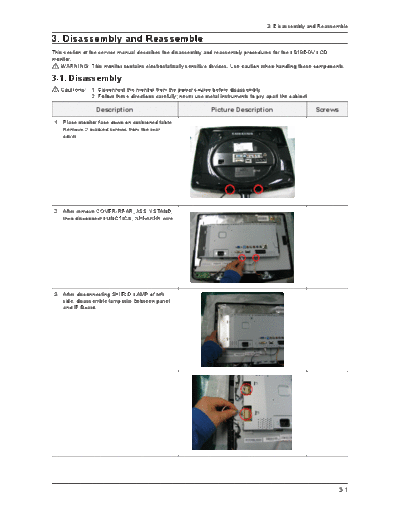

Image preview - the first page of the document



>> Download Disassembly & Reassembly documenatation <<

Text preview - extract from the document

                                                                                       3. Disassembly and Reassemble

3. Disassembly and Reassemble
This section of the service manual describes the disassembly and reassembly procedures for the LS19DOV LCD
monitor.
    WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these components.

3-1. Disassembly
   Cautions: 1. Disconnect the monitor from the power source before disassembly.
             2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

                 Description                                    Picture Description                        Screws
 1. Place monitor face down on cushioned table.
    Remove 2 marked screws from the rear
    cover.




 2. After remove COVER-REAR, ASS'Y-STAND,
    then disconnect FUNCTION, SPEAKER wire.




 3. After disconnecting SHIELD-LAMP of left
    side, disassemble lamp wire between panel
    and IP Board.




                                                                                                                3-1
3. Disassembly and Reassemble


                Description                                 Picture Description   Screws
4. Disconnect LVDS cable from panel. Then,
   remove cover jack from side.




5. Remove 4 screws of PC and DVI connector.
   Then, upset the shield.




6. Remove 8 marked SCREW of left picture.
   Disconnect IP board.




 Reassembly procedures are in the reverse order of disassembly procedures.
