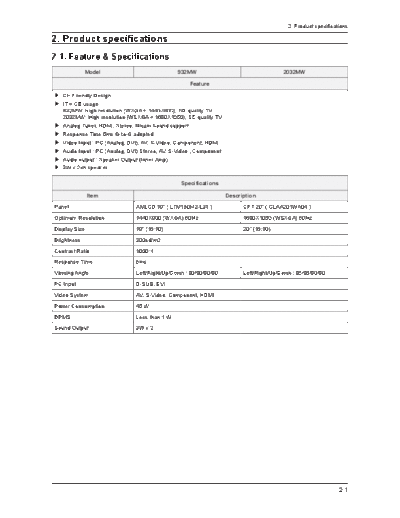

Image preview - the first page of the document
>> Download Product Specification documenatation <<
Text preview - extract from the document
2. Product specifications
2. Product specifications
2-1. Feature & Specifications
Model 932MW 2032MW
Feature
CE Friendly Design
IT + CE usage
932MW: High resolution (WXGA + 1440X900), SD quality TV
2032MW: High resolution (WSXGA + 1680X1050), SD quality TV
Analog Tuner, HDMI, Stereo, Nicam Sound support
Response Time 5ms G-to-G adopted
Video Input : PC (Analog, DVI), AV, S-Video, Component, HDMI
Audio Input : PC (Analog, DVI) Stereo, AV, S-Video , Component
Audio output : Speaker Output (Inner Amp)
3W x 2ch speaker
Specifications
Item Description
Panel AMLCD 19" ( LTM190M2-L31 ) CPT 20" ( CLAA201WA04 )
Optimum Resolution 1440X900 (WXGA) 60Hz 1680X1050 (WSXGA) 60Hz
Display Size 19" (16:10) 20" (16:10)
Brightness 300cd/m2
Contrast Ratio 1000:1
Response Time 5ms
Viewing Angle Left/Right/Up/Down : 80/80/80/80 Left/Right/Up/Down : 85/85/80/80
PC Input D-SUB, DVI
Video System AV, S-Video, Component, HDMI
Power Consumption 45 W
DPMS Less than 1 W
Sound Output 3W x 2
2-1
2. Product specifications
2-2. Spec Comparison to the Old Models
Model Pebble (932MW) Pebble (932GW)
Design
Area Europe World Wide
Panel LTM190M2-L31
Fast Response Time 5ms
Contrast 1000 : 1
Viewing Angle 80/80/80/80 (Left/Right/Up/Down)
Scart Jack
Micom
Scaler
Model Pebble (2032MW) Pebble (2032BW)
Design
Area Europe World Wide
Panel CLAA201WA04
Fast Response Time 5ms
Contrast 1000 : 1
Viewing Angle 85/85/80/80 (Left/Right/Up/Down)
Scart Jack
Micom
Scaler
2-2
2. Product specifications
2-3. Accessories
Product Description Ccde. No Remark
Quick Setup Guide BN68-01276A
Warranty Card
BH68-00633A
(Not available in all locations)
User's Guide,
Monitor Driver, BN59-00625A
Natural Color Pro Software
D-Sub(15 Pin) Cable BN39-00244B
Samsung Electronics
Service center
Power Cord 3903-000042
Remote Control BN59-00596A
Batteries (AAA X 2) 4301-000121
2-3
2. Product specifications
2-4. Accessories (Sold separately)
Product Description Ccde. No Remark
TV Antenna Cable
(Coaxial Cable)
RCA Cable (Video-Yellow,
Audio-Red and White)
Component(PR, PB, Y) Cable
S-VIDEO Cable
Samsung Electronics
Service center
Earphones/Headphones
DVI-D Cable BN39-00246F
DVI to HDMI cable
HDMI Cable
RCA to stereo (for PC) cable
2-4
