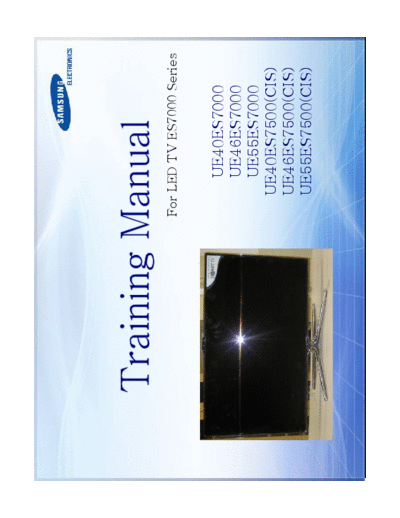

Image preview - the first page of the document
>> Download Training Manual documenatation <<
Text preview - extract from the document
For LED TV ES7000 Series
UE40ES7000
UE46ES7000
UE55ES7000
UE40ES7500(CIS)
UE46ES7500(CIS)
UE55ES7500(CIS)
index
I. Product Concept
II. UES7000 Overview
III. Inside of UES7000
IV. Main board
V. New Function of UES7000
VI. Disassembly and Reassembly
VII. Change IR
VIII. Cables
IX. Troubleshooting
Product Concept
SAMSUNG
. Product Concept
"Voice/Gesture Control, Face Recognition SI, New Experience NEW Smart TV" (ES7000)
- SI (Smart Interactive) : Quick approch to menu and service by voice control. Direct navigation by
Gesture control
"New Experience(SI), '12 TV New Design Trend's New Concept Premium Design, and
Support world best picture quality. High-end Smart TV" (ES8000)
- Design : Flower Petal look Metallic Design (Detailed Premium design)
Curved line Stand: '12 New Trend of TV Design
- Picture Quality (Micro Dimming Ultimate) : By 576 block's detaild picture control,
Support world best clear quality
External Value Curve Strategic Positioning
Premium
Sony HX929 D8000 ES8000
ES8000
ES7000
HX929 D8000
D7000
SONY
Technology Emotional
Cost Picture Sound Design New Userability
Quality Experience
Basic
UES7000 Overview
SAMSUNG
UE8Y Overview
Spec Comparison to the Old Models
Model UES7000 UD7000
Design
Diplay Type LED TV LED TV
Built-in Tuner O O
Resolution 1920 x 1080 1920 x 1080
LCD Panel TFT LCD Panel 240Hz TFT LCD Panel 240Hz
Screen Size 40"/46"/55" 40"/46"/55"
Picture ratio 16:9 16:9
914.4 * 611.2 * 241.3 mm with stand 40": 908.6 X 29.7 X 524.9 mm with stand
914.4 * 545.7 * 29.7 mm without stand 908.6 X 241.3 X 600 mm without stand
46": 1046.8*691.2*276.7 mm with stand 46": 1041.1 X 29.7 X 599.4 mm with stand
Dimensions(W x H x D)
1046.8*620.2*29.7 mm without stand 1041.1 X 276.5 X 607.5 mm without stand
55": 1238.4*790.4*276.7 mm with stand 55": 1232.6 X 29.7 X 707.2 mm with stand
1238.4*728*29.7 mm without stand 1232.6 X 309.3 X 789.7 mm without stand
40" : 9.55kg_without stand 40" : 10.0kg_without stand
11.8kg_with stand 12.0kg_with stand
46" : 11.98kg_without stand 46" : 12.4kg_without stand
Weight
14.6kg_with stand 14.3kg_with stand
55" : 16.6kg_without stand 55" : 16.2kg_without stand
19.3kg_with stand 18.6kg_with stand
Contrast Ratio MEGA CR MEGA CR
Picture Enhancer 3D HyperReal Engine 3D HyperReal Engine
Equalizer 5 Band 5 Band
Auto Volume Control O O
Surround Sound Dolby Digital Plus / Dolby Pulse, DNSe Dolby Digital Plus/Pulse
40"/ 46": 10W + 10W
Speaker Output 10W + 10W
55"/65" : 15W +15W
PIP O O
Double Window X X
Caption O O
Entertainment Mode X X
Game Mode O O
Energy Saving O O
Anynet+ O O
Antenna 1(Cable/Air/Satellite) 1(Cable/Air/Satellite)
UE8Y Overview
UES7000 Key parts
- 1080P FULL HD
- 3HDMI, HDMI CEC support
- 240Hz Auto Motion Plus
- All Share Play
- Smart Hub (Full browser, Media play)
