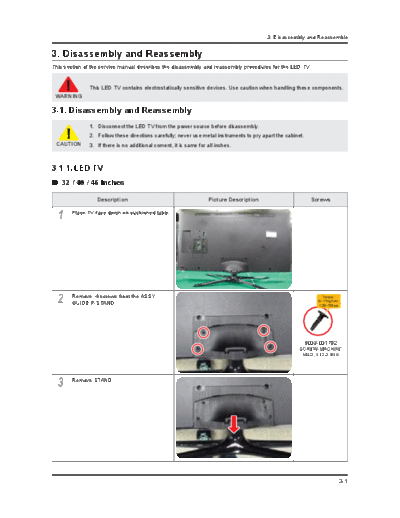

Image preview - the first page of the document



>> Download service3 documenatation <<

Text preview - extract from the document

                                                                                         3. Disassembly and Reassemble


3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.


              This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
 WARNING

3-1. Disassembly and Reassembly
              1. Disconnect the LED TV from the power source before disassembly.
              2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
 CAUTION      3. If there is no additional coment, it is same for all inches.



3-1-1. LED TV
 32 / 40 / 46 Inches

                  Description                                      Picture Description                        Screws


  1    Place TV face down on cushioned table.




  2    Remove 4 screws from the ASSY
       GUIDE P-STAND.
                                                                                                                  Torque :
                                                                                                                9~11Kgf.cm.
                                                                                                                128~156psi




                                                                                                            6003-001782
                                                                                                       SCREW-MACHINE
                                                                                                        M4.0, L12.0 BLK




  3    Remove STAND.




                                                                                                                          3-1
3. Disassembly and Reassemble


                Description                Picture Description       Screws


  4    Remove the COVER-JACK after push
       the locking in both sides.


                                          COVER-JACK




  5    Remove screws of ASSY COVER
       P-MIDDLE, REAR.
                                                                         Torque :
                                                                        7~8Kgf.cm.
                                                                        100~113psi
