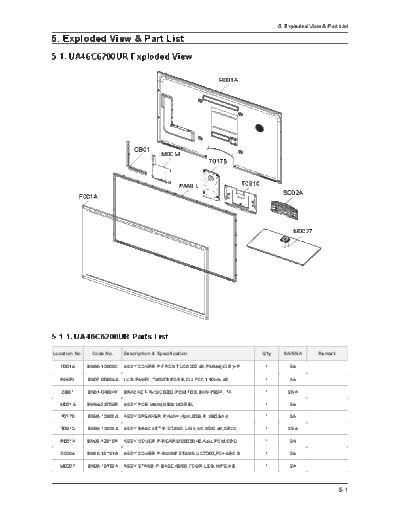

Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
5. Exploded View & Part List
5. Exploded View & Part List
5-1. UA46C6200UR Exploded View
R001A
CB01
M0014
T0175
PANEL T0910
SC02A
F001A
M0027
5-1-1. UA46C6200UR Parts List
Location No. Code No. Description & Specification Q'ty SA/SNA Remark
F001A BN96-12903C ASSY COVER P-FRONT;UC6200 46,PMMA(CLR)+P 1 SA
PANEL BN07-00854A LCD-PANEL;T460FBE2-DB,CLL7CC1,10bits,46, 1 SA
CB01 BN61-04924F BRACKET-AV;UC5000,PCM,T0.5,BKN-P824 , TA 1 SNA
M0014 BN94-03754R ASSY PCB MAIN;NEW MODEL 1 SA
T0175 BN96-12965A ASSY SPEAKER P;4ohm,4pin,20W,R: 680,Encl 1 SA
T0910 BN96-12929A ASSY BRACKET P-STAND LINK;UC6500 46,SECC 1 SNA
R001A BN96-12915R ASSY COVER P-REAR;UC6000 46,Asia,PCM,CDQ 1 SA
SC02A BN96-13131G ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
M0027 BN96-13133A ASSY STAND P-BASE;46/55,FOUR-LEG,HIPS,HB 1 SA
5-1
5. Exploded View & Part List
5-2. UA46C6200UR Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
UA46C6200URXCS
0.1 BN90-02546B ASSY COVER FRONT;UC6500 46 1 SNA
..2 F001A BN96-14087B ASSY COVER P-FRONT;DP,BN96-12903C,UC6500 1 SNA
...3 T0214 0203-001269 TAPE-OPP MASKING;#301,T0.06,W75,L50000,N 0.16 SNA
...3 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 1.28 SNA
...3 6902-000611 BAG ROLL;HDPE/NITRON,T1.0,50G,45446.400g 2.16 SNA
...3 M040 6922-000003 BAND PP;PP,T0.8,W18,L1650M,TRP,DA69-9014 0.22 SNA
...3 AA61-30009A LOCKER-BAND,CLIP;SPC-1,18MM T0.5 1 SNA
...3 AA69-02446R PALLET-SET;PDP4294,PAPER,1170,680,120 1 SNA
...3 AA69-04610K MASTER CARTON;CB,DW,1160,660,730,100g 1 SNA
...3 AA69-04716A PAD-TYPE;CB,SW,1270,840,100g 1 SNA
...3 F001A BN96-12903C ASSY COVER P-FRONT;UC6200 46,PMMA(CLR)+P 1 SA
....4 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.04,900mm,20 0.65 SNA
....4 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 3.7 SNA
....4 F001 BN63-06496C COVER-FRONT;UC6200 46,PMMA(CLR)+PMMA/ABS 1 SNA
....4 R002A BN96-12910A ASSY COVER P-MIDDLE;UC6500 46,ABS,V0,WHI 1 SNA
.....5 BN61-04692A BOSS-PRIMER;#94,clear,35cps 1.3 SNA
.....5 BN61-04731B BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE 0.98 SNA
.....5 BN63-06534A COVER-FRONT MIDDLE;UC6500 46inch,ABS,WHI 1 SNA
.....5 BN61-06539C BOSS-TAPE;UC8000,acryl,T0.16,W10,Transpa 3.24 SNA
.....5 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 3 SNA
.....5 BN61-04731F BOSS-TAPE;AMBER,ACRYL,T1.1,W6.0mm,WHITE, 2.33 SNA
....4 T0176 BN96-12941D ASSY SPEAKER P;8ohm,4pin,10,L:440 R:810, 1 SA
....4 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.16 SNA
....4 CIS1 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0.16 SNA
....4 FB21A BN96-13685D ASSY BOARD P-TOUCH FUNCTION&IR;LC6620,CT 1 SA
....4 BN61-06213A BRACKET-STOPPER BOSS;C8K,S50C+SECC T1.2 11 SNA
....4 BN61-06660A BOSS-BOND;UC6900/8000,EPOXY,GREEN 1 SNA
....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.004 SNA
0.1 R001A BN90-02553P ASSY COVER REAR;UC6000 46 1 SNA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 8 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 15 SA
..2 R001A BN96-13931D ASSY COVER P-REAR;DP,BN96-12915R,UC5000 1 SNA
...3 T0214 0203-001269 TAPE-OPP MASKING;#301,T0.06,W75,L50000,N 0.66 SNA
...3 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 1.71 SNA
...3 6902-000611 BAG ROLL;HDPE/NITRON,T1.0,50G,45446.400g 2.7 SNA
...3 M040 6922-000003 BAND PP;PP,T0.8,W18,L1650M,TRP,DA69-9014 0.29 SNA
...3 AA61-30009A LOCKER-BAND,CLIP;SPC-1,18MM T0.5 1 SNA
...3 T0603 AA69-02668B PALLET-CKD;CKD,PAPER,1210,820,120 1 SNA
...3 AA69-04727P MASTER CARTON;CB,DW,1225,790,175,100g 1 SNA
...3 AA69-04765L PAD-PLATE;CB,SW,1215,780,100g 1 SNA
...3 AA69-04796A PAD-BOT EPE;CB,DW,1215,780,100g 1 SNA
...3 R001A BN96-12915R ASSY COVER P-REAR;UC6000 46,Asia,PCM,CDQ 1 SA
....4 T0069 BN60-00121A SPACER-FELT;UB7000,FELT,L380,BLK,T0.35,W 1 SNA
....4 BN60-00162A SPACER-FOAM;FOAM,50000L,BLK,0.35T,20W 1.05 SNA
....4 R001 BN63-06519D COVER-REAR;UC6500 46inch,PCM,T0.5,BKN-P8 1 SNA
....4 BN68-02544C LABEL-TERMINAL SIDE;Rev.01 UC5000/6000,X 1 SNA
5-2
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 BN68-02851C LABEL-TERMINAL BOTTOM;UC6000,ASIA,PET,T0 1 SNA
....4 BN96-12924B ASSY MISC P-INSULATOR;UC6500 37/40,PC,T0 1 SNA
.....5 T0278 BN60-00122E SPACER-SPONGE;UC6500,CR,L200,T2.0,W10 2 SNA
.....5 BN63-06630A SHEET-INSULATOR SMPS;UC6100 40inch,PC,T0 1 SNA
....4 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 0.4 SNA
....4 M0909 BP60-00061Q SPACER-SCREEN;SP20UO,SPONGE,35,T2.0,20,E 2 SNA
0.1 S001A BN90-02594C ASSY STAND;UC7000 46/55 1 SNA
..2 M0027 BN96-13133A ASSY STAND P-BASE;46/55,FOUR-LEG,HIPS,HB 1 SA
...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 13 SA
...3 BN61-05240A HOLDER-SWIVEL RING TOP;LB700 46,POM HB,A 1 SNA
...3 AB323 BN61-06196A BRACKET-STAND;46,55 FOUR-LEG,ALDC12,ALDC 1 SNA
...3 BN61-06200A BRACKET-STAND, FRONT;46,55 FOUR-LEG,HGI, 2 SNA
...3 BN61-06204A BRACKET-STAND, REAR;46,55 FOUR-LEG,HGI,T 2 SNA
...3 BN61-06268A BRACKET-SWIVEL TOP;SPC,T 3.0,Zn-Plating, 1 SNA
...3 BN61-06331A HOLDER-SWIVEL RING BOTTOM;UC7K 46/55,POM 1 SNA
...3 BN63-06574A COVER-STAND,TOP;46/55,FOUR-LEG,ABS,HB,NC 1 SNA
...3 BN63-06575A COVER-STAND,TOP;46/55,FOUR-LEG,ABS,HB,NC 1 SNA
...3 BN63-06582A COVER-STAND, BASE;46,55 FOUR-LEG,HIPS,HB 1 SNA
...3 BN63-06946A COVER-STAND FRONT;46/55,FOUR-LEG,ABS,HB, 1 SNA
...3 M0126 BN73-00052E RUBBER-FOOT;4-LEG,CR RUBBER,T1.5 DIA17,R 4 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.6 SNA
...3 BN96-13563A ASSY BRACKET P-SWIVEL BOT;4-LEG(55),BRKT 1 SNA
....4 BN61-02428Q STUD-PEM;PNA,M4,D7,L9.3,ZPC(SIL),SUM24L 4 SNA
....4 BN61-06269A BRACKET-SWIVEL BOT;SPC,T 3.0,Zn-Plating, 1 SNA
...3 SCREW 6003-001785 SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC 4 SA
...3 BN63-05135E COVER-SHEET;4-LEG,Rhcm PE Vinyl,T0.05,W6 2 SNA
..2 SC02A BN96-13131G ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
...3 T0524 6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE 1 SNA
...3 T0920 BN61-06221A GUIDE-STAND;UC6500 40inch,PC,G/F 20%,V2, 1 SNA
...3 BN68-02825B MANUAL FLYER-01,STAND GUIDE;7~9 series,S 1 SNA
...3 BN96-12031N ASSY ACCESSORY-SCREW;10 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 9 SA
....4 BN69-04419L PACKING-BAG PE;UC5000,LDPE,70,90,4X8, 9E 1 SNA
0.1 BN91-05023R ASSY SHIELD;NEW MODEL 1 SNA
..2 T0081 6001-002283 SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 9 SNA
..2 P001A BN44-00357A DC VSS-LED TV PD BD;PD46AF1E_ZSM,PSLF171 1 SA
...3 BN81-04726A A/S-DIODE;600V, 4A,D9102, D9202 2 SA
...3 BN81-04734A A/S-FUSE;250V, 6.3A,FS801S, FS802S 2 SA
...3 BN81-04742A A/S-MOSFET;400V, 2A,Q9105,Q9106,Q9205,Q9 4 SA
...3 BN81-04749A A/S-MOSFET;600V, 10A,QP801, QP802,QP801S 2 SA
...3 BN81-04774A A/S-PWM CONTROL IC;650V, 1.7#,ICB801 1 SA
..2 M0251 BN96-12723M ASSY CABLE P-FPCB LVDS;LED120Hz-46inch,F 1 SA
..2 T0910 BN96-12929A ASSY BRACKET P-STAND LINK;UC6500 46,SECC 1 SNA
...3 M0115 BN61-06167A BRACKET-STAND LINK;UC6500 46inch,HGI,T3. 1 SNA
...3 BN60-00184A SPACER-FOAM;FOAM,30000mm,DARK GRAY,1T,30 0.19 SNA
...3 BN61-02932K BRACKET-STOPPER NUT;LED TV,M4,D6,L7.0,BR 5 SNA
..2 T0175 BN96-12965A ASSY SPEAKER P;4ohm,4pin,20W,R: 680,Encl 1 SA
..2 T0081 6001-000115 SCREW-MACHINE;BH,+,-,M3,L10,ZPC(WHT),SWR 2 SNA
..2 M2893 BN39-01267N LEAD CONNECTOR;UN40C6400,UL2651,#26,18P, 1 SA
..2 BN73-00273A SILICON/RUBBER-GAPPAD;UE46B7700,SILICON+ 1 SNA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 4 SA
5-3
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA
0.1 BN91-05296A ASSY LCD;BN07-00854A 1 SNA
..2 PANEL BN07-00854A LCD-PANEL;T460FBE2-DB,CLL7CC1,10bits,46, 1 SA
...3 TCON BN81-04456A A/S-T CON T460FBE2-DB;T460FBE2-DB 1 SA
0.1 M0017 BN91-05883B ASSY CHASSIS;UA46C6200URXCS 1 SNA
..2 M0014 BN94-03754R ASSY PCB MAIN;NEW MODEL 1 SA
...3 0202-001521 SOLDER-WIRE FLUX;ECO SOLDER RMA98 SUP,D1 0.25 SNA
...3 3701-001698 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI 1 SA
...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA
...3 JA330 3722-002844 JACK-PHONE;1/7P,NI,LAUREL-GREEN,ANGLE 1 SA
...3 JA330 3722-002845 JACK-PHONE;1/7P,NI,YELLOW,ANGLE 1 SA
...3 JA330 3722-002846 JACK-PHONE;1/6,NI,BLACK,ANGLE 2 SNA
...3 3722-002849 JACK-MODULAR;8P/8C(ULTRA SLIM),YES,ANGLE 1 SNA
...3 T0562 6046-001015 STAND OFF;#4-40,L5,Ni PLT,C3601,M3 2 SNA
...3 ET01 BN40-00172A TUNER;DTOS40CVH081A,DVB-T/C,164CH,38.9MH 1 SA
...3 CB01 BN61-04924F BRACKET-AV;UC5000,PCM,T0.5,BKN-P824 , TA 1 SNA
...3 T0066 BN62-00071A HEAT SINK-ES;22*22*2.5,Ceramic,T2.6,TAPE 2 SNA
...3 T0066 BN62-00072A HEAT SINK-ES;40*40*2.5,Ceramic,T2.6,TAPE 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 BN68-03016A LABEL;LS19MYMKBQ/XSJ,JAPAN,FLOURESCENT,1 1 SNA
...3 BN97-04467Q ASSY SMD;6200 1 SNA
....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,42Sn/57Bi/1 5 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 18 SA
....4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 18 SNA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 8 SA
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 8 SNA
....4 SD3 0407-000114 DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, 1 SNA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 8 SA
....4 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 3 SA
....4 Q409 0505-000274 FET-SILICON;AO4435L,P,-30V,-11A,0.014ohm 1 SNA
....4 Q409 0505-002386 FET-SILICON;AO3415AL,P,-20V,-4A,0.045ohm 1 SA
....4 ND51C2 0801-002780 IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER 1 SA
....4 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 SA
....4 IC106 1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 1 SA
....4 IC112 1103-001310 IC-EEPROM;24LC02B,256X8BIT,SOIC,8P,3.91X 1 SNA
....4 IC112 1103-001475 IC-EEPROM;M24256-BR,256Kbit,32Kx8,SOP,8P 1 SNA
....4 1105-001931 IC-DDR2 SDRAM;K4T51163Q,DDR2-800,512Mbit 2 SA
....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA
....4 1105-002075 IC-DDR2 SDRAM;K4T1G084QE-HCF8,DDR2,1Gbit 4 SA
....4 T0085 1201-002487 IC-AUDIO AMP;MAX9728A,QFN,12P,3x3mm,DUAL 1 SA
....4 T0124 1201-002992 IC-POWER AMP;STA369BWS,PSSO,36P,10.3x7.5 2 SA
....4 T0087 1203-002519 IC-POSI.FIXED REG.;KIA7809AF,DPAK,3P,240 1 SA
....4 IC012 1203-003544 IC-POSI.ADJUST REG.;RT9173BPS,SOP-8,8P,5 1 SA
....4 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 3 SA
....4 1203-006012 IC-DC/DC CONVERTER;MP8725EL,QFN14,14P,3x 1 SA
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 T0087 1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....4 T0087 1203-006141 IC-POSI.FIXED REG.;S-1172B33-U5T1G,SOT-8 2 SA
....4 1203-006142 IC-DC/DC CONVERTER;BD8924G,5P,2.9x1.6x1. 1 SA
....4 1203-006167 IC-POSI.FIXED REG.;S-1172B12-U5T1G,SOT-8 1 SA
....4 IC118 1204-003085 IC-VIDEO PROCESS;SDP91-PS,PBGA,496P,23x2 1 SA
....4 1204-003100 IC-DECODER;SDP92,FCPBGAH,937P,35x35mm,PL 1 SA
....4 IC118 1204-003101 IC-VIDEO PROCESS;SDP94,PBGA,345P,19x19mm 1 SNA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 SA
....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
....4 1205-003834 IC-ETHERNET CONTROLLER;RTL8201E-VC-GR,QF 1 SA
....4 1205-003840 IC-CODEC;WM8595GEFL/RS,QFN,48P,7x7x0.9mm 1 SA
....4 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 SA
....4 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 26 SA
....4 PR6 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 6 SNA
....4 MR604 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 14 SNA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 23 SA
....4 AR49 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 23 SNA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 5 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 50 SNA
....4 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 22 SA
....4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 1 SA
....4 RR33 2007-000154 R-CHIP;24Kohm,5%,1/16W,TP,1005 1 SA
....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 1 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 16 SNA
....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 8 SNA
....4 R509 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 4 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 37 SNA
....4 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 6 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 38 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 7 SNA
....4 2007-000231 R-CHIP;1.3Kohm,1%,1/10W,TP,1608 2 SA
....4 MR39 2007-000242 R-CHIP;1.5Kohm,5%,1/16W,TP,1005 1 SNA
....4 UR53 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608 1 SA
....4 HR12 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SNA
....4 2007-000606 R-CHIP;240ohm,1%,1/10W,TP,1608 2 SA
....4 JR11 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 2 SNA
....4 KAR28 2007-000637 R-CHIP;270Kohm,5%,1/10W,TP,1608 1 SNA
....4 R945 2007-000726 R-CHIP;300ohm,1%,1/10W,TP,1608 1 SA
....4 R19 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 SNA
....4 R528 2007-000835 R-CHIP;39ohm,1%,1/10W,TP,1608 1 SA
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 4 SNA
....4 CER07 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 3 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 6 SNA
....4 2007-001335 R-CHIP;36Kohm,5%,1/16W,TP,1005 2 SA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 1 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 2 SA
....4 2007-003022 R-CHIP;62ohm,5%,1/16W,TP,1005 17 SNA
....4 2007-007008 R-CHIP;300ohm,5%,1/16W,TP,1005 1 SNA
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 SA
....4 PR8 2007-007015 R-CHIP;13Kohm,5%,1/16W,TP,1005 1 SA
....4 R365 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 3 SNA
....4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 6 SNA
....4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 2 SA
....4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005 1 SNA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 8 SNA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 2 SNA
....4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 17 SNA
....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 32 SNA
....4 2007-007352 R-CHIP;130Kohm,1%,1/10W,TP,1608 1 SA
....4 2007-007469 R-CHIP;110ohm,1%,1/16W,TP,1005 1 SNA
....4 HDR44 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 2 SNA
....4 2007-007617 R-CHIP;2.49Kohm,1%,1/10W,TP,1608 1 SA
....4 2007-007698 R-CHIP;5.1Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007724 R-CHIP;40.2ohm,1%,1/10W,TP,1608 2 SA
....4 2007-007730 R-CHIP;6.8Mohm,1%,1/10W,TP,1608 1 SA
....4 2007-007947 R-CHIP;36ohm,1%,1/10W,TP,1608 1 SA
....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 24 SNA
....4 2007-008263 R-CHIP;3Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-008391 R-CHIP;6.34Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-008811 R-CHIP;1.5ohm,5%,1/16W,TP,1005 1 SA
....4 2007-009853 R-CHIP;1.6Kohm,1%,1/16W,TP,1005 1 SNA
....4 2011-001015 R-NETWORK;1Kohm,5%,1/16W,L,CHIP,8P,TP,3. 4 SC
....4 MR38 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 SA
....4 ZRN10 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 2 SA
....4 DAR09 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 21 SA
....4 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SNA
....4 2011-001345 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,2 1 SA
....4 DRP29 2011-001396 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,8P,TP, 1 SA
....4 2011-001427 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,2.0 1 SA
....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 6 SA
....4 2011-001497 R-NETWORK;470ohm,5%,1/16W,L,CHIP,4P,TP,1 2 SNA
....4 C24 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 1 SNA
....4 AC1 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 6 SA
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 10 SA
....4 MC2 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 6 SA
....4 DC54 2203-000278 C-CER,CHIP;.01nF,0.5pF,50V,C0G,TP,1005 3 SA
....4 RC34 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,1608 3 SA
....4 C3 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,1608 2 SNA
....4 C304 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 SNA
....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 8 SA
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 13 SA
....4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 SA
....4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,1005 1 SA
....4 ZC14 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 2 SNA
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 1 SNA
....4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SA
....4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 1 SA
....4 DC25 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,1005 9 SA
....4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 3 SNA
....4 C132 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G,1005 4 SA
....4 AD480 2203-000995 C-CER,CHIP;.047nF,5%,50V,C0G,TP,1005 3 SA
....4 AC124 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 2 SNA
....4 HDC5 2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0,1005 1 SA
....4 C101 2203-001124 C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005 1 SNA
....4 KAC5 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608 2 SNA
....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 1 SNA
....4 AD480 2203-001851 C-CER,CHIP;0.016nF,5%,50V,NP0,TP,1608 2 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 18 SNA
....4 AVC08 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 10 SNA
....4 AD480 2203-002720 C-CER,CHIP;10nF,10%,25V,X7R,TP,1005 2 SNA
....4 C711 2203-002982 C-CER,CHIP;6.8nF,10%,50V,X7R,1005 1 SA
....4 AD480 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 3 SA
....4 DC18 2203-005138 C-CER,CHIP;1.8nF,10%,50V,X7R,1005 6 SA
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 29 SNA
....4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,- 11 SNA
....4 AD480 2203-005393 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1005 2 SNA
....4 AD480 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 2 SNA
....4 PC8 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 SNA
....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 3 SNA
....4 AD480 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 SA
....4 AD480 2203-006104 C-CER,CHIP;1000nF,10%,50V,X7R,3225 1 SA
....4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,1005 3 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 3 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 244 SNA
....4 AD480 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 SNA
....4 AD480 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 10 SNA
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 11 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 4 SC
....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 12 SA
....4 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 26 SNA
....4 AD480 2203-006636 C-CER,CHIP;220nF,10%,25V,X7R,1608 9 SA
....4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,1608 4 SNA
....4 AD480 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 2 SNA
....4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 2 SNA
....4 AD480 2203-007233 C-CER,CHIP;22000nF,10%,16V,X5R,TP,3216 2 SA
....4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608 79 SNA
....4 2503-001051 C-NETWORK;100nFx4,20%,16V,2012 10 SA
....4 2601-001056 TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 1 SA
....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 4 SA
....4 T0052 2703-000222 INDUCTOR-SMD;560nH,10%,2012 3 SA
....4 T0052 2703-000296 INDUCTOR-SMD;680nH,10%,1608 1 SA
....4 VL6 2703-000398 INDUCTOR-SMD;10uH,10%,3225 8 SA
....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 1 SA
....4 T0052 2703-002238 INDUCTOR-SMD;1UH,5%,2012 2 SNA
....4 T0052 2703-002332 INDUCTOR-SMD;330nH,5%,1608 1 SA
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 T0052 2703-002557 INDUCTOR-SMD;270NH,5%,1608 3 SNA
....4 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
....4 2703-003296 INDUCTOR-SMD;47uH,10%,2012 1 SNA
....4 T0052 2703-003559 INDUCTOR-SMD;4.7uH,20%,8080 4 SNA
....4 T0052 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366 2 SA
....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 2 SA
....4 X202 2801-003773 CRYSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh 1 SA
....4 X202 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 SA
....4 X202 2801-004629 CRYSTAL-SMD;27MHz,20ppm,12pF,50ohm,TP 1 SNA
....4 X202 2801-004734 CRYSTAL-SMD;25.000000MHz,20ppm,28-AAN,12 1 SA
....4 2804-001878 OSCILLATOR-CLOCK;49.152MHz,50ppm,10TTL/1 1 SA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 14 SNA
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 45 SA
....4 T0568 3301-001526 BEAD-SMD;10ohm,1.6x0.8x0.8mm,1000mA,TP,, 12 SNA
....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 9 SA
....4 3701-001293 CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU 4 SA
....4 CN906 3707-001095 CONNECTOR-OPTICAL;SMD-A(Ultra Slim),SPDI 1 SA
....4 AC510 3708-002777 CONNECTOR-FPC/FFC/PIC;82P,0.5mm/0.75mm,S 1 SA
....4 3710-002276 SOCKET-INTERFACE;24P,1R,0.5mm,SMD-A,AU,B 1 SA
....4 CON_US 3711-005616 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,SMD 1 SNA
....4 HB01A 3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 2 SA
....4 3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE 2 SA
....4 BN41-01444B PCB MAIN;C6500 valencia eu,FR-4,4,1.2T,2 1 SNA
....4 BN68-01078A LABEL-IC MICOM;7mm,7mm,WHITE 1 SNA
....4 BN97-04245A ASSY MICOM-MAIN;T-VAL6XDAAC-XXXX.X.s,110 1 SNA
.....5 1107-001868 IC-NAND FLASH;KFG8GH6U4M-AIB6,1GByte,512 1 SNA
....4 BN68-03016A LABEL;LS19MYMKBQ/XSJ,JAPAN,FLOURESCENT,1 1 SNA
....4 BN97-04244A ASSY MICOM-SUB;T-VAL8DEUS-1005,2010.04.2 1 SNA
.....5 IC520 0903-001651 IC-MICROCONTROLLER;61P802-RG480WT,LQFP,4 1 SNA
0.1 BN92-05595C ASSY BOX;UC6500 46 1 SNA
..2 BN69-05014A BOX-01,SET;46UC6200-FS,CB,A-01,DW3, YEL, 1 SNA
..2 BH68-00662A LABEL BOX-00;ALL MODEL,MOJO 90G,60,110,W 1 SNA
0.1 BN92-05617B ASSY P/MATERIAL;UC6200 46 1 SNA
..2 T0214 0203-001595 TAPE-OPP MASKING;OPP-2,0.075,75,800M,CLR 3 SNA
..2 6902-000061 BAG AIR;LDPE,T0.2,W500,L1000,TRP,370.000 1 SNA
..2 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,1260.0 1 SNA
..2 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 4.76 SNA
..2 6902-000609 BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,30.0 0.11 SNA
..2 M040 6922-000013 BAND PP;PP,W18,L2300m,TRP,21000g 1 SNA
..2 BN69-00391E PAD-ANGLE;DI19PS,B400 PAPER,T5,50,1500,Y 1 SNA
..2 BN69-04539A CUSHION-SET;46UC6-FS,EPS,15.4g/l 1 SNA
..2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 1 SNA
..2 6902-001183 BAG PE;HDPE/NITRON,T0.015/T0.5,W1300,L90 1 SNA
..2 BN69-05152A CUSHION-SIDE;LED TV 46-FS,EPS 1 SNA
0.1 BN92-06249U ASSY LABEL;NEW MODEL 1 SNA
..2 BN68-02597A LABEL-01,LED POP;U6200(55/46/40),PET,T0. 1 SNA
..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
0.1 ACCE1 BN92-06342S ASSY ACCESSORY;NEW MODEL 1 SNA
..2 ACCE2 BN96-13648B ASSY ACCESSORY-CABLE;UA40C6200URXHC 1 SNA
...3 EC11 3903-000525 CBF-POWER CORD;DT,CEE,LP-21L,250V,2.5A,B 1 SA
5-8
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
...3 T0685 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,LR03,10.5x4 2 SNA
...3 T0524 6902-001107 BAG PE;LDPE,T0.05,W450,L400,TRP,0,3Separ 1 SNA
...3 T0527 BH68-20009B LABEL-ACCESSORY;ART-PAPER 100G,15,100,SD 1 SNA
...3 M0114 BN39-01154B CBF SIGNAL;Chelsea Slim,24P/RCA3P,30AWG, 1 SA
...3 M0114 BN39-01154C CBF SIGNAL;Chelsea Slim, STEREO Plug to 1 SA
...3 M0114 BN39-01154D CBF SIGNAL;Chelsea Slim, STEREO Plug to 1 SA
...3 REMO2 BN59-01031A REMOCON;TM1060,SAMSUNG,20PIN SINGLE,49KE 1 SA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SNA
...3 T0531 BN63-06543A COVER-BOTTOM;UC6500 40inch,HIPS,HB,BLK 1 SA
...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA
...3 BN96-12031D ASSY ACCESSORY-SCREW;09 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 1 SA
....4 BN69-04419E PACKING-BAG PE;LB650,LDPE,70,90,6003-000 1 SNA
...3 BN96-14099A ASSY ACCESSORY-CLAMP;10 LEDTV(40/46/55), 1 SNA
....4 AA65-30023A CLAMPER CORE-CABLE;NYLON-66,BLK 1 SA
....4 BN69-04419J PACKING-BAG PE;UC5000,LDPE,70,90,Power-C 1 SNA
...3 EH03A BN96-10276B ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB 1 SA
....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 SNA
....4 AH365 BN61-05280A HOLDER-RING;LB7000 46inch,ABS, HB,gray 4 SNA
...3 EH02A BN96-10810A ASSY HOLDER P;09 LEDTV MODEL,NYRON 1 SA
....4 BAG 6902-000031 BAG ZIPPER;LDPE,T0.05,W80,L160,TRP,0,0,4 1 SNA
....4 M0114 BN61-05373A HOLDER-WIRE;LB7000 46,NYRON 3 SNA
....4 BN61-05491A HOLDER-WIRE STAND;UB7000 46inch,NYRON 1 SNA
..2 ACCE4 BN96-15755K ASSY ACCESSORY-MANUAL;UA40C6200URXCS 1 SNA
...3 PE BAG 6902-000009 BAG PE;HDPE,T0.03,W240,L400,TRP,8,2,-,5. 1 SNA
...3 AA68-03242M MANUAL FLYER-MANUAL FLYER-06,SAFETY GUID 1 SNA
...3 AA68-03576C MANUAL FLYER-LEAFLET;comm,Samsung,Russia 1 SNA
...3 T0527 BH68-20009B LABEL-ACCESSORY;ART-PAPER 100G,15,100,SD 1 SNA
...3 BN68-01925G MANUAL FLYER-WARRANTY CARD;comm,Samsung, 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 BN68-02769A MANUAL USERS-01;Comm,Samsung,English,Asi 1 SNA
...3 BN68-02769F MANUAL USERS-01;Comm,Samsung,Russian,Asi 1 SNA
5-9
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
