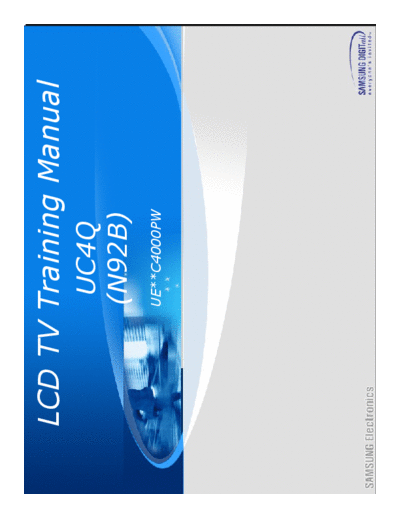

Image preview - the first page of the document
>> Download samsung chassis n92b training documenatation <<
Text preview - extract from the document
LCD TV Training Manual
UC4Q
(N92B)
UE**C4000PW
1
Agenda
I. Overview
II. Layout
III. Disassembly
IV. SW Upgrade (Main/Sub)
V. Factory mode
VI. Trouble Shooting
VII. Adjustment of Screen
VIII. New Function
2
1. Overview
UC4000
Feature
- 768P HD
- Dolby Digital Plus
- 2 HDMI
- 1 USB
- Anynet+ (HDMI CEC)
- Energy Saving
- Game Mode
- Film Mode Size Model Name
- Caption 19" UE19C4000PW
22" UE22C4000PW
26" UE26C4000PW
3
1. Overview
Specification (UC4000)
Model UE19C4000PW UE22C4000PW UE26C4000PW
18.8 x 7.5 x 14.7 with stand 21.5 x 7.5 x 16.2 with stand 25.7 x 8.7 18.9 with stand
Dimensions
(W X H X D) 18.8 x 1.2 x 12.6 without stand 21.5 x 1.2 x 14.1 without stand 25.7 x 1.2 x 16.6 without stand
8.64 Ibs with stand 12.6 Ibs with stand 21.4 Ibs with stand
Weight
7.89 Ibs without stand 9.0 Ibs without stand 13.7 Ibs without stand
Panel 60 Hz, HD, S-PVA
Response Time 4.5ms 4.5ms 4.5ms
Display Color 16.7M Color
Brightness 400 cd/m2
Contrast Ratio 40,000 : 1
Power Supply AC 100~240V,50/60Hz
Power Consumption 40W 50W 65W
Resolution (H*V) 1366*768
TV System DVB, PAL
4
1. Overview
Specification
Items UC4000
Antenna Input Antenna Input 1 : DTV / Air / Cable(STB)
AV In
Component 1 : 480i / 480p / 720p/1080i/1080p
Component 2 : 480i / 480p / 720p/1080i/1080p
Side AV : 480i / 480p / 720p/1080i/1080p
Video In
Input
PC In
Output
HDMI 1/DVI : 480p / 720p / 1080i/1080p
HDMI 2 : 480p / 720p / 1080i/1080p
Jack
Component 1 L/R
Audio In AV L/R
PC/ DVI Audio In
Optical (SPDIF)
Audio Out (STB)
Audio Out
5W + 5W (26")
Speaker
3W + 3W (19"/22")
5
1. Overview
Front View
6
1. Overview
Remote Control (UC4000 TM 1050)
7
2. Layout
Layout (19"/22")
T-CON
CNL801
CNM802
IP
Board CN210
CN1403_22
CN1302
CN401
Main Board
Speaker
(behind Function) Speaker
8
2. Layout
Layout (19"/22")
SMPS Board
Main Board
9
2. Layout
Layout (26")
CNL801
CNM802
IP Board
CN210
CN1402_26
CN1302
CN401
Main Board
Speaker T-CON
(behind Function) Speaker
10
2. Layout
Layout (26")
SMPS Board Main Board
11
2. Layout
Main Board Layout
14
11
19 20
4
SPI
SX1 Sc r
ale
15
1
FLASH
DRXK
DDR 3
22 7 5 HDMI SW
2
AUDIO AMP
6
21
8 13
12 17 10
16
18 9
12
2. Layout
NO LOC. NO. Description
1 IC1102 SX1
2 IC601, IC602 DDR
3 IC1201 NAND FLASH
4 IC402 SPI FLASH
5 IC801 DRXK
6 IC1101 HDMI SWITCH
7 IC1301 AUDIO AMP
8 TU801_TC TUNER
9 CN902 PC D-SUB
10 CN1001,CN1002,CN1003,CN1004_4AUD HDMI CONNECTOR
11 CN1150_2U,CN1204 USB CONNECTOR
12 CN801 AV
13
2. Layout
NO LOC. NO. Description
13 CN901 PC/DVI AUDIO JACK
14 CN1301 HEADPHONE JACK
15 CN1401_EU PCMCIA SLOT
16 OP1301 SPDIF
17 CN802 COMPOENT
18 JA701 SCART
19 CN210 POWER CONNECTOR
20 CN1402_FHD LVDS CONNECTOR
21 CN401 FUNCTION CONNECTOR
22 CN1302 AUDIO CONNECTOR
14
2. Layout
Main board connector pin map
CN1403_HD (to Panel) UC4000 CN902(PC) CN1001 (HDMI1)
1 Panel_VCC 16 ODD[CLK]+ 1 PC_RED 9 PC_5V 1 HDMI1_RX2+ 11 GND
2 Panel_VCC 17 ODD[CLK]- 2 PC_GREEN 10 IDENT_PC 2 GND 12 HDMI1_RXCLK-
3 Panel_VCC 18 GND 3 PC_BLUE 11 R_FANET 3 HDMI1_RX2- 13 HDMI_CEC
4 Panel_VCC 19 ODD[2]+ 4 T_FANET 12 SDA_DOWN 4 HDMI1_RX1+ 14 GND
5 Panel_VCC 20 ODD[2]- 5 GND 13 PC_HS 5 GND 15 SCL
6 GND 21 GND 6 GND 14 PC_VS 6 HDMI1_RX1- 16 SDA
7 GND 22 ODD[1]+ 7 GND 15 SCL_DOWN 7 HDMI1_RX0+ 17 GND
8 GND 23 ODD[1]- 8 GND 8 GND 18 5V
9 TCON_WP 24 GND 9 HDMI1_RX0- 19 HPD
10 FORMAT 25 ODD[0]+ CN901(PC/DIV SOUND) 10 HDMI1_RXCLK+
11 NC 26 ODD[0]- 1 GND 4 NC
12 GND 27 GND 2 PC_SL_IN 5 NC CN1002_H2 (HDMI2)
13 ODD[3]+ 28 SDA_TCON 3 PC_SR_IN 6 NC 1 HDMI2_RX2+ 11 GND
14 ODD[3]- 29 SCL_TCON 2 GND 12 HDMI2_RXCLK-
15 GND 30 NC CN802(COMPONENT) 3 HDMI2_RX2- 13 HDMI_CEC
1 GND 6 - 4 HDMI2_RX1+ 14 GND
CN210 (to Powr board) 2 COMP1_Y 7 COMP1_PR 5 GND 15 SCL
1 B13VS 10 GND 3 IDENT_COMP1 8 GND 6 HDMI2_RX1- 16 SDA
2 SW_POWER 11 GND 4 COMP1_PB 9 GND 7 HDMI2_RX0+ 17 GND
3 B13VS 12 H_OUT 5 - 8 GND 18 5V
4 A5V 13 B13V 9 HDMI2_RX0- 19 HPD
5 B5V 14 PWM_DIMMING JA701 (SCART) 10 HDMI2_RXCLK+
6 B5V 15 B13V 1 GND 13 NC
7 B5V 16 SW_INVERTER 2 GND 14 SC_G
8 GND 17 B13V 3 GND 15 GND OP1301 (SPDIF)
9 GND 18 LAMP_DET 4 GND 16 NC 1 SPDIF_OUT 3 GND
5 SC_CVBS_IN 17 IDENT_SC 2 B5V
CN401(FUNCTION) 6 GND 18 SC_B
1 IR 6 KEY_INPUT1 7 SC_CVBS_OUT 19 GND CN1301 (HEADPHONE)
2 GND 7 KEY_INPUT2 8 GND 20 SC_SL_IN 1 GND 4 GND
3 A3.3V 8 LED_STB 9 SC_FB 21 SC_SR_IN 2 HP_SL 5 HP_IDENT
4 MSCL 9 GND 10 GND 22 GND 3 HP_SR 6 NC
5 MSDA 10 A3.3V 11 SC_R 23 SC_SL_OUT
12 GND 24 SC_SR_OUT CN1302 (SPEAKER)
CN801 (AV) 1 R+ 3 L+
1 GND 4 SR_IN CN1204 (USB1) 2 R- 4 L-
2 CVBS 5 NC 1 USB_VCC 3 USB_DP
3 AV_IDENT 6 NC 2 USB_DM 4 GND
7 SL_IN
15
3. Disassembly
Disassembly and Reassembly
16
3. Disassembly
Disassembly and Reassembly
17
3. Disassembly
Disassembly and Reassembly
18
3. Disassembly
Disassembly and Reassembly
19
4. SW Upgrade
Main Upgrade
Note. Changing to the previous version can't operate according to the S/W version.
20
4. SW Upgrade
Main Upgrade
* Main S/W File name : T-TDT5DEUC
4. SW Upgrade
Main Upgrade
4. SW Upgrade
Sub Upgrade
* Sub Micom File name : T-TDT5DEUS-XXXX.BIN
How To Upgrade Sub Micom With DDC Manager - USB type : MTI-2510
- parallel type : MTI-2059
4. SW Upgrade
Sub Upgrade
4. SW Upgrade
Sub Upgrade
5. Trouble Shooting
1. No Power
26
5. Trouble Shooting
1. No Power
27
5. Trouble Shooting
2. No Video (Analog PC)
28
5. Trouble Shooting
2. No Video (Analog PC)
29
5. Trouble Shooting
