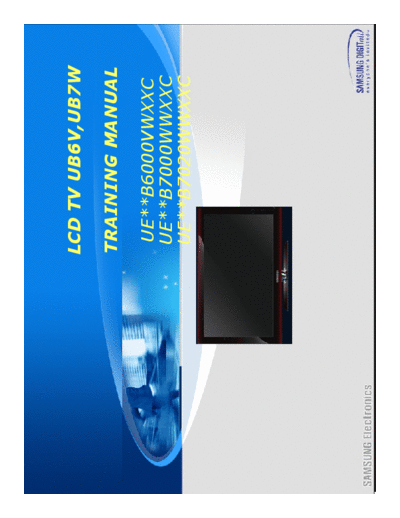

Image preview - the first page of the document
>> Download UE32B7000WWXXC_SI_1289465918.part3 documenatation <<
Text preview - extract from the document
LCD TV UB6V,UB7W
TRAINING MANUAL
UE**B6000VWXXC
UE**B7000WWXXC
UE**B7020WWXXC
Agenda
I. Inside of UB7W
III. Board description
V. Disassembly
VII. Trouble Shooting
IX. New function of UB7W
Inside of UB7W
Inside of
UB7W
Inside of UB7W
Items Specification
UE**B7000WWXXC, (UE**B7020WWXXC)
UE40B7000WWXXC : 39.21 x 27.24 x 10.03 inches
Size (W*D*H) with Stand UE46B7000WWXXC : 44.45 x 30.20 x 10.83 inches
UE55B7000WWXXC : 52.01 x 34.53 x 12.01 inches
UE40B7000WWXXC : 18.5kg
Weight with Stand UE46B7000WWXXC : 22.5kg
UE55B7000WWXXC : 27.4kg
Panel Resolution 1920*1080
A/V 1AV
S-VIDEO No
1 component
component
480i/p,720p,1080i/p
SCART 1 SCART
PC 1 Dsub
HDMI 4 HDMI
Tuner 1 PAL/SECAM/NIM/QAM/Cable tuner
USB 2 USB
Sound Output 10W/10W/15W
DNIe Yes
PIP Yes
Sound option SRS TruSurround HD
Headphone No
Response time 3ms
Luminance [cd/m2, typical] 500
C/R 300,0000
Anynet+(hdmi cec) Yes
View Angle(H/V) 178/178
Power Supply AC 110~220V,60Hz
Power Consumption 120W/128W/161W
Stand-by Power consumption 0.8W/0.8W/0.9W
Inside of UB7W
Spec Comparison
SAMSUNG SAMSUNG SAMSUNG
Model (UB6V) (UB7W) (sapphire)
UE46B6000VWXXC UE46B7000WWXXC LE46A856S1MXXC
Design
Set Size(without stand) 43.90 x 27.76 x 1.18 44.45 x 27.755 x 1.18 44.05 x 27.26 x 1.74
(Ultra slim) (Ultra slim)
Size Diagonal 46" Diagonal 46" Diagonal 46"
Panel Resolution 1920 x 1080 1920 x 1080 1920 x 1080
Viewing angle H : 178 V : 178 H : 178 V : 178 H : 178 V : 178
Color System PAL PAL PAL
Tuner 1 1 1
Contrast (cd/m2) 500 500 500
Function
CR ( Dynamic ) 300,0000 : 1 300,0000 : 1 50000 : 1
Enhancer DNIe(FBE3) DNIe(FBE3) DNIe(FBE3)
Back light unit LED LED CCFL
Media Link Internet@TV infolink
Additional Function Home network center
Power Consumption 128W 128W 310W
Inside of UB7W
Control & Connection Panel
Inside of UB7W
Control & Connection Panel
Inside of UB7W
Control & Connection Panel
Inside of UB7W
Control & Connection Panel
Inside of UB7W
Control & Connection Panel
Inside of UB7W
Control & Connection Panel
Inside of UB7W
Control & Connection Panel
Inside of UB7W
Control & Connection Panel
Inside of UB7W
Control & Connection Panel
* UB6V Doesn`t have USB 2 port
Inside of UB7W
Remote control
Inside of UB7W
Remote control
Inside of UB7W
Remote control
* UB6V Doesn`t have mini Remote Control
Inside of UB7W
Remote control
Inside of UB7W
Remote control
Inside of UB7W
Remote control
Inside of UB7W
Inner Feature of UB6V, UB7W 40"
IP Board, Main Board, Panel
Main Board
SMPS Board
TCON + FRCQ
Inside of UB7W
Inner Feature of UB6V, UB7W 40"
IP Board, Main Board, Panel
Inside of UB7W
Inner Feature of UB6V,UB7W 46",55"
IP Board, Main Board, Panel
SMPS Board Main Board
TCON + FRCM
Inside of UB7W
Inner Feature of UB6V,UB7W 46",55"
IP Board, Main Board, Panel
BOARD
DESCRIPTION
MAIN BOARD LAYOUT
Model : UB6V 40"/46"/55" Model : UB7W 40"/46"/55"
SMPS BOARD LAYOUT
Model : 40,46
SMPS BOARD LAYOUT
Model : 55
Main board connector pin map
CN1001(to Power board)
1 NC 2 NC
3 NC 4 NC
5 PWM_OUT 6 GND
7 INVERTER_ON 8 NC
9 B12V 10 B12V
11 B12V 12 GND
13 GND 14 GND
15 B5V 16 B5V
17 B5V 18 B5V
19 GND 20 GND
21 GND 22 GND
23 B1VS 24 B12VS
25 GND 26 GND
27 A5V 28 GND
29 SW_PWR 30 HSYNC
Main board connector pin map
CN7005(to T-CON)
1 GND 27 RE[0]- CN2001(to Speaker)
2 GND 28 GND
1 R+
3 SW_PVCC 29 RO[4]+
4 FRC_RESET 30 RO[4]- 2 R-
5 SDA 31 RO[3]+ 3 L+
6 SCL 32 RO[3]-
4 L-
7 LVDS opt 33 GND
8 H-Sync Out 34 ROCLK+
CN2002(to Speaker)
9 Panel_WP 35 ROCLK-
10 T_Con Check 36 GND
1 SW+
11 NC 37 RO[2]+ 2 SW-
12 NC 38 RO[2]-
3 SW+
13 GND 39 RO[1]+
14 RE[4]+ 40 RO[1]- 4 SW-
15 RE[4]- 41 RO[0]+
CN4001(to Function/IR)
16 RE[3]+ 42 RO[0]-
17 RE[3]- 43 GND 1 IR 7 KEKY2
18 GND 44 GND
2 GND 8 NCL
19 RECLK+ 45 GND
20 RECLK- 46 NC
3 A3.3V 9 A5V
21 GND 47 Panel_VCC 4 LED_INDICAT 10 NC
22 RE[2]+ 48 Panel_VCC
5 BUZZER 11 LED_CTRL
23 RE[2]- 49 Panel_VCC
24 RE[1]+ 50 Panel_VCC 6 KEY1 12 B5V
25 RE[1]- 51 Panel_VCC
26 RE[0]+
Inside of Pearl
PIP Table
PIP HDMI
TV Analog TV Digital COMP Digital PC
1,2,3,4
MAIN
TV Analog X X X X X X
TV Digital X X X X X X
Video X X X X X X
HDMI
O O X X X X
1,2,3,4
COMP O O X X X X
PC O O X X X X
O : PIP support
.- You can view TV broadcasts on the PIP screen (sub-picture) when the
main picture is
from an external device connected to HDMI, Component or PC
Disassembly
DISASSEMBLY
Disassembly
Disassembly UB7W
1. Place TV face down on cushioned table.
Remove screws from the Stand.
2. Remove the screws of rear-cover
Disassembly
3. Lift up the rear-cover. 4. Remove 30pin cable. LVDS cable.
Woofer. Disconnect other cables from
Main board and SMPS board .
5. Remove the screws of main board , SMPS, Stand
bracket
Disassembly
6. Remove the speakers 7. Remove the screws on Panel.
Trouble Shooting
TROUBLE
SHOOTING
Trouble Shooting
Check List for Initial operation
-. Power cord in to the set
-. Power switch on
-. You can sound SMPS relay
* If you can't sound, check the STB_5V appear
at BD229 in main board
-. Back-light on
* If back-light not on, check the main board power line
And check the dimming cable
-. Picture on or display the banner
* If display is nothing, check the LVDS cable
And LVDS clk/data line
Trouble Shooting
Inform to change the Assembly
-. Check the Side-Lable Ver. in set (important)
-. Order to the item with Side-Lable Ver.
-. If you change the item, see the service-bulletin
for setting the factory option.
Inform about error messages
-. If set is connected internet and software is old version , popup
below message.
" version XXXXX is available, upgrade?"
-. And select OK, you can update your LCD TV.
Trouble Shooting
Panel or Main?
<- There are so many pictures that have problems .
If you have occasions like Dot error, scratch, line defect
.
Because of a defective panel.
Otherwise follow below explanation.
Trouble Shooting
No power
Trouble Shooting
No Video
(analog PC)
Trouble Shooting
No Video
(analog PC)
Trouble Shooting
No Video
(HDMI)
Trouble Shooting
No Video
(HDMI)
Trouble Shooting
No Video
(tuner_CVBS)
Trouble Shooting
No Video
(tuner_CVBS)
Trouble Shooting
No Video
(Tuner DTV)
Trouble Shooting
No Video
(Tuner DTV)
Trouble Shooting
No Video
(Video CVBS)
Trouble Shooting
No Video
(Video CVBS)
Trouble Shooting
No Video
(Component)
Trouble Shooting
No Video
(Component)
Trouble Shooting
No Sound
Trouble Shooting
No Sound
Trouble Shooting
Reference
When you see the screen in front of TV,
If a left side (a) has a problem,
a b
Connect cable at the position,
in case of normal picture , change LED panel .
In case of abnormal picture, check power board.
If a left side (b) has a problem,
Connect cable at the position,
in case of normal picture , change LED panel .
In case of abnormal picture, check power board.
Trouble Shooting
Reference
Trouble Shooting
Reference
Trouble Shooting
DOs after changing assembly
- Adjust Panel option, and install EDID data in Factory mode
Check Point
Model : UB7000
Type :40" : 40A1UF0E
46" : 46A1UF0E
55" : 55A1UF0E
EDID on -> EDID WRDTE ALL
Trouble Shooting
Factory mode Option
ADC/WB
Control
Advanced
T-CHELEU-0100
T-CHE7DEUC-0044
T-CHE7DEUS-0029
SDAL-4.2.34-0102
RFSl12_2G_64_512-13 T-CHE7DEUC
2009-01-28
FRCQ FW : 0502, CONFIG : 4800
ZIG BEE VER :0
Type : 46A1UF0E
Model: UE46B7000
MAC FAIL
EDID OK
CALIV : AV O COMP O PC 0 HDMO O
Option : 7532 0110
Factory Data Ver : 444
DTP-AP-COMP-084
DTP-HIIG-0076
TLIB US3 2G 2008-12-12-01
DTP-BP-0087
Date of purchase : XX/XX/2009
Trouble Shooting
Factory mode
Main: Opiton, Mode : CDTV, RES :480I
Factory Reset
Type 46A1UF0E
Model UB7000
TUNER ALPS
Region PANEURO
DDR 0
Light Effect ON
CH Table SUWON
Media Link Type Infolink ON
PnP Language ENG
Local Set NONE
PDP GROUP ...
Trouble Shooting
Factory mode(ADC/WB)
ADC
AV Calibration Success
Comp Calibraion Success
PC Calibration Success
HDMI Calibration Success
ADC Target
ADC White Balance
1st_AV_Low 64 1st_PC_B_High ... 2nd_COMP_Delta 1 Result
Sub Brightness 128
1st_AV_High 880 1st_PC_Delta 1 2nd_PC_R_Low 4 1st_Y_GH 128
R-Offset 512
1st_Y_GL 128
1st_AV_Delta 1 2nd_AV_R_Low 4 2nd_PC_G_Low 4
1st_Cb_BH 128 G-Offset 512
1st_COMP_Y_Low 64 2nd_AV_G_Low 4 2nd_PC_B_Low 4
1st_Cb_BL 128 B-Offset 512
1st_COMP_Cb_Low ... 2nd_AV_B_Low 4 2nd_PC_R_High 940
1st_Cr_RH 128 Sub Contrast 128
1st_COMP_Cr_Low ... 2nd_AV_R_High 940 2nd_PC_G_High 940 1st_Cr_RL 128
R-Gain 512
1st_COMP_Y_High 940 2nd_AV_G_High 940 2nd_PC_B_High 940 2nd_R_L 131
G-Gain 512
2nd_G_L 131
1st_COMP_Cb_High ... 2nd_AV_B_High 940 2nd_PC_Delta 1
B-Gain 512
2nd_B_L 131
1st_COMP_Cr_High ... 2nd_AV_Delta 1 2nd_HDMI_R_Low 4
Movie R-Offset ...
2nd_R_H 67
1st_COMP_Delta 1 2nd_COMP_R_Low 4 2nd_HDMI_G_Low 4
2nd_G_H 67 Movie B-Offset ...
1st_PC_R_Low 16 2nd_COMP_G_Low 4 2nd_HDMI_B_Low 4 2nd_B_H 67 Movie R-Gain ...
1st_PC_G_Low ... 2nd_COMP_B_Low 4 2nd_HDMI_R_High 940 Movie B-Gain ...
1st_PC_B_Low ... 2nd_COMP_R_High 940 2nd_HDMI_G_High 940
1st_PC_R_High 1004 2nd_COMP_G_High 940 2nd_HDMI_B_High 940
1st_PC_G_High ... 2nd_COMP_B_High 940 2nd_HDMI_Delta 1
Trouble Shooting
Factory mode(control)
EDID
EDID ON/OFF ON
EDID WRITE ALL Success
EDID WRITE PC Success
EDID WRITE HDMI Success
EDID 1.2 PORT None
Sub Option
RF Mute Time 600ms TOOLS Support 1 ND ADJ Support ON Checksum 0x0000
SUB U-COM OFF LNA Support 0 24Px4 Support OFF View Log
RS-232 Jack UART Wiselink WithOut DB with DB Power Indicator Support ON Font Data Viewer
Watchdog OFF WiseLink Movie ON BD Wise Support ON
WD COUNT 255 WiseLink DLNA ON RF Remocon Support ON
SSC ON/Off ON WiseLink Write ON OTA Duration Test OFF
SSC MRR 2 NETWORK Support Wireless Alternate Del OFF
SSC MFR 2 High Devi OFF OTN Server Type operating
SSC QLC 4 Carrier Mute ON OTN Test Server OFF
Gamma 0.95 Volume Curve US_KR OTN Support ON
PANEL DISPLAY TIME 43Hr PWM MAX 256 OTN Reset
Dimm Type EXT DVOUT CD 0 OTN Duration OFF
LVDS FORMAT VESA CVBS CD 0 OTN Fail Test OFF
Language ... EDID Jack Ident OFF IIC BUS STOP OFF
UI COLOR BLUE Info Link Server Type operating Visual Test Disable
Trouble Shooting
Factory mode(control)
Hotel Option Shop Opiton
HOTEL MODE OFF Shop Mode OFF
POWER ON CHANNEL ...
USB DEMO ON(SEC) OFF
POWER ON BAND ...
USB DEMO
OFF
POWER ON VOLUME ... OFF(SEC)
MIN VOLUME ... Exhibition Mode OFF
MAX VOLUME ...
PANEL BUTTON LOCK ...
POWER ON SOURCE ...
Sound
SAP High Threshold 0x1ah Pilot Level Low Thld 0x10h BTSC Stereo Prescale ...
SAP Low Threshold 0x9h A2 Pilot AM Carr High Thld 0x0Ah BTSC Sap Prescale ...
Speaker Delay Normal 0x59h A2 Pilot AM Carr Low Thld 0x05h A2K Prescale ...
Auxout Delay Normal 0x59h NICAM Error High Thld 0x0Eh M Prescale ...
Spdif Delay Normal 0x0h NICAM Error Low Thld 0x07h
Speaker Delay Game 0x28h FM1 CarrMute High Thld 0x10h
Auxout Delay Game 0x28h FM1 CarrMute Low Thld 0x08h
Spdif Delay Game 0x0h DRC H Thresh 0x35h
STA Amp Vol. 0x28h DRC L Thresh 0x30h
STA Post Scale 0x7fh DRC SW Thresh 0x3dh
STA Speaker EQ ON Chattering Cnt 5
STA Sub Woofer 2 FM Prescale 20
Mono to Stereo Thld 0X60H AM Prescale 32
Stereo to Mono Thld 0X30h NICAM Prescale 20
Pilot Level High Thld 0X30h BTSC Mono Prescale ...
Trouble Shooting
Factory mode(control/Expert)
Config Option
Num of ATV 1 HDMI/DVI SEL 1 HDMI CTS Thld 7
Num of DTV 1 Indicator Led ON HDMI CTS Cnt1 1
Num of AV 1 Wall Mount OFF TMDS_EQ2_Boost 1
Num of SVIDEO 0 Chelsea HV Flip ON TMDS_EQ2_Gain 0
Num of COMP 1 Num of DISPLAY 2 TMDS_PLL_Loop 3
Num of HDMI 4 HDMI AV MUTE TIME 40 TMDS_CPREG_BLEED 1
Num of PC 1 DVI/HDMI SOUND Auto HDMI EQ AUTO
Num of SCART 1 HDMI HOT PLUG Disable HDMI SWITCH SIL9287
Num of DVI 0 HOT PLUG OFF HOLD TIME 1200ms TTX Group Delay OFF
Num of OPTICAL Link 0 HDMI FLT CNT SIG 200ms
Num of MEDIA 1 HDMI FLT CNT LOS 600ms
Num of PANEL KEY 6 UNSTABLE BAN CNT 2500ms
Num of USB Port 2 HDMI Err Cnt 5
MFT Offset 62.5 HDMI ROBIN ON
Select LCD/PDP LCD HDMI Callback OFF
Trouble Shooting
Factory mode(Advanced)
FBE3 WB Movie
EPA Standard
BM_slope1 19 Skin-UV 121 W/B MOVIE
... W2_Roffset ... Standard Contrast 95
ON/OFF
BM_slope2 36 FBE Sub color 140 Standard Brightness 45
MODE ... W2_Boffset ...
BM_slope3 56 M-Skin-UV ... Standard Sharpness 50
Color Tone ... W3_Rgain ...
BM_slope4 75 M-Sub Color ... Standard Color 50
MSub Brightness ... W3_Bgain ... Standard Tint 0
BM_start 68
MSub Contrast ... W3_Roffset ... Standard Backlight 0
BM_start_max 110
N_Rgain ... W3_Boffset ...
Lfunc_basis 70
N_Bgain ... Movie Contrast ...
Hfunc_basis 80
N_Roffset ... Movie Bright ...
Mean-Offset1 30
N_Boffset ... Movie Color ...
Mean-Offset2 235
W1_Rgain ... Movie Sharpness ...
Mean-Slope 112
W1_Bgain ... Movie Tint ...
ACR-Offset 10
W1_Roffset ... Movie Backlight ...
ACR-th1 10
W1_Boffset ... Movie Gamma ...
ACR-th2 120
W2_Rgain ... M_Sub_Gamma ...
Skin-Enable ON
W2_Bgain ...
Trouble Shooting
Factory mode(Advanced)
CH_DP
CH_VDEC AR_ADC
MNR OFF MJC_DBG 0
AGC_mode 1 CTI_level 15 RED_CUTOFF 0
DCR OFF MB_STEPS 72
Gain_VCR 0 ST_Beg_NTSC 0 GREEN_CUTO
0
FF SD2HD_DCR OFF LIMIT_MV_STEP 80
VS_Slice_Leve
Y_Gain_Man 880 4 BLUE_CUTOF GLOBAL_FALLBA
l 0 SD2HD_DE OFF 48
F CK
HS_Slice_Lev
Saturation 128 3 RED GAIN 0 LOCAL_FALLBAC
el SD2HD_SCL OFF 5
K
GREEN GAIN 0
Hue 0 FB_Delay_adj 0
SD2HD_LTI OFF
BLUE GAIN 0
RGB_Delay_a
Y_Shape_sel 13 0 SD2HD_NARS 0
dj
PHASE 0
SD2HD_DUR 50
Y_Shape_SCM 29 h_pk_gain 0
SOG_BW 7
SD2HD_Metric 213
C_Shape_sel 4 v_pk_gain 0 SSC_PC 6
Coring_ON_OFF OFF
C_Shape_SC RGB_DLY 0
4 h_pk_band 0
M SD_CSC 7094
If_iir 0 2d_pk_gain 0 HD_CSC 7438
If_filt_sel 6 2d_pk_band 1 M_SD_CSC 7094
M_HD_CSC 7438
slice_mod_fin
LTI_en OFF 0
e PC_SD_CSC 7094
LTI_level 100 scm_fdet_lvl 150
CTI_en OFF bl_range 3
SCM_STI_EN OFF
YC_Delay
V_Delay_adj 0
U_Delay_adj 0
Trouble Shooting
Factory mode(Advanced)
NR Sharpness Sharpness_LNA
OFF_Y 8 HIGH_Y 90 Pre_GainH1 0 SD_LTIH 0
S1_Pre_GainH1 4 S2_Post_GainV1 20
OFF_C 4 HIGH_C 18 Pre_GainH2 0 SD_LTIV 0
Pre_GainH3 0 PRE_CORING 0 S1_Pre_GainH2 16 S2_Post_GainV2 30
HIGH_Noise_bia
OFF_Noise_bias 4 4
s
POST_CORING_
Post_GainH1 0 0
H S1_Pre_GainH3 11 S2_Post_GainV3 10
OFF_YMAX 128 HIGH_YMAX 160
POST_CORING_
OFF_FADER 200 HIGH_FADER 190 Post_GainH2 0 0
V
S1_Post_GainH1 4 S3_Pre_GainH1 1
LOW_Y 70 Post_GainH3 0 Pre_TOT 0
LOW_C 16 Post_GainV1 0 Post_TOT 0 S1_Post_GainH2 16 S3_Pre_GainH2 4
LOW_Noise_bias 4 Post_GainV2 0 SP Sub Color 50
S1_Post_GainH3 11 S3_Pre_GainH3 3
LOW_YMAX 140 Post_GainV3 0
CTI_Gain 0 S3_Post_GainH
LOW_FADER 200 S1_Post_GainV1 30 1
1
Pre_LTIH 0
MED_Y 80 S3_Post_GainH
S1_Post_GainV2 35 4
SD_TH 0 2
MED_C 18
HD_TH 0 S3_Post_GainH
MED_Noise_bias 4 S1_Post_GainV3 15 3
3
NORMAL_LTIH 0
MED_YMAX 150
NORMAL_LTIV 0 S2_Pre_GainH1 2 S3_Post_GainV1 10
MED_FADER 192
S2_Pre_GainH2 10 S3_Post_GainV2 15
S2_Pre_GainH3 7 S3_Post_GainV3 5
S2_Post_GainH1 2
S2_Post_GainH2 10
S2_Post_GainH3 7
Trouble Shooting
Factory mode(Advanced)
FRCQ Option FRCQ Fallback
SSC_OnOff ON X_HaloSizSensF 32 SensD_Film_Low 31 V_Len_Slope_Video 1
SensD_Film_Medium 31
SSC_Width 96 Film_Low_SD 12
SensD_Film_High 31
SSC_Freq 240 Film_Medium_SD 3
Rel_Start_Film 20
FMD_Demo 0 Film_High_SD 0
Rel_Slope_Film 3
PATT_BeforeDDR 0 Film_Low_HD 12
H_Len_Start_Film 127
PATT_AfterDDR 0 Film_Medium_HD 3
H_Len_Slope_Film 1
CSB Vertical ON Film_High_HD 0
V_Len_Start_Film 40
CSB Horizontal ON Video_Judder_Low 10 V_Len_Slope_Film 1
X_VStabStatVid 7 Video_Judder_Med 5 SensD_Video 0
X_VStabStatF 0 Video_Judder_High 0 Rel_Start_Video 20
X_VStabCorF 8 Hangup Detection ON Rel_Slope_Video 1
H_Len_Start_Video 127
X_VStabSensF 48 Q LVDS Sequence 0-1-2-3
H_Len_Slope_Video 1
X_HaloSizStatVid 7 Q LVDS Format JEIDA
V_Len_Start_Video 40
X_HaloSizStatF 0 Q LVDS bit width 10bit
EEPROM RESET
PQ Others
EER RESET
7.5 IRE NTSC ...
NVR All Clear OFF
7.5 IRE OFFSET ...
HDMI 48Hz Enable OFF
Trouble Shooting
Compatibility problem
HDMI
3. Symptoms : Star noise
Trouble shooting : Factory mode -> Control -> Config option
-> HDMI EQ Change
2. Symptoms : Can not detect HDMI devices.
Trouble shooting : Factory mode -> Control -> Config option
-> HDMI Hot Plug : Disable
(Defalt value of HDMI Hot Plug is `Enable')
Component
15.Symptoms : Can not detect Component devices.
Trouble shooting : Factory mode -> MST336C -> SOGMID_CTRL
White balance
Adjustment (Calibration -> White Balance)
Calibration
Pattern : MIK K-7256 #24 `Chessboard Pattern'
Set Aging time : 60min
- HDMI Calibration (Time #6, 720p)
- COMP Calibration (Time #6, 720p)
- CVBS Calibration (Time #2, PAL)
- PC Calibration (Time #21, 1024*768)
White balance
Adjustment (Calibration -> White Balance)
White Balance
Test : CA-210
Pattern : MIK K-7256 #92 `Flat W/B Pattern'
Set Aging time : 60min
40inch
Important Spec.
SUB-CONTRAST: 133, Gamma: 0.95
S/W Download
Download USB Download
S/W Download
Download By online
How to do the USB Download
1.Insert USB drive containing the
firmware upgrade into the wiselink on the
side of the TV.
(USB drive make folder "T-CHU7DEUC"
and this folder download micom
program.)
How to do the USB Download
You can go to "support -> Software Upgrade"
Then, Press "By USB"
Or When you insert USB into TV,
You can see the pop up window as the below.
How to do the USB Download
It Takes a few minutes.
Wait until this message.
Then, You can check the version.
Press OK.
After upgrade, TV is automatically reset.
S/W Download
Download By online
*UB6V doesn`t have this function
S/W Download
Download By online
S/W Download
Initializaiton & necessary actions
-. You can easilly reset them after the upgrade
-. In the Factory mode,
option -> reset -> Press right button of Remocon.
-> power on
You can easily see the initial screen of TV
-. What are your necessary actions after changing Assembly?
1. Check the main picture.
2. in the factory mode,
option -> Model setting(UB7000)
option -> Type (40A1UF0E . 46A1UF0E , 55A1UF0E )
3. Check software Version then download or reset set
New Function of UB7W
1. Network setting
2. Home network Center
UB6V
3. Contents Library doesn't support
these functions
4. Yahoo TV
5. Media Play (USB & DLNA)
6. Auto motion 100hz
7. Trusurround HD
8. Supported PC timing
9. PIP table
10. HDMI/DVI edit
11. Self Diagnoise
12. E-manual
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Network setting
New Function of UB7W
Home Network Center setting
New Function of UB7W
Home Network Center setting
New Function of UB7W
Home Network Center setting
New Function of UB7W
Home Network Center setting
New Function of UB7W
Home Network Center setting
New Function of UB7W
Home Network Center setting
Media On/Off function Message On/Off on
on TV. TV.
Home Network Center :
Menu -> Application -> Home Network Center Changeable TV name
displayed on Mobile Phone
Home Network Center Setup
New Function of UB7W
Home Network Center setting
If users select one of names in TV name
MENU, users can change name. can be
changed by
Home Network Center Setup OSK(On
TV name change Screen
Keyboard).
New Function of UB7W
Home Network Center setting
IF (A) mobile phone number
is 010-269-9902
(A) display TV OSD, can send
Messages.
(A) doesn't display TV, can't send
Messages.
If users don't know number, set
Denied.
If you want delete number,
Select Delete.
Message: access control
New Function of UB7W
Home Network Center setting
Media: access control same method with Message access
control
New Function of UB7W
Message
receeived Message Phone call Displayed Schedule
For 20 second, 3 times , 5 minute duty.
If Media Play is ON and received Message, TV displays a small icon.
To check details , exit Media play.
New Function of UB7W
Media
3 seconds
When TV is on, If received
Media Play
Media .
Press the exit in 3 seconds
If Press Return ,
Media play is canceled.
After finishing Media play,
It returns as a picture before this
Appendix
Mobile phone setting
start
Wi-Fi on end
Appendix
Mobile phone setting
Wi-Fi setting
start end
Appendix
Mobile phone setting end
AP connection
start
**
*
**
* If AP requires a security password, change Data Encryption as a WEP and enter Network key.
** Connect key is acting, keep on connection until condition `connected' of AP.
If
Appendix
Mobile phone setting
Connected Home start
(Media)
start end
Appendix
Mobile phone setting
Media server ON
start end
*
*
*
*
Refer to next pages.
Appendix
Mobile phone setting
Media server setting
start end
Appendix
Mobile phone setting
Media sharing folder setting
start end
*
*
Folder >> `\My Storage\DCIM\'
Appendix
Mobile phone setting
Media serching
start end
*
*
Appendix
Mobile phone setting
Media play
start end
**
*
*
When can't see anything in Select Renderer, Restart DLNA.
**
Appendix
Mobile phone setting
end
start
Media server OFF
New Function of UB7W
Content Libary
New Function of UB7W
Contents library
Cooking
Gallery Children
Game Wellness
New Function of UB7W
Content Libary
Press the [Menu] button to move to the [Application] item and select the [Contents
How can I enter the Library] submenu to enter the main screen. Alternatively, you can enter the main menu
main screen? screen of the corresponding service by pressing the [CONTENT] remote control shortcut
key,
I want to know how to
Basically, copying and moving the contents saved on the TV is not supported. If you wish to
delete a content item
delete a content item from the TV, select Contents Manager > My Contents, select a content
saved on the TV or
item to be deleted and then select Delete. Then the content is removed from the
copy or move it to an
corresponding category.
external device.
The built-in flash memory inside the TV is for providing various features of the TV. You can
I have heard that the
view the status of the memory for the Content Library by selecting "Contents Manager" and
TV has built-in 1GB (or
viewing the used and free memory at the bottom left. Saving user content other than the
2GB) flash memory.
content provided by Samsung Electronics is not supported. If there is free memory for the
How can I access the
Content Library, you can directly play or copy the contents provided by Samsung
memory?
Electronics by selecting the "USB" menu or "Internet Download" menu.
I want to show the
pictures I have taken
The [Contents Library] does not support playing a file that is not downloaded from
using the Gallery
samsung.com or from a 3rd party content provider linked by samsung.com. However, you
function in a
can use the Image SlideShow function of WiseLink Pro.
SlideShow. How can I
do this?
New Function of UB7W
Content Libary
I wish to resume a game from the [Contents Library] This function is only supported by the full version game
last point I played, but the game purchased from Nurisem and by the full version game included with the TV by
resumes from the beginning. default.
I have pressed a remote control
button by mistake while playing Pressing a channel related button on the remote control shows the TV source
content. The current service was screen. Take care not to press the Ch Up/Down, Ch List, Guide, Pre. Ch, or Fav.
terminated and the TV source Ch button while playing content.
screen is displayed.
I have heard that the built-in
contents are played by the Adobe The [Contents Library] does not support playing a file other than the files
flash player, but I cannot play authorized by Samsung Electronics for the playback by the corresponding model
flash content on a USB memory or files officially provided by a 3rd party content provider authorized by Samsung
device downloaded from the Electronics.
Internet.
When the TV is connected to the Internet, and you select the "Contents
Manager" > "Internet Download" item, the downloadable contents are listed.
I want to download and play a Additional new contents are expected to be provided through samsung.com and
new content item other than the the contents provided by 3rd parties are expected to be provided under the
built-in contents. How can I do responsibility of the corresponding 3rd party. When the TV is not connected to
that? the Internet, visit the corresponding website, download the content to the USB
device, select "Contents Manager">"USB", select the corresponding content and
then copy the content to the TV or play the content.
I have downloaded new contents Check the USB connection first. If there is no response on the screen even if the
onto the USB memory device and connection is properly connected, enter the Contents Library main screen, and
inserted the USB memory device press the "Red" color button to move to the USB content browsing screen. If
into the TV, but there is no there is no response even after this, turn the TV off and then on, re-insert the
response. USB memory device, and repeat the above procedures.
Playing the contents of an
external USB memory device stops Check the USB connection and then retry.
while operating.
New Function of UB7W
Yahoo TV
Product Vision
The TV Widget System on DTVs offers a compelling and powerful information and
entertainment experience to consumers. Taking advantage of the capabilities of Internet-
enabled TVs, TV Widgets are connected applications that consumers can personalize and enjoy
while simultaneously watching live video or other media on their DTVs.
The TV Widget System solution uses the Yahoo! Widget Engine ("YWE"), which is a rich-media
runtime client environment developed and distributed by Yahoo! to developers and publishers.
YWE conventions and capabilities will be used to create the Platform UI, delivering the Widget
applications lifecycle for the TV experience.
The TV Widget System provides a "write-once run-everywhere" software environment
available to software developers, where an application written to specifications of the TV
Widget System is able to run on other device implementations. This application environment
also ensures a high level of privacy and security by isolating code, data and content between
applications.
The TV Widget System allows end-users to install or remove applications via the Gallery
Widget, which is a privileged Widget talking to one or more back-end Widget Gallery services
used for provisioning new Widgets on the platform.
The TV Widget System will provide a TV-oriented Platform UI. Yahoo! and the Samsung will
collaborate to customize the Platform UI and the Settings Widget as appropriate and practical
for the Samsung's unique brand and user experience requirements.
Samsung will provide business rules and categories to customize the Widget Gallery services
featuring its collection of Widgets.
New Function of UB7W
Yahoo TV
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
