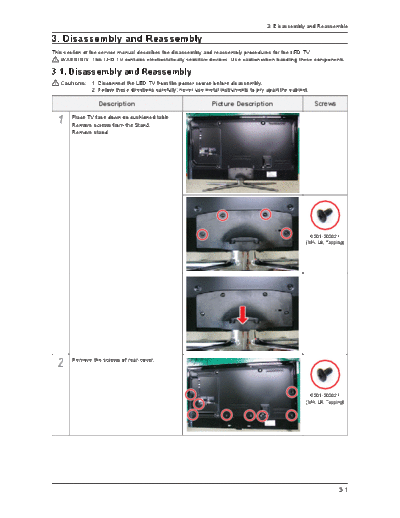

Image preview - the first page of the document

>> Download 03_disassembly_and_reassemble documenatation <<

Text preview - extract from the document

3. Disassembly and Reassemble

3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
WARNING: This LED TV contains electrostatically sensitive devices. Use caution when handling these components.

3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the LED TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

Description Picture Description Screws

1 Place TV face down on cushioned table.
Remove screws from the Stand.
Remove stand.

6001-002621
(M4, L8, Tapping)

2 Remove the screws of rear-cover.

6001-002621
(M4, L8, Tapping)

3-1
3. Disassembly and Reassemble

Description Picture Description Screws

3 Lift up and remove the rear-cover.

* Caution : Becareful when you lift up the
rear-cover, It's really sharp.

4 Remove the screws of middle-cover.

6001-002621
(M4, L8, Tapping)

5 Lift up and remove the middle-cover.

* Caution: Remove the function cable
before removing the middle
cover.

- Rear view of 46" / 55"

3-2
3. Disassembly and Reassemble

Description Picture Description Screws

6 Remove the Speakers(R/L).

7 Remove the Wi-Fi Module.

6001-002653
(M3,L6,Machine)

8 Remove the screws of Main Board.

6001-002653
(M3,L6,Machine)

* Caution : Disconnect all cable
connectors before removing
any board.

3-3
3. Disassembly and Reassemble

Description Picture Description Screws

9 Remove the screws of IP board.
- Remove the IP board.

6001-002653
(M3,L6,Machine)

10 Remove the T-CON Bracket.

6001-002653
(M3,L6,Machine)

- Panel 46", 55"

Reassembly procedures are in the reverse order of disassembly procedures.

3-4
3. Disassembly and Reassemble

Assembly of Touch Function

Description Picture Description Screws

1 Remove the cover sheet from Assy
p-cover function(1~3) 1

2 Firmly put ASSY P-Cover Function to
the designated GUIDE RIBS.

ASSY P-COVER FUNCTION

3-5
3. Disassembly and Reassemble

Description Picture Description Screws

3 Assy P-Cover Function Hook into
square hole in the Middle.

4 Rubing the ASSY P-COVER
Function until double face tape.
