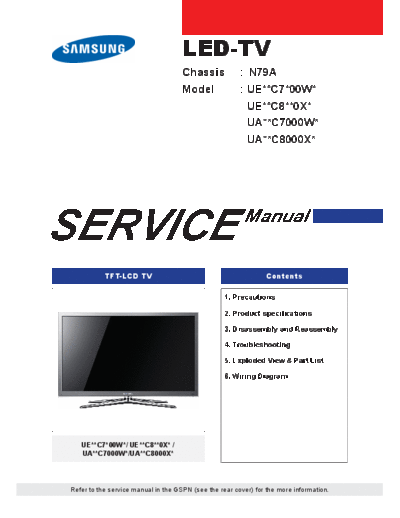

Image preview - the first page of the document
>> Download samsung_ue40c7000_ue46c7000_ue55c7000_ue40c8000_ue46c8000_ue55c8000_ue65c8000_ua40c7000_ua46c7000_ua55c7000_ua40c8000_ua46c8000_ua55c8000_ua65c8000_ch_n79 documenatation <<
Text preview - extract from the document
LED-TV
Chassis : N79A
Model : UE**C7*00W*
UE**C8**0X*
UA**C7000W*
UA**C8000X*
SERVICE Manual
TFT-LCD TV Contents
1. Precautions
s
3. Disassembly and Reassembly
4. Troubleshooting
5. Exploded View & Part List
6. Wiring Diagram
UE**C7*00W*/ UE**C8**0X* /
UA**C7000W*/UA**C8000X*
Refer to the service manual in the GSPN (see the rear cover) for the more information.
Contents
1. Precautions .............................................................................................................. 1-1
1-1. Safety Precautions ......................................................................................................... 1-1
1-2. Servicing Precautions ..................................................................................................... 1-2
1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2
1-4. Installation Precautions .................................................................................................. 1-3
............................................................................................ 2-1
................................................................................................. 2-1
2-2. Spec Comparison to the Old Models .............................................................................. 2-8
2-3. Accessories .................................................................................................................... 2-9
2-4. Channel Table ............................................................................................................... 2-10
2-5. New Functional Explanation ......................................................................................... 2-20
3. Disassembly and Reassembly ............................................................................... 3-1
3-1. Disassembly and Reassembly ....................................................................................... 3-1
4. Troubleshooting ...................................................................................................... 4-1
4-1. Troubleshooting .............................................................................................................. 4-1
4-2. Alignments and Adjustments ........................................................................................ 4-36
4-3. Factory Mode Adjustments ........................................................................................... 4-37
4-4. White Balance - Calibration .......................................................................................... 4-47
4-5. Servicing Information .................................................................................................... 4-49
5. Exploded View & Part List ...................................................................................... 5-1
5-1. Exploded View ................................................................................................................ 5-1
5-2. Parts List ......................................................................................................................... 5-2
6. Wiring Diagram ........................................................................................................ 6-1
6-1. Wiring Diagram ............................................................................................................... 6-1
6-2. Connector ....................................................................................................................... 6-2
6-3. Connector Functions ...................................................................................................... 6-3
6-4. Cables ............................................................................................................................ 6-3
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
1. For continued safety, do not attempt to modify the circuit board.
2. Disconnect the AC power and DC power jack before servicing.
1-1-2. Servicing the LED TV
1. When servicing the LED TV, Disconnect the AC line cord from the AC outlet.
2. It is essential that service technicians have an accurate voltage meter available at all times.
Check the calibration of this meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the LED TV to the user, perform the following safety checks:
1. Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the
chassis and other metal parts in the LED TV.
2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
3. Leakage Current Hot Check (Figure 1-1):
WARNING : Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI
C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).
LEAKAGE
DEVICE
CURRENT
UNDER
TESTER
TEST
TEST ALL
SURFACES
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
Figure 1-1. Leakage Current Test Circuit
4. With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit's AC switch
etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
appropriate.
1-1
1. Precautions
1-2. Servicing Precautions
WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of
this manual.
Note:
safety precautions, always follow the safety precautions.
1-2-1 General Servicing Precautions
1. Always unplug the unit's AC power cord from the AC power source and disconnect the DC Power Jack before
attempting to:
(a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.
2. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes
used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such
elements to their original position.
3.
the area around the serviced part has not been damaged.
4. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels,
input terminals and earphone jacks).
5.
Connect an insulation resistance meter (500 V) to theblades of the AC plug.
The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be
greater than 1 megohm.
6. Always connect a test instrument's ground lead to the instrument chassis ground before connecting the positive lead;
always remove the instrument's ground lead last.
1-3. Electrostatically Sensitive Devices (ESD) Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the LED TV.
2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent
accumulation of an electrostatic charge.
3.
4. Use only a grounded-tip soldering iron to solder or desolder ESDs.
5.
6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
8.
1-2
1. Precautions
1-4. Installation Precautions
1. For safety reasons, more than a people are required for carrying the product.
2.
3. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal
4. Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed
5.
shock.
6.
7. When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes.
1-3
Model U*40C7*00W*
2
Item
Note:
2-1
Model U*46C7*00W*
2
Item
Note:
2-2
Model U*55C7*00W*
2
Item
Note:
Model U*40C8***X*
2
Item
Note:
Model U*46C8***X*
2
Item
Note:
Model U*55C8***X*
2
Item
Note:
Model U*65C8***X*
2
Item
Note:
UC7W UB7W
Model
(U*40C7*00W*/U*46C7*00W*/U*55C7*00W*) (UE40B7000WW/UE46B7000WWUE55B7000WW)
40
(W x H x D) 46
55
40
46
55
450 cd/m2 2
2-3. Accessories
Product Code. No
-
Europe INDONESIA IRELAND South Africa ANGOLA NEWZEALAND ITALY EUROPE FRANCE UK CIS(OIRT) AUSTRALIA CHINA
channel
PAL-BG PAL-BG PAL-I PAL-I PAL-I PAL-BG PAL-BG SECAM-BG SECAM-L PALll PAL-I SECAM -DK PAL-BG PAL-D
A x x x x x x 53.75 x 47.75 x x x x x
B x x x x x x 62.25 x 55.75 x x x x x
C1 x x x x x x x x 60.50 x x x x x
C x x x x x x 82.25 x 63.75 x x x x x
D x x x x x x 175.25 x x x x x x x
E x x x x x x 183.75 x x x x x x x
F x x x x x x 192.25 x x x x x x x
G x x x x x x 201.25 x x x x x x x
H x x x x x x 210.25 x x x x x x x
H1 x x x x x x 217.25 x x x x x x x
H2 x x x x x x 224.25 x x x x x x x
0 x x x x x x x x x x x x 46.25 x
1 x 44.25 45.75 x 43.25 45.25 x 41.25 176.00 45.00 x 49.75 57.25 49.75
2 48.25 55.25 53.75 x 52.25 55.25 x 48.25 184.00 51.75 x 59.25 64.25 57.75
3 55.25 62.25 61.75 x 60.25 62.25 x 55.25 192.00 56.75 x 77.25 86.25 65.75
4 62.25 175.25 175.25 175.25 175.25 175.25 x 62.25 200.00 61.75 x 85.25 95.25 77.25
5 175.25 182.25 183.25 183.25 183.25 182.25 x 175.25 208.00 66.75 x 93.25 102.25 85.25
5A x x x x x x x x x x x x 138.25 x
6 182.25 189.25 191.25 191.25 191.25 189.25 x 182.25 216.00 179.75 x 175.25 175.25 168.25
7 189.25 196.25 199.25 199.25 199.25 196.25 x 189.25 x 184.75 x 183.25 182.25 176.25
8 196.25 203.25 207.25 207.25 207.25 203.25 x 196.25 x 189.75 x 191.25 189.25 184.25
9 203.25 210.25 215.25 215.25 215.25 210.25 x 203.25 x 194.75 x 199.25 196.25 192.25
9A x x x x x x x x x x x x 203.25 x
10 210.25 217.25 223.25 223.25 223.25 217.25 x 210.25 x 199.75 x 207.25 209.25 200.25
11 217.25 224.25 231.25 231.25 x 224.25 x 217.25 x 204.75 x 215.25 216.25 208.25
12 224.25 x x 239.25 x x x 224.25 x 209.75 x 223.25 x 216.25
13 x x x 247.25 x x x x x 214.75 x x x 471.25
14 x x x x x x x x x x x x x 479.25
15 x x x x x x x x x x x x x 487.25
16 x x x x x x x x x x x x x 495.25
17 x x x x x x x x x x x x x 503.25
18 x x x x x x x x x x x x x 511.25
19 x x x x x x x x x x x x x 519.25
20 x x x x x x x x x x x x x 527.25
21 471.25 x 535.25
22 479.25 x 543.25
23 487.25 x 551.25
24 495.25 x 559.25
25 503.25 x 607.25
26 511.25 x 615.25
27 519.25 x 623.25
28 527.25 527.25 631.25
29 535.25 534.25 639.25
30 543.25 541.25 647.25
31 551.25 548.25 655.25
32 559.25 555.25 663.25
33 567.25 562.25 671.25
34 575.25 569.25 679.25
35 583.25 576.25 687.25
36 591.25 583.25 695.25
37 599.25 590.25 703.25
38 607.25 597.25 711.25
39 615.25 604.25 719.25
40 623.25 611.25 727.25
41 631.25 618.25 735.25
42 639.25 625.25 743.25
43 647.25 632.25 751.25
44 655.25 639.25 759.25
45 663.25 646.25 767.25
46 671.25 653.25 775.25
47 679.25 660.25 783.25
48 687.25 667.25 791.25
49 695.25 674.25 799.25
50 703.25 681.25 807.25
51 711.25 688.25 815.25
52 719.25 695.25 823.25
53 727.25 702.25 831.25
54 735.25 709.25 839.25
55 743.25 716.25 847.25
56 751.25 723.25 855.25
57 759.25 730.25 863.25
58 767.25 737.25 x
59 775.25 x x 775.25 744.25 x
60 783.25 x x 783.25 751.25 x
61 791.25 x x 791.25 758.25 x
62 799.25 x x 799.25 765.25 x
63 807.25 x x 807.25 772.25 x
64 815.25 x x 815.25 779.25 x
65 823.25 x x 823.25 786.25 567. 25
66 831.25 x x 831.25 793.25 575. 25
67 839.25 x x 839.25 800.25 583. 25
68 847.25 x x 847.25 807.25 591. 25
69 855.25 x x 855.25 814.25 599. 25
2-11
Europe INDONESIA IRELAND South Africa ANGOLA NEWZEALAND ITALY CCIR FRANCE AUSTRALIA CHINA
channel
PAL-BG PAL-BG PAL-BG SEAAM SEAAM PAL-BG PAL-BG SEAAM SEAAM-L PALll PALI UK SECAM OIRT PAL-BG PAL-D
S1' 69.25 x
S2' 76.25 x
S3' 83.25 x
S4' 90.25 x
S5' 97.25 x
S1 105.25 116.75 103.25 105.25 112.25
S2 112.25 128.75 111.25 112.25 120.25
S3 119.25 140.75 119.25 119.25 128.25
S4 126.25 152.75 127.25 126.25 136.25
S5 133.25 164.75 135.25 133.25 144.25
S6 140.25 176.75 143.25 140.25 152.25
S7 147.25 188.75 151.25 147.25 160.25
S8 154.25 200.75 159.25 154.25 224.25
S9 161.25 212.75 167.25 161.25 232.25
S10 168.25 224.75 231.25 168.25 240.25
S11 231.25 236.75 239.25 231.25 248.25
S12 238.25 248.75 247.25 238.25 256.25
S13 245.25 260.75 253.00 245.25 264.25
S14 252.25 272.75 263.25 252.25 272.25
S15 259.25 284.75 271.25 259.25 280.25
S16 266.25 296.75 279.25 266.25 288.25
S17 273.25 0 287.25 273.25 296.25
S18 280.25 0 295.25 280.25 304.25
S19 287.25 0 303.25 287.25 312.25
S20 294.25 0 0.00 294.25 320.25
S21 303.25 303.25 0.00 303.25 328.25
S22 311.25 311.25 311.25 336.25
S23 319.25 319.25 319.25 344.25
S24 327.25 327.25 327.25 352.25
S25 335.25 335.25 335.25 360.25
S26 343.25 343.25 343.25 368.25
S27 351.25 351.25 351.25 376.25
S28 359.25 359.25 359.25 384.25
S29 367.25 367.25 367.25 392.25
S30 375.25 375.25 375.25 400.25
S31 383.25 383.25 383.25 408.25
S32 391.25 391.25 391.25 416.25
S33 399.25 399.25 399.25 424.25
S34 407.25 407.25 407.25 432.25
S35 415.25 415.25 415.25 440.25
S36 423.25 423.25 423.25 448.25
S37 431.25 431.25 431.25 456.25
S38 439.25 439.25 439.25 x
S39 447.25 447.25 447.25 x
S40 455.25 455.25 455.25 x
S41 463.25 463.25 463.25 x
2-12
PIA
2-21
2-22
1
2
1
3 2
3
.
Home
SUM
00:04:03 / 00:07:38 1/1
Movie 01.avi
N
1
2
Comp. PC HDMI
2D 3D
NA PC
(HDMI 1.4)
00:04:03 / 00:07:38 1/1
Movie 01.avi
SUM
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
WARNING: This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the LED TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
Description Picture Description Screws
1. Place the TV face down on cushioned table.
Remove 5 screws from the Stand.
Remove stand.
6003-000133
Size:L8
3-1
3. Disassembly and Reassemble
Description Picture Description Screws
2. Remove the screws of rear-cover.
6003-000133
Size:L8
6003-001003
Size:L12
2-1. Pull out a AC Power Cord
3. Lift up the rear-cover.
3-2
3. Disassembly and Reassemble
Description Picture Description Screws
4. Remove the cables and screws from 46 inch
SMPS, Main board and Woofer and
Bracket stand link.
55 inch
65 inch
6001-002283
Size:L5
6003-000133
Size:L8
3-3
3. Disassembly and Reassemble
Description Picture Description Screws
5. Lift up the panel so you can remove front
cover.
6. Remove the screw and speaker then you can
remove the function assy.
6003-000133
Size:L8
Reassembly procedures are in the reverse order of disassembly procedures.
3-4
4. Troubleshooting
4. Troubleshooting
4-1. Troubleshooting
1.
2.
3.
4-1
4. Troubleshooting
Yes
Can you see anything Yes
Can you see Yes
Can you see Digital
Yes
Yes
Check 18p cable.
Yes
Yes
support
4-2
4. Troubleshooting
4-3
4. Troubleshooting
Problem
1.
2.
3.
4.
5.
4-4
4. Troubleshooting
Problem
1.
2.
3.
4.
5.
Client.
4-5
4. Troubleshooting
Problem
check the network status.
1.
2.
3.
4.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
4-6
4. Troubleshooting
Problem
1.
2.
4-7
4. Troubleshooting
-
-
-
checkpoints -
-
-
Caution
check a connection power cable.
Yes
Yes
Diagnostics
Yes
Yes
the Main Assy.
Yes
the Main Assy.
Yes
4-8
4. Troubleshooting
4. Troubleshooting
-
-
-
checkpoints
-
Caution
Yes
Yes
Does the signal appear at pin 14, 16, 12,
1
Yes
Diagnostics
2
Yes
4. Troubleshooting
4-11
4. Troubleshooting
1 2
3
4-12
4. Troubleshooting
-
-
-
checkpoints
-
Caution
Yes
Yes
Does the signal appear at
4
Diagnostics
Yes
5
Yes
7
Yes
4-13
4. Troubleshooting
4-14
4. Troubleshooting
4 5
6
7
4-15
4. Troubleshooting
-
-
-
checkpoints
-
Caution
Yes
Yes
Does the signal appear at
6
Yes
Diagnostics
5
Yes
4-16
4. Troubleshooting
4-17
4. Troubleshooting
5
6
4-18
4. Troubleshooting
-
-
-
checkpoints
-
Caution
Yes
Yes
7 Does the signal appear at
Diagnostics Yes
5
Yes
4. Troubleshooting
4. Troubleshooting
5
7
4-21
4. Troubleshooting
-
-
-
checkpoints
-
Caution
Yes
Yes
5
Diagnostics
Yes
5
Yes
4-22
4. Troubleshooting
4-23
4. Troubleshooting
5
4-24
4. Troubleshooting
-
-
-
checkpoints
-
Caution
Yes
Yes
9 Does the signal appear at
Diagnostics
Yes
5
Yes
4-25
4. Troubleshooting
4-26
4. Troubleshooting
5
9
4-27
4. Troubleshooting
-
-
-
checkpoints
-
Caution
Yes
Yes
0
Diagnostics
Yes
!
Yes
Does the signal appear at
@
Yes
4-28
4. Troubleshooting
4. Troubleshooting
0
!
@
4. Troubleshooting
1
2
3
4
5
6
7
8
4-31
4. Troubleshooting
1.
2.
4-32
4. Troubleshooting
3.
BD1231
4-33
4. Troubleshooting
operates at all
3D glass
4-34
4. Troubleshooting
4-35
4. Troubleshooting
1.
2.
3.
4.
5.
6.
7.
4-36
4. Troubleshooting
1.
2. Power OFF INFO MENU MUTE POWER ON to turn the set on.
3.
4.
5.
Control
6.
Menu
4-37
4. Troubleshooting
Control
1.
2. At will appear.
3.
4.
5.
Type
Ch Table
Country - - -
Front Color T-M-Brn T-M-Brn
4-38
4. Troubleshooting
Type
Ch Table
Country - - -
Front Color T-M-Brn T-M-Brn
Type
Ch Table
Country - - - -
Front Color
Type
Ch Table
Country - - -
Front Color
4. Troubleshooting
Type
...
Tuner
Ch Table ...
Country
Front Color
Control
4. Troubleshooting
... ...
...
Debug
...
31
Movie with chapteri ...
DB Alternate Del
3
Shop
4-41
4. Troubleshooting
Carrier Mute
Type1
4
Chattering Cnt 5
-8
1 Auto
1 Disable
1 Boot
1
4
1
1
1
6
2 1
62.5 1
LCD
1 3
1 1
1
2
4-42
4. Troubleshooting
SSC
272
278
272
Ly 278
548
546
585
548
546
558
4-43
4. Troubleshooting
255
Failure
...
Failure
at the
4-44
4. Troubleshooting
ADC
ADC Target
Failure
Failure
64
1
1 4
64 4
512 4
512
512
512 1
1 4
16 4
16 4
16
1
4
1 4
4 4
4
4
1
4-45
4. Troubleshooting
245
...
...
...
...
131
131
131
White
128
512
512
512
128
548
512
...
...
...
...
4-46
4. Troubleshooting
ADC
Calibration
Lattice
Lattice
Lattice
Lattice
4-47
4. Troubleshooting
4-48
4. Troubleshooting
B gain
1.
2.
3.
the button.
4.
press the button.
5. button.
6.
button.
4. Troubleshooting
1.
4. Troubleshooting
4-51
5. Exploded View & Part List
5. Exploded View & Part List
5-1. UE65C8000XW Exploded View
R001A
CB01
M0014
P001A
PANEL SB05A
T0175
F001A
SG03
SB04A
SP01A
SP01A
5-1-1. UE65C8000XW Parts List
Location No. Code No. Q'ty SA/SNA Remark
F001A BN96-15587D ASSY COVER P-FRONT;UC8000 65,EO,PMMA+AL, 1 SA
SP01A BN96-12942E ASSY SPEAKER P;8ohm,4pin,15W,L:640 R:115 1 SA
PANEL BN95-00400A ASSY PRODUCT LCD;T650FCE1-FA,SLLADA1,10b 1 SA
M0014 BN94-02755P ASSY PCB MAIN;UE65C8000XWXXC 1 SA
CB01 BN61-06214B BRACKET-AV;UC7k/8k,PCM,T0.45,BKN-P824,CI 1 SNA
SB05A BN96-14699A ASSY BRACKET P-STAND LINK;UC6500 65,SECC 1 SNA
P001A BN44-00378A DC VSS-LED TV PD BD;PD65AD2_ZSM,PSLF331B 1 SA
SP01A BN96-12965E ASSY SPEAKER P;4ohm,4pin,25W,R: 1000,sli 1 SA
R001A BN90-02925B ASSY COVER REAR;UC8000 65 1 SNA
SG03 BN61-06119A GUIDE-STAND;58PC6500,PC,G/F 20%,V2,BK000 1 SA
SB04A BN96-14700B ASSY STAND P-BASE;65,FOUR-LEG,PC+ABS,V1, 1 SA
5-1
5. Exploded View & Part List
5-2. UE65C8000XW Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Q'ty SA/SNA Remark
UE65C8000XWXXC
0.1 S001A BN90-02811B ASSY STAND;UC6900 65 1 SNA
..2 SB04A BN96-14700B ASSY STAND P-BASE;65,FOUR-LEG,PC+ABS,V1, 1 SA
0.1 BN90-02924D ASSY COVER FRONT;UC8000 65 1 SNA
..2 F001A BN96-15587D ASSY COVER P-FRONT;UC8000 65,EO,PMMA+AL, 1 SA
...3 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA
...3 BN60-00162Z SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 1.36 SNA
...3 BN61-05728C BOSS-TAPE;UB7000,acryl,T0.4,W16,DARK GRA 3.07 SNA
...3 BN61-05728E BOSS-TAPE;UB7000,acryl,T0.4,W25,DARK GRA 1.34 SNA
...3 BN61-06213A BRACKET-STOPPER BOSS;C8K,S50C+SECC T1.2 11 SNA
...3 BN61-06215A BRACKET-STOPPER PANEL;C8K,SK5,0.5T 2 SNA
...3 BN61-06660A BOSS-BOND;UC6900/8000,EPOXY,GREEN 1.2 SNA
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 1.7 SNA
...3 BN63-06595D COVER-MASK METAL;UC8000 65,EO,AL 5182,T0 1 SNA
....4 BN63-07468A COVER-MASK METAL;UC8000 65inch,AL,0.6T,S 1 SNA
...3 F001 BN63-06602C COVER-FRONT;UC6900/8000 65,EO,PC+PC,V2,T 1 SNA
....4 0103-007268 RESIN-PC;TP0010,2.0V0,NH PC,NH PC 2.0 V2 625 SNA
....4 0103-007269 RESIN-PC;GY0132,2.0V0,NH PC,NH PC 2.0 V2 600 SNA
...3 AC280 BN63-06767A COVER-PCB;UC8K,HIPS,V0, BLK 1 SNA
....4 0103-004637 RESIN-HIPS;BK0020,V0,HIPS,NoN-Deca,NoN-D 24 SNA
...3 BN63-07229A COVER-SHEET;rose70",urethane,T0.052,W50m 3.9 SNA
...3 BN63-07229C COVER-SHEET;rose70",urethane,T0.052,W70m 1.7 SNA
...3 FB04A BN96-13489C ASSY BLU P;UC65C8000XFXZA,L8065,WHITE,BL 1 SA
...3 CW02A BN96-13994A ASSY COVER P-WINDOW-3D;UC8000 40/46/55,P 1 SA
....4 BN61-06539A BOSS-TAPE;UC8000,PE,T0.16,W5,Transparent 0.01 SNA
....4 BN64-01325A WINDOW-3D;UC8000,PC,V2,MILKY(TP0023) 1 SNA
.....5 0103-007463 RESIN-PC;SC-1220R,TP0023,1.6V2,NH PC,V-2 2.5 SNA
...3 CW01A BN96-13995A ASSY COVER P-WINDOW-RMC LED;UC8000 40/46 1 SA
....4 BN61-06539A BOSS-TAPE;UC8000,PE,T0.16,W5,Transparent 0.01 SNA
....4 FW04 BN64-01324A WINDOW-RMC LED;UC8000,PC,V2,MILKY(TP0023 1 SNA
.....5 0103-007463 RESIN-PC;SC-1220R,TP0023,1.6V2,NH PC,V-2 1.4 SNA
...3 FB26A BN96-15474G ASSY BOARD P-TOUCH FUNCTION&POWER IR;UN6 1 SA
...3 BN68-02702D LABEL-LED-POP;Highlight Sticker Color(80 1 SNA
...3 SP01A BN96-12942E ASSY SPEAKER P;8ohm,4pin,15W,L:640 R:115 1 SA
...3 BN60-00162E SPACER-FOAM;FOAM,50000mm,Dark Gray,0.5T, 0.05 SNA
...3 CIS1 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0.36 SNA
0.1 R001A BN90-02925B ASSY COVER REAR;UC8000 65 1 SNA
..2 HDC01 BN61-06246B HOLDER-CORD;UC7000,ABS+PC,BLK 1 SA
...3 0103-007334 RESIN-PC ABS;BR0017,2.0V0,ABS+PC,PC/ABS 12 SNA
..2 R001A BN96-15588B ASSY COVER P-REAR;UC8000 65,EO,PCM,T0.45 1 SA
0.1 M0017 BN91-05063Q ASSY CHASSIS;UE65C8000XWXXC 1 SNA
..2 M0014 BN94-02755P ASSY PCB MAIN;UE65C8000XWXXC 1 SA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 1 SNA
...3 ET01 BN40-00171A TUNER;DTOS30CVH071A,DVB-T/C,164CH,38.9MH 1 SA
...3 CB01 BN61-06214B BRACKET-AV;UC7k/8k,PCM,T0.45,BKN-P824,CI 1 SNA
...3 BN61-06575A HOLDER-AV;UC7000 40,46,55inch EO,HIPS,V0 1 SNA
....4 0103-004627 RESIN-ABS;VE-0812/K2901,BK0020,V0,ABS,No 12 SNA
5-2
5. Exploded View & Part List
Level Location No. Code No. Q'ty SA/SNA Remark
...3 T0066 BN62-00071A HEAT SINK-ES;22*22*2.5,Ceramic,T2.6,TAPE 2 SNA
...3 T0066 BN62-00072A HEAT SINK-ES;40*40*2.5,Ceramic,T2.6,TAPE 1 SNA
...3 BN62-00094A HEAT SINK-CERAMIC;30*30*2.6,Ceramic,T2.6 2 SNA
...3 BN62-00095A HEAT SINK-CERAMIC;50*12*2.6,Ceramic,T2.6 1 SNA
...3 BN97-04066P ASSY SMD;UE65C8000XWXXC,BN94-02755P 1 SNA
....4 DS01A 0401-000116 DIODE-SWITCHING;MMSD914T1,100V,200mA,SOD 7 SA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 13 SA
....4 DR01A 0402-001098 DIODE-RECTIFIER;SK34,40V,3A,SMC,TP 1 SA
....4 D0254 0402-001207 DIODE-SCHOTTKY;UPS5819,40V,1000mA,DO-216 1 SA
....4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 21 SNA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 5 SA
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 9 SNA
....4 AD12 0407-000123 DIODE-SWITCHING;DAN202K,80V,100mA,SOT-23 1 SA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 13 SA
....4 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 SA
....4 0501-002654 TR-SMALL SIGNAL;2PD601ASL,NPN,250mW,SOT- 2 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 5 SA
....4 Q409 0505-002386 FET-SILICON;AO3415AL,P,-20V,-4A,0.045ohm 5 SA
....4 IC104 0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 SA
....4 IC104 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 4 SA
....4 IC104 0802-001012 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,DQFN, 1 SNA
....4 0904-002119 IC-I/O SUPPORT CHIP;PCF8574TS,8Bit,SSOP, 1 SA
....4 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 SA
....4 IC106 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH,SO 1 SA
....4 IC106 1001-001627 IC-VIDEO SWITCH;SiI9389CTU,TQFP,100P,14x 1 SA
....4 IC107 1002-001482 IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI 1 SA
....4 IC112 1103-001310 IC-EEPROM;24LC02B,256X8BIT,SOIC,8P,3.91X 1 SNA
....4 IC112 1103-001475 IC-EEPROM;M24256-BR,256Kbit,32Kx8,SOP,8P 1 SNA
....4 1105-002049 IC-DDR2 SDRAM;EM68B16CWPA-25H,DDR2 SDRAM 1 SA
....4 1105-002086 IC-DDR SDRAM;EM6A9320BIA,128MB,LFBGA,144 1 SA
....4 T0085 1201-002487 IC-AUDIO AMP;MAX9728A,QFN,12P,3x3mm,DUAL 1 SA
....4 T0124 1201-002992 IC-POWER AMP;STA369BWS,PSSO,36P,10.3x7.5 2 SA
....4 T0087 1203-002519 IC-POSI.FIXED REG.;KIA7809AF,DPAK,3P,240 1 SA
....4 IC012 1203-003544 IC-POSI.ADJUST REG.;RT9173BPS,SOP-8,8P,5 2 SA
....4 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 IC012 1203-004937 IC-POSI.ADJUST REG.;MP2000DJ-ADJ-LF-Z,TS 1 SA
....4 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 2 SA
....4 IC012 1203-005756 IC-POSI.ADJUST REG.;AP7173-SP,SOP-8L-EP, 1 SA
....4 1203-006012 IC-DC/DC CONVERTER;MP8725EL,QFN14,14P,3x 1 SA
....4 1203-006013 IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9 2 SA
....4 T0087 1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 1 SA
....4 T0087 1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 1 SA
....4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....4 T0087 1203-006141 IC-POSI.FIXED REG.;S-1172B33-U5T1G,SOT-8 2 SA
....4 1203-006142 IC-DC/DC CONVERTER;BD8924G,5P,2.9x1.6x1. 1 SA
....4 1203-006167 IC-POSI.FIXED REG.;S-1172B12-U5T1G,SOT-8 1 SA
....4 1204-003100 IC-DECODER;SDP92,FCPBGAH,937P,35x35mm,PL 1 SA
5-3
5. Exploded View & Part List
Level Location No. Code No. Q'ty SA/SNA Remark
....4 IC118 1204-003101 IC-VIDEO PROCESS;SDP94,PBGA,345P,19x19mm 1 SA
....4 IC118 1204-003128 IC-VIDEO PROCESS;FRC9459S,FBGA,372P,23x2 1 SNA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 SA
....4 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 1 SA
....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 2 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 2 SA
....4 1205-003834 IC-ETHERNET CONTROLLER;RTL8201E-VC-GR,QF 1 SA
....4 1205-003840 IC-CODEC;WM8595GEFL/RS,QFN,48P,7x7x0.9mm 1 SA
....4 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 SA
....4 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 32 SA
....4 J914 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SC
....4 KAR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 59 SA
....4 HDR7 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 2 SNA
....4 AR49 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 60 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 64 SNA
....4 PR27 2007-000144 R-CHIP;5.1Kohm,5%,1/16W,TP,1005 5 SA
....4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SNA
....4 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 34 SA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 2 SNA
....4 R509 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 3 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 67 SNA
....4 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 45 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 42 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 67 SNA
....4 2007-000231 R-CHIP;1.3Kohm,1%,1/10W,TP,1608 2 SA
....4 UR53 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608 1 SA
....4 RT01 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012 2 SNA
....4 2007-000606 R-CHIP;240ohm,1%,1/10W,TP,1608 2 SA
....4 JR11 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 2 SNA
....4 KAR28 2007-000637 R-CHIP;270Kohm,5%,1/10W,TP,1608 1 SNA
....4 R19 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 4 SNA
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 4 SNA
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 9 SNA
....4 2007-000946 R-CHIP;47ohm,1%,1/10W,TP,1608 7 SA
....4 FR18 2007-000982 R-CHIP;5.6Kohm,5%,1/16W,TP,1005 1 SA
....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 32 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 32 SNA
....4 CER07 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 3 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 3 SNA
....4 2007-001333 R-CHIP;18Kohm,5%,1/16W,TP,1005 2 SNA
....4 2007-001335 R-CHIP;36Kohm,5%,1/16W,TP,1005 2 SA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 1 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
....4 2007-003022 R-CHIP;62ohm,5%,1/16W,TP,1005 17 SNA
....4 R133 2007-007004 R-CHIP;12Kohm,1%,1/10W,TP,1608 4 SA
....4 PR8 2007-007015 R-CHIP;13Kohm,5%,1/16W,TP,1005 1 SNA
....4 R365 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 15 SNA
....4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 2 SA
....4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 7 SNA
5-4
5. Exploded View & Part List
Level Location No. Code No. Q'ty SA/SNA Remark
....4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 4 SNA
....4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005 16 SA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 12 SNA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 5 SNA
....4 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 2 SNA
....4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 17 SNA
....4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 7 SA
....4 2007-007318 R-CHIP;1Kohm,◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
