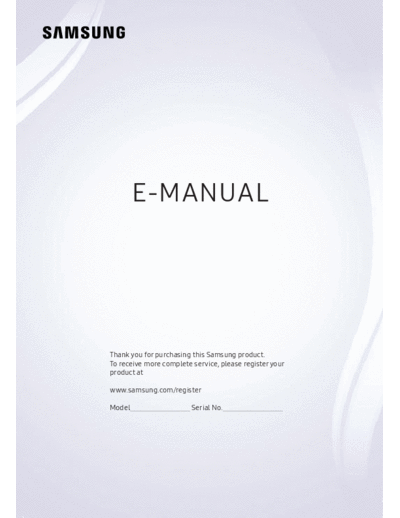

Image preview - the first page of the document
>> Download ENG-JZDVBEUK-1.1.3 documenatation <<
Text preview - extract from the document
E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register your
product at
www.samsung.com/register
Model Serial No.
Contents
Quick Guides Connecting a Computer
12 Connecting through the HDMI port Screen sharing
Connecting to Samsung Smart Remote 12 Connecting through the Smart View app Content sharing
Guide for Samsung Smart Remote Buttons Connecting a Mobile Device
13 Using Smart View (Screen Mirroring) or contents sharing
Using Smart Hub
13 Connecting mobile devices without a wireless router (Wi-Fi
2 Using Smart Hub
Direct)
Using Voice Interaction 13 Connecting a mobile device via Smart View App
3 Setting up Voice Interaction
Switching between external devices connected to the TV
3 Running Voice Interaction
14 Changing the input signal
14 Editing external devices
15 Using additional functions
Connections
Connection Notes!
Connecting an Antenna (Aerial) 15 Connection notes for HDMI
16 Connection notes for audio devices
Connecting to the Internet
16 Connection notes for computers
5 Connecting Internet network
16 Connection notes for mobile devices
Troubleshooting Internet Connectivity Issues
7 Troubleshooting wired Internet connectivity issues
8 Troubleshooting wireless Internet connectivity issues Remote Control and Peripherals
Connecting Video Devices
About the Samsung Smart Remote (Voice Interaction version)
9 Connecting with an HDMI cable
9 Connecting with a component cable (Only the models with About the Samsung Smart Remote
COMPONENT IN / AV IN)
Connecting to Samsung Smart Remote
10 Connecting with a composite cable (only the models with
COMPONENT IN / AV IN port) Controlling External Devices with the Samsung Smart Remote
- Using the Universal Remote
Audio Input and Output Connections
10 Connecting with an HDMI (ARC) cable Controlling the TV with a Keyboard or Gamepad
11 Connecting with a digital audio (optical) cable 22 Connecting a USB keyboard
11 Connecting through wireless network 22 Connecting a Bluetooth keyboard and gamepad
11 Connecting Bluetooth Devices 22 Using the keyboard
Entering Text using the On-Screen QWERTY Keypad
23 Using additional functions
Smart Features TV Viewing
Smart Hub Viewing Digital Broadcast Information at a Glance
25 Displaying Home Screen 38 Using the guide
26 Launching Smart Hub automatically 39 Changing the broadcast signal
26 Launching the last used app automatically 39 Checking digital channel signal info and strength
26 Testing Smart Hub connections
Recording Programmes
26 Resetting Smart Hub
39 Recording programmes
Using a Samsung account 40 Managing the schedule recording list
27 Creating a Samsung account 40 Viewing recorded programmes
27 Signing in to a Samsung account
Setting Up a Schedule Viewing
28 Managing payment information saved on the TV
41 Setting up a schedule viewing for a channel
28 Deleting a Samsung account from the TV
Using Timeshift
Using the GAMES Service
Using the Channel List
29 Installing and running a game
29 Managing purchased or installed games Editing channels
30 Rating games 43 Removing registered channels
44 Editing registered channels
Using the APPS Service
31 Installing and running an app Creating a Personal Favourites List
32 Managing purchased or installed apps 44 Registering channels as favourites
33 Using other app features and functions 45 Viewing and selecting channels on favourites lists only
Using the e-Manual Editing a Favourites List
34 Launching the e-Manual 45 Removing channels from a favourites list
34 Using the buttons in the e-Manual 45 Rearranging a favourites list
45 Renaming a favourites list
Using the Web Browser
Making Sports programmes More Realistic with Sports Mode
Playing pictures/video/music
46 Extracting highlights automatically
35 Playing media content
47 Viewing a game recorded in sports mode
36 Functions on the media content list screen
Using Voice Interaction
37 Setting up Voice Interaction
37 Running Voice Interaction
TV-Viewing Support Functions
System and Support
47 Scanning for available channels
47 Configuring advanced broadcasting settings Setting the Time and Using the Timer
47 Reading digital text 59 Setting the current time
48 Selecting the broadcast audio language 60 Using the timers
48 Setting the country (area)
Using the Screen Burn Protection and Energy Saving Functions
48 Tuning broadcast signals manually
61 Preventing screen burn
49 Fine-tuning analog broadcasts
61 Reducing the energy consumption of the TV
49 Transferring channel list
49 Deleting CAM operator profile Using Anynet+ (HDMI-CEC)
50 Setting satellite system 62 Connecting an external device through Anynet+ and using
their menus
50 Changing teletext language
50 Showing common interface menu Updating the TV's Software
63 Updating the TV's software to the latest version
64 Updating the TV automatically
Picture and Sound
Protecting the TV from Hacking and Malicious Code
64 Checking the TV and connected storage for malicious code
Adjusting the Picture Quality
64 Scanning viruses in real time
51 Choosing a picture mode
64 Checking a scanned list
51 Configuring advanced picture settings
Using Other Functions
Picture Support Functions
65 Running the accessibility functions
53 Viewing a picture-in-picture (PIP)
65 Enabling voice guides for the visually impaired
53 Viewing a HDR mode
65 Watching TV broadcasts with subtitles
54 Changing the picture size
66 Audio Description
Adjusting the Sound Quality
67 Adjusting the menu transparency
55 Choosing a sound mode
67 White text on black background (high contrast)
55 Configuring advanced sound settings
67 Enlarging font (for the visually impaired)
Using the Sound Support Functions 67 Learning about the remote control (for the visually impaired)
56 Selecting speakers 68 Listening to the TV through Bluetooth devices (for the hearing
impaired)
57 Listening to the TV through Bluetooth devices
68 Configuring advanced system settings
58 Listening to the TV through a Multiroom speaker
70 Restoring the TV to the factory settings
70 Enabling game mode
Running Data Service Automatically
HbbTV
Using a TV Viewing Card ("CI or CI+ Card")
72 Connecting the "CI or CI+ Card" via COMMON INTERFACE slot
73 Using the "CI or CI+ Card"
Teletext Feature
Troubleshooting Read Before Using Apps
Read Before Using the Web Browser
Getting Support
Read Before Playing Photo, Video, or Music Files
76 Getting support through Remote Management
95 Limitations on use of photo, video, and music files
77 Finding the contact information for service
96 Supported external subtitles
77 Requesting service
96 Supported internal subtitles
Diagnosing the TV operation 97 Supported image formats and resolutions
There Is a Problem with the Picture 97 Supported music formats and codecs
77 Testing the picture 98 Supported video codecs
I Can't Hear the Sound Clearly Read After Installing the TV
80 Testing the sound 101 Picture sizes and input signals
102 Installing an anti-theft lock
There Is a Problem with the Broadcast
102 Read before setting up a wireless Internet connection
My Computer Won't Connect
Read Before Connecting a Computer (Supported Resolutions)
I Can't Connect to the Internet 103 IBM
103 MAC
Data Service
104 VESA DMT
The Schedule Recording/Timeshift Function Isn't Working
Supported Resolutions for Video Signals
Anynet+ (HDMI-CEC) Isn't Working
105 CEA-861
I Have Trouble Launching/Using Apps
Read Before Using Bluetooth Devices
My File Won't Play 106 Restrictions on using Bluetooth
I Want to Reset the TV Buttons and Functions
107 Buttons and functions available while playing multimedia
Other Issues
content
109 Buttons and functions available while using sports mode
Precautions and Notes 110 Buttons and functions available while recording a programme
or Timeshift
Before Using the Recording and Timeshift Functions Licence
89 Before using the recording and schedule recording functions
90 Before using the timeshift function
Supported Resolutions for each of UHD Input Signals
91 If HDMI UHD Color is set to Off
91 If HDMI UHD Color is set to On
Read Before Using Voice Interaction
92 Precautions for voice interaction
92 Requirements for using voice interaction
Connecting to Samsung Smart Remote
Can connect Samsung Smart Remote to your TV for control.
When you turn on the TV for the first time, the Samsung Smart Remote pairs to the TV automatically. If
the Samsung Smart Remote does not pair to the TV automatically, point it at the remote control sensor of
the TV, then press the and buttons on the Samsung Smart Remote simultaneously for 3 seconds or
more.
" This function may not be supported depending on the model or geographical region.
Guide for Samsung Smart Remote Buttons
You can see the basic usage of the buttons on Samsung Smart Remote.
Move it up or down to Use to move to up/down/
adjust the volume. left/right.
Press to mute the sound. Press to select an item.
Move it up or down to Press to pop up the play
change the channel. control screen.
Select the desired function
Press to perform Guide. after pressing the
button.
" This function may not be supported depending on the model or geographical region.
Using Smart Hub
Connect to Smart Hub for apps, games, movies, and more.
Using Smart Hub
Enjoy the multiple functions provided by Smart Hub on a single screen.
Source
Source
When you press the button on the Samsung Smart Remote, you can use the following functions and
features.
Settings
When the focus is moved, a quick settings appears on the top of the menu. You can quickly set the
frequently used functions.
Source
You can select an external device connected to the TV.
" For more information, refer to "Switching between external devices connected to the TV."
Search
You can search data for channels, programmes, movie titles, and apps from Smart Hub.
" For more information, refer to "Smart Hub."
" The image may differ by the specific model and area.
Using Voice Interaction
Say command into the microphone on Samsung Smart Remote for the desired operation.
" This function may not be supported depending on the model or geographical region. This function is available
for the remote control with a microphone.
Setting up Voice Interaction
Turning the voice on/off
Settings System Expert Settings Voice Interaction Voice Feedback
You can determine whether or not to output response messages using voice against your voice commands.
Selecting the desired voice's gender
Settings System Expert Settings Voice Interaction Voice Gender
You can select the desired voice's gender for response voice messages.
Running Voice Interaction
Say a command while the button is pressed and release the button. The voice command is then
identified.
" If the command is not identified, try again with correct pronunciation.
" This function may not be supported depending on the model or geographical region. This function is available
for the remote control with a microphone.
Connecting an Antenna (Aerial)
Can connect the antenna cable to your TV.
" An antenna connection is not necessary if you connect a cable box or satellite receiver.
It is best to connect the both connectors using a Multi-Switch or DiSEqC. Switch, etc and to set Aerial
Connection Type to Dual Oscillator.
" A connection method may differ with the models.
" DVB-T2 system may not be available in specific geographical areas.
Connecting to the Internet
Can get access to the Internet through your TV.
Connecting Internet network
Settings Network Open Network Settings Try Now
Connect to an available network.
Establishing a wired Internet connection
" Use Cat7 (*STP Type) cable for the connection.
* Shielded Twist Pair
" The TV will not be able to connect to the Internet if the network speed is below 10Mbps.
" If the LAN cable is connected, accessing the Internet is automatically enabled.
Establishing a wireless Internet connection
Settings Network Open Network Settings Wireless
Make sure that you have the wireless router's SSID (name) and password settings before attempting to
connect.
Network Settings
Wireless Connection
Select your wireless network.
Refresh
" The image may differ by the specific model and area.
" If the network you want doesn't appear in the list, select Add Network, and then enter the network's SSID
(name) manually.
" Select WPS in the network setup screen and then press the WPS or PBC button on the wireless router. The TV is
automatically connected to the Internet.
Checking the internet connection status
Settings Network Network Status Try Now
View the current network and Internet status.
Changing the name of the TV on a network
Settings Network Device Name Try Now
You can change the name of the TV on the network. Select User Input at the bottom of the list and change
the name.
Troubleshooting Internet Connectivity Issues
If the Internet is not accessed, find solutions.
Troubleshooting wired Internet connectivity issues Try Now
After referencing the following content, troubleshoot the wired Internet connection issue. If the problem
persists, contact your Internet Service Provider.
No network cable found
Make sure that the network cable is plugged in. If it is connected, make sure that the router is turned on. If
it is on, try turning it off and on again.
IP auto setting failed
1. Do the following or configure the IP Settings manually.
2. Make sure that the DHCP server is enabled on the router, and reset the router.
Unable to connect to the network
1. Check all IP Settings.
2. After checking the DHCP server status (must be active) on the router, remove the LAN cable and
connect it again.
Connected to a local network, but not to the Internet
1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in IP Settings.
Network setup is complete, but unable to connect to the Internet
If the problem persists, contact your Internet Service Provider.
Troubleshooting wireless Internet connectivity issues
After referencing the following content, troubleshoot the wireless Internet connection issue. If the
problem persists, contact your Internet Service Provider.
Wireless network connection failed
If a selected wireless router is not found, go to Open Network Settings and select the correct router.
Unable to connect to a wireless router
1. Check if the router is turned on. If it is, turn it off and on again.
2. Enter the correct password if required.
IP auto setting failed
1. Do the following or configure the IP Settings manually.
2. Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
3. Enter the correct password if required.
Unable to connect to the network
1. Check all IP Settings.
2. Enter the correct password if required.
Connected to a local network, but not to the Internet
1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in IP Settings.
Network setup is complete, but unable to connect to the Internet
If the problem persists, contact your Internet Service Provider.
Connecting Video Devices
Make proper video connection between your TV and the other external device.
Connecting with an HDMI cable
Connecting with a component cable (Only the models with COMPONENT IN /
AV IN)
Connect the component cable to the component input connections of the TV and the component output
connectors of the device using component and AV adapters as shown in the image below. Make sure to
connect the same colour connectors together. (blue to blue, yellow to yellow)
COMPONENT IN / AV IN
" To use component equipment, connect both a component cable(blue) and an AV cable (yellow).
Connecting with a composite cable (only the models with COMPONENT IN /
AV IN port)
Connect the video and audio cables to the provided adapters after referencing the following figure and
then connect the adapters between the COMPONENT/AV IN port on your TV and the OUT port on an
external device. When connecting the cables, be sure to match the colours between the cables and ports.
" If you want to use AV (composite) equipment, remove the component adapter.
Audio Input and Output Connections
Make proper audio connection between your TV and an external device.
Connecting with an HDMI (ARC) cable
Connecting with a digital audio (optical) cable
Connecting through wireless network
You can connect the TV to a Samsung wireless audio device through wireless network. At this time,
two devices must be connected on the same network. For more information, refer to Wireless Speaker
Manager ( Settings Sound Expert Settings Wireless Speaker Manager).
Connecting Bluetooth Devices
You can connect the TV or audio devices via Bluetooth communication. For more information, refer to
Connection Guide ( Source Connection Guide).
" This function may not be supported depending on the model or geographical region.
Connecting a Computer
Use the TV as a computer monitor or connect the TV to a computer via your network and access the computer's
content.
Connecting through the HDMI port Screen sharing
" When you connect the PC, set the port to PC. For more information about the port settings, refer to "Editing
external devices."
Connecting through the Smart View app Content sharing
When the TV is connected through the Smart View programme on your PC, you can easily play content
for photos, videos, and audios through the TV. For more information, refer to Connection Guide (
Source Connection Guide).
Connecting a Mobile Device
View a mobile device's screen by connecting the mobile device to your TV or network.
Using Smart View (Screen Mirroring) or contents sharing
You can play media content on the TV's screen saved on your mobile device by connecting with mirroring
function, and contents sharing.
1. Launch the Smart View (Screen Mirroring) function on your mobile device. The mobile device
searches for available devices to connect to.
2. Select the TV from the list. Then the TV is connected to the mobile device.
" If the TV system is not searched from your mobile device, turn the TV and the mobile device off and then on
and try again.
" If there are multiple TVs, you can easily select any of different TV names in Settings Network
Device Name.
Connecting mobile devices without a wireless router (Wi-Fi Direct)
Settings Network Expert Settings Wi-Fi Direct Try Now
Connecting a mobile device via Smart View App
When you install Smart View App app from Google Play Store, Samsung Apps, and App Store, you can play
the mobile device's multimedia content on the TV, or control the TV using the mobile device.
" To use the Smart View function, the mobile device must support the mirroring function such as AllShare Cast
and Smart View. To check whether your mobile device supports the mirroring function, please visit the mobile
device manufacturer's website.
Switching between external devices connected to the TV
Watch TV and the content of an external device by switching.
Changing the input signal
Source
If you select any of the connected external devices from the screen, you can see the screen of the selected
device.
On the standard remote control, press the SOURCE button.
" When you turn on devices (Blu-ray players, game consoles, etc.) that are connected to the TV supporting
universal remote control through an HDMI cable, a pop-up message appears that either lets you switch to the
output of the device or lets you set up universal remote control for the device automatically. Note that this
function may not be supported depending on the device. For smooth automatic setup of universal remote
control, place the Samsung Smart Remote so that it is close to and facing the TV.
" When a USB device is connected to the USB port, a pop-up message appears that lets you switch easily to the
media content listed on the device.
Editing external devices
Source
You can change the port name for a connected external device or add it to Home Screen.
1. Move the focus to a connected external device.
2. Press the up directional button. Then the following functions can be used. (Note that available
functions may differ with the port type.)
Edit: Can change the port name of an external device to an actual usage for easy identification.
Add to Home: Can add the port of an external device in Home Screen for quick switching.
Using additional functions
You can use the following functions in the Source screen.
Guide to device connection (Connection Guide)
Registration of external devices in Samsung Smart Remote (Universal remote setup)
" This function may not be supported depending on the model or geographical region.
Connection Notes!
When connecting an external device, note the following:
" The number of connectors and their names and locations may vary depending on the model.
" Refer to the external device's operating manual when connecting it to the TV. The number of external device
connectors and their names and locations may vary depending on the manufacturer.
Connection notes for HDMI
The following types of HDMI cables are recommended:
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
