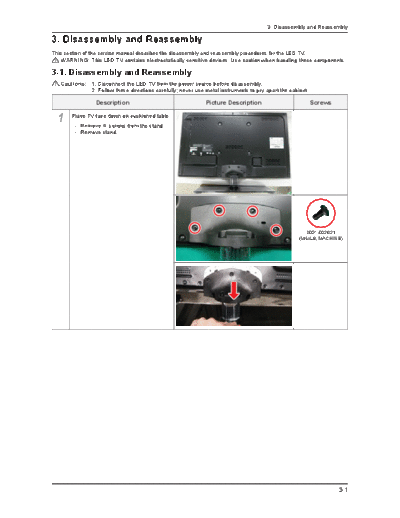

Image preview - the first page of the document
>> Download Disassembly & Reassembly documenatation <<
Text preview - extract from the document
3. Disassembly and Reassembly
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
WARNING: This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the LED TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
Description Picture Description Screws
1 Place TV face down on cushioned table.
- Remove 4 screws from the stand.
- Remove stand.
6001-002621
(M4xL8, MACHINE)
3-1
3. Disassembly and Reassembly
Description Picture Description Screws
2 Remove the screws of Rear-cover.
- 32" : 13 EA
- 40" : 14 EA
6003-001782
(M4 x L12, TAPETYPE)
6001-002671
(M3 x L6, MACHINE)
3 Lift up the Rear-cover.
4 Remove the Left and Right Speaker.
5 Remove the 6 screws of Main Board
and 5 screws of IP Board.
6001-002653
(M3 x L6, MACHINE)
3-2
3. Disassembly and Reassembly
Description Picture Description Screws
6 Remove the 2 screws of Stand Link
Cover.
6003-001782
(M4 x L12, TAPETYPE)
7 Remove the 4 screws of Stand Link.
6001-002653
(M3 x L6, MACHINE)
8 Lift up the Stand Link.
9 Detach the Pront Hook.
6001-002653
(M3 x L6, MACHINE)
10 Lift up the Panel.
Reassembly procedures are in the reverse order of disassembly procedures.
3-3
3. Disassembly and Reassembly
Screw Size
Code No. A (mm) B (mm) C (mm) Q'ty
6001-002621 7.8 ~ 8.3 7.4 ~ 8.0 7.4 ~ 8.0 4EA
6003-001782 7.8 ~ 8.2 11.4 ~ 12.0 3.8 ~ 3.9 14 EA
6001-002671 7.1 ~ 7.5 5.7 ~ 6.0 2.98 ~ 3.02 4 EA
6003-001782 7.8 ~ 8.2 11.4 ~ 12.0 3.8 ~ 3.9 2EA
3-4
3. Disassembly and Reassembly
How to disassembly Function & IR ASSY
Description Picture Description
1 Check the 2 Function Clips.
2 Remove the 2 Function Clips.
3 Heat the Function Assy by Heat Gun
and Lift up the Function Assy.
Touch Function Key
Control the sensitivity of function key is available in Factory mode
Option
Control Sub Option KEY SENSITIVITY
SVC FUNCTION KEY
Expert
ADC/WB
Advanced
KEY SENSITIVITY
Default : 36
