6 Docking Exploded View and Parts List

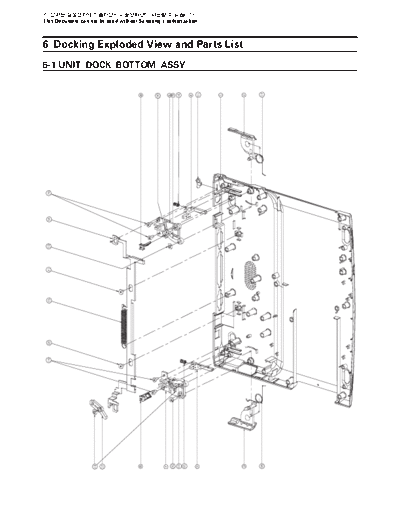

6-1 UNIT_DOCK_BOTTOM_ASSY
Sens Q 20 6-1
6 Docking Exploded View and Parts List This Document can not be used without Samsung's authorization.
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-BOTTOM DOCK BA61-00728A PC/ABS, TALC 1 NEW
2 LEVER-EJECT R BA66-00044A PC/ABS 1 NEW
3 LEVER-EJECT L BA66-00043A PC/ABS 1 NEW
4 HOLDER-HOOK R(BW) BA72-00679A PC/ABS 1 COMMON
5 HOLDER-HOOK L(BW) BA72-00678A PC/ABS 1 COMMON
6 LEVER-SUPPORTER R BA72-00663A POM 1 COMMON
7 LEVER-SUPPORTER L BA72-00662A POM 1 COMMON
8 LEVER-PUSHER (BW) BA72-00666A PC/ABS 2 COMMON
9 LEVER-SLIDER R BA72-00665A POM 1 COMMON
10 LEVER-SLIDER L BA72-00664A POM 1 COMMON
11 KNOB-LINK-KEN BA64-00196A PC/ABS 1 COMMON
12 LINK DEVICE BA72-00639A PC/ABS 1 COMMON
13 WASHER BA70-00630A SUS304 T0.2 3 COMMON
14 BRKT-LINK-KEN BA61-00169A SUS304 T0.8 1 COMMON
15 SPRING-LINK-KEN BA61-00212A SWP T0.5 1 COMMON
16 SPRING-EJECT-KNOB BA61-00092A SWP T0.3 2 COMMON
17 SPRING-LEVER R BA61-00088A SWP T0.7 1 COMMON
18 SPRING-LEVER L BA61-00087A SWP T0.7 1 COMMON
19 SCREW MACHINE 6001-001407 M2.6XL6, BH, YEL 4 COMMON
20 SCREW MACHINE 6001-001409 M3.0XL10, BH, NIPLE 2 COMMON
21 SCREW MACHINE BA60-00031A M2.0XL5, CH, YEL, + 2 COMMON
6-2 Sens Q 20
This Document can not be used without Samsung's authorization. 6 Docking Exploded View and Parts List
6-2 UNIT_DOCK_TOP_ASSY
Sens Q 20 6-3
6 Docking Exploded View and Parts List This Document can not be used without Samsung's authorization.
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-TOP BA61-00727A PC/ABS, TALC 1 NEW
2 BRKT-FRONT BA61-00730A SUS304 T0.8 2 NEW
3 GEM(N)-SPRING-PLATE BA70-00552B SUS304 T0.2 2 COMMON
4 SPRING-PLATE BA70-00552A SUS304 T0.2 1 NEW
5 SCREW-TAPPING 6002-001154 M2.6, L4, PH, YEL 1 COMMON
6
7
6-4 Sens Q 20
This Document can not be used without Samsung's authorization. 6 Docking Exploded View and Parts List
6-3 UNIT_DOCK_COMBO_ASSY
Sens Q 20 6-5
6 Docking Exploded View and Parts List This Document can not be used without Samsung's authorization.
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 BEZEL COMBO 9.5 BA64-00521A PC/ABS 1 NEW
2 LENS COMBO 9.5 BA67-00167A PMMA SMOG 1 COMMON
3 KNOB COMBO 9.5 BA64-00522A PC/ABS 1 NEW
4 BRACKET DEVICE L BA61-00731A SUS304 T0.6 1 NEW
5 BRACKET DEVICE R BA61-00732A SUS304 T0.6 1 NEW
6 SCREW MACHINE 6001-001446 M2.0XL2.5, CH, YEL 4 COMMON
6-6 Sens Q 20
This Document can not be used without Samsung's authorization. 6 Docking Exploded View and Parts List
6-4 UNIT_DOCK_SPEAKER_L
NO PART NAME SEC CODE SPECIFICATION Q'TY REMARK
1 SPEAKER CAP L BA67-00209A ABS 1 NEW
2 ASSY SPEAKER BA96-02091A 2 NEW
6-5 UNIT_DOCK_SPEAKER_R
NO PART NAME SEC CODE SPECIFICATION Q'TY REMARK
1 SPEAKER CAP R BA67-00210A ABS 1 NEW
2 ASSY SPEAKER BA96-02092A 2 NEW
Sens Q 20 6-7
6 Docking Exploded View and Parts List This Document can not be used without Samsung's authorization.
6-6 UNIT_DOCK_UNDOCK_ASSY
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 KNOB UNDOCK BA64-00519A ABS 1 NEW
2 KNOB UNDOCK BASE BA64-00520A ABS 1 NEW
6-8 Sens Q 20
This Document can not be used without Samsung's authorization. 6 Docking Exploded View and Parts List
6-7 CETUS_PR_ BOM
IC
Reference PART NAME VENDOR Q'ty DESCRIPTION
U1 SP3243E SIPEX 1 RS-234 Tranceiver
U11 AT24C64N ATMEL 1 2wire serial eeprom
U12 CY7C68013 CYPRESS 1 USB peripheral controller
U5 TPS3809J25 TI 1 supply voltage supervisors
U15 S1R72901 EPSON 1 1394 controller
U4,U8,U16 NC7SZ125M5X FAIRCHILD 3 buffer with 3state output
U2 LM4863MTE NS 1 2.2w dual audio Amp
U3 LM358M NS 1 Dual Amp
U7 LM4861M NS 1 1.1w audio power Amp
U10 RC1117ST FAIRCHILD 1 1A Adjustable/Fixed Low Dropout
Linear Regulator
RN1 PACS1284 CMD 1 Parallel port terninal network
U9 LTC1624CS8 LINEAR 1 N channel switching Controller
P1 H0022 PULSE 1 pc card Lan Magnetic solution
TR & FET & DIODE
Reference PART NAME VENDOR Q'ty DESCRIPTION
Q1, Q5 2N7002 FAIRCHILD 2 N CHANNE FET
FET1 SI4435DY VISHAY 1 P CHANNEL 30V(D-S) MOSFET
Q2 SI4410DY VISHAY 1 P CHANNEL 30V(D-S) MOSFET
D8 SS24 GS 1 2.0A SCHOTTKY BARRIER RECTIFIER
Q7 KST2222A FAIRCHILD 1 NPN SILICON TRANSISTOR
D1,D2,D3,D4,D10 MMBD4148 FAIRCHILD 5 SWITCHING DIODE
Q3,Q4 NDC7001C FAIRCHILD 2 Dual N/P channel FET
D5 KSR1102 FAIRCHILD 1 NPN SILICON TRANSISTOR
X-TAL
Reference PART NAME VENDOR Q'ty DESCRIPTION
X1 24MHZ SUNNY 1 24MHZ
X2 24.576MHZ EPSON 1 24.576 50PPM
CONNECTOR & SWITCH
Reference PART NAME VENDOR Q'ty DESCRIPTION
J10,J15,J23,J24,J25 12513WR-02A00 5 2P 1.25mm PITCH, RIGHT ANGLE
J11 DZ11A92-WL31 FOXCONN 1 DSUB FEMALE 15P CRT
Sens Q 20 6-9
6 Docking Exploded View and Parts List This Document can not be used without Samsung's authorization.
J12 35136S-06T1-CK SUYIN 1 MINIDIN ,6P, PS2
J14 20015S-40G2T SUYIN 1 2.0mm DUAL LOW BOX HEADERPCB
MOUNT
J16 1394-CONN_54516-0411 MOLEX 1 1394 CONN.
J17,J20 SPEAKER_CABLE_51146-02P 2 SPDIF, DOCKING EJECT CABLE
YEONHO-12505WS-10A00 YEONHO 0 10P,1.25mm PITCH STRAIGHT
J19 HDD-44P_B067-ECC6-441 SPEEDTECH 1 2.0mm*2.0mm DUAL LOW DIP TYPE
WRIGHT ANGLE
J2 DZ11392-WH31 FOXCONN 1 DSUB FEMALE 25P, PARALLEL
J21 RCA_RC25-01T1 SUYIN 1
J22 SUYIN-20036S-40G2T-03 SUYIN 1 2.0mm DUAL LOW SOCKET PCB MOUNT
J26 CD-ROM_K211_2501_507 SPEEDTECH 1 0.8mm PITCH RIGHT ANGLE SMT
MOUNT TYPE
J3 WD-100P4V-VF120-N-A JAE 1
J4 USB_2522AY-08GXT-M SUYIN 1 USB_CONN_4P DUAL PORT DIP TYPE
J5 DZ11392-1 FOXCONN 1 DSUB MALE,9P SERIAL
J9 RJ45-8P-LED4P-2MNT-2NC AMP 1 MODULAR JACK 8POSITION RIGHT
ANGLE
SW1 SW-SMD-4P_SMF10918 TACT 1 DIP SWITCH 4P
J1 DC-JACK_PDJ010 1 DC JACK , 2.5
INDUCTOR & BEAD & FUSE
Reference PART NAME VENDOR Q'ty DESCRIPTION
L1,L2,L5,L6,L32,L34,L35,L46.L47 200OHM-100MHZ TDK 9 COMMON MODE CHOKE KOILS
L9,L10,L11,L12,L13,L14.L15,L16,L17, MMZ1608S121AT TDK 24
L18,L19,.L20,L22,L26,L27,L28,L29,
L36,L37,L38,L39,L40,L41,L42
L23,L24,L25 CIM10J800NE SEM 3
L3,L4 EXCML32A680U-3A PANASONIC 2
L7,L8,L30,L31,L43,L44.L45 CIC21J21NE SEM 7
L33 10UH TOKO 1 INDUCTOR 10UH, 20%,
DECREASE(4.3A),RISE(4.5A)
L49 10UH TOKO 1 INDUCTOR 10UH D53LC
68UH SEM 0
F1,F2,F3 MINISMD110 RAYCHEM 3 POLY SWITCH MINI SMD PRODUC DATA
RESISTOR
Reference PART NAME VENDOR Q'ty DESCRIPTION
R50 0.02-1% 1W VISHAY 1 0.02-1% 1W 6432
R3,R62,R63,R69,R75,R116,R130 0 SEM 7 0 ohm, 1/16W
R38,R40 10 SEM 2 10 Ohm, 1/16W
6-10 Sens Q 20
This Document can not be used without Samsung's authorization. 6 Docking Exploded View and Parts List
R46,R74,R76,R77,R78,R79,R80,R85, 33 SEM 26 33 Ohm, 1/16W
R86,R92,R106,R107,R114,R117,
R118,R119,R120,R121,R122,R123,
R124,R125,R126,R127,R128,R133
R37,R39 47 SEM 2 47 Ohm, 1/16W
R93,R94,R95,R97,R99,R100,R101, 56 SEM 10 56 Ohm, 1/16W
R102,R104,R105
R27,R28,R30,R31 75 SEM 4 75 Ohm, 1/16W
R29 100 SEM 1 100 Ohm, 1/16W
61.9-1% SEM 0 61.9 Ohm, 1/16W
R48 100-1% SEM 1 100 Ohm, 1/16W
R32,R33,R34 200 SEM 3 200 Ohm, 1/16W
R26,R52 220 SEM 2 220 Ohm, 1/16W
R53 360 SEM 1 360 Ohm, 1/16W
R24 390 SEM 1 390 Ohm, 1/16W
R113 470 SEM 1 470 Ohm, 1/16W
R2,R60,R65,R72,R90 1K SEM 5 1K OHM 1/16W
2.2K SEM 0 2.2K OHM 1/16W
R67,R88,R89,R108 4.7K SEM 4 4.7K OHM 1/16
R96,R98 5.1K-1% SEM 2 5.1K OHM 1/16W
R61,R91 5.6K SEM 2 5.6K OHM 1/16W
R103 6.34K-1% SEM 1 6.34K OHM 1/16W
R45 6.8K SEM 1 6.8K OHM 1/16W
R7,R12,R13,R57,R58,R64,R73,R81, 10K SEM 15 10K OHM 1/16W
R82,R109,R110,R111,R112,R115,
R131
R56 11K SEM 1 11K OHM 1/16W
R1,R21,R49,R83 20K SEM 4 20K OHM 1/16W
R47 22K SEM 1 22K OHM 1/16W
R84 30K SEM 1 30K OHM 1/16W
R18 39K SEM 1 39K OHM 1/16W
R54 43K SEM 1 43K OHM 1/16W
R16,R17,R41 47K SEM 3 47K OHM 1/16W
R19,R20 51K SEM 2 51K OHM 1/16W
R14,R15 68K-1% SEM 2 68K OHM 1/16W
R4,R5,R9,R11,R44,R59 100K SEM 6 100K OHM 1/16W
R42,R43 100K-1% SEM 2 100K OHM 1/16W
R6,R55 200K SEM 2 200K OHM 1/16W
R8,R10 300K SEM 2 300K OHM 1/16W
RA2,RA3,RA4,RA5,RA6,RA7,RA10, 33 SEM 8 33 Ohm, 5% 1/16W,1608 4ArRRAY
RA11
TCAP & ECAP & CERAMIC CAP
Sens Q 20 6-11
6 Docking Exploded View and Parts List This Document can not be used without Samsung's authorization.
Reference PART NAME VENDOR Q'ty DESCRIPTION
D6,D7,D11,D12 PGB0010603MR LITTLE FUSE 4 5PF,50V,5%,NP0
C15 5.6PF SEM 1 5.6PF,50V,5%,NP0
C95,C96 15PF SEM 2 15PF,50V,5%,NP0
C36,C37,C38,C59,C60 22PF SEM 5 22PF,50V,5%,NP0
C9,C10,C28,C29 47PF SEM 4 47PF,50V,5%,NP0
C30,C41,C43,C45,C46,C50,C53,C80, 100PF SEM 13 100PF,50V,5%,NP0
C81,C90,C113,C114,C119
C39,C40,C42,C44,C91,C92 220PF SEM 6 220PF,50V,5%,NP0
C35 270PF SEM 1 270PF,50V,5%,NP0
C16,C17,C18,C19,C20,C21,C22,C23 470PF SEM 8 470PF,50V,5%,NP0
C27,C48,C51,C104,C105,C106, 1NF SEM 8 1NF,50V,10%,X7R
C107,C108
C34 1NF 2KV TDK 1 1N,2KV
C8,C31,C56,C67,C69,C75,C77 10NF SEM 7 10NF,50V,10%,X7R
C1,C2,C3,C4,C5,C6,C7,C24,C33,C47, 100NF SEM 61 100NF,25V,-20~ +80%, Y5V
C49,C52,C54,C55,C57,C58,C61,C62,
C68,C70,C71,C72,C73,C74,C76,C78,
C79,C82,C83,C84,C85,C97,C98,C99,
C100,C101,C102,C103,C109,C110,
C111,C115,C116,C117,C118,C120,
C121,C122,C123,C124,C129,C130,
C131,C132,C133,C134,C135,C136,
C137,C138,C139
C11,C12,C13,C14,C25,C26,C93,C94, 1UF SEM 12 1UF,16V,-20~+80%,Y5V
C125,C126,C127,C128
4.7UF SEM 0 4,7UF, 16V C3216 ( )
C63,C66,C86,C87,C88,C89,C112 10UF/6.3V SEM 7 10UF,6.3V
VC1,VC2 68UF-25V SANYO 2 68UF,25V
TC1,TC4,TC5, 100UF/10V SEM 3 100UF,10V
TC2,TC3 150UF-6.3V PANASONIC 2
PC1,PC2 150UF-6.3V SANYO 2 150UF, 6.3V
6-12 Sens Q 20
