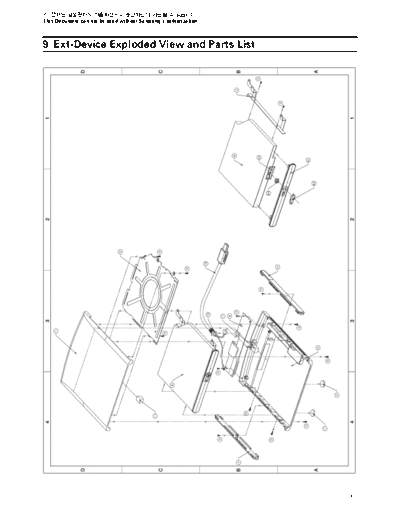

Image preview - the first page of the document
>> Download 03_Eex Device Exploded documenatation <<
Text preview - extract from the document
This Document can not be used without Samsung's authorization.
9 Ext-Device Exploded View and Parts List
Sens Q 25 9-1
9 Ext-Device Exploded View and Parts List This Document can not be used without Samsung's authorization.
NO SEC CODE DESCRIPTION SPECIFICATION Q'TY REMARK
1 BA72-01140A CASE-TOP-DVD, EXT PC/ABS TALC 1
2 BA72-01141A CASE-BOTTOM-DVD, EXT PC/ABS TALC 1
3 BA61-00170A BRKT-DVD, EXT SUS 0.8T 1
4 BA72-01142A COVER-SIDE, EXT PC/ABS 2
5 BA61-00171A BRKT-COVER-TOP, EXT SUS 0.5T 1
6 BA75-00682A UNIT-BEZEL-DVD, EXT 1 DVD
BA75-10042A UNIT-BEZEL-CDRW, EXT 1 CDRW
BA75-00683A UNIT-BEZEL-COMBO, EXT 1 COMBO
6-1 BA72-01155A BEZEL-DVD, EXT PC/ABS 1 DVD
BA64-00224A BEZEL-CDRW, EXT PC/ABS 1 CDRW
BA72-01155B BEZEL-COMBO, EXT PC/ABS 1 COMBO
6-2 BA67-00103A LENS-DVD, EXT ACRYL 1
6-3 BA64-00195A KNOB-DVD, EXT PC/ABS 1
6-4 BA70-00559A PLATE-DVD, EXT SUS304 0.15T 1
7 BA73-00190A RUBBER-FOOT, EXT URETHAN 2
8 BA96-01115A ASSY-DVD(Toshiba) 1
BA96-01116A ASSY-CDRW(Toshiba) 1
BA96-01117A ASSY-COMBO(Toshiba) 1
9 Q10 EXTERNAL-DEVICE I/F BOARD 1
10 BA39-00266A EXTERNAL-DEVICE 1394 CABLE 1
11 BA63-00129A GASKET SPDIF GASKET 2
12 6001-001446 MACHINE-SCREW(M2.0*2.5 PH YEL) 6
13 6001-001417 MACHINE-SCREW(M2.0*5.0 PH YEL) 5
14 6001-001154 MACHINE-TAPPING(M2.6*4.0 PM YEL) 6
15 Q10 EMI
9-2 Sens Q 25
