4 System Exploded View and Parts List

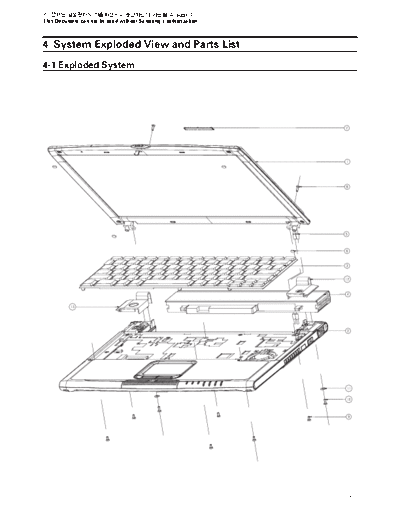

4-1 Exploded System
Sens Q 25 4-1
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
NO CODE NO SPECIFICATION Q'TY REMARK
1 ASSY MECHA LCD 1
2 ASSY MECHA SYSTEM 1
3 KEYBOARD 1
4 BATTERY PACK 1
5 ANTENNA JACK 1
6 RUBBER LCD BA73-10004A 4
7 LABEL-BADGE_SMAMSUNG BA68-02181A 1
8 SCREW M2.0X6, CH, Ni, + 6001-001406 2
9 SCREW M2.0X4.0, BH, Ni, + 6001-001405 6
10 SCREW M3.0X5.5, BH, Ni, + 6001-001403 2
11 WASHER-SPRING 6031-001402 2
12 CAP-HINGE, R BA72-01079A 1
13 CAP-HINGE, L BA72-01078A 1
4-2 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
4-2 UNIT_HOUSING_BOTTOM_1
Sens Q 25 4-3
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
4-2-1 BA75-01031A UNIT_HOUSING_BOTTOM_1
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-BOTTOM BA61-00653A Mg T0.7 1 GEMINI SILVER
2 KNOB-BATT BA64-00188A PC/ABS 2 GEMINI SILVER
3 LINK-BATT_L BA72-00640A POM 1
4 LINK-BATT_R BA72-00641A POM 1
5 SHIELD-DOCK_FRONT BA63-00140A SUS 304 T0.15 2 Ni
6 SHIELD-DOCK_REAR_L BA63-00138A SUS 304 T0.15 1 Ni
7 SHIELD-DOCK_REAR_R BA63-00139A SUS 304 T0.15 1 Ni
8 DOOR-DOCKING BA72-00646C PC/ABS 2 GEMINI SILVER
9 SPRING-DOCKING BA61-00039A SWP 1
10 SPRING-BATTERY BA61-00101A SWP 1
11 RUBBER-FOOT_SYS BA73-00165A SILICON RUBBER 5 PANTON 428U
12 GASKET-USB BA63-00126A L9.0XW4.0XT2.0 2
13 GASKET-1394 BA63-00126A L9.0XW4.0XT2.0 1
14 GASKET MIC BA63-00128A L9.0XW4.0XT2.0 1
15 SCREW-MACHINE 6001-001446 M2.0X2.5, CH, YEL, + 3
16 RUBBER-CAP 2
4-2-2 BA75-01040A UNIT_HOUSING_BOTTOM_2
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-BOTTOM BA61-00661A Mg T0.7 1 GEMINI SILVER
2 KNOB-BATT BA64-00188A PC/ABS 2 GEMINI SILVER
3 LINK-BATT_L BA72-00640A POM 1
4 LINK-BATT_R BA72-00641A POM 1
5 SHIELD-DOCK_FRONT BA63-00140A SUS 304 T0.15 2 Ni
6 SHIELD-DOCK_REAR_L BA63-00138A SUS 304 T0.15 1 Ni
7 SHIELD-DOCK_REAR_R BA63-00139A SUS 304 T0.15 1 Ni
8 DOOR-DOCKING BA72-00646C PC/ABS 2 GEMINI SILVER
9 SPRING-DOCKING BA61-00039A SWP 1
10 SPRING-BATTERY BA61-00101A SWP 1
11 RUBBER-FOOT_SYS BA73-00165A SILICON RUBBER 5 PANTON 428U
12 GASKET-USB BA63-00126A L9.0XW4.0XT2.0 2
13 GASKET-1394 BA63-00126A L9.0XW4.0XT2.0 1
14 GASKET MIC BA63-00128A L9.0XW4.0XT2.0 1
15 SCREW-MACHINE 6001-001446 M2.0X2.5, CH, YEL, + 3
16 RUBBER-CAP 2
4-4 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
4-3 UNIT_HOUSING_BOTTOM_2
Sens Q 25 4-5
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
4-3-1 BA75-01031A UNIT_HOUSING_BOTTOM_1
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-BOTTOM BA61-00653A Mg T0.7 1 GEMINI SILVER
2 KNOB-BATT BA64-00188A PC/ABS 2 GEMINI SILVER
3 LINK-BATT_L BA72-00640A POM 1
4 LINK-BATT_R BA72-00641A POM 1
5 SHIELD-DOCK_FRONT BA63-00140A SUS 304 T0.15 2 Ni
6 SHIELD-DOCK_REAR_L BA63-00138A SUS 304 T0.15 1 Ni
7 SHIELD-DOCK_REAR_R BA63-00139A SUS 304 T0.15 1 Ni
8 DOOR-DOCKING BA72-00646C PC/ABS 2 GEMINI SILVER
9 SPRING-DOCKING BA61-00039A SWP 1
10 SPRING-BATTERY BA61-00101A SWP 1
11 RUBBER-FOOT_SYS BA73-00165A SILICON RUBBER 5 PANTON 428U
12 GASKET-USB BA63-00126A L9.0XW4.0XT2.0 2
13 GASKET-1394 BA63-00126A L9.0XW4.0XT2.0 1
14 GASKET MIC BA63-00128A L9.0XW4.0XT2.0 1
15 SCREW-MACHINE 6001-001446 M2.0X2.5, CH, YEL, + 3
16 RUBBER-CAP 2
4-3-2 BA75-01040A UNIT_HOUSING_BOTTOM_2
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-BOTTOM BA61-00661A Mg T0.7 1 GEMINI SILVER
2 KNOB-BATT BA64-00188A PC/ABS 2 GEMINI SILVER
3 LINK-BATT_L BA72-00640A POM 1
4 LINK-BATT_R BA72-00641A POM 1
5 SHIELD-DOCK_FRONT BA63-00140A SUS 304 T0.15 2 Ni
6 SHIELD-DOCK_REAR_L BA63-00138A SUS 304 T0.15 1 Ni
7 SHIELD-DOCK_REAR_R BA63-00139A SUS 304 T0.15 1 Ni
8 DOOR-DOCKING BA72-00646C PC/ABS 2 GEMINI SILVER
9 SPRING-DOCKING BA61-00039A SWP 1
10 SPRING-BATTERY BA61-00101A SWP 1
11 RUBBER-FOOT_SYS BA73-00165A SILICON RUBBER 5 PANTON 428U
12 GASKET-USB BA63-00126A L9.0XW4.0XT2.0 2
13 GASKET-1394 BA63-00126A L9.0XW4.0XT2.0 1
14 GASKET MIC BA63-00128A L9.0XW4.0XT2.0 1
15 SCREW-MACHINE 6001-001446 M2.0X2.5, CH, YEL, + 3
16 RUBBER-CAP 2
4-6 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
4-4 UNIT-HOUSING-TOP-L_1
NO PART NAME SEC PART NO. Q'TY SPECIFICATION REMARK
1 HOUSING-TOP-L BA61-00652A 1 PC/ABS, TALC NEW
2 KNOB-TOUCHPAD BA64-00487A 1 PC/ABS NEW
3 RUBBER-TOUCHPAD BA73-00274A 2 SILLICN NEW
4 LENS-LED BA67-00195A 1 PC+ NEW
5 INSULATOR-TOP-L BA62-00143A 1 PET T=0.05 COMMON
6 KNOB-KBD-LOCK BA64-00019A 1 COMMON
7 SPRING-KBG BA61-00004A 1 COMMON
Sens Q 25 4-7
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
4-5 UNIT-HOUSING-TOP-L_2
NO PART NAME SEC PART NO. Q'TY SPECIFICATION REMARK
1 HOUSING-TOP L BA61-00652A 1 PC/ABS,TALC NEW
2 KNOB-TOUCHPAD BA64-00487A 1 PC/ABS NEW
3 RUBBER-TOUCHPAD BA73-00274A 2 SILLICN NEW
4 LENS-LED BA67-00195A 1 PC+ NEW
5 INSULATOR-TOP L BA62-00143A 1 PET T=0.05 COMMON
6 KNOB-KBD-LOCK BA64-00019A 1 COMMON
7 SPRING-KBD BA61-00004A 1 COMMON
4-8 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
4-6 UNIT-HOUSING-TOP-U_1
NO PART NAME SEC PART NO. Q'TY SPECIFICATION REMARK
1 HOUSING-TOP U BA61-00651A 1 PC/ABS,TALC NEW
2 KNOB-POWER BA6-00193A 1 ABS COMMON
3 SPRING-POWER BA61-70116A 1 SWP COMMON
4 KNOB-USER BA64-00486A 1 ABS COMMON
5 INSULRATOR-TOP, U BA62-00241A 1 PET T=0.15 NEW
6 GASKET-TOP, U BA63-00085A 2 4X12X1.5T COMMON
7 LENS-POWER BA67-00097A 1 PC COMMON
8 BRKT-KENSINGTON_SYS BA61-00173A 1 STS T=0.5 COMMON
Sens Q 25 4-9
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
4-7 UNIT-HOUSING-TOP-U_2
4-10 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
NO PART NAME SEC PART NO. Q'TY SPECIFICATION REMARK
1 HOUSING-TOP U BA61-00651A 1 PC/ABS,TALC NEW
2 KNOB-POWER BA6-00193A 1 ABS COMMON
3 SPRING-POWER BA61-70116A 1 SWP COMMON
4 KNOB-USER BA64-00486A 1 ABS COMMON
5 INSULRATOR-TOP, U BA62-00241A 1 PET T=0.15 NEW
6 GASKET-TOP, U BA63-00085A 2 4X12X1.5T COMMON
7 LENS-POWER BA67-00097A 1 PC COMMON
8 BRKT-KENSINGTON_SYS BA61-00173A 1 STS T=0.5 COMMON
Sens Q 25 4-11
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
4-8 UNIT-BRKT-MEMORY_1
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 BRKT_MEMORY BA61-00654A AL T0.5 1 GEMINI SILVER
2 PLATE_SPRING_MEMORY BA63-00392A SUS304 T0.5 1 Ni
3 INSULATOR_MEMORY BA62-00242A PE T0.15, BLACK 1
4 SCREW-SPECIAL 6009-001483 SPECIAL, M3.0x 4.0, CH Ni, + 2
4-12 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
4-9 UNIT-BRKT-MEMORY_2
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 BRKT_MEMORY BA61-00654A AL T0.5 1 GEMINI SILVER
2 PLATE_SPRING_MEMORY BA63-00392A SUS304 T0.5 1 Ni
3 INSULATOR_MEMORY BA62-00242A PE T0.15, BLACK 1
4 SCREW-SPECIAL 6009-001483 SPECIAL, M3.0x 4.0, CH Ni, + 2
Sens Q 25 4-13
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
4-10 UNIT_HOUSING_ICDBACK_1
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-LCD BACK BA61-00657A MgAZ91D 1
2 SPONGE LCD BACK BA73-10075A RUBBER SPONGE 1
3 INSULATOR-INVORTOR BA72-00655A PET 0.1 1
4 INSULATOR LCD_BACK BA62-00146A PET, T0.05 REMOVAL 1
4-14 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
4-11 UNIT_HOUSING_ICDBACK_2
Sens Q 25 4-15
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-LCD BACK BA61-00657A MgAZ91D 1
2 SPONGE LCD BACK BA73-10075A RUBBER SPONGE 1
3 INSULATOR-INVORTOR BA72-00655A PET 0.1 1
4 INSULATOR LCD_BACK BA62-00146A PET, T0.05 REMOVAL 1
4-16 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
4-12 UNIT_ICDFRONT_1
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-LCD FRONT BA61-00658A PC/ABS, TALC 1
2 RUBBER-FRONT BA73-10074A URETHANE90 4
3 MAGNET-LCD BA70-00565A ND 1
4 INSULATOR-TAPE-LCD BA72-00565A 3M 5413 1
5 LENS PHOTO SECSOR BA67-00196A PC 1
Sens Q 25 4-17
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
4-13 UNIT_ICDFRONT_2
4-18 Sens Q 25
This Document can not be used without Samsung's authorization. 4 System Exploded View and Parts List
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 HOUSING-LCD FRONT BA61-00658A PC/ABS, TALC 1
2 RUBBER-FRONT BA73-10074A URETHANE90 4
3 MAGNET-LCD BA70-00565A ND 1
4 INSULATOR-TAPE-LCD BA72-00565A 3M 5413 1
5 LENS PHOTO SECSOR BA67-00196A PC 1
Sens Q 25 4-19
4 System Exploded View and Parts List This Document can not be used without Samsung's authorization.
4-14 UNIT_COVER_RIGHT_1
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 COVER_RIGHT BA63-00394A PC/ABS 1
2 LENS_IRDA BA67-00197A PC(PU01) 1
4-15 UNIT_COVER_RIGHT_2
NO PART NAME CODE NO SPECIFICATION Q'TY REMARK
1 COVER_RIGHT BA63-00394A PC/ABS 1
2 LENS_IRDA BA67-00197A PC(PU01) 1
4-20 Sens Q 25
