2 Exploded View and Mechanical Parts List
2-1 Exploded View

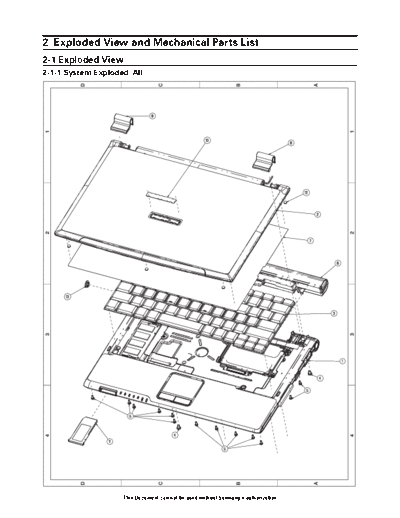

2-1-1 System Exploded_All
Q30 2-1
This Document can not be used without Samsung's authorization.
2 Exploded View and Mechanical Parts List
2-1-2 System Exploded_LCD
2-2 Q30
This Document can not be used without Samsung's authorization.
2 Exploded View and Mechanical Parts List
2-1-3 System Exploded_Housing_Bottom
Q30 2-3
This Document can not be used without Samsung's authorization.
2 Exploded View and Mechanical Parts List
2-1-4 System Exploded_Top_Ass'y1
2-4 Q30
This Document can not be used without Samsung's authorization.
2 Exploded View and Mechanical Parts List
2-1-5 System Exploded_Top_Ass'y2
Q30 2-5
This Document can not be used without Samsung's authorization.
2 Exploded View and Mechanical Parts List
2-1-6 System Exploded_Bottom_Ass'y1
2-6 Q30
This Document can not be used without Samsung's authorization.
2 Exploded View and Mechanical Parts List
2-1-7 System Exploded_Bottom_Ass'y2
Q30 2-7
This Document can not be used without Samsung's authorization.
