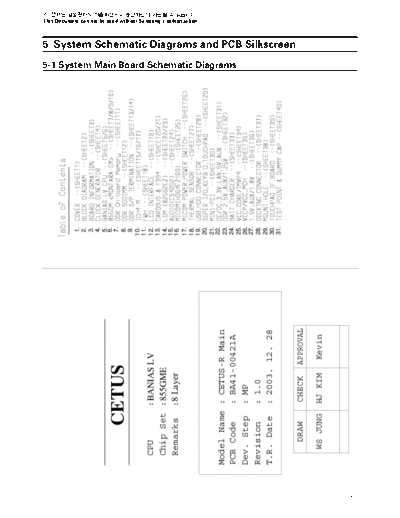

Image preview - the first page of the document
>> Download SAMSUNG NQ25_SQ25 documenatation <<
Text preview - extract from the document
Sens Q 25
1.
2.
3.
4.
5.
6.
7.
CETUS 8.
9.
10.
11.
CPU :BANIAS LV 12.
13.
Chip Set :855GME 14.
15.
Remarks :8 Layer 16.
17.
18.
This Document can not be used without Samsung's authorization.
19.
20.
21.
22.
Model Name : CETUS-R Main 23.
24.
5-1 System Main Board Schematic Diagrams
PCB Code : BA41-00421A
25.
Dev. Step : MP 26.
27.
Revision : 1.0 28.
29.
T.R. Date : 2003. 12. 28 30.
31.
5 System Schematic Diagrams and PCB Silkscreen
DRAW CHECK APPROVAL
WS JUNG HJ KIM Kevin
5-1
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(a) System Main Board Schematic Sheet 2 of 40(BLOCK DIAGRAM)
5-2 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(b) System Main Board Schematic Sheet 3 of 40(BOARD INFORMATION)
Sens Q 25 5-3
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(c) System Main Board Schematic Sheet 4 of 40(CLOCK GENERATOR)
5-4 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(d) System Main Board Schematic Sheet 5 of 40(BANIAS CPU)
Sens Q 25 5-5
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(e) System Main Board Schematic Sheet 6 of 40(BANIAS CPU)
5-6 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(f) System Main Board Schematic Sheet 7 of 40(GMCH-M)
Sens Q 25 5-7
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(g) System Main Board Schematic Sheet 8 of 40(GMCH-M)
5-8 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(h) System Main Board Schematic Sheet 9 of 40(GMCH-M)
Sens Q 25 5-9
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(i) System Main Board Schematic Sheet 10 of 40(GMCH-M)
5-10 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(j) System Main Board Schematic Sheet 11 of 40(DDR-ON BOARD)
Sens Q 25 5-11
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(k) System Main Board Schematic Sheet 12 of 40(DDR-SODIMM)
5-12 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(l) System Main Board Schematic Sheet 13 of 40(SERIES & TERMINATION)
Sens Q 25 5-13
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(m) System Main Board Schematic Sheet 14 of 40(SERISE & TERMINATION)
5-14 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(n) System Main Board Schematic Sheet 15 of 40(ICH4-M)
Sens Q 25 5-15
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(o) System Main Board Schematic Sheet 16 of 40(ICH4-M)
5-16 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(p) System Main Board Schematic Sheet 17 of 40(ICH4-M)
Sens Q 25 5-17
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(q) System Main Board Schematic Sheet 18 of 40(FWH)
5-18 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(r) System Main Board Schematic Sheet 19 of 40(LCD INTERFACE)
Sens Q 25 5-19
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(s) System Main Board Schematic Sheet 20 of 40(CARDBUS & 1394)
5-20 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(t) System Main Board Schematic Sheet 21 of 40(CARDBUS & 1394)
Sens Q 25 5-21
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(u) System Main Board Schematic Sheet 22 of 40(LOW [BCM5705M])
5-22 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(v) System Main Board Schematic Sheet 23 of 40(LOW [BCM5705M])
Sens Q 25 5-23
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(w) System Main Board Schematic Sheet 24 of 40(AUDIO)
5-24 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(x) System Main Board Schematic Sheet 25 of 40(MICOM)
Sens Q 25 5-25
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(y) System Main Board Schematic Sheet 26 of 40(MICOM POWER, POWER SWITCH)
5-26 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(z) System Main Board Schematic Sheet 27 of 40(THERMAL SENSOR)
Sens Q 25 5-27
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(aa) System Main Board Schematic Sheet 28 of 40(USB, B/T, HDD CONNECTOR)
5-28 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(bb) System Main Board Schematic Sheet 29 of 40(SUPER-I/O)
Sens Q 25 5-29
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(cc) System Main Board Schematic Sheet 30 of 40(MINI-PCI)
5-30 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(dd) System Main Board Schematic Sheet 31 of 40(DC/DC, 3.3V_LAN, 5V_AUX)
Sens Q 25 5-31
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(ee) System Main Board Schematic Sheet 32 of 40(DDR 2.5V_AUX, 1.25V)
5-32 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(ff) System Main Board Schematic Sheet 33 of 40(BATT CHARGER)
Sens Q 25 5-33
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(gg) System Main Board Schematic Sheet 34 of 40(VCC_CORE/IMVP4)
5-34 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(hh) System Main Board Schematic Sheet 35 of 40(VCCP/VCC_MCH)
Sens Q 25 5-35
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(ii) System Main Board Schematic Sheet 36 of 40(1.5V_AUX/1.8V)
5-36 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(jj) System Main Board Schematic Sheet 37 of 40(DOCKING CONNECTOR)
Sens Q 25 5-37
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(kk) System Main Board Schematic Sheet 38 of 40(MOUNT HOLE)
5-38 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-1-1(ll) System Main Board Schematic Sheet 39 of 40(TOUCHPAD IF BOARD)
Sens Q 25 5-39
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-1-1(mm) System Main Board Schematic Sheet 40 of 40(UNDEFINED)
5-40 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-2 PCB Silkscreen
Sens Q 25 5-41
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
5-42 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
5-3 System Main Part List & Main Location Part List
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
AJ450 3708-001276 CONNECTOR-FPC/FFC/PIC cetus-39 4-B 12P,0.5MM,SMD-A,SN,ZIF,FLIP,BOTTOM
AJ451 3708-001276 CONNECTOR-FPC/FFC/PIC cetus-39 4-C 12P,0.5MM,SMD-A,SN,ZIF,FLIP,BOTTOM
AR1-# 2011-001402 R-NET cetus-13 1-B 56OHM,5%,1/16W,L,CHIP,8P,TP
AR10-# 2011-001402 R-NET cetus-13 2-B 56OHM,5%,1/16W,L,CHIP,8P,TP
AR11-# 2011-001402 R-NET cetus-13 2-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR2-# 2011-001402 R-NET cetus-13 1-B 56OHM,5%,1/16W,L,CHIP,8P,TP
AR3-# 2011-001402 R-NET cetus-13 1-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR4-# 2011-001402 R-NET cetus-13 1-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR5-# 2011-001402 R-NET cetus-13 1-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR500-# 2011-001402 R-NET cetus-13 1-B 56OHM,5%,1/16W,L,CHIP,8P,TP
AR501-# 2011-001402 R-NET cetus-13 1-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR502-# 2011-001264 R-NET cetus-13 3-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR503-# 2011-001264 R-NET cetus-13 3-B 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR504-# 2011-001264 R-NET cetus-13 3-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR505-# 2011-001264 R-NET cetus-13 3-B 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR506-# 2011-001264 R-NET cetus-13 3-D 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR507-# 2011-001264 R-NET cetus-13 3-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR508-# 2011-001264 R-NET cetus-13 3-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR509-# 2011-001264 R-NET cetus-13 3-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR510-# 2011-001264 R-NET cetus-13 4-B 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR511-# 2011-001264 R-NET cetus-13 4-B 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR512-# 2011-001264 R-NET cetus-13 4-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR513-# 2011-001264 R-NET cetus-13 4-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR514-# 2011-001264 R-NET cetus-13 4-D 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR515-# 2011-001264 R-NET cetus-13 4-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR516-# 2011-001264 R-NET cetus-13 4-C 10ohm,5%,1/16W,L,CHIP,8P,TP,2.0x1.0x0.35mm
AR517-# 2011-001402 R-NET cetus-13 2-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR6-# 2011-001402 R-NET cetus-13 2-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR7-# 2011-001402 R-NET cetus-13 2-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR8-# 2011-001402 R-NET cetus-13 2-C 56OHM,5%,1/16W,L,CHIP,8P,TP
AR9-# 2011-001402 R-NET cetus-13 2-B 56OHM,5%,1/16W,L,CHIP,8P,TP
ASW1100 3404-001052 SWITCH-TACT cetus-39 3-B 12V,50mA,160gf,5.2x5.2x0.8mm,SPST
ASW1101 3404-001052 SWITCH-TACT cetus-39 3-C 12V,50mA,160gf,5.2x5.2x0.8mm,SPST
B1 3301-000322 BEAD-SMD cetus-19 1-D 31ohm,3216,500mA,TP,,,
B10 3301-001594 BEAD-SMD cetus-28 4-C 90ohm,2.0x1.2x1.3mm,200mA,TP,,,0.19ohm
B11 3301-001594 BEAD-SMD cetus-20 1-D 90ohm,2.0x1.2x1.3mm,200mA,TP,,,0.19ohm
B12 3301-001594 BEAD-SMD cetus-20 1-D 90ohm,2.0x1.2x1.3mm,200mA,TP,,,0.19ohm
B13 3301-001148 BEAD-SMD cetus-20 2-D 60ohm,1.6x0.8x0.8mm,500mA,TP,,,0.1ohm
B2 3301-001162 BEAD-SMD cetus-31 4-D 68ohm,3.2x1.6x0.9mm,3000mA,TP,,,0.012ohm
Sens Q 25 5-43
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
B3 3301-001162 BEAD-SMD cetus-31 4-D 68ohm,3.2x1.6x0.9mm,3000mA,TP,,,0.012ohm
B4 3301-001434 BEAD-SMD cetus-33 1-C 27ohm,1608,4000mA,TP,,,0.006ohm
B5 3301-001434 BEAD-SMD cetus-33 1-C 27ohm,1608,4000mA,TP,,,0.006ohm
B500 3301-001272 BEAD-SMD cetus-22 3-B 120ohm,2x1.25x1mm,5000mA,TR,,,0.02ohm
B501 3301-001272 BEAD-SMD cetus-22 3-B 120ohm,2x1.25x1mm,5000mA,TR,,,0.02ohm
B502 3301-001499 BEAD-SMD cetus-19 2-D 75ohm,1608,,TP,76ohm/100MHz,129ohm/600MHz,
0.15ohm
B503 3301-001499 BEAD-SMD cetus-19 2-D 75ohm,1608,,TP,76ohm/100MHz,129ohm/600MHz,
0.15ohm
B504 3301-001499 BEAD-SMD cetus-19 2-D 75ohm,1608,,TP,76ohm/100MHz,129ohm/600MHz,
0.15ohm
B505 3301-001594 BEAD-SMD cetus-28 4-B 90ohm,2.0x1.2x1.3mm,200mA,TP,,,0.19ohm
B506 3301-001434 BEAD-SMD cetus-37 2-B 27ohm,1608,4000mA,TP,,,0.006ohm
B507 3301-001434 BEAD-SMD cetus-37 2-B 27ohm,1608,4000mA,TP,,,0.006ohm
B508 3301-000326 BEAD-SMD cetus-28 4-B 60,3225,1500,-,43OHM/40MHZ,83OHM/700MHZ,
30000
B509 3301-000326 BEAD-SMD cetus-28 4-D 60,3225,1500,-,43OHM/40MHZ,83OHM/700MHZ,
30000
B510 3301-000317 BEAD-SMD cetus-23 1-A 120ohm,2x1.25x0.9mm,200mA,TP,,,0.6ohm
B511 3301-000317 BEAD-SMD cetus-23 1-A 120ohm,2x1.25x0.9mm,200mA,TP,,,0.6ohm
B512 3301-000314 BEAD-SMD cetus-24 1-B 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B513 3301-000314 BEAD-SMD cetus-24 1-B 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B514 3301-000314 BEAD-SMD cetus-24 1-B 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B515 3301-000314 BEAD-SMD cetus-24 1-B 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B516 3301-000314 BEAD-SMD cetus-19 3-B 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B517 3301-001101 BEAD-SMD cetus-4 2-D 600ohm,2012,200mA,TP,,685ohm/158MHz,0.3ohm
B518 3301-001101 BEAD-SMD cetus-4 2-D 600ohm,2012,200mA,TP,,685ohm/158MHz,0.3ohm
B519 3301-001101 BEAD-SMD cetus-4 1-C 600ohm,2012,200mA,TP,,685ohm/158MHz,0.3ohm
B520 3301-000326 BEAD-SMD cetus-24 2-D 60,3225,1500,-,43OHM/40MHZ,83OHM/700MHZ,
30000
B522 3301-000314 BEAD-SMD cetus-30 1-D 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B523 3301-000314 BEAD-SMD cetus-30 1-D 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B524 3301-001233 BEAD-SMD cetus-22 4-B 300ohm,1608,230mA,,,,0.35ohm
B6 3301-000314 BEAD-SMD cetus-33 1-B 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B7 3301-000314 BEAD-SMD cetus-33 1-B 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B8 3301-000314 BEAD-SMD cetus-33 1-C 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm
B9 3301-001101 BEAD-SMD cetus-20 1-C 600ohm,2012,200mA,TP,,685ohm/158MHz,0.3ohm
C1 2203-005482 C-CER,CHIP cetus-19 1-D 100nF,10%,10V,X5R,TP,1005,-
C10 2203-005198 C-CER,CHIP cetus-31 2-C 1uF,10%,10V,X5R,TP,2012,-
5-44 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C100 2203-000254 C-CER,CHIP cetus-11 3-D 10nF,10%,16V,X7R,TP,1005,-
C1000 2203-005052 C-CER,CHIP cetus-40 1-B 0.0033nF,0.25pF,50V,NP0,TP,1005
C1001 2203-000298 C-CER,CHIP cetus-22 1-C 10000NF,+80-20%,16V,Y5V,TP,3225
C1002 2203-000298 C-CER,CHIP cetus-22 1-C 10000NF,+80-20%,16V,Y5V,TP,3225
C1003 2203-000298 C-CER,CHIP cetus-22 1-C 10000NF,+80-20%,16V,Y5V,TP,3225
C1004 2203-000628 C-CER,CHIP cetus-40 1-D 0.022NF,5%,50V,C0G,TP,1005
C1005 2203-000628 C-CER,CHIP cetus-40 1-B 0.022NF,5%,50V,C0G,TP,1005
C1006 2203-000330 C-CER,CHIP cetus-40 1-D 0.012NF,5%,50V,C0G,TP,1005
C1007 2203-000233 C-CER,CHIP cetus-40 1-D 0.1nF,5%,50V,C0G,-,1005
C1008 2203-000233 C-CER,CHIP cetus-40 1-C 0.1nF,5%,50V,C0G,-,1005
C1009 2203-000995 C-CER,CHIP cetus-37 1-D 0.047NF,5%,50V,C0G,TP,1005
C101 2203-000254 C-CER,CHIP cetus-11 1-B 10nF,10%,16V,X7R,TP,1005,-
C1010 2203-000995 C-CER,CHIP cetus-11 1-B 0.047NF,5%,50V,C0G,TP,1005
C1011 2203-000995 C-CER,CHIP cetus-11 1-B 0.047NF,5%,50V,C0G,TP,1005
C1012 2203-000995 C-CER,CHIP cetus-40 1-D 0.047NF,5%,50V,C0G,TP,1005
C1013 2203-000995 C-CER,CHIP cetus-40 1-B 0.047NF,5%,50V,C0G,TP,1005
C102 2203-000254 C-CER,CHIP cetus-14 1-B 10nF,10%,16V,X7R,TP,1005,-
C103 2203-000254 C-CER,CHIP cetus-11 2-B 10nF,10%,16V,X7R,TP,1005,-
C104 2203-000254 C-CER,CHIP cetus-14 1-B 10nF,10%,16V,X7R,TP,1005,-
C105 2203-005061 C-CER,CHIP cetus-14 1-A 100nF,+80-20%,16V,Y5V,-,1005
C106 2203-000254 C-CER,CHIP cetus-14 2-B 10nF,10%,16V,X7R,TP,1005,-
C107 2203-000254 C-CER,CHIP cetus-14 2-B 10nF,10%,16V,X7R,TP,1005,-
C108 2203-000254 C-CER,CHIP cetus-11 1-B 10nF,10%,16V,X7R,TP,1005,-
C109 2203-000254 C-CER,CHIP cetus-14 2-B 10nF,10%,16V,X7R,TP,1005,-
C11 2203-005918 C-CER,CHIP cetus-31 2-C 1000NF,10%,6.3V,X7R,TP,1608
C110 2203-005061 C-CER,CHIP cetus-14 2-B 100nF,+80-20%,16V,Y5V,-,1005
C111 2402-001045 C-AL,SMD cetus-10 4-D 47uF,20%,6.3V,GP,7343,-,TP
C112 2402-001045 C-AL,SMD cetus-10 4-A 47uF,20%,6.3V,GP,7343,-,TP
C113 2203-005061 C-CER,CHIP cetus-30 1-A 100nF,+80-20%,16V,Y5V,-,1005
C114 2203-000254 C-CER,CHIP cetus-14 2-A 10nF,10%,16V,X7R,TP,1005,-
C115 2203-005061 C-CER,CHIP cetus-14 1-B 100nF,+80-20%,16V,Y5V,-,1005
C116 2203-000254 C-CER,CHIP cetus-11 1-D 10nF,10%,16V,X7R,TP,1005,-
C117 2203-000254 C-CER,CHIP cetus-11 2-D 10nF,10%,16V,X7R,TP,1005,-
C118 2203-005061 C-CER,CHIP cetus-14 2-B 100nF,+80-20%,16V,Y5V,-,1005
C119 2203-000254 C-CER,CHIP cetus-14 1-B 10nF,10%,16V,X7R,TP,1005,-
C12 2203-000438 C-CER,CHIP cetus-31 2-B 1nF,10%,50V,X7R,TP,1005,-
C120 2203-000254 C-CER,CHIP cetus-14 1-B 10nF,10%,16V,X7R,TP,1005,-
C121 2203-005061 C-CER,CHIP cetus-14 1-A 100nF,+80-20%,16V,Y5V,-,1005
C122 2402-001045 C-AL,SMD cetus-10 4-D 47uF,20%,6.3V,GP,7343,-,TP
Sens Q 25 5-45
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C123 2402-001045 C-AL,SMD cetus-10 4-A 47uF,20%,6.3V,GP,7343,-,TP
C124 2203-000254 C-CER,CHIP cetus-14 1-B 10nF,10%,16V,X7R,TP,1005,-
C125 2203-005061 C-CER,CHIP cetus-14 1-A 100nF,+80-20%,16V,Y5V,-,1005
C126 2203-005061 C-CER,CHIP cetus-14 1-B 100nF,+80-20%,16V,Y5V,-,1005
C127 2203-000254 C-CER,CHIP cetus-14 1-B 10nF,10%,16V,X7R,TP,1005,-
C128 2402-001167 C-POLYMER AL CHIP cetus-10 4-B 82UF,20%,2.5V,WT,TP,7.3x4.3x1.8MM
C129 2203-005061 C-CER,CHIP cetus-14 1-B 100nF,+80-20%,16V,Y5V,-,1005
C13 2203-005619 C-CER,CHIP cetus-31 2-C 4700NF,10%,16V,X5R,TP,3216
C131 2203-005061 C-CER,CHIP cetus-14 1-A 100nF,+80-20%,16V,Y5V,-,1005
C133 2203-000254 C-CER,CHIP cetus-11 1-D 10nF,10%,16V,X7R,TP,1005,-
C134 2203-005061 C-CER,CHIP cetus-14 1-B 100nF,+80-20%,16V,Y5V,-,1005
C135 2203-000254 C-CER,CHIP cetus-11 2-B 10nF,10%,16V,X7R,TP,1005,-
C136 2203-000254 C-CER,CHIP cetus-14 1-B 10nF,10%,16V,X7R,TP,1005,-
C137 2203-000254 C-CER,CHIP cetus-14 2-A 10nF,10%,16V,X7R,TP,1005,-
C138 2203-005061 C-CER,CHIP cetus-14 1-B 100nF,+80-20%,16V,Y5V,-,1005
C139 2203-000254 C-CER,CHIP cetus-14 1-B 10nF,10%,16V,X7R,TP,1005,-
C14 2203-000438 C-CER,CHIP cetus-31 2-B 1nF,10%,50V,X7R,TP,1005,-
C140 2203-005061 C-CER,CHIP cetus-14 2-B 100nF,+80-20%,16V,Y5V,-,1005
C141 2203-000254 C-CER,CHIP cetus-14 2-B 10nF,10%,16V,X7R,TP,1005,-
C142 2203-005061 C-CER,CHIP cetus-14 1-B 100nF,+80-20%,16V,Y5V,-,1005
C143 2402-001167 C-POLYMER AL CHIP cetus-10 4-D 82UF,20%,2.5V,WT,TP,7.3x4.3x1.8MM
C144 2203-005061 C-CER,CHIP cetus-23 4-D 100nF,+80-20%,16V,Y5V,-,1005
C145 2203-005065 C-CER,CHIP cetus-23 4-D 1000nF,+80-20%,10V,Y5V,-,1608
C146 2203-005061 C-CER,CHIP cetus-23 3-D 100nF,+80-20%,16V,Y5V,-,1005
C147 2203-000513 C-CER,CHIP cetus-23 3-D 2200NF,+80-20%,16V,Y5V,TP,3225
C149 2203-000438 C-CER,CHIP cetus-24 4-A 1nF,10%,50V,X7R,TP,1005,-
C15 2203-000233 C-CER,CHIP cetus-33 1-B 0.1nF,5%,50V,C0G,-,1005
C151 2203-006093 C-CER,CHIP cetus-23 3-B 1000NF,+80-20%,6.3V,Y5V,TP,1005
C152 2203-000438 C-CER,CHIP cetus-23 3-B 1nF,10%,50V,X7R,TP,1005,-
C153 2203-000940 C-CER,CHIP cetus-23 3-D 0.47NF,10%,50V,X7R,TP,1005
C154 2203-000628 C-CER,CHIP cetus-23 3-B 0.022NF,5%,50V,C0G,TP,1005
C155 2203-000628 C-CER,CHIP cetus-23 4-B 0.022NF,5%,50V,C0G,TP,1005
C156 2203-005061 C-CER,CHIP cetus-23 2-D 100nF,+80-20%,16V,Y5V,-,1005
C157 2203-005061 C-CER,CHIP cetus-23 2-D 100nF,+80-20%,16V,Y5V,-,1005
C158 2203-005571 C-CER,CHIP cetus-23 4-A 10000nF,+80-20%,6.3V,Y5V,-,2012
C16 2203-000233 C-CER,CHIP cetus-33 1-B 0.1nF,5%,50V,C0G,-,1005
C161 2203-005061 C-CER,CHIP cetus-11 3-A 100nF,+80-20%,16V,Y5V,-,1005
C162 2203-000254 C-CER,CHIP cetus-11 1-B 10nF,10%,16V,X7R,TP,1005,-
C164 2402-001167 C-POLYMER AL CHIP cetus-10 4-D 82UF,20%,2.5V,WT,TP,7.3x4.3x1.8MM
5-46 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C165 2203-005571 C-CER,CHIP cetus-23 4-A 10000nF,+80-20%,6.3V,Y5V,-,2012
C166 2203-000438 C-CER,CHIP cetus-23 3-C 1nF,10%,50V,X7R,TP,1005,-
C167 2203-000438 C-CER,CHIP cetus-23 3-C 1nF,10%,50V,X7R,TP,1005,-
C168 2203-005061 C-CER,CHIP cetus-23 4-C 100nF,+80-20%,16V,Y5V,-,1005
C169 2203-000476 C-CER,CHIP cetus-23 4-C 1000nF,+80-20%,16V,Y5V,-,2012
C17 2203-000233 C-CER,CHIP cetus-33 1-C 0.1nF,5%,50V,C0G,-,1005
C170 2203-005061 C-CER,CHIP cetus-23 3-D 100nF,+80-20%,16V,Y5V,-,1005
C171 2203-005061 C-CER,CHIP cetus-23 3-D 100nF,+80-20%,16V,Y5V,-,1005
C172 2203-005061 C-CER,CHIP cetus-23 3-D 100nF,+80-20%,16V,Y5V,-,1005
C173 2203-005509 C-CER,CHIP cetus-23 3-A 330nF,+80-20%,10V,Y5V,TP,1005
C174 2203-006093 C-CER,CHIP cetus-23 3-C 1000NF,+80-20%,6.3V,Y5V,TP,1005
C175 2203-005571 C-CER,CHIP cetus-23 2-D 10000nF,+80-20%,6.3V,Y5V,-,2012
C176 2203-005509 C-CER,CHIP cetus-23 3-B 330nF,+80-20%,10V,Y5V,TP,1005
C177 2203-005198 C-CER,CHIP cetus-26 4-C 1uF,10%,10V,X5R,TP,2012,-
C178 2203-005061 C-CER,CHIP cetus-25 3-D 100nF,+80-20%,16V,Y5V,-,1005
C179 2203-005061 C-CER,CHIP cetus-38 4-D 100nF,+80-20%,16V,Y5V,-,1005
C18 2402-001125 C-POLYMER AL CHIP cetus-33 4-C 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C180 2203-005061 C-CER,CHIP cetus-25 2-B 100nF,+80-20%,16V,Y5V,-,1005
C181 2203-002720 C-CER,CHIP cetus-25 3-A 10nF,10%,25V,X7R,-,1005
C182 2203-005061 C-CER,CHIP cetus-38 4-B 100nF,+80-20%,16V,Y5V,-,1005
C183 2203-005061 C-CER,CHIP cetus-25 2-B 100nF,+80-20%,16V,Y5V,-,1005
C184 2203-000654 C-CER,CHIP cetus-21 1-D 0.27NF,10%,50V,X7R,TP,1005
C185 2203-005061 C-CER,CHIP cetus-4 2-D 100nF,+80-20%,16V,Y5V,-,1005
C186 2203-000254 C-CER,CHIP cetus-4 2-D 10nF,10%,16V,X7R,TP,1005,-
C187 2203-005571 C-CER,CHIP cetus-4 2-D 10000nF,+80-20%,6.3V,Y5V,-,2012
C188 2203-005571 C-CER,CHIP cetus-4 2-D 10000nF,+80-20%,6.3V,Y5V,-,2012
C189 2203-005061 C-CER,CHIP cetus-4 2-C 100nF,+80-20%,16V,Y5V,-,1005
C190 2203-005571 C-CER,CHIP cetus-4 2-C 10000nF,+80-20%,6.3V,Y5V,-,2012
C191 2203-000476 C-CER,CHIP cetus-23 4-C 1000nF,+80-20%,16V,Y5V,-,2012
C192 2203-005918 C-CER,CHIP cetus-24 3-A 1000NF,10%,6.3V,X7R,TP,1608
C193 2203-000628 C-CER,CHIP cetus-24 4-B 0.022NF,5%,50V,C0G,TP,1005
C194 2203-005061 C-CER,CHIP cetus-23 4-C 100nF,+80-20%,16V,Y5V,-,1005
C195 2203-005493 C-CER,CHIP cetus-23 3-C 220nF,+80-20%,16V,Y5V,TP,1005
C196 2203-005493 C-CER,CHIP cetus-23 3-C 220nF,+80-20%,16V,Y5V,TP,1005
C197 2203-005493 C-CER,CHIP cetus-23 3-C 220nF,+80-20%,16V,Y5V,TP,1005
C198 2203-005198 C-CER,CHIP cetus-23 3-C 1uF,10%,10V,X5R,TP,2012,-
C199 2203-005493 C-CER,CHIP cetus-23 3-C 220nF,+80-20%,16V,Y5V,TP,1005
C2 2203-005061 C-CER,CHIP cetus-27 2-D 100nF,+80-20%,16V,Y5V,-,1005
C200 2203-000628 C-CER,CHIP cetus-24 4-B 0.022NF,5%,50V,C0G,TP,1005
Sens Q 25 5-47
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C201 2203-000438 C-CER,CHIP cetus-24 4-B 1nF,10%,50V,X7R,TP,1005,-
C202 2203-005493 C-CER,CHIP cetus-23 3-C 220nF,+80-20%,16V,Y5V,TP,1005
C203 2203-005918 C-CER,CHIP cetus-24 3-B 1000NF,10%,6.3V,X7R,TP,1608
C204 2203-005493 C-CER,CHIP cetus-23 3-C 220nF,+80-20%,16V,Y5V,TP,1005
C205 2203-005493 C-CER,CHIP cetus-23 3-C 220nF,+80-20%,16V,Y5V,TP,1005
C206 2203-005509 C-CER,CHIP cetus-23 1-C 330nF,+80-20%,10V,Y5V,TP,1005
C207 2203-005509 C-CER,CHIP cetus-23 3-C 330nF,+80-20%,10V,Y5V,TP,1005
C208 2203-005571 C-CER,CHIP cetus-23 4-A 10000nF,+80-20%,6.3V,Y5V,-,2012
C209 2203-005065 C-CER,CHIP cetus-24 2-D 1000nF,+80-20%,10V,Y5V,-,1608
C210 2203-000330 C-CER,CHIP cetus-24 2-D 0.012NF,5%,50V,C0G,TP,1005
C211 2203-005509 C-CER,CHIP cetus-24 2-C 330nF,+80-20%,10V,Y5V,TP,1005
C212 2203-005061 C-CER,CHIP cetus-24 2-C 100nF,+80-20%,16V,Y5V,-,1005
C213 2203-005437 C-CER,CHIP cetus-24 1-C 10000nF,+80-20%,10V,Y5V,TP,3216
C214 2203-000330 C-CER,CHIP cetus-24 2-D 0.012NF,5%,50V,C0G,TP,1005
C215 2203-005061 C-CER,CHIP cetus-24 1-C 100nF,+80-20%,16V,Y5V,-,1005
C216 2203-005065 C-CER,CHIP cetus-24 2-D 1000nF,+80-20%,10V,Y5V,-,1608
C217 2203-000628 C-CER,CHIP cetus-25 4-A 0.022NF,5%,50V,C0G,TP,1005
C218 2203-006093 C-CER,CHIP cetus-25 3-D 1000NF,+80-20%,6.3V,Y5V,TP,1005
C219 2203-005061 C-CER,CHIP cetus-25 3-D 100nF,+80-20%,16V,Y5V,-,1005
C220 2203-005061 C-CER,CHIP cetus-25 3-A 100nF,+80-20%,16V,Y5V,-,1005
C221 2203-005061 C-CER,CHIP cetus-25 2-B 100nF,+80-20%,16V,Y5V,-,1005
C222 2203-005061 C-CER,CHIP cetus-25 3-D 100nF,+80-20%,16V,Y5V,-,1005
C223 2203-005148 C-CER,CHIP cetus-19 3-A 100nF,10%,16V,X7R,TP,1608
C224 2203-000298 C-CER,CHIP cetus-26 2-B 10000NF,+80-20%,16V,Y5V,TP,3225
C226 2203-005061 C-CER,CHIP cetus-4 2-D 100nF,+80-20%,16V,Y5V,-,1005
C227 2203-000628 C-CER,CHIP cetus-25 4-A 0.022NF,5%,50V,C0G,TP,1005
C228 2203-000278 C-CER,CHIP cetus-20 2-C 0.01NF,0.5PF,50V,C0G,TP,1005
C229 2203-000278 C-CER,CHIP cetus-25 3-C 0.01NF,0.5PF,50V,C0G,TP,1005
C230 2203-005061 C-CER,CHIP cetus-20 2-A 100nF,+80-20%,16V,Y5V,-,1005
C231 2203-006090 C-CER,CHIP cetus-20 2-B 10000nF,10%,6.3V,X5R,-,2012
C232 2203-000254 C-CER,CHIP cetus-20 3-C 10nF,10%,16V,X7R,TP,1005,-
C233 2203-005198 C-CER,CHIP cetus-21 4-A 1uF,10%,10V,X5R,TP,2012,-
C234 2203-000254 C-CER,CHIP cetus-20 3-C 10nF,10%,16V,X7R,TP,1005,-
C235 2203-000254 C-CER,CHIP cetus-20 2-D 10nF,10%,16V,X7R,TP,1005,-
C236 2203-000254 C-CER,CHIP cetus-20 2-D 10nF,10%,16V,X7R,TP,1005,-
C237 2203-000654 C-CER,CHIP cetus-20 2-C 0.27NF,10%,50V,X7R,TP,1005
C238 2203-005509 C-CER,CHIP cetus-20 2-C 330nF,+80-20%,10V,Y5V,TP,1005
C239 2203-006090 C-CER,CHIP cetus-20 3-B 10000nF,10%,6.3V,X5R,-,2012
C240 2203-000254 C-CER,CHIP cetus-20 2-C 10nF,10%,16V,X7R,TP,1005,-
5-48 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C241 2203-005061 C-CER,CHIP cetus-20 2-D 100nF,+80-20%,16V,Y5V,-,1005
C242 2203-005061 C-CER,CHIP cetus-20 2-D 100nF,+80-20%,16V,Y5V,-,1005
C243 2203-005061 C-CER,CHIP cetus-20 2-A 100nF,+80-20%,16V,Y5V,-,1005
C244 2203-000254 C-CER,CHIP cetus-20 1-A 10nF,10%,16V,X7R,TP,1005,-
C245 2203-000254 C-CER,CHIP cetus-20 2-A 10nF,10%,16V,X7R,TP,1005,-
C246 2203-000254 C-CER,CHIP cetus-20 2-A 10nF,10%,16V,X7R,TP,1005,-
C247 2203-000254 C-CER,CHIP cetus-20 1-A 10nF,10%,16V,X7R,TP,1005,-
C248 2203-005061 C-CER,CHIP cetus-21 3-A 100nF,+80-20%,16V,Y5V,-,1005
C249 2203-000254 C-CER,CHIP cetus-21 3-A 10nF,10%,16V,X7R,TP,1005,-
C251 2203-000278 C-CER,CHIP cetus-16 4-C 0.01NF,0.5PF,50V,C0G,TP,1005
C252 2402-001170 C-POLYMER AL CHIP cetus-36 2-D 150UF,20%,6V,WT,TP,7.3x4.3x1.8MM
C253 2203-005061 C-CER,CHIP cetus-4 2-D 100nF,+80-20%,16V,Y5V,-,1005
C254 2203-000254 C-CER,CHIP cetus-4 2-D 10nF,10%,16V,X7R,TP,1005,-
C256 2203-000278 C-CER,CHIP cetus-20 2-C 0.01NF,0.5PF,50V,C0G,TP,1005
C257 2203-000654 C-CER,CHIP cetus-20 1-D 0.27NF,10%,50V,X7R,TP,1005
C258 2203-005509 C-CER,CHIP cetus-20 2-D 330nF,+80-20%,10V,Y5V,TP,1005
C259 2203-000254 C-CER,CHIP cetus-20 2-C 10nF,10%,16V,X7R,TP,1005,-
C26 2203-000206 C-CER,CHIP cetus-31 1-C 100nF,10%,50V,X7R,TP,2012
C260 2203-005061 C-CER,CHIP cetus-20 2-A 100nF,+80-20%,16V,Y5V,-,1005
C261 2203-005061 C-CER,CHIP cetus-21 2-A 100nF,+80-20%,16V,Y5V,-,1005
C262 2203-000254 C-CER,CHIP cetus-21 2-D 10nF,10%,16V,X7R,TP,1005,-
C263 2203-005061 C-CER,CHIP cetus-20 2-A 100nF,+80-20%,16V,Y5V,-,1005
C264 2203-005061 C-CER,CHIP cetus-20 2-A 100nF,+80-20%,16V,Y5V,-,1005
C265 2203-005061 C-CER,CHIP cetus-20 2-A 100nF,+80-20%,16V,Y5V,-,1005
C266 2203-000254 C-CER,CHIP cetus-21 3-A 10nF,10%,16V,X7R,TP,1005,-
C267 2203-005061 C-CER,CHIP cetus-21 3-A 100nF,+80-20%,16V,Y5V,-,1005
C268 2203-000483 C-CER,CHIP cetus-21 4-A 1000nF,+80-20%,25V,Y5V,TP,3216
C269 2203-005061 C-CER,CHIP cetus-15 2-A 100nF,+80-20%,16V,Y5V,-,1005
C27 2203-000206 C-CER,CHIP cetus-31 2-D 100nF,10%,50V,X7R,TP,2012
C270 2203-006143 C-CER,CHIP cetus-17 4-B 22000NF,20%,6.3V,X5R,TP,3216
C271 2203-005061 C-CER,CHIP cetus-28 2-B 100nF,+80-20%,16V,Y5V,-,1005
C272 2203-005061 C-CER,CHIP cetus-20 2-A 100nF,+80-20%,16V,Y5V,-,1005
C274 2203-000654 C-CER,CHIP cetus-21 2-D 0.27NF,10%,50V,X7R,TP,1005
C278 2203-005198 C-CER,CHIP cetus-17 3-D 1uF,10%,10V,X5R,TP,2012,-
C279 2203-005061 C-CER,CHIP cetus-17 3-D 100nF,+80-20%,16V,Y5V,-,1005
C28 2402-001170 C-POLYMER AL CHIP cetus-31 3-B 150UF,20%,6V,WT,TP,7.3x4.3x1.8MM
C280 2203-005061 C-CER,CHIP cetus-38 4-B 100nF,+80-20%,16V,Y5V,-,1005
C281 2203-000062 C-CER,CHIP cetus-17 1-D 47nF,+80-20%,50V,Y5V,TP,1608
C282 2402-001169 C-POLYMER AL CHIP cetus-36 2-D 220UF,20%,4V,WT,TP,7.3x4.3x1.8MM
Sens Q 25 5-49
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C283 2203-000476 C-CER,CHIP cetus-17 1-D 1000nF,+80-20%,16V,Y5V,-,2012
C284 2203-000233 C-CER,CHIP cetus-36 3-D 0.1nF,5%,50V,C0G,-,1005
C285 2203-000438 C-CER,CHIP cetus-36 3-D 1nF,10%,50V,X7R,TP,1005,-
C286 2203-005655 C-CER,CHIP cetus-36 3-D 1000nF,10%,6.3V,X5R,TP,1608
C287 2203-005061 C-CER,CHIP cetus-27 3-C 100nF,+80-20%,16V,Y5V,-,1005
C288 2203-005655 C-CER,CHIP cetus-21 4-D 1000nF,10%,6.3V,X5R,TP,1608
C289 2203-000254 C-CER,CHIP cetus-21 4-D 10nF,10%,16V,X7R,TP,1005,-
C290 2203-006090 C-CER,CHIP cetus-20 2-B 10000nF,10%,6.3V,X5R,-,2012
C291 2203-005061 C-CER,CHIP cetus-20 2-A 100nF,+80-20%,16V,Y5V,-,1005
C292 2203-005061 C-CER,CHIP cetus-20 3-A 100nF,+80-20%,16V,Y5V,-,1005
C293 2203-005061 C-CER,CHIP cetus-20 2-C 100nF,+80-20%,16V,Y5V,-,1005
C294 2203-000278 C-CER,CHIP cetus-20 4-B 0.01NF,0.5PF,50V,C0G,TP,1005
C295 2203-005061 C-CER,CHIP cetus-17 1-D 100nF,+80-20%,16V,Y5V,-,1005
C296 2203-000438 C-CER,CHIP cetus-27 3-C 1nF,10%,50V,X7R,TP,1005,-
C297 2203-005148 C-CER,CHIP cetus-19 2-A 100nF,10%,16V,X7R,TP,1608
C3 2203-000438 C-CER,CHIP cetus-27 3-D 1nF,10%,50V,X7R,TP,1005,-
C30 2203-005482 C-CER,CHIP cetus-33 3-B 100nF,10%,10V,X5R,TP,1005,-
C31 2203-000206 C-CER,CHIP cetus-33 4-C 100nF,10%,50V,X7R,TP,2012
C32 2203-002720 C-CER,CHIP cetus-35 3-C 10nF,10%,25V,X7R,-,1005
C33 2203-005482 C-CER,CHIP cetus-35 3-B 100nF,10%,10V,X5R,TP,1005,-
C34 2402-001125 C-POLYMER AL CHIP cetus-35 4-C 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C38 2203-000576 C-CER,CHIP cetus-34 3-D 220nF,10%,50V,X7R,TP,3216
C39 2203-005664 C-CER,CHIP cetus-34 2-D 4700nF,10%,6.3V,X5R,TP,2012
C4 2203-005061 C-CER,CHIP cetus-27 3-D 100nF,+80-20%,16V,Y5V,-,1005
C40 2203-005198 C-CER,CHIP cetus-34 3-C 1uF,10%,10V,X5R,TP,2012,-
C41 2203-005664 C-CER,CHIP cetus-34 3-C 4700nF,10%,6.3V,X5R,TP,2012
C42 2203-005254 C-CER,CHIP cetus-34 3-B 100nF,20%,50V,X7R,TP,2012,-
C43 2203-005198 C-CER,CHIP cetus-34 3-C 1uF,10%,10V,X5R,TP,2012,-
C44 2203-000585 C-CER,CHIP cetus-34 4-A 0.22NF,10%,50V,X7R,TP,1005
C45 2203-005061 C-CER,CHIP cetus-27 2-D 100nF,+80-20%,16V,Y5V,-,1005
C46 2203-000189 C-CER,CHIP cetus-20 1-C 100nF,+80-20%,25V,Y5V,TP,1608,
C47 2402-001125 C-POLYMER AL CHIP cetus-31 1-D 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C49 2203-005261 C-CER,CHIP cetus-36 2-B 1000nF,10%,25V,X7R,-,3216
C5 2203-005061 C-CER,CHIP cetus-29 1-B 100nF,+80-20%,16V,Y5V,-,1005
C50 2203-000254 C-CER,CHIP cetus-32 4-C 10nF,10%,16V,X7R,TP,1005,-
C500 2203-005052 C-CER,CHIP cetus-19 2-D 0.0033nF,0.25pF,50V,NP0,TP,1005
C501 2203-005052 C-CER,CHIP cetus-19 2-D 0.0033nF,0.25pF,50V,NP0,TP,1005
C502 2203-000585 C-CER,CHIP cetus-19 2-C 0.22NF,10%,50V,X7R,TP,1005
C503 2203-005052 C-CER,CHIP cetus-19 2-D 0.0033nF,0.25pF,50V,NP0,TP,1005
5-50 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C504 2203-000585 C-CER,CHIP cetus-19 2-C 0.22NF,10%,50V,X7R,TP,1005
C505 2203-005052 C-CER,CHIP cetus-19 2-D 0.0033nF,0.25pF,50V,NP0,TP,1005
C506 2203-005052 C-CER,CHIP cetus-19 2-D 0.0033nF,0.25pF,50V,NP0,TP,1005
C507 2203-005052 C-CER,CHIP cetus-19 2-D 0.0033nF,0.25pF,50V,NP0,TP,1005
C508 2203-000585 C-CER,CHIP cetus-19 2-C 0.22NF,10%,50V,X7R,TP,1005
C509 2203-000585 C-CER,CHIP cetus-19 2-C 0.22NF,10%,50V,X7R,TP,1005
C51 2203-005198 C-CER,CHIP cetus-32 2-B 1uF,10%,10V,X5R,TP,2012,-
C511 2203-005571 C-CER,CHIP cetus-6 4-D 10000nF,+80-20%,6.3V,Y5V,-,2012
C512 2203-005571 C-CER,CHIP cetus-6 4-D 10000nF,+80-20%,6.3V,Y5V,-,2012
C513 2203-005571 C-CER,CHIP cetus-27 3-C 10000nF,+80-20%,6.3V,Y5V,-,2012
C514 2203-005061 C-CER,CHIP cetus-27 3-D 100nF,+80-20%,16V,Y5V,-,1005
C515 2203-000257 C-CER,CHIP cetus-31 4-C 10nF,10%,50V,X7R,TP,1608
C516 2203-000206 C-CER,CHIP cetus-31 4-C 100nF,10%,50V,X7R,TP,2012
C517 2203-000233 C-CER,CHIP cetus-31 1-C 0.1nF,5%,50V,C0G,-,1005
C518 2203-000438 C-CER,CHIP cetus-31 1-C 1nF,10%,50V,X7R,TP,1005,-
C519 2203-000438 C-CER,CHIP cetus-31 1-B 1nF,10%,50V,X7R,TP,1005,-
C52 2203-000257 C-CER,CHIP cetus-32 2-D 10nF,10%,50V,X7R,TP,1608
C520 2203-000585 C-CER,CHIP cetus-31 1-B 0.22NF,10%,50V,X7R,TP,1005
C521 2203-000585 C-CER,CHIP cetus-31 2-B 0.22NF,10%,50V,X7R,TP,1005
C522 2203-000438 C-CER,CHIP cetus-31 2-C 1nF,10%,50V,X7R,TP,1005,-
C523 2203-002720 C-CER,CHIP cetus-31 2-C 10nF,10%,25V,X7R,-,1005
C524 2203-000995 C-CER,CHIP cetus-31 3-C 0.047NF,5%,50V,C0G,TP,1005
C525 2203-000438 C-CER,CHIP cetus-31 2-C 1nF,10%,50V,X7R,TP,1005,-
C526 2203-000604 C-CER,CHIP cetus-31 2-B 22nF,10%,25V,X7R,TP,1608
C527 2203-000206 C-CER,CHIP cetus-31 3-D 100nF,10%,50V,X7R,TP,2012
C528 2402-001125 C-POLYMER AL CHIP cetus-31 2-D 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C53 2203-000575 C-CER,CHIP cetus-32 2-D 220NF,10%,25V,X7R,TP,2012
C530 2203-000206 C-CER,CHIP cetus-33 2-C 100nF,10%,50V,X7R,TP,2012
C531 2402-001125 C-POLYMER AL CHIP cetus-33 2-C 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C532 2402-001125 C-POLYMER AL CHIP cetus-33 2-C 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C533 2203-001103 C-CER,CHIP cetus-33 3-C 6.8nF,10%,50V,X7R,TP,1608,-
C534 2203-000206 C-CER,CHIP cetus-33 3-C 100nF,10%,50V,X7R,TP,2012
C535 2203-005261 C-CER,CHIP cetus-33 3-C 1000nF,10%,25V,X7R,-,3216
C536 2203-000254 C-CER,CHIP cetus-6 3-D 10nF,10%,16V,X7R,TP,1005,-
C537 2203-005061 C-CER,CHIP cetus-6 2-A 100nF,+80-20%,16V,Y5V,-,1005
C538 2203-005482 C-CER,CHIP cetus-6 3-A 100nF,10%,10V,X5R,TP,1005,-
C539 2203-000254 C-CER,CHIP cetus-6 4-D 10nF,10%,16V,X7R,TP,1005,-
C54 2203-000575 C-CER,CHIP cetus-32 3-D 220NF,10%,25V,X7R,TP,2012
C540 2203-005482 C-CER,CHIP cetus-6 4-A 100nF,10%,10V,X5R,TP,1005,-
Sens Q 25 5-51
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C541 2203-005482 C-CER,CHIP cetus-6 4-A 100nF,10%,10V,X5R,TP,1005,-
C542 2203-005061 C-CER,CHIP cetus-6 1-A 100nF,+80-20%,16V,Y5V,-,1005
C543 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C544 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C545 2402-001168 C-POLYMER AL CHIP cetus-6 4-B 330UF,20%,2.5V,WT,TP,7.3x4.3x1.8MM
C546 2203-005061 C-CER,CHIP cetus-28 3-B 100nF,+80-20%,16V,Y5V,-,1005
C547 2203-000995 C-CER,CHIP cetus-28 3-D 0.047NF,5%,50V,C0G,TP,1005
C548 2203-000189 C-CER,CHIP cetus-28 3-D 100nF,+80-20%,25V,Y5V,TP,1608,
C549 2203-000206 C-CER,CHIP cetus-31 1-D 100nF,10%,50V,X7R,TP,2012
C55 2203-000140 C-CER,CHIP cetus-33 2-B 1.5nF,10%,50V,X7R,TP,1608,-
C550 2203-000206 C-CER,CHIP cetus-31 2-C 100nF,10%,50V,X7R,TP,2012
C551 2203-000189 C-CER,CHIP cetus-37 1-B 100nF,+80-20%,25V,Y5V,TP,1608,
C552 2203-000233 C-CER,CHIP cetus-33 1-D 0.1nF,5%,50V,C0G,-,1005
C553 2203-005482 C-CER,CHIP cetus-37 2-D 100nF,10%,10V,X5R,TP,1005,-
C554 2203-005254 C-CER,CHIP cetus-37 3-B 100nF,20%,50V,X7R,TP,2012,-
C555 2203-005254 C-CER,CHIP cetus-37 3-B 100nF,20%,50V,X7R,TP,2012,-
C556 2203-002720 C-CER,CHIP cetus-37 4-B 10nF,10%,25V,X7R,-,1005
C557 2203-002720 C-CER,CHIP cetus-37 3-B 10nF,10%,25V,X7R,-,1005
C558 2203-000260 C-CER,CHIP cetus-37 4-B 10nF,10%,50V,X7R,TP,2012
C559 2203-002720 C-CER,CHIP cetus-37 4-B 10nF,10%,25V,X7R,-,1005
C56 2203-000206 C-CER,CHIP cetus-33 2-B 100nF,10%,50V,X7R,TP,2012
C560 2203-001397 C-CER,CHIP cetus-33 3-B 2.2nF,5%,50V,NP0,TP,1608
C561 2203-001662 C-CER,CHIP cetus-33 3-B 5.6NF,10%,50V,X7R,TP,1608
C562 2203-000438 C-CER,CHIP cetus-35 4-C 1nF,10%,50V,X7R,TP,1005,-
C563 2203-000575 C-CER,CHIP cetus-35 3-C 220NF,10%,25V,X7R,TP,2012
C564 2203-005261 C-CER,CHIP cetus-35 4-C 1000nF,10%,25V,X7R,-,3216
C565 2203-000206 C-CER,CHIP cetus-35 4-C 100nF,10%,50V,X7R,TP,2012
C566 2203-001103 C-CER,CHIP cetus-35 3-C 6.8nF,10%,50V,X7R,TP,1608,-
C568 2203-005482 C-CER,CHIP cetus-6 4-A 100nF,10%,10V,X5R,TP,1005,-
C569 2203-005482 C-CER,CHIP cetus-6 4-A 100nF,10%,10V,X5R,TP,1005,-
C57 2203-000206 C-CER,CHIP cetus-33 3-B 100nF,10%,50V,X7R,TP,2012
C571 2203-006090 C-CER,CHIP cetus-6 3-B 10000nF,10%,6.3V,X5R,-,2012
C572 2203-006090 C-CER,CHIP cetus-6 3-B 10000nF,10%,6.3V,X5R,-,2012
C573 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C574 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C575 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C576 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C577 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C578 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
5-52 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C579 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C58 2203-000206 C-CER,CHIP cetus-33 3-C 100nF,10%,50V,X7R,TP,2012
C580 2203-006090 C-CER,CHIP cetus-6 3-B 10000nF,10%,6.3V,X5R,-,2012
C581 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C582 2203-006090 C-CER,CHIP cetus-6 2-A 10000nF,10%,6.3V,X5R,-,2012
C583 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C584 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C585 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C586 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C587 2402-001168 C-POLYMER AL CHIP cetus-6 4-B 330UF,20%,2.5V,WT,TP,7.3x4.3x1.8MM
C588 2203-001103 C-CER,CHIP cetus-34 2-C 6.8nF,10%,50V,X7R,TP,1608,-
C589 2203-000206 C-CER,CHIP cetus-34 2-C 100nF,10%,50V,X7R,TP,2012
C59 2203-002720 C-CER,CHIP cetus-35 2-C 10nF,10%,25V,X7R,-,1005
C590 2203-001103 C-CER,CHIP cetus-34 2-D 6.8nF,10%,50V,X7R,TP,1608,-
C591 2203-000206 C-CER,CHIP cetus-34 2-D 100nF,10%,50V,X7R,TP,2012
C592 2203-000576 C-CER,CHIP cetus-34 2-C 220nF,10%,50V,X7R,TP,3216
C593 2203-000995 C-CER,CHIP cetus-28 3-B 0.047NF,5%,50V,C0G,TP,1005
C594 2203-006093 C-CER,CHIP cetus-27 2-D 1000NF,+80-20%,6.3V,Y5V,TP,1005
C595 2203-005061 C-CER,CHIP cetus-29 2-A 100nF,+80-20%,16V,Y5V,-,1005
C596 2203-005619 C-CER,CHIP cetus-36 2-B 4700NF,10%,16V,X5R,TP,3216
C597 2203-000257 C-CER,CHIP cetus-32 2-D 10nF,10%,50V,X7R,TP,1608
C598 2203-005664 C-CER,CHIP cetus-32 1-C 4700nF,10%,6.3V,X5R,TP,2012
C599 2203-005148 C-CER,CHIP cetus-32 2-D 100nF,10%,16V,X7R,TP,1608
C6 2203-005664 C-CER,CHIP cetus-29 1-B 4700nF,10%,6.3V,X5R,TP,2012
C60 2203-005482 C-CER,CHIP cetus-35 2-B 100nF,10%,10V,X5R,TP,1005,-
C600 2203-005619 C-CER,CHIP cetus-32 2-D 4700NF,10%,16V,X5R,TP,3216
C601 2203-005261 C-CER,CHIP cetus-32 3-D 1000nF,10%,25V,X7R,-,3216
C602 2203-001103 C-CER,CHIP cetus-32 3-D 6.8nF,10%,50V,X7R,TP,1608,-
C603 2203-000206 C-CER,CHIP cetus-32 2-D 100nF,10%,50V,X7R,TP,2012
C605 2203-005655 C-CER,CHIP cetus-33 2-B 1000nF,10%,6.3V,X5R,TP,1608
C606 2203-002050 C-CER,CHIP cetus-35 1-C 47nF,10%,50V,X7R,-,1608
C607 2203-005619 C-CER,CHIP cetus-35 2-C 4700NF,10%,16V,X5R,TP,3216
C608 2402-001125 C-POLYMER AL CHIP cetus-35 2-D 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C609 2203-001103 C-CER,CHIP cetus-35 1-D 6.8nF,10%,50V,X7R,TP,1608,-
C61 2203-005482 C-CER,CHIP cetus-35 3-C 100nF,10%,10V,X5R,TP,1005,-
C610 2203-000206 C-CER,CHIP cetus-35 1-D 100nF,10%,50V,X7R,TP,2012
C611 2203-005261 C-CER,CHIP cetus-35 2-D 1000nF,10%,25V,X7R,-,3216
C612 2203-005482 C-CER,CHIP cetus-6 4-A 100nF,10%,10V,X5R,TP,1005,-
C613 2203-005482 C-CER,CHIP cetus-6 3-A 100nF,10%,10V,X5R,TP,1005,-
Sens Q 25 5-53
5 System Schematic Diagrams and PCB Silkscreen This Document can not be used without Samsung's authorization.
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C614 2203-005482 C-CER,CHIP cetus-6 4-A 100nF,10%,10V,X5R,TP,1005,-
C615 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C616 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C617 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C618 2203-006090 C-CER,CHIP cetus-6 3-B 10000nF,10%,6.3V,X5R,-,2012
C619 2203-005482 C-CER,CHIP cetus-6 4-A 100nF,10%,10V,X5R,TP,1005,-
C62 2203-005482 C-CER,CHIP cetus-35 2-C 100nF,10%,10V,X5R,TP,1005,-
C620 2203-005482 C-CER,CHIP cetus-6 4-A 100nF,10%,10V,X5R,TP,1005,-
C621 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C622 2203-006090 C-CER,CHIP cetus-6 3-B 10000nF,10%,6.3V,X5R,-,2012
C623 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C624 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C625 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C626 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C627 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C628 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C629 2203-006090 C-CER,CHIP cetus-6 3-A 10000nF,10%,6.3V,X5R,-,2012
C63 2402-001168 C-POLYMER AL CHIP cetus-35 4-C 330UF,20%,2.5V,WT,TP,7.3x4.3x1.8MM
C630 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C631 2203-006090 C-CER,CHIP cetus-6 4-A 10000nF,10%,6.3V,X5R,-,2012
C632 2203-006090 C-CER,CHIP cetus-6 4-B 10000nF,10%,6.3V,X5R,-,2012
C633 2203-006090 C-CER,CHIP cetus-6 3-B 10000nF,10%,6.3V,X5R,-,2012
C634 2402-001168 C-POLYMER AL CHIP cetus-6 4-B 330UF,20%,2.5V,WT,TP,7.3x4.3x1.8MM
C636 2402-001125 C-POLYMER AL CHIP cetus-34 2-C 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C638 2402-001125 C-POLYMER AL CHIP cetus-34 2-D 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C639 2203-001686 C-CER,CHIP cetus-34 4-C 0.075nF,5%,50V,NP0,TP,1608
C64 2203-005061 C-CER,CHIP cetus-5 3-B 100nF,+80-20%,16V,Y5V,-,1005
C640 2203-000438 C-CER,CHIP cetus-34 4-C 1nF,10%,50V,X7R,TP,1005,-
C641 2203-000438 C-CER,CHIP cetus-34 4-B 1nF,10%,50V,X7R,TP,1005,-
C642 2203-005437 C-CER,CHIP cetus-27 2-D 10000nF,+80-20%,10V,Y5V,TP,3216
C643 2203-005664 C-CER,CHIP cetus-29 2-A 4700nF,10%,6.3V,X5R,TP,2012
C644 2203-000254 C-CER,CHIP cetus-26 4-A 10nF,10%,16V,X7R,TP,1005,-
C645 2203-000940 C-CER,CHIP cetus-36 3-B 0.47NF,10%,50V,X7R,TP,1005
C647 2203-005061 C-CER,CHIP cetus-30 2-D 100nF,+80-20%,16V,Y5V,-,1005
C648 2203-005061 C-CER,CHIP cetus-29 3-D 100nF,+80-20%,16V,Y5V,-,1005
C65 2203-000489 C-CER,CHIP cetus-5 2-A 2.2nF,10%,50V,X7R,TP,1005,-
C650 2402-001125 C-POLYMER AL CHIP cetus-32 3-D 15UF,20%,25V,-,TP,7.3X4.3X1.9MM
C651 2203-005061 C-CER,CHIP cetus-11 1-C 100nF,+80-20%,16V,Y5V,-,1005
C652 2203-001103 C-CER,CHIP cetus-32 1-D 6.8nF,10%,50V,X7R,TP,1608,-
5-54 Sens Q 25
This Document can not be used without Samsung's authorization. 5 System Schematic Diagrams and PCB Silkscreen
Ref. RART NO. DESCRIPTION SHEET Loc. SPECIFICATIONS
C653 2203-005261 C-CER,CHIP cetus-32 1-D 1000nF,10%,25V,X7R,-,3216
C654 2203-005619 C-CER,CHIP cetus-32 1-D 4700NF,10%,16V,X5R,TP,3216
C655 2203-000254 C-CER,CHIP cetus-14 2-B 10nF,10%,16V,X7R,TP,1005,-
C656 2203-005061 C-CER,CHIP cetus-14 2-B 100nF,+80-20%,16V,Y5V,-,1005
C657 2203-005061 C-CER,CHIP cetus-12 2-B 100nF,+80-20%,16V,Y5V,-,1005
C658 2203-000254 C-CER,CHIP cetus-14 2-B 10nF,10%,16V,X7R,TP,1005,-
C659 2203-005061 C-CER,CHIP cetus-14 1-B 100nF,+80-20%,16V,Y5V,-,1005
C66 2203-000233 C-CER,CHIP cetus-34 3-B 0.1nF,5%,50V,C0G,-,1005
C660 2203-005061 C-CER,CHIP cetus-12 1-B 100nF,+80-20%,16V,Y5V,-,1005
C661 2203-000206 C-CER,CHIP cetus-32 1-D 100nF,10%,50V,X7R,TP,2012
C662 2203-000575 C-CER,CHIP cetus-35 2-C 220NF,10%,25V,X7R,TP,2012
C663 2203-005061 C-CER,CHIP cetus-11 2-C 100nF,+80-20%,16V,Y5V,-,1005
C665 2203-005198 C-CER,CHIP cetus-7 2-D 1uF,10%,10V,X5R,TP,2012,-
C666 2203-005198 C-CER,CHIP cetus-7 1-D 1uF,10%,10V,X5R,TP,2012,-
C667 2203-005061 C-CER,CHIP cetus-6 2-A 100nF,+80-20%,16V,Y5V,-,1005
C668 2203-000254 C-CER,CHIP cetus-6 4-D 10nF,10%,16V,X7R,TP,1005,-
C669 2203-005571 C-CER,CHIP cetus-6 4-D 10000nF,+80-20%,6.3V,Y5V,-,2012
C67 2203-000938 C-CER,CHIP cetus-34 3-B 0.47NF,5%,50V,C0G,TP,2012
C670 2203-005061 C-CER,CHIP cetus-6 2-A 100nF,+80-20%,16V,Y5V,-,1005
C671 2203-005061 C-CER,CHIP cetus-6 1-A 100nF,+80-20%,16V,Y5V,-,1005
C672 2203-000254 C-CER,CHIP cetus-6 4-D 10nF,10%,16V,X7R,TP,1005,-
C673 2402-001168 C-POLYMER AL CHIP cetus-6 4-B 330UF,20%,2.5V,WT,TP,7.3x4.3x1.8MM
C674 2203-000483 C-CER,CHIP cetus-19 3-A 1000nF,+80-20%,25V,Y5V,TP,3216
C675 2402-001170 C-PO◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
