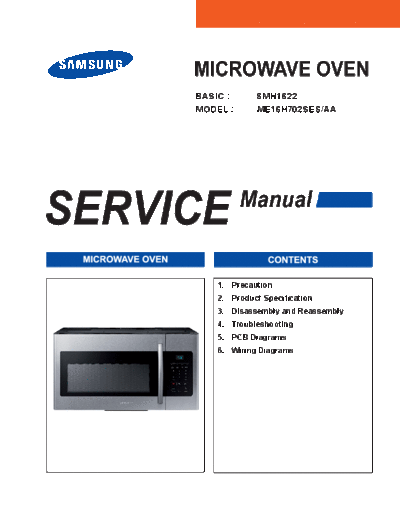

Image preview - the first page of the document
>> Download ME16H702SEW_AA_140123 documenatation <<
Text preview - extract from the document
BASIC : SMH1622
MODEL : ME16H702SES/AA
1. Precaution
2. ProductSpecification
3. Disassembly and Reassembly
4. Troubleshooting
5. PCB Diagrams
6. Wiring Diagrams
1. Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1-1 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1-2 Special High Voltage Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2-1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2-2 Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3. Disassembly and Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3-1 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3-2 Replacement of High Voltage Transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3-3 Replacement of Magnetron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3-4 Replacement of Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3-5 Replacement of Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3-6 Replacement of Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3-7 Removal of stirrer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3-8 Replacement of Control Circuit Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3-9 Replacement of Cooktop lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
3-10 Replacement of Oven Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4-1 Parts checking method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4-2 Error Code Numbering Rule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
4-3 Error Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
4-4 Electrical Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
5. PCB Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
5-1 PCB Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
6. Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
6-1 Wiring Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
2
1. Precaution
3
1. Precaution
Follow these special safety precautions. Although the microwave oven is completely safe during ordinary use,
repair work can be extremely hazardous due to possible exposure to microwave radiation, as well as potentially
lethal high voltages and currents.
1-1 Safety precautions ( )
1. All repairs should be done in accordance with the 13. Design Alteration Warning: Use exact replacement
procedures described in this manual. This product
complies with Federal Performance Standard 21 thedrawings and parts lists of this manual. This
CFR is especially important for the Interlock switches,
2. Microwave emission check should be performed to described above. Never alter or add to the
prior to servicing if the oven is operative. mechanical or electrical design of the MWO.
Any design changes or additions will void the
3. If the oven operates with the door open instruct
manufacturer's warranty. Always unplug the unit's
the user not to operate the oven and contact
AC power cord from the AC power source before
the manufacturer and the center for devices and
attempting to remove or reinstall any component or
radiological health immediately.
assembly.
4. Notify the Central Service Center if the microwave
14. Never defeat any of the B+ voltage interlocks. Do not
leakage exceeds 5 mW/cm2.
apply AC power to the unit (or any of its assemblies)
5. Check all grounds. unless all solid-state heat sinks are correctly
6. Do not power the MWO from a "2-prong" AC cord. installed.
Be sure that all of the built-in protective devices are 15. Some semiconductor ("solid state") devices
replaced. Restore any missing protective shields. are easily damaged by static electricity. Such
7. When reinstalling the chassis and its assemblies, components are called Electrostatically Sensitive
be sure to restore all protective devices, including: Devices (ESDs). Examples include integrated
nonmetallic control knobs and compartment covers.
8. Make sure that there are no cabinet openings before handling any semiconductor components or
through which people --particularly children--might assemblies, drain the electrostatic charge from your
insert objects and contact dangerous voltages. body by touching a known earth ground.
Examples: Lamp hole,ventilation slots. 16. Always connect a test instrument's ground lead to
9. Inform the manufacturer of any oven foundto have the instrument chassis ground before connecting the
emission in excess of 5 mW/cm2 ,Make repairs to positive lead; always remove the instrument's ground
bring the unit into compliance at no cost to owner lead last.
and try to determine cause. Instruct owner not to use 17. When checking the continuity of the witches or
oven until it has been brought into compliance. transformer, always make sure that the power is
CENTRAL SERVICE CENTER OFF, and one of the lead wires is disconnected.
10. Service technicians should remove their watches 18. Components that are critical for safety are indicated
while repairing an MWO. in the circuit diagram by shading, or .
11. To avoid any possible radiation hazard,replace parts 19. Use replacement components that have the same
in accordance with the wiring diagram. Also, use
only the exact replacements for the following parts:
Primary and secondary interlock switches, interlock not have the same safety characteristics as the
monitor switch.
12. If the fuse is blown by the Interlock Monitor Switch: NOTE : Connect the oven to a 20A. When
Replace all of the following at the same time: connecting the oven to a 15A,make sure that circuit
Primary, door sensing switch and power relay, as breaker can operate.
well as the Interlock Monitor Switch. The correct
adjustment of these switches is described elsewhere
in this manual. Make sure that the fuse has the
correct rating for the particular model being repaired.
4
1. Precaution
1-2 Special High Voltage Precautions
1. High Voltage Warning Do not attempt to measure any of H. V. Capacitor
magnetron. High voltage is present during any cook cycle.
Before touching any components or wiring, always unplug
the oven and discharge the high voltage capacitor (See
Figure 1-1)
2. The high-voltage capacitor remains charged about 30
seconds after disconnection. Short the negative terminal
of the high-voltage capacitor to to the oven chassis. (Use a
screwdriver.)
3.
tolerance, safety-related components and adjustments. If
of the special components.
H. V. Diode
Short
PRECAUTION
There exists HIGH VOLTAGE ELECTRICITY with high current capabilities in the circuits of the HIGH
near these circuits with the oven energized.
PRECAUTION
Servicemen should remove their watches whenever working close to or replacing the magnetron.
PRECAUTION
Never touch any circuit wiring with your hand nor with uninsulated tool during operation.
5
2-1 Features
Product Features
The new Samsung OTR with Stainless Steel, has a professional look and
the design matches great with other kitchen appliances, so It provides
Continually rotates food to ensure even cooking.
Instant On Controls - Allow quick, one touch cooking and reheating.
Two speed, 300CFM venting system - Quickly removes smokr and steam
from cook top
6
2-2 Accessory
Item Description Code No. Q'ty
TRAY-COOKING DE63-00624A 1
ASSY-GUIDE ROLLER DE92-90495C 1
ASSY-HOOD DAMPER DE92-90242D 1
ASSY-HARD WARE DE92-90505G 1
FILTER-AIR DE63-00666A 2
FILTER-CHARCOAL DE63-00367E 1
Top Template DE68-03589A 1
Wall template DE68-02230P 1
Installation instructions DE68-03587A 1
Use and Care Guide DE68-03970B 1
7
Basic Model New Model
Items
SMH1622 ME16H702SEB,W,S/AA ME16H702SEB,W,S/AC
Cavity Size (cu.ft.) 1.6 1.6 1.6
Power
Power Source 120 V / 60 Hz 120 V / 60 Hz 120 V / 60 Hz
Output Power
1000 1000 1000
(Watts)
Power Consumption
1580/13.5 1580/13.5 1500 / 13.0
(Watts/Amp)
Characteristics
Control Method Touch Touch Touch
Display LED LED LED
Sensor No No No
Turntable Distribution Turntable Turntable Turntable
Vent Fan CFM 300 300 220
Vent Orientation Vertical Vertical Vertical
Vent Fan Control Hi/Lo/Off Hi/Lo/Off Hi/Lo/Off
Cooktop Lighting Icandescent Icandescent Icandescent
Cabinet Colour STSS/Black/White/Silver STSS/Black/White STSS/Black/White
Cavity Interior Epoxy Epoxy Epoxy
Cabinet Dimensions W x H x D
29 7/8" x 16 1/2" x 15 1/16" 29 7/8" x 16 29/32" x 15 5/32" 29 7/8" x 16 29/32" x 15 5/32"
(inches)
Net Weight STSS: 45.9 lbs 45.5 lbs 45.5 lbs
(lb) Plastic: 44.5 lbs (ME16H702SES: 46.9 lbs) (ME16H702SES: 46.9 lbs)
Shipping Properties
Shipping Dimensions W x H x D
33 3/8" x 19 15/16" x19 13/32" 33 3/8" x 19 13/32" x 20 5/32" 33 3/8" x 19 13/32" x 20 5/32"
(inches)
Loading Q'ty
330 (Jumbo) 330 (Jumbo) 330 (Jumbo)
(sets / 40ft)
Shipping Weight STSS: 53.4 lbs 52.3 lbs 52.3 lbs
(lb) Plastic: 52.0 lbs (ME16H702SES: 53.8 lbs) (ME16H702SES: 53.8 lbs)
8
3. Disassembly and Reassembly
3-1 Tools
Tool Type
Screw driver Use for assembly and disassembly of all screws
7mm Vox Driver Use for assembly and disassembly of Magnetron
Nipper Nipper
9
3. Disassembly and Reassembly
MAGNETRON, MOTOR ASSEMBLY, VENT BLOWER AND HIGH VOLTAGE TRANSFORMER
Oven must be removed from wall.
REMOVING OVEN FROM WALL (2 PEOPLE REQUIRED)
Disconnect the power cord from the outlet.
The oven is hooked on the metal tabs of the wall
mounting plate that is secured to the wall. It is not
necessary to remove this mounting plate to service this
unit.
This unit is attached to the cabinet above by two self
aligning screws. Support the unit while removing these
screws allowing it to hinge downward to disengage the
unit from the mounting plate.
House Duct
Be aware there may also be a connection to the range
vent ductwork that is attached to the top or back of the
unit through an exhaust adapter/damper.
Remove the oven from the wall
10
3. Disassembly and Reassembly
MAGNETRON, MOTOR ASSEMBLY, VENT BLOWER AND HIGH VOLTAGE TRANSFORMER
Oven must be removed from wall.
REMOVING OVEN FROM WALL (2 PEOPLE REQUIRED)
Oven is hooked on metal tabs at bottom of wall mounting plate and to cabinet by (3) top cabinet bolts.
3-2 Replacement of High Voltage Transformer
Parts Explaination Photo Explaination
1. Disconnect oven power.
2. Remove Grille.
Grille
1) Remove 3 screws
2) Slide the Grille to the left, then pull it
straght out.
Panel Outer 3. Remove Panel Outer.
11
3. Disassembly and Reassembly
3-2 Replacement of High Voltage Transformer
Parts Explaination Photo Explaination
4. Discharge the High voltage capacitor.
High
voltage
capacitor
5. Disconnect all the leads.
Base
6. Remove Base bottom.
Bottom
HV Trans 7. Take out the HV Trans.
12
3. Disassembly and Reassembly
3-3 Replacement of Magnetron
Parts Explaination Photo Explaination
Remove the magnetron including the shield
case, permanent magnet, choke coils and
capacitors (all of which are contained in one
assembly).
1. Disconnect all lead wires from the
magnetron.
Magnetron
2. Remove nuts (4) securing the magnetron
to the wave guide.
3. Take out the magnetron very carefully.
NOTE1: When removing the magnetron, make sure that it antenna does not hit any adjacentparts, or it may be
damaged.
NOTE2: When replacing the magnetron, be sure to remount the magnetron gasket in the correct position and make
sure the gasket is in good condition.
PRECAUTION
During replacement, be certain R.F. anode gasket is in place around anode stub.
PERFORM MICROWAVE LEAKAGE TEST
13
3. Disassembly and Reassembly
3-4 Replacement of Door Assembly
Parts Disassembly Photo Explaination
1. Remove the `Cap-Door'.
Removal of
Door Assembly
2.
"A" and Door "C" to remove Door "C". Be careful
when handling Door "C" because it is fragile.Then
remove the door assembly.
3.
Removal of "A" and Door "C" to remove Door "C".
Door C Becareful when handling Door "C" because it is
fragile.
Removal of Key
4. Detach the spring and key door from Door.
Door & Spring
14
3. Disassembly and Reassembly
3-4 Replacement of Door Assembly
Removal of 5. Remove 2 screws, then handle is detached from
Handle Door "A".
6. Remove 2 screws securing Door `E'.
Removal of
Door "E"
7.
insert and bend a thin metal plate between Door
"E" and Door "A" until you hear the `tick' sound.
Insertion depth of the thin metal plate should be
0.5mm or less.
PRECAUTION
PERFORM MICROWAVE LEAKAGE TEST
15
3. Disassembly and Reassembly
3-5 Replacement of Fuse
Parts Explaination Photo Explaination
1. Disconnect power and remove grille.
2. Replace the fuse.
3. When 20A fuse blows out by the operation
of interlock monitor switch failure, replace
Fuse the primary interlock switch, secondary
interlock switch, door sensing switch,
interlock monitor switch and power relay.
4. When the above four switches operate
properly, check if any other part such as the
control circuit board, blower motor or high
voltage transformer is defective.
3-6 Replacement of Drive Motor
Parts Explaination Photo Explaination
1. Disconnect power and remove bottom plate
screws(5).
2. Remove bottom plate and disconnect the
turntable motor drive.
Drive 3. Remove turntable motor screws(1) and pull
Motor the turntable motor out.
4. When replacing the drive motor, be sure to
remount it in the correct position with the
coupler.
5. Connect all the leads to the drive motor.
16
3. Disassembly and Reassembly
3-7 Removal of stirrer
Parts Explaination Photo Explaination
The stirrer is motor driver and located on the
upper side of the cavity. The oven uses a top
feed wave guide.
The stirrer is located in the wave guide and
the motor is located on the wave guide.
Stirrer 1. Disconnect power and open the door.
2. Remove the clip and turn the stirrer cover
left.
3. Remove stirrer cover and the stirrer will
come with it.
17
3. Disassembly and Reassembly
3-8 Replacement of Control Circuit Board
Parts Explaination Photo Explaination
1. Disconnect power and remove grille.
2. Be sure to ground any static electric charge in
your body and never touch the control circuit.
Removal of
Control Box
3. Remove screws(2) securing the control box
Assembly assembly.
4. Disconnect the connectors from the control
circuit board.
1. Pull the lever end of the plastic fastener and
remove the Flexible Printed Circuit(FPC) of
membrane panel.
2. Remove screws (4) securing the control circuit
board.
Removal of
3. Lift up the control circuit board from the Ass'y
P.C.B Assembly control box.
4. When reconnecting the FPC connector, make
sure that the holes on the connector are
properly engaged with the hooks on the Plastic
Fastener.
18
3. Disassembly and Reassembly
When replacing the night light, make sure that you are wearing gloves to avoid injury from the heat of the bulb.
Parts Explaination Photo Explaination
1. Unplug the oven or turn off the power
at the main power.
2. Remove the bulb cover, and mounting
screws.
3. Replace the bulb with a 40 watt
Cooktop Lamp appliance bulb.
4. Replace the bulb cover and mounting
screws.
5. Turn the power back on at the main
power supply.
19
3. Disassembly and Reassembly
3-10 Replacement of Oven Light
Parts Explaination Photo Explaination
1. Remove the Grille
2. Remove the COVER LAMP by push
Oven Light the hook and put up the lever.
3. Replace the bulb with a 40 watt
appliance bulb.
20
4. Troubleshooting
Parts Photo Good No Good
Fuse
T.C.O
H.V Trans
Convection
Fan Motor
Grill Heater
21
4. Troubleshooting
4-2 Error Code Numbering Rule
1. ERROR CODE NUMBERING RULE is applied to a microwave oven and an oven.(CMO, OTR, Grill, Convection,
Commercial etc.)
2. All sensors and devices have their own number. ex) Gas Sensor = 1, Temp. Sensor = 2, ...
3. Of each device, No.1 and No.2 refer to "Open Error" (not sensed) and "Short Error", respectively.
4. This numbering rule has been applied to models to have been developed since January, 1, 2005. (But, GE or
Customize model are excluded.)
DEVICE ERROR CASE
0- Others 1- Open
1- Gas Sensor 2- Short
2- Temp. Sensor
3- Weight Sensor
4- Easy/PH Sensor
5- EEPROM
4-3 Error Code List
Gas Sensor
Error Gas Sensor Error
Solution Page
Code Case (E-1X)
E-11 Open 23 Page
Check Sensor part ,connection of sensor housing and PCB's
E-12 Short 24 Page
connector.
E-13 T1 Max Time Error 25 Page
Key Short Error
-SE- Turn off set and restart. 26 Page
(10 seconds)
22
4. Troubleshooting
4-4 Electrical Malfunction
4-4-1 E-11
Sensor Open Error (E-11)
: Check if the sensor housing
is inserted into the connector
Connect the sensor. Is the sensor disconnected? of the main PCB.
sensor
Connect the Is the sensor wire
: Check if the sensor wire is damaged, if the
wire properly. connected properly?
housing is loose and if the sensor and the
wire are properly connected.
housing
Does the voltage change connector
S/W Error
as the humidity, temperature
and weight change?
: Check if the voltage of the GND and sensor
changes using a digital multi-meter
by forcefully changing the humidity, temperature
and weight.
After Power -> On, does
the symptom continue? The sensor is out of order.
Replace the PCB.
Replace the sensor.
Perform the operation again and check if it
is working properly.
23
4. Troubleshooting
4-4-2 E-12
Sensor Short Error (E-12)
: Check if both terminals of the
sensor are slightly shorted.
Remove the shorted part Is the sensor shorted?
of the temperature sensor.
sensor
: Check if the sensor and related
parts such as the connector or
Remove any foreign Is the sensor terminal part
soldering parts are slightly shorted.
Substance from the of the PCB shorted?
shorted part.
sensor
terminal
Does the voltage change
S/W Error as the humidity, temperature
and weight cha : Check if the voltage of the GND and
sensor changes using a digital multi-meter
by forcefully changing the humidity,
temperature and weight.
After Power > On, does
the symptom continue?
The sensor is out of order.
connector
Replace the PCB.
Replace the sensor.
Perform the operation again and
check if it is working properly.
24
4. Troubleshooting
4-4-3 E-13
Sensor Max Time Error (E-13)
Insert food YES Does it heat up without : Since heating without placing food into
and heat it again. placing food into it? the oven may damage the product, take care.
NO
YES
Place food with Does it heat with completely : Since heating completely dried food
moisture into it and dried food? may burn the food, take care.
heat it again.
NO
Remove the an Is any foreign substance
YES
foreign substance on the sensor or is something acting as an : If the sensor is contaminated by a foreign
or obstacle. obstacle in front of the sensor? substance, it may fail to detect the humidity.
NO
The sensor is out of order.
Replace the sensor.
Perform the operation again and check if it
is working properly.
25
4. Troubleshooting
4-4-4 -SE-
Key Short Error (- SE -)
YES Is the key not recognized
at all?
NO
YES Is the key recognized
intermittently?
NO
YES Is a specific key
not recognized?
NO
The membrane
is defective.
S/W Error
Replace the
Control Panel.
NO After Power > On,
does the symptom continue?
YES
Replace the PCB.
Perform the operation again and check if it
is working properly.
membrane
Connector
26
4. Troubleshooting
4-4-5 If oven malfunction
Oven does not operate. *Inspection method
NO Is Primary interlock NO
Is Fuse OK?
switch normal?
YES
YES
NO
Is Power Relay normal?
Is the magnetron NO NO
temperature switch normal? Replace switch
Power supply circuit check point
YES
Is SMPS power supply NO Do check power supply NO
cirduit normal? circuit
YES
Is the IC01 output of NO Do check NO
PCB normal? Relay control circuit Relay control circuit check point
Is high voltage dioed
YES
normal?
Checking high Is high voltage dioed NO
voltagecircuts normal?
YES
Is high voltage NO
capacitor normal?
YES
Is magnetron normal? NO
27
4. Troubleshooting
4-4-6 If button malfunction
Buttons of the control panel do not work. *Inspection method
Are button pressed NO
Refer to User Manual
in the correct order?
YES Tact type
Is the connector of the NO
control panel normal?
YES
Replace PCB.
Menbrane type
28
4. Troubleshooting
Food is not heated even though an oven works. *Inspection method
Is the latch switch NO
Method to control latch switch
operating normally?
YES
Checking high voltage circuits
29
30
Parts
No. Part Name Function and Rule
Number
1 RY01 Main Relay Fan, Lamp, T/T Control
2 RY02 Inrush Relay Inrush Electric Current Decrease
3 RY03 Power High Relay MW Power Control(High Power)
4 RY04 Power Low Relay MW Power Control(Low Power)
5 RY05 Bright Relay Turn on High Light
6 RY06 Vent High Relay Turn on High Ventilation
(This Document can not be used without Samsung's authorization)
7 RY07 Vent Low Relay Turn on Low Ventilation
8 RY08 Vent Mid Relay Turn on Mid Ventilation
9 RY09 Night Relay Turn on Low Light
10 CN01 Inrush Connector A Terminal for Inrush Circuit
A Terminal for Connecting with Power supply & Relay
11 CN02 Power & Relay Connector
Contact(Load Control)
12 CN03 Door switch Sensing Connector A Terminal for Connecting with Door Switch
13 CN04 Membrane switch Connector A Terminal for Connecting with Membrane Switch
5. PCB Diagrams
5-1 PCB Diagrams
5. PCB Diagrams
5-2 PCB Diagrams
(This Document can not be used without Samsung's authorization)
31
6. Wiring Diagrams
6-1 Wiring Diagrams
(This Document can not be used without Samsung's authorization)
32
6. Wiring Diagrams
6-1 Wiring Diagrams
(This Document can not be used without Samsung's authorization)
33
GSPN (GLOBAL SERVICE PARTNER NETWORK)
Area Web Site
Europe, CIS, Mideast & Africa gspn1.samsungcsportal.com
Asia gspn2.samsungcsportal.com
North & Latin America gspn3.samsungcsportal.com
China china.samsungportal.com
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
