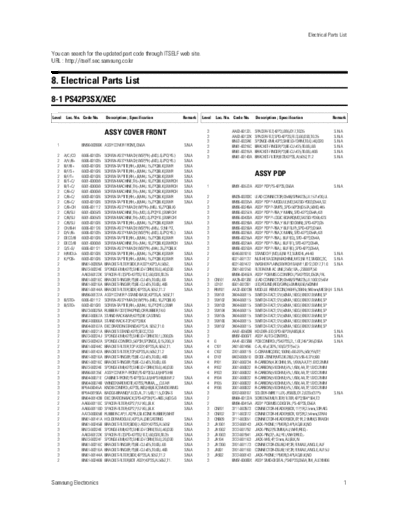

Image preview - the first page of the document
>> Download PS 42P3SXXEC_D58A(P) documenatation <<
Text preview - extract from the document
Electrical Parts List
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
8. Electrical Parts List
8-1 PS42P3SX/XEC
Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark
ASSY COVER FRONT 3
3
AA63-60122L
AA63-60122K
SPACER-FELT;42P3,L895,D17,T0.35
SPACER-FELT;SPD-42P3S,FELT,L60,D20,T0.35
S.N.A
S.N.A
3 BN72-00324E SPONGE-EMI;42P3,SHIELD-FORM,T8.0,L40,D20 S.N.A
1 BN90-00388K ASSY COVER FRONT;,D56A S.N.A 3 BN61-00316C BRACKET-FINGER;P3,BE-CU #25,T0.08,L68 S.N.A
3 BN61-00316A BRACKET-FINGER;P3,BE-CU #25,T0.08,L408 S.N.A
2 A/C/CO 6006-001035 SCREW-ASS'Y MACH;WSP,PH,+,M3,L8,ZPC(YEL) S.N.A 3 BN61-00143A BRACKET-FILTER,BOT;42P3S,AL5052,T1.2 S.N.A
2 A/V/B+ 6006-001035 SCREW-ASS'Y MACH;WSP,PH,+,M3,L8,ZPC(YEL) S.N.A
2 B/F/B+ 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
2 B/F/S+ 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
2 B/F/T+ 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A ASSY PDP
2 B/T+C/ 6001-000059 SCREW-MACHINE;TH,+,M4,L10,ZPC(BLK),SWRCH S.N.A
2 B/T+C/ 6001-000059 SCREW-MACHINE;TH,+,M4,L10,ZPC(BLK),SWRCH S.N.A 1 BN91-00572A ASSY PDP;PS-42P3S,D58A S.N.A
2 C/B+C/ 6001-000059 SCREW-MACHINE;TH,+,M4,L10,ZPC(BLK),SWRCH S.N.A
2 C/B+C/ 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A 2 BN39-00283C LEAD CONNECTOR;D54B/SPN4235,UL1571#30,UL
2 C/B+C/ 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A 2 BN96-00325A ASSY PDP P-MODULE;M3,S42SD-YD03,D54A,S2.
2 C/B+CH 6006-001112 SCREW-ASS'Y MACH;WP,PH,+,M8,L16,ZPC(BLK) 3 BN96-00249A ASSY PDP P-SMPS;,SPD-50P3H,D57A,50HD,445
2 C/B/SU 6001-000578 SCREW-MACHINE;TH,+,M3,L8,ZPC(YEL),SWRCH1 3 BN96-00257A ASSY PDP P-PBA,Y MAIN;,SPD-42P3,D54A,42I
2 C/B/SU 6001-000578 SCREW-MACHINE;TH,+,M3,L8,ZPC(YEL),SWRCH1 3 BN96-00430A ASSY PDP P-LOGIC BOARD;M3,S42SD-YD04,42S
2 C/B/SU 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A 3 BN96-00259A ASSY PDP P-PBA,Y BUFF(DOWN);,SPD-42P3,D5
2 CH/B+H 6006-001126 SCREW-ASS'Y MACH;WSP,PH,+,M5,L12,NI PLT, 3 BN96-00258A ASSY PDP P-PBA,Y BUFF(UP);,SPD-42P3,D54A
2 D/V/B+ 6006-001035 SCREW-ASS'Y MACH;WSP,PH,+,M3,L8,ZPC(YEL) S.N.A 3 BN96-00256A ASSY PDP P-PBA,X MAIN;,SPD-42P3,D54A,42I
2 DECO/B 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A 3 BN96-00255A ASSY PDP P-PBA,L BUFF(G);,SPD-42P3,D54A,
2 DECO/B 6001-000059 SCREW-MACHINE;TH,+,M4,L10,ZPC(BLK),SWRCH S.N.A 3 BN96-00254A ASSY PDP P-PBA,L BUFF(F);,SPD-42P3,D54A,
2 G/S+S/ 6006-001121 SCREW-ASS'Y MACH;WSP,PH,+,M4,L25,ZPC(BLK 3 BN96-00253A ASSY PDP P-PBA,L BUFF(E);,SPD-42P3,D54A,
2 H/MOU+ 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A 2 6046-001010 STAND OFF;M3,L6,NI PLT,SUM24L,#4-40 S.N.A
2 K/PCB+ 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A 2 6021-001137 NUT-HEXAGON;MACHINE,M12,NI PLT,SM20C,3C, S.N.A
2 BN61-00309A BRACKET-FILTER SIDE,R ASS'Y;42P3,AL5052, S.N.A 2 6031-001472 WASHER-PLAIN;SWRCH18A,M11,ID12,OD17,T1.0 S.N.A
3 BN72-00324E SPONGE-EMI;42P3,SHIELD-FORM,T8.0,L40,D20 S.N.A 2 2901-001250 FILTER-EMI AC LINE;250V,10A,-,22000PF,50
3 AA63-60122K SPACER-FELT;SPD-42P3S,FELT,L60,D20,T0.35 S.N.A 2 BN94-00452A ASSY PCB MISC-CONTROL;PS42P3SX,D53A,PAL
3 BN61-00316C BRACKET-FINGER;P3,BE-CU #25,T0.08,L68 S.N.A 3 CN101 AA39-00128E LEAD CONNECTOR;D54B/SPN4235,UL1007/2547#
3 BN61-00316A BRACKET-FINGER;P3,BE-CU #25,T0.08,L408 S.N.A 3 LD101 0601-001381 LED;ROUND,RED/GRN,5.0MM,650/563NM
3 BN61-00144A BRACKET-FILTER,SIDE;42P3S,AL5052,T1.2 S.N.A 3 RM101 AA32-00013B MODULE REMOCON;346HF5,38KHz,940mm,MESH,H S.N.A
2 BN96-00137A ASSY COVER P-STAND BASE;42P3S,AL 5052,T1 3 SW101 3404-000115 SWITCH-TACT;12V,50MA,160GF,6X6X7.85MM,SP
3 B/STD+ 6006-001112 SCREW-ASS'Y MACH;WP,PH,+,M8,L16,ZPC(BLK) 3 SW102 3404-000115 SWITCH-TACT;12V,50MA,160GF,6X6X7.85MM,SP
3 B/STD+ 6003-001020 SCREW-TAPTITE;RH,+,B,M4,L10,ZPC(YEL),SWR S.N.A 3 SW103 3404-000115 SWITCH-TACT;12V,50MA,160GF,6X6X7.85MM,SP
3 BN73-00029A RUBBER-FOOT;TR42PND,CR RUBBER,T4.0 S.N.A 3 SW104 3404-000115 SWITCH-TACT;12V,50MA,160GF,6X6X7.85MM,SP
3 BN67-00067A STAND RACK-BAR;42P3,DIE CASTING S.N.A 3 SW105 3404-000115 SWITCH-TACT;12V,50MA,160GF,6X6X7.85MM,SP
3 BN67-00066A STAND RACK-TOP;42P3,BLK S.N.A 3 SW106 3404-000115 SWITCH-TACT;12V,50MA,160GF,6X6X7.85MM,SP
3 BN64-00107A DECORATION-STAND;42P3,AL 5052,T1.0 S.N.A 3 SW107 3404-000115 SWITCH-TACT;12V,50MA,160GF,6X6X7.85MM,SP
3 BN61-00221A BRACKET-STAND;42P3,SECC,T3.0 S.N.A 3 AA61-00583B HOLDER-LED;SPD-50P2H,ABS,BLK S.N.A
2 BN72-00324J SPONGE-EMI;42P3,SHIELD-FORM,T0.1,L300,D5 S.N.A 3 BN97-00087T ASSY AUTO-CONTROL; S.N.A
2 BN72-00342A SPONGE-CONTROL;50P3H,SPONGE,,8,15,200,,V S.N.A 4 0 AA41-00728B PCB CONTROL;PS42P3S,2L,1.6T,245*245,D58A S.N.A
2 BN61-00244C BRACKET-FILTER,TOP ASSY;42P3S,AL5052,T1. S.N.A 4 C101 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5
3 BN61-00142A BRACKET-FILTER,TOP;42P3S,AL5052,T1.2 S.N.A 4 C102 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
3 BN61-00316A BRACKET-FINGER;P3,BE-CU #25,T0.08,L408 S.N.A 4 D101 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
3 BN61-00316C BRACKET-FINGER;P3,BE-CU #25,T0.08,L68 S.N.A 4 R101 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
3 BN72-00324E SPONGE-EMI;42P3,SHIELD-FORM,T8.0,L40,D20 S.N.A 4 R102 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
2 BN96-00135E ASSY COVER P-FRONT;PS42P3(GUJU),HIPS HB 4 R103 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
3 BN64-00071E CABINET-FRONT;PS42P3(GUJU),HIPS HB,BLM12 S.N.A 4 R104 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
3 BN64-00074B WINDOW-REMOTE;42P3S,PMMA,,,,,,CLEAR S.N.A 4 R105 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
3 BP64-00045A KNOB CONTROL;42P3S,ABS,HB,BLK,SVM3074MG 4 R106 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
3 BP64-00198A BADGE-BRAND;PJLCD,AL,T1.5,68,11.5,,DGN-S S.N.A 3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A
2 BN64-00143B DECORATION-BACK;SPD-42P3H,PC+ABS,5V,DG-8 S.N.A 2 BN64-00122A SCREEN-EMI,FILTER;FILTER,42P3,984*584,T3
2 AA60-00110C SPACER-FILTER;42P2,P/U V0,L,BLK S.N.A 2 BN94-00415A ASSY PCB MISC-DIGITAL;PS-42P3S,D56A
2 AA60-00110D SPACER-FILTER;42P2,P/U V0,L,BLK S.N.A 3 CN701 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
2 AA73-00005B RUBBER-CAP;FLAT,PRJ,SILICONE RUBBER,WHIT 3 CN702 3711-003272 CONNECTOR-HEADER;BOX,10P,2R,2.54mm,STRAI
2 BN61-00141A HOLDER-MODULE;42P3,AL,DIECASTING S.N.A 3 CN909 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH
2 BN61-00245B BRACKET-FILTER,SIDE(L) ASSY;42P3S,AL5052 S.N.A 3 JA1001 3722-000143 JACK-PHONE;1P(VER),3.4PI,AG,BLK,NO
3 BN72-00324E SPONGE-EMI;42P3,SHIELD-FORM,T8.0,L40,D20 S.N.A 3 JA1002 3722-001792 JACK-PIN;2P,8.3MM,AU,WHT/RED,-
3 AA63-60122K SPACER-FELT;SPD-42P3S,FELT,L60,D20,T0.35 S.N.A 3 JA1003 3722-001941 JACK-PIN;3P,-,AU,YEL/WHT/RED,-
3 BN72-00324F SPONGE-EMI;42P3,SHIELD-FORM,T8.0,L20,D20 S.N.A 3 JA104 3722-001163 JACK-VHS;4P,12mm,AU,BLK,N
3 BN61-00316C BRACKET-FINGER;P3,BE-CU #25,T0.08,L68 S.N.A 3 JA1300 3701-001173 CONNECTOR-DSUB;24P,3R,FEMALE,ANGLE,AUF
3 BN61-00316A BRACKET-FINGER;P3,BE-CU #25,T0.08,L408 S.N.A 3 JA801 3701-001160 CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,AU15U
3 BN61-00144A BRACKET-FILTER,SIDE;42P3S,AL5052,T1.2 S.N.A 3 JA902 3722-000143 JACK-PHONE;1P(VER),3.4PI,AG,BLK,NO
2 BN61-00246B BRACKET-FILTER,BOT ASSY;42P3S,AL5052,T1. S.N.A 3 BN97-00088X ASSY SMD-DIGITAL;PS42P3S,D58A,TM_ALEXM06
Samsung Electronics 1
Electrical Parts List
Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark
4 BD501 3301-001202 CORE-FERRITE BEAD;AB,120ohm,4.5x3.2x1.3m 4 C1103 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1000 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C1104 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
4 C1001 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1105 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
4 C1002 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1106 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1003 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1107 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1004 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1108 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1005 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1109 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1006 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C1110 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1007 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C1111 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1008 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1112 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1009 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1113 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1010 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C1114 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1011 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C1115 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1012 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C1116 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1013 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1117 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1014 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1118 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1015 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1119 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
4 C1016 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1120 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
4 C1017 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1121 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1018 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C1122 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1019 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C1123 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1020 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1124 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1021 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1125 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1022 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C1126 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1023 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C1127 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1024 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C1128 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1025 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1129 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1026 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1130 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1027 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1131 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1028 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1132 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1029 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1133 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1030 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1134 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
4 C1031 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1135 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
4 C1032 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1136 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1033 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C1137 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1034 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1138 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1035 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1139 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1036 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1140 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1037 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1141 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1038 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1142 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1039 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1143 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1040 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1144 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1041 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1145 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
4 C1042 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1146 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1043 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1147 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1044 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1148 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1045 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1149 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1046 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1150 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1047 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1151 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1048 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1152 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1049 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1153 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1050 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1154 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1051 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1155 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1052 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1156 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1053 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1157 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1054 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C1159 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1055 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1 4 C1160 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
4 C1056 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1 4 C1161 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
4 C1057 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C1162 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1058 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 4 C1163 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1059 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 4 C1164 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1060 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C1165 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1061 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 4 C1166 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1062 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160 4 C1167 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1063 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160 4 C1168 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1064 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160 4 C1169 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1065 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160 4 C1170 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1068 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C1171 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1069 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 4 C1172 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1075 2402-000135 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3x5.4 4 C1173 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1076 2402-000135 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3x5.4 4 C1174 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
4 C1077 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1175 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160
4 C1078 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1176 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160
4 C1100 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1177 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160
4 C1101 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1200 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C1102 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C1201 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2 Samsung Electronics
Electrical Parts List
Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark
4 C1202 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C505 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1203 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C506 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1204 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C507 2203-000626 C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
4 C1205 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C508 2203-000626 C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
4 C1206 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C509 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1207 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C510 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1208 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C511 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1209 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C512 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1210 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C513 2402-001044 C-AL,SMD;100UF,20%,25V,GP,TP,8.3X8.3X6.3
4 C1211 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C514 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
4 C1212 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C515 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1213 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C516 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1214 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C517 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1215 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C518 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1216 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C519 2402-001044 C-AL,SMD;100UF,20%,25V,GP,TP,8.3X8.3X6.3
4 C1217 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C520 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1218 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C521 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1219 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C522 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1220 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C523 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1221 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C524 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1222 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C525 2402-001044 C-AL,SMD;100UF,20%,25V,GP,TP,8.3X8.3X6.3
4 C1223 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C526 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1224 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C527 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1225 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C528 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1226 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C529 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1227 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C530 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1228 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C531 2402-001044 C-AL,SMD;100UF,20%,25V,GP,TP,8.3X8.3X6.3
4 C1229 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C532 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
4 C1230 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C533 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160
4 C1231 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C534 2203-001607 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
4 C1232 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C535 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
4 C1233 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C536 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1234 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C537 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1235 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C538 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1236 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C539 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1237 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C540 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1238 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C541 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1239 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C542 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1240 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C543 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C1241 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C544 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1242 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C545 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1243 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C546 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1244 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C547 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1245 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C548 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1246 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C549 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1248 2203-002526 C-CERAMIC,CHIP;56nF,10%,25V,X7R,BK,1608, 4 C550 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C1249 2203-002526 C-CERAMIC,CHIP;56nF,10%,25V,X7R,BK,1608, 4 C551 2203-001630 C-CERAMIC,CHIP;330nF,+80-20%,16V,Y5V,TP,
4 C1250 2203-002526 C-CERAMIC,CHIP;56nF,10%,25V,X7R,BK,1608, 4 C552 2203-000357 C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
4 C1251 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C553 2203-000357 C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
4 C1252 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C600 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1300 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C601 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1301 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C602 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1302 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C603 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1303 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C604 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1304 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C605 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1305 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C606 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1306 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C607 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1307 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C608 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1308 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C609 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1309 2404-000120 C-TA,CHIP;10uF,20%,10V,-,TP,3528,- 4 C610 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1310 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C611 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1313 2203-000626 C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160 4 C612 2203-000626 C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
4 C1315 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C613 2203-000626 C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
4 C1316 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C614 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1317 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C615 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1318 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C616 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1319 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C617 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1320 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C618 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1321 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C619 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1322 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C620 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1323 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C621 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C1324 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608 4 C622 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C500 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C623 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
4 C501 2402-001044 C-AL,SMD;100UF,20%,25V,GP,TP,8.3X8.3X6.3 4 C624 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C502 2402-001044 C-AL,SMD;100UF,20%,25V,GP,TP,8.3X8.3X6.3 4 C625 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C503 2409-001065 C-ORGANIC;82UF,20%,16V,WT,TP,8X6.9MM,- 4 C626 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C504 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C627 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
Samsung Electronics 3
Electrical Parts List
Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark
4 C628 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C749 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
4 C629 2404-000120 C-TA,CHIP;10uF,20%,10V,-,TP,3528,- 4 C750 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
4 C630 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C751 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C631 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C752 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C632 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C753 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C633 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C754 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C634 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C755 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
4 C635 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C756 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C636 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C757 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C637 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C758 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C638 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C759 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C639 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C760 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C640 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C761 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C641 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C763 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C642 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C764 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C643 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C765 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C644 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C766 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C645 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C767 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C646 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C769 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C647 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C770 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C648 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C771 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C649 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C772 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C650 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C773 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C651 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C774 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C652 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C775 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C653 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C776 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C654 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C777 2402-001033 C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
4 C700 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C778 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C701 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C800 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C702 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C801 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C703 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 C802 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
4 C704 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C803 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C705 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C804 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C706 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C805 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C707 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C806 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C708 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C807 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C709 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C808 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C710 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C809 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C711 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C810 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C712 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C811 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C713 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C812 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C714 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C813 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C715 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C814 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C716 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C815 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C717 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C816 2203-001607 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
4 C718 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C817 2203-001607 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
4 C719 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C818 2203-001607 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
4 C720 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C819 2203-001607 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
4 C721 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C820 2203-001607 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
4 C722 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C821 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C723 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C822 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C724 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 4 C823 2203-001607 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
4 C725 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C824 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C726 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C825 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C727 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C826 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C728 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C827 2203-001656 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,1608
4 C729 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C828 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
4 C730 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C829 2203-000843 C-CERAMIC,CHIP;39nF,10%,25V,X7R,TP,1608,
4 C731 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C830 2203-000726 C-CERAMIC,CHIP;3.9nF,10%,50V,X7R,TP,1608
4 C732 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C831 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C733 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C832 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C734 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C833 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
4 C735 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C834 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C736 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C835 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 C737 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C836 2203-001656 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,1608
4 C738 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C837 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C739 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C838 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
4 C740 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C839 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C741 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C840 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C742 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C841 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
4 C743 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C842 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
4 C744 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 C843 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C745 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C844 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
4 C746 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 C900 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
4 C747 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP, 4 C901 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
4 C748 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 C902 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
4 Samsung Electronics
Electrical Parts List
Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark
4 C903 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 D1314 0401-001056 DIODE-SWITCHING;MMBD4148SE,75V,200MA,SOT
4 C905 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 D700 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
4 C906 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 D701 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
4 C907 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D702 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
4 C908 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D800 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C909 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D801 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C910 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D802 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C911 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D803 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C912 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D804 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C913 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D805 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C914 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 D806 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
4 C915 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 D807 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
4 C916 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D900 0401-001056 DIODE-SWITCHING;MMBD4148SE,75V,200MA,SOT
4 C917 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D901 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C918 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D902 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C919 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 D903 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
4 C920 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT1000 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C921 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT1001 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C922 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT1002 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C923 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT1003 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C924 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 FT1101 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C925 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 FT1102 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C926 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 FT1103 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C927 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 FT1104 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C928 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 FT1105 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C929 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 FT1310 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C930 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT500 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C931 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT501 3301-001145 CORE-FERRITE BEAD;AB,4.5x1.6x1.6mm,-,- S.N.A
4 C932 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT502 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C933 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT503 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C934 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT504 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C935 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 FT505 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C936 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 FT506 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 C937 2203-000815 C-CERAMIC,CHIP;0.033NF,5%,50V,C0G,TP,160 4 FT507 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C938 2203-000815 C-CERAMIC,CHIP;0.033NF,5%,50V,C0G,TP,160 4 FT508 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C939 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT509 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C940 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 FT510 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C941 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 FT511 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C942 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 FT512 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C943 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- 4 FT513 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C945 2203-001155 C-CERAMIC,CHIP;0.068nF,5%,50V,NP0,TP,160 4 FT514 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C946 2203-001155 C-CERAMIC,CHIP;0.068nF,5%,50V,NP0,TP,160 4 FT515 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C947 2203-001607 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608 4 FT516 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C948 2203-001155 C-CERAMIC,CHIP;0.068nF,5%,50V,NP0,TP,160 4 FT517 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C949 2203-001155 C-CERAMIC,CHIP;0.068nF,5%,50V,NP0,TP,160 4 FT518 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C952 2203-001155 C-CERAMIC,CHIP;0.068nF,5%,50V,NP0,TP,160 4 FT519 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C953 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT520 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C956 2203-001155 C-CERAMIC,CHIP;0.068nF,5%,50V,NP0,TP,160 4 FT521 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C957 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 FT522 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C958 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 FT523 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C960 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 4 FT524 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C961 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT525 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C962 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT526 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C963 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT527 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C964 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT528 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C965 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 4 FT529 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C966 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 4 FT530 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 C967 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4 4 FT531 2901-001119 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 CN1101 3711-005083 CONNECTOR-HEADER;BOX,31P,2R,0.625MM,SMD- 4 FT600 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 CN501 3711-002046 CONNECTOR-HEADER;BOX,12P,1R,1.25MM,SMD-S S.N.A 4 FT601 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 CN502 3711-002046 CONNECTOR-HEADER;BOX,12P,1R,1.25MM,SMD-S S.N.A 4 FT602 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 CN503 3711-002046 CONNECTOR-HEADER;BOX,12P,1R,1.25MM,SMD-S S.N.A 4 FT603 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 CN504 3711-002046 CONNECTOR-HEADER;BOX,12P,1R,1.25MM,SMD-S S.N.A 4 FT700 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 D1300 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT701 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 D1301 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT702 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 D1302 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT703 2901-001118 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 D1303 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT800 2901-001118 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 D1304 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT801 2901-001118 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 D1305 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT900 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 D1306 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT901 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 D1307 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT902 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x
4 D1308 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT903 2901-001118 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 D1309 0401-000008 DIODE-SWITCHING;DAN217,80V,100mA,SOT-23, 4 FT904 2901-001118 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 D1310 0403-001180 DIODE-ZENER;BZX84C6V2,5%,350mW,SOT-23,TP 4 FT905 2901-001118 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 D1311 0403-000579 DIODE-ZENER;BZX84C5V1,5.1V,5%,200mW,SOT- 4 FT906 2901-001118 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 D1312 0401-001056 DIODE-SWITCHING;MMBD4148SE,75V,200MA,SOT 4 FT907 2901-001118 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
4 D1313 0403-000579 DIODE-ZENER;BZX84C5V1,5.1V,5%,200mW,SOT- 4 IC1000 1105-001336 IC-DRAM;4S643232,512Kx32x4Bit,TSOP,86P,4
Samsung Electronics 5
Electrical Parts List
Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark
4 IC1001 1105-001336 IC-DRAM;4S643232,512Kx32x4Bit,TSOP,86P,4 4 Q701 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
4 IC1002 1204-001990 IC-VIDEO PROCESS;ASI500,BGA,316P,27X27MM 4 Q702 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
4 IC1100 1105-001336 IC-DRAM;4S643232,512Kx32x4Bit,TSOP,86P,4 4 Q703 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
4 IC1101 1205-001740 IC-TRANSMITTER;DS90C385,TSSOP,56P,240MIL 4 Q901 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
4 IC1102 1003-001503 IC-DISPLAY DRIVER;SNI,QFP,208P,28X28MM,- 4 Q902 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
4 IC1103 1105-001336 IC-DRAM;4S643232,512Kx32x4Bit,TSOP,86P,4 4 Q903 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
4 IC1200 0801-002709 IC-CMOS LOGIC;74HC373,D FLIP-FLOP,TSSOP, 4 R1000 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC1201 1001-001067 IC-ANALOG SWITCH;QS34X245-Q3,CMOS,TQSOP, 4 R1001 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC1202 0801-002559 IC-CMOS LOGIC;74LVX74,D FLIP-FLOP,TSSOP, 4 R1002 2007-000071 R-CHIP;22ohm,5%,1/16W,DA,TP,1608
4 IC1203 1001-001067 IC-ANALOG SWITCH;QS34X245-Q3,CMOS,TQSOP, 4 R1003 2007-000071 R-CHIP;22ohm,5%,1/16W,DA,TP,1608
4 IC1204 1002-001179 IC-A/D CONVERTER;AD9884,8BIT,QFP,128P,-, 4 R1004 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
4 IC1300 1205-002198 IC-RECEIVER;SII169CT100,LQFP,100P,14X14M 4 R1005 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
4 IC1301 1103-000129 IC-EEPROM;24C02,256x8BIT,SOP,8P,150MIL,1 4 R1006 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
4 IC500 1203-002454 IC-VOLTAGE REGULATOR;FAN1117A,TO-252,3P, 4 R1007 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
4 IC501 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 4 R1008 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
4 IC502 1204-001973 IC-DECODER;VSP9437B,MQFP,80P,14X14MM,PLA 4 R1009 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
4 IC600 1203-002454 IC-VOLTAGE REGULATOR;FAN1117A,TO-252,3P, 4 R1010 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC604 1003-001528 IC-DISPLAY DRIVER;FLI2300,PQFP,208P,28X2 4 R1011 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
4 IC605 1105-001480 IC-DRAM;HY57V643220CT-6,4X512KX32BIT,TSO 4 R1012 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC700 AA13-00084A IC ASIC;-,M4LV-32/32-12VC48,TQFP,48P,- 4 R1013 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC701 1204-001550 IC-VIDEO PROCESS;CXA2101AQ,QFP,80P,-,PLA 4 R1014 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC702 0801-000901 IC-CMOS LOGIC;74HC04,INVERTER,SOP,14P,15 4 R1015 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
4 IC703 1203-002699 IC-POSI.FIXED REG.;78D05,DPAK,3P,6.6X6.1 4 R1016 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC704 1203-001359 IC-POSI.FIXED REG.;1086,TO-263,3P,15.8MM 4 R1017 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
4 IC705 1203-002351 IC-VOLTAGE REGULATOR;LF25C,DPAK,3P,240MI 4 R1018 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
4 IC706 1203-001359 IC-POSI.FIXED REG.;1086,TO-263,3P,15.8MM 4 R1019 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
4 IC707 1203-002351 IC-VOLTAGE REGULATOR;LF25C,DPAK,3P,240MI 4 R1020 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
4 IC800 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL 4 R1021 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
4 IC801 1103-000129 IC-EEPROM;24C02,256x8BIT,SOP,8P,150MIL,1 4 R1022 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
4 IC802 1002-001292 IC-A/D CONVERTER;AD9883AKST-110,8BITS,QF 4 R1023 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
4 IC900 1001-001146 IC-ANALOG SWITCH;FST3257,BUS SWITCH & CM 4 R1024 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
4 IC901 1203-001212 IC-VOL. DETECTOR;7029,SOT-89,3P,-,PLASTI 4 R1025 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
4 IC902 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 4 R1026 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
4 IC903 1103-001147 IC-EEPROM;24256,256KBIT,SOP,8P,150MIL,-, 4 R1027 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC904 1105-001305 IC-DRAM;4S641632,1Mx16x4Bit,TSOP,54P,400 4 R1028 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC905 1107-001405 IC-FLASH MEMORY;29LV320,4MX8/2MX16BIT,TS 4 R1029 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC907 1204-002000 IC-DECODER;SDA6001-B11,MQFP,128P,28X28MM 4 R1030 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC908 0904-001031 IC-I/O SUPPORT CHIP;8574,8BIT,S0P,16P,-, 4 R1031 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC909 1006-001076 IC-DRIVER/RECEIVER;232,SOP,16P,300MIL,DU 4 R1032 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 IC910 0904-001031 IC-I/O SUPPORT CHIP;8574,8BIT,S0P,16P,-, 4 R1033 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 L1000 2703-001334 INDUCTOR-SMD;1.5uH,10%,2x1.25x0.85mm 4 R1034 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4 L1001 2703-001334 INDUCTOR-SMD;1.5uH,10%,2x1.25x0.85mm 4 R1035 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
4 L1002 2703-001334 INDUCTOR-SM◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
