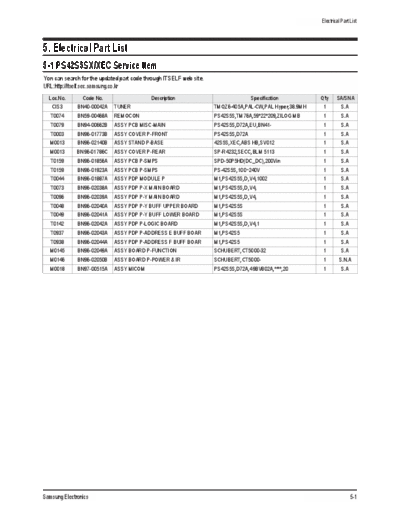

Image preview - the first page of the document
>> Download Electrical Part List documenatation <<
Text preview - extract from the document
Electrical Part List
5. Electrical Part List
5-1 PS42S5SX/XEC Service Item
Yon can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA
CIS3 BN40-00042A TUNER TMQZ6-405A,PAL-CW,PAL Hyper,38.9MH 1 S.A
T0074 BN59-00468A REMOCON PS42S5S,TM76A,59*22*209,ZILOG MB 1 S.A
T0079 BN94-00662B ASSY PCB MISC-MAIN PS42S5S,D72A,EU,BN41- 1 S.A
T0003 BN96-01773B ASSY COVER P-FRONT PS42S5S,D72A 1 S.A
M0013 BN96-02140B ASSY STAND P-BASE 42S5S,XEC,ABS HB,SV012 1 S.A
M0013 BN96-01786C ASSY COVER P-REAR SP-R4232,SECC,BLM 5113 1 S.A
T0159 BN96-01856A ASSY PCB P-SMPS SPD-50P5HD(DC_DC),200Vin 1 S.A
T0159 BN96-01923A ASSY PCB P-SMPS PS-42S5S,100~240V 1 S.A
T0044 BN96-01887A ASSY PDP MODULE P M1,PS42S5S,D,V4,1002 1 S.A
T0073 BN96-02038A ASSY PDP P-X MAIN BOARD M1,PS42S5S,D,V4, 1 S.A
T0096 BN96-02039A ASSY PDP P-Y MAIN BOARD M1,PS42S5S,D,V4, 1 S.A
T0048 BN96-02040A ASSY PDP P-Y BUFF UPPER BOARD M1,PS42S5S 1 S.A
T0049 BN96-02041A ASSY PDP P-Y BUFF LOWER BOARD M1,PS42S5S 1 S.A
T0142 BN96-02042A ASSY PDP P-LOGIC BOARD M1,PS42S5S,D,V4,1 1 S.A
T0937 BN96-02043A ASSY PDP P-ADDRESS E BUFF BOAR M1,PS42S5 1 S.A
T0938 BN96-02044A ASSY PDP P-ADDRESS F BUFF BOAR M1,PS42S5 1 S.A
M0145 BN96-02049A ASSY BOARD P-FUNCTION SCHUBERT,CT5000-32 1 S.A
M0146 BN96-02050B ASSY BOARD P-POWER & IR SCHUBERT,CT5000- 1 S.N.A
M0018 BN97-00515A ASSY MICOM PS42S5S,D72A,49BV802A,****,20 1 S.A
Samsung Electronics 5-1
MEMO
5-2 Samsung Electronics
