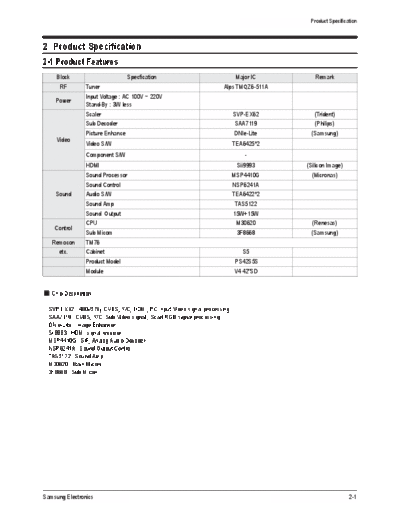

Image preview - the first page of the document
>> Download Product Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Features
Block Specfication Major IC Remark
RF Tuner Alps TMQZ6-511A
Input Voltage : AC 100V ~ 220V
Power
Stand-By : 3W less
Scaler SVP-EX62 (Trident)
Sub Decoder SAA7119 (Philips)
Picture Enhance DNIe-Lite (Samsung)
Video
Video S/W TEA6425*2
Component S/W -
HDMI Sii9993 (Silicon Image)
Sound Processor MSP4410G (Micronas)
Sound Control NSP6241A
Sound Audio S/W TEA6422*2
Sound Amp TAS5122
Sound Output 15W+15W
CPU M30620 (Renesas)
Control
Sub Micom 3F8668 (Samsung)
Remocon TM76
etc. Cabinet S5
Product Model PS42S5S
Module V4 42"SD
Chip Description
- SVP-EX62 : 480i/576i, CVBS, Y/C, HDMI, PC input Video signal processing
- SAA7119 : CVBS, Y/C Sub Video signal , Scart RGB signal processing
- DNIe-Lite : Image Enhancer
- Sii9993 : HDMI signal receiver
- MSP4410G : SIF, Analog Audio Decoder
- NSP6241A : Sound Output Control
- TAS5122 : Sound Amp
- M30620 : Main Micom
- 3F8668 : Sub Micom
Samsung Electronics 2-1
Product Specification
2-2 Key Features
Model PS-42S5S
Dimensions 14255 (W) x 114 (D) x 825.4 (H) mm
Weight 59.2 kg
Voltage AC 110 - 240V~ , 50 Hz
Power Consumption 290W
Number of Pixels 852 (H) x 480 (V)
Screen Size 42 inches
TV (VHF, UHF Antenna)
Scart1:CVBS/S-Video/RGB
Scart2:CVBS/S-Video
VIDEO input CVBS/S-Video
COMPONENT:480i/480p/720p/1080i
PC
HDMI
Scart1
Scart2
AUDIO input COMPONENT
PC
HDMI
VIDEO (CVBS)
AV Output
AUDIO (L/R)
Audio Output 15W + 15W (8)
H/W Configuration
- Video : SVP-EX62, TEA6425, BA7657F, DNIe-L
- Sound : MSP4440G, NSP6241A, TAS5122
- Tuner : TMQZ6-511A
S/W Configuration
- SVP-EX62 Trident Chip Control , DNIe-L
- CPU Master Control + Sub Micom, TTX Software
- Favorite CH, Label CH
- System : Video PAL/SECAM/NTSC4.43,
Sound Analog
- Progressive
- Output resolution : 852*480
- OSD : Smart user Interface Grade1
- Picture Enhancement : DNIe-L
- Still picture, Noise reduction
- Comb Filter : 3D comb filter
- PIP : D/W, Large
- Panorama : Wide
2-2 Samsung Electronics
Product Specification
Sound
- System : Stereo
- Dolby Digital : Tru Surround XT
- Output : 15W + 15W
- Speaker : built-in.
Feature
- Component Interface(480i/480p/720p/1080i, Y/Pb/Pr)
- Digital Interface : HDMI
- Picture Size : Auto Wide/16:9/4:3/Panorama/14:9/Zoom/Wide 4:3
- Auto Program
- Sleep Timer : 180 minute
- Clock
- Zoom, Previous channel, White Screen, Color Tone
In/Out Terminals(Rear)
- 1 AV Input, 1 SVHS Input
- AV Monitor Output
- Component Input : 480i / 480p / 720p / 1080i
- 15 Pin D-sub Input : ~ XGA (1024 x 768)
- 1 HDMI Input (HDCP) : DTV(480p / 720p / 1080i)
- 1 RF Input
Remocon
- TM76
Power Supply
- 100V ~ 240V
Power
- Standy-by : 3W less
- Max Power : 380W
HDMI
- 640x480p @59.94/60Hz
- [email protected]/60Hz
- 720x480p @59.94/60Hz
- 1280x720p @59.94/60Hz/50Hz
- 1920x1080i @59.94/60Hz/50Hz
Samsung Electronics 2-3
Product Specification
The table below shows all of the display modes that are supported. (N : Negative, P : Positive)
Polarity
Resolution V-Freq.(Hz) H-Freq.(kHz)
H V
640 X 350 70.086 31.469 N P IBM
720 X 400 70.087 31.469 P N IBM
59.94 31.469 N N VESA DMT
70 35 N/P N/P VESA GTF
640 X 480
72.809 37.861 N N VESA DMT
75 37.5 N N VESA DMT
56.25 35.156 N/P N/P VESA DMT
60.317 37.879 P P VESA DMT
IBM PC/AT
800 X 600 70 43.75 N/P N/P VESA GTF
Compatible
72.188 48.077 P P VESA DMT
75 46.875 P P VESA DMT
60 31.02 P P VESA DMT
848 X 480
74.769 37.684 N P VESA CVT
60.004 48.363 N N VESA DMT
70.069 56.476 N N VESA DMT
1024 X 768
72 57.672 N/P N/P VESA GTF
75.029 60.023 P P VESA DMT
The interlace mode is not supported.
The television might operate abnormally if a non-standard video format is selected.
480i/p, 576i/p, 720p, or 1080i is not available in pc mode.
2-4 Samsung Electronics
Product Specification
2-3 Specifications Analysis
Model Puccini(V4) Mozart (V3) Nelson (V3)
Design
Display Type PDP TV PDP TV PDP TV
Built-In Tuner O O O
Resolution 852*480 852*480 852*480
PDP Module V4 V3 V3
Basic Screen Size 42 inches 42 inches 42 inches
Aspect Ratio 16:09 16:09 16:09
Power Consumption 290W 330W 330W
Dimensions 14255 (W) x 114 (D) x 825.4 (H) mm 14255 (W) x 114 (D) x 825.4 (H) mm 14255 (W) x 114 (D) x 825.4 (H) mm
Weight 59.2 kg 59.2 kg 59.2 kg
Brightness 1300cd/m2 1000cd/m2 1000cd/m2
Contrast Ratio 10000:1 3000:01:00 3000:01:00
Image Enhacer DNIe-L DNIe 3 DNIe 3
Digital Comb Filter O O O
Equalizer O O O
Auto Volume O O O
Audio Surround Sound SRS TreSurround XT SRS TreSurround XT SRS TreSurround XT
Speaker Output 15W +15W 15W +15W 15W +15W
Speaker Included Included Included
PIP O O O
Double Screen O O O
Caption X X X
Still Image O O O
My Color Control O O O
Color Weakness O O O
Features Energy Saving O X X
Anynet X X X
D-Net(IEEE1394 S.400) X X X
POD X X X
Gemstar
X X X
(TV Guide On Screen)
Screen Burn Protection O O O
Antenna 1Input 1Input 1Input
CVBS 1AV 3AV 1AV
S-Video 1Input 2Input 1Input
Component(Y/PB/PR) 1Input 1Input 1Input
Connections PC(D-SUB) 1Input(15Pin D-Sub) 1Input(15Pin D-Sub) 1Input(15Pin D-Sub)
DVI X O O
HDMI 1Input X X
Sub Woofer X X X
Optical X X X
Coaxial X X X
Samsung Electronics 2-5
Product Specification
2-4 Accessories
Accessories Item Item code Remark
User Manual BN68-00827B
Supplied Accessories
Remote Control BN59-00468A Samsung Service center
AAA Batteries 4301-000103
Power Cord 3903-000145
S-VIDEO Cable -
HDMI Cable -
HDMI/DVI cable -
Accessories that can be purchased
Component Cables (RCA) -
additionally
Internal shopping mall
PC Cable -
PC Audio Cable -
Scart Cable -
Antenna Cable -
