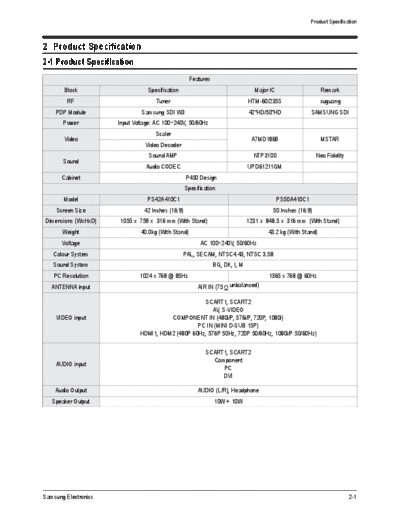

Image preview - the first page of the document
>> Download Product_Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
RF Tuner HTM-60/235S xuguang
PDP Module Samsung SDI W3 42"HD/50"HD SAMSUNG SDI
Power Input Voltage: AC 100~240V, 50/60Hz
Scaler
Video A7MD186B MSTAR
Video Decoder
Sound AMP NTP3100 Neo Fidelity
Sound
Audio CODEC UPD61211GM
Cabinet P450 Design
Specification
Model PS42A410C1 PS50A410C1
Screen Size 42 Inches (16:9) 50 Inches (16:9)
Dimensions (WxHxD) 1055 x 759 x 316 mm (With Stand) 1231 x 848.5 x 316 mm (With Stand)
Weight 40.0kg (With Stand) 43.2 kg (With Stand)
Voltage AC 100~240V, 50/60Hz
Colour System PAL, SECAM, NTSC4.43, NTSC 3.58
Sound System BG, DK, I, M
PC Resolution 1024 x 768 @ 85Hz 1365 x 768 @ 60Hz
ANTENNA input AIR IN (75 unbalanced)
SCART1, SCART2
AV, S-VIDEO
VIDEO input COMPONENT IN (480i/P, 576i/P, 720P, 1080i)
PC IN (MINI D-SUB 15P)
HDMI1, HDM2 (480P 60Hz, 576P 50Hz, 720P 50/60Hz, 1080i/P 50/60Hz)
SCART1, SCART2
Component
AUDIO input
PC
DVI
Audio Output AUDIO (L/R), Headphone
Speaker Output 10W + 10W
Samsung Electronics 2-1
Product Specification
2-2 Specifications Analysis
: application, X: non-application
450P 410C
Items SubItems
PS50A410C1 PS42A410C1 PS-50C67HD (Lily2-50HD) PS-42C67HD (Lily2-42HD)
Design
Inch 50" 42" 50" 42"
Basic Info Chassis Name F53A F53A F33B F33B
Cabinet Name P450 P450 C9 C9
IDTV / Ready Ready Ready IDTV IDTV
Motion Judder Canceller No No No No
Speaker Type (Hidden/Side/Array) 2/1 2/1 1/0 1/0
USB spec (Side) No No No No
F. Memory No No No No
UI Smart Smart Smart Smart
DCM No No No No
DLNA No No No No
RSS No No No No
Woofer No No No No
Wi-Fi No No No No
Optical Link No No No No
Wheel Key No No No No
Additional 3D No No No No
Feature ACE2 Yes Yes No No
100Hz Yes Yes No No
1080p (24Hz) Input Yes Yes No No
H.264 No No No No
Finland Cable DTV No No No No
HDMI-CEC Yes Yes No No
HDMI Version (1,2/1.3) 1.2 1.2 1.2 1.2
HDMI Rear / Side 2/0 2/0 2/0 2/0
SORT TBD TBD TBD TBD
Picture Size(WSS) TBD TBD TBD TBD
Clone Remote Controller Yes Yes Yes Yes
Auto-Wallmount Support Yes Yes Yes Yes
Analog audio Out (L/R) 1 1 1 1
Remote Controller (Model Code) TM96 TM96 TM95 TM95
Screen Size(inches) 50" 42" 50" 42"
Resolution(Number of Pixels) 1365 x 768 1024 x 768 1365 x 768 1024 x 768
Brightness 1500cd/m2 1500cd/m2 1500cd/m2 1500cd/m2
Ultra FilterBright No No No No
Anti Reflection Yes Yes No No
Contrast Ratio 15000:1 15000:1 15000:1 15000:1
Screen Aspect Ratio(16:9/4:3) 16:9 16:9 16:9 16:9
Video Viewing Angle over 175o (H/V) over 175o (H/V) over 175o (H/V) over 175o (H/V)
DNIe Yes Yes Yes Yes
Number of colors(expressed) 281T 281T 281T 281T
Grey Level(Gradation) 65536 65536 65536 65536
Cinema Progressive (Film mode) Yes Yes Yes Yes
Digital Comb Filter 3D 3D 3D 3D
Digital Noise Reduction Yes Yes Yes Yes
Low Noise Amplifier No No No No
Sound Effect System SRS TruSurround XT SRS TruSurround XT SRS TruSurround XT SRS TruSurround XT
Audio Speaker TBD TBD TBD TBD
Sound output (RMS) 10W x 2 10W x 2 10W x 2 10W x 2
2-2 Samsung Electronics
Product Specification
Yes (APS, All white, Yes (APS, All white, Yes (APS, All white, Yes (APS, All white,
Anti Burn-in Technology
Signal pattern) Signal pattern) Signal pattern) Signal pattern)
"Yes (Off / High / Middle / "Yes (Off / High / Middle / "Yes (Off / High / Middle / "Yes (Off / High / Middle /
Power Saving
Low)Multi Brightness Mode Low)Multi Brightness Mode Low)Multi Brightness Mode Low)Multi Brightness Mode
Picture-In-Picture Yes Yes Yes Yes
Clock & On/Off Timer Yes Yes Yes Yes
Sleep Timer Yes (Max 180Min) Yes (Max 180Min) Yes (Max 180Min) Yes (Max 180Min)
Teletext(TTX) 1.5(1000P) 1.5(1000P) 1.5(1000P) 1.5(1000P)
V-Chip No No No No
Feature Blue Screen On/Off No No No No
Melody On-Off Yes Yes Yes Yes
Plug & Play Yes Yes Yes Yes
Absent Power Off Yes Yes Yes Yes
Auto Power Off Yes (15Min after No Signal) Yes (15Min after No Signal) Yes (15Min after No Signal) Yes (15Min after No Signal)
OSD Language 21-Language 21-Language 21-Language 21-Language
Favorite Channel List No No No No
Still Picture No No No No
Sports Mode / Game mode Yes Yes Yes Yes
HTM-6C/235S,HTM- HTM-6C/235S,HTM-
6C/235S,PAL 6C/235S,PAL
BG,DK,I,SECAM,181CH,38.9MHz BG,DK,I,SECAM,181CH,38.9MHz NTSC 4.43, PAL-B/G, D/K, I, I/I', NTSC 4.43, PAL-B/G, D/K, I, I/I',
Tuners
System ,2.5V,75 ohm, ,2.5V,75 ohm, SECAM-B/G, D/K, L/L`, AV Multi SECAM-B/G, D/K, L/L`, AV Multi
75ohm,DIN,ASYMM,5V,TR, 75ohm,DIN,ASYMM,5V,TR,
38.9MHz,33V 38.9MHz,33V
POD (Digital Cable Ready) No No No No
Composite (AV) 1 1 0 0
Y/C (S-Video) 1 1 0 0
Headphone(Earphone) 1 1 0 0
Input & Output
WISELINK (Multi Memory Slot) No No No No
(sid0e)
WISELINK (USB) No No No No
(HDMI) 1 1 0 0
PictBridge No No No No
RF input 1 1 1 1
RF output No No No No
Composite (AV) No No No No
S-Video No No No No
Component (Y/Pb/Pr) 1 1 1 1
Euro Scart 2 2 2 2
Input & Output
PC input (D-sub) 1 1 1 1
(back)
HDMI X X 1 1
Motorized Mount Control Yes Yes Yes Yes
Video Monitor Out No No No No
Audio Monitor Out 1 1 1 1
Digital Audio (Coaxial) No No No No
Digital Audio (Optical) Yes Yes Yes Yes
Power Supply 220~240V (50/60Hz) 220~240V (50/60Hz) 220~240V (50/60Hz) 220~240V (50/60Hz)
Operation Power Consumption TBD TBD TBD TBD
Power Stand-By Power Consumption UNDER 3W UNDER 3W UNDER 3W UNDER 3W
Master S/W TBD TBD TBD TBD
Energy Star Yes Yes Yes Yes
Panel Life Time 60,000 hrs 60,000 hrs 60,000 hrs 60,000 hrs
Remote Control TM96B TM96B TM96 TM96
RF Cable No No No No
User Manual Yes Yes Yes Yes
Accessory Battery 2EA(AAA) 2EA(AAA) 2EA(AAA) 2EA(AAA)
Power Cable Yes Yes Yes Yes
Stand Yes Yes Yes Yes
Speaker Integraded Integraded Integraded Integraded
Samsung Electronics 2-3
Product Specification
2-3 Accessories
Accessories Item Item code Remark
Remote Control BN59-00676A
Batteries 4301-000103
Power Cord 3903-000145
Supplied Accessories
Owner's Instructions BN68-01423B Samsung Service center
Warranty Card -
Registration Card AA68-03575A
Safety Guide Manual AA68-03242K
Ferrite Core for
3301-001305
S-VIDEO/Power Cord
HDMI Cable
BN39-00641A
3000mm
HDMI/DVI cable
BN39-00643A
3000mm
Accessories that can be purchased
Component Cables BN39-00279A
additionally
Electronics Store/
Scart Cable None
Internal shopping mall
PC Cable 1830mm
PC Audio Cable BN39-00115A
Antenna Cable 2000mm
2-4 Samsung Electronics
