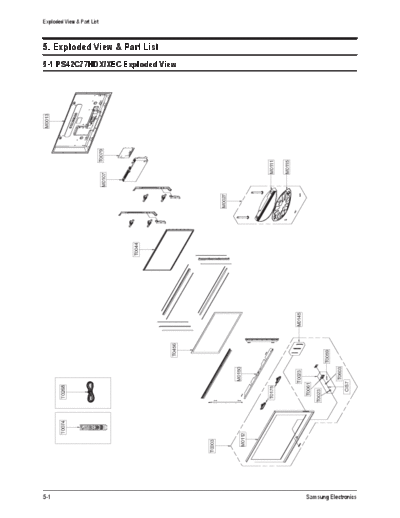

Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
Exploded View & Part List
5. Exploded View & Part List
5-1 PS42C77HDX/XEC Exploded View
M0013
T0079
M0115
M0111
M0107
M0027
T0044
M0145
T0456
T0059
T0603
M0150
T0023
CIS7
T0061
T0268
T0175
T0023
T0074
M0112
T0003
5-1 Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-06218A ASSY COVER P-REAR 42C67,,PCM,T0.5,,,EUP( 1 S.A
M0027 BN96-03154B ASSY STAND P-BASE -,C7,-,HGI T3.0,-,BKP- 1 S.A
M0107 BN61-03487A BRACKET-PCB 42C6/50C6,SECC,0.8 1 S.N.A
M0111 BN63-02387A COVER-STAND 42C7,HIPS,HB,BKP-1526 1 S.N.A
M0112 BN63-02375W COVER-FRONT 42C77,HIPS,HB,EUP(iDTV),GRAY 1 S.N.A
M0115 BN61-02659A BRACKET-STAND 42C7,HGI,T2.0 1 S.N.A
M0145 BN96-04853B ASSY BOARD P-FUNCTION Lily/Calla,CT5000- 1 S.A
M0150 BN96-04343A ASSY BRACKET P-FILTER BOTTOM -,42C7,-,AL 1 S.N.A
T0003 BN96-03123N ASSY COVER P-FRONT 42C77HD,XEC,HIPS HB,, 1 S.A
T0023 BN96-03173A ASSY COVER P-KNOB POWER 42P7,,ABS,,, 1 S.N.A
T0023 BN64-00459A KNOB POWER 42P7,PC,Violet 1 S.N.A
T0044 BN96-05771A ASSY PDP MODULE P PL42AX025A,42HD W2A,PL 1 S.A
T0059 BN64-00461A INDICATOR LED 42P7,PMMA 1 S.N.A
T0061 BN64-00462A WINDOW-REMOCON 42P7,ACRYL,5% 1 S.N.A
T0074 BN59-00611A REMOCON JASMINE , LILY,TM87C,SAMSUNG 28p 1 S.A
T0079 BN94-01473B ASSY PCB MISC-MAIN PS42C67HDX/XEC,F33B,L 1 S.A
T0175 BN96-02785A ASSY SPEAKER P 8ohm,Twister,42inch,10W 1 S.A
T0268 3903-000145 CBF-POWER CORD DT,EU,FP3/YES,U(IEC C13-R 1 S.A
T0456 BN67-00195A GLASS-EMI FILTER 42" W2 without A/R,Spu 1 S.A
T0603 BN64-00460A KNOB-DECORATION POWER 42P7,ABS,HB,AL 1 S.N.A
Samsung Electronics 5-2
Exploded View & Part List
5-2 PS42C77HDX/XEC Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-06218A ASSY COVER P-REAR 42C67,,PCM,T0.5,,,EUP( 1
M0027 BN96-03154B ASSY STAND P-BASE -,C7,-,HGI T3.0,-,BKP- 1
M2893 BN39-00817A LEAD CONNECTOR LILLY 50",UL20276#30,UL/C 1
M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1
T0003 BN96-03123N ASSY COVER P-FRONT 42C77HD,XEC,HIPS HB,, 1
T0037 BN96-06088A ASSY PDP P-LOGIC MAIN PL42AX025A,42HD W2 1
T0038 BN96-06089A ASSY PDP P-ADDRESS E-BUFFER PL42AX025A,4 1
T0039 BN96-06090A ASSY PDP P-ADDRESS F-BUFFER PL42AX025A,4 1
T0044 BN96-05771A ASSY PDP MODULE P PL42AX025A,42HD W2A,PL 1
T0074 BN59-00611A REMOCON JASMINE , LILY,TM87C,SAMSUNG 28p 1
T0079 BN94-01473B ASSY PCB MISC-MAIN PS42C67HDX/XEC,F33B,L 1
T0175 BN96-02785A ASSY SPEAKER P 8ohm,Twister,42inch,10W 1
T0764 BN44-00161A SMPS-PDP TV HPS4253,SEM,AC/DC,370W,AC100 1
BN96-06085A ASSY PDP P-X-MAIN BOARD PL42AX025A,42HD 1
BN96-06086A ASSY PDP P-Y-MAIN BOARD PL42AX025A,42HD 1
BN96-06087A ASSY PDP P-Y BUFFER PL42AX025A,42HD W2A, 1
5-3 Samsung Electronics
