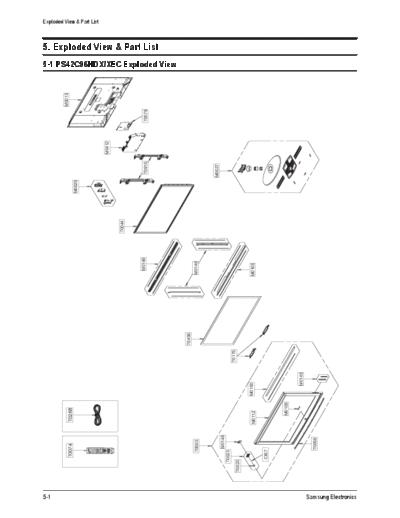

Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
5-1
M0013
T0074 T0268
M0020
Exploded View & Part List
M0412
T0044
M0149 T0915 T0079
5. Exploded View & Part List
5-1 PS42C96HDX/XEC Exploded View
T0456
T0003 M0146
M0027
M0146
T0023
T0175
T0023
M0112 M0150 M0105
CIS7
M0105
M0145
T0056
Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-04709B ASSY COVER P-REAR 42Q9/C9,EU(iDTV),PCM T 1 S.A
M0020 BN96-04900D ASSY BOARD P-SIDE A/V LILY 42",SJ06-01-0 1 S.N.A
M0027 BN96-05835A ASSY STAND P-BASE 42Q9/42C9,ABS,SF-0507, 1 S.A
M0105 BN67-00190A LENS-LED 42Q9,PC,light blue,Material of 1 S.N.A
M0112 BN63-03047D COVER-FRONT 42C9,ABS,HB,BK23,STEAM MOLD 1 S.N.A
M0145 BN96-04853B ASSY BOARD P-FUNCTION Lily/Calla,CT5000- 1 S.A
M0146 BN96-04687A ASSY BRACKET P-FILTER SIDE 42Q9,AL6063,T 2 S.N.A
M0146 BN96-04861D ASSY BOARD P-POWER & IR Lily/Calla,CT500 1 S.A
M0149 BN96-04685A ASSY BRACKET P-FILTER TOP 42Q9,AL6063,T1 1 S.N.A
M0150 BN96-04686A ASSY BRACKET P-FILTER BOTTOM 42Q9,AL6063 1 S.N.A
M0150 BN96-04691B ASSY BRACKET P-SUPPORT FILTER 42Q9,Al 60 1 S.N.A
M0412 BN96-04903C ASSY BRACKET P-PCB 42Q9,SECC T0.8 1 S.N.A
T0003 BN96-04712D ASSY COVER P-FRONT 42C9,ABS HB,BK23,STEA 1 S.A
T0023 BN96-04707A ASSY COVER P-KNOB POWER C9/Q9,ABS HB 1 S.A
T0023 BN64-00567A KNOB POWER 42Q9,PC,VIOLET 1 S.N.A
T0044 BN96-04592A ASSY PDP MODULE P-MODULE 42HD W2,PL42AX0 1 S.A
T0056 BN63-03091A COVER-DECORATION 42C9,ABS,HB,BLK 1 S.N.A
T0074 BN59-00611A REMOCON JASMINE , LILY,TM87C,SAMSUNG 28p 1 S.A
T0079 BN94-01221C ASSY PCB MISC-MAIN PS42C96HD,F30A,BN41-0 1 S.N.A
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1 S.A
T0268 3903-000145 CBF-POWER CORD DT,EU,FP3/YES,U(IEC C13-R 1 S.A
T0456 BN67-00188A GLASS-FILTER EMI 42" C7 HD,Sputter,with 1 S.A
T0915 BN61-02894B HOLDER-MODULE 42Q9,PC ABS 2 S.N.A
Samsung Electronics 5-2
5-3
M0013
T0074 T0268
M0020
Exploded View & Part List
M0412
T0044
M0149 T0915 T0079
5-2 PS50C96HDX/XEC Exploded View
T0456
T0003 M0146
M0027
M0146
T0023
T0175
T0023
M0112 M0150
M0105
CIS7
M0105
M0145
T0056
Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-04711B ASSY COVER P-REAR 50Q9/C9,EU(iDTV),PCM T 1 S.A
M0020 BN96-04900E ASSY BOARD P-SIDE A/V LILY 50",SJ06-01-0 1 S.N.A
M0027 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1 S.A
M0105 BN67-00190A LENS-LED 42Q9,PC,light blue,Material of 1 S.N.A
M0112 BN63-03067D COVER-FRONT 50C9,ABS,HB,BK23,STEAM MOLD 1 S.N.A
M0145 BN96-04853B ASSY BOARD P-FUNCTION Lily/Calla,CT5000- 1 S.A
M0146 BN96-04690A ASSY BRACKET P-FILTER SIDE 50Q9,AL6063,T 2 S.N.A
M0146 BN96-04861D ASSY BOARD P-POWER & IR Lily/Calla,CT500 1 S.A
M0149 BN96-04688A ASSY BRACKET P-FILTER TOP 50Q9,AL6063,T1 1 S.N.A
M0150 BN96-04692A ASSY BRACKET P-SUPPORT FILTER 50Q9,AL606 1 S.N.A
M0150 BN96-04689A ASSY BRACKET P-FILTER BOTTOM 50Q9,AL6063 1 S.N.A
M0412 BN96-04903C ASSY BRACKET P-PCB 42Q9,SECC T0.8 1 S.N.A
T0003 BN96-04713D ASSY COVER P-FRONT 50C9,ABS HB,BK23,STEA 1 S.A
T0023 BN96-04707A ASSY COVER P-KNOB POWER C9/Q9,ABS HB 1 S.A
T0023 BN64-00567A KNOB POWER 42Q9,PC,VIOLET 1 S.N.A
T0044 BN96-05772A ASSY PDP MODULE P PL50HW025A,50HD W2A,PL 1 S.A
T0056 BN63-03081A COVER-DECORATION 50C9,ABS,HB BLK 1 S.N.A
T0074 BN59-00611A REMOCON JASMINE , LILY,TM87C,SAMSUNG 28p 1 S.A
T0079 BN94-01223C ASSY PCB MISC-MAIN PS50C96HD,MAIN,F30A,B 1 S.N.A
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1 S.A
T0268 3903-000145 CBF-POWER CORD DT,EU,FP3/YES,U(IEC C13-R 1 S.A
T0456 BN67-00197A GLASS-FILTER EMI 50 W2, C9,Sputter, wit 1 S.A
T0915 BN61-02895B HOLDER-MODULE 50Q9,PCABS 2 S.N.A
Samsung Electronics 5-4
Exploded View & Part List
5-3 PS42C96HDX/XEC Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-04711B ASSY COVER P-REAR 50Q9/C9,EU(iDTV),PCM T 1
M0027 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1
M2893 BN39-00859A LEAD CONNECTOR CALLA 50",UL20276#30,UL/C 1
M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1
T0003 BN96-04713D ASSY COVER P-FRONT 50C9,ABS HB,BK23,STEA 1
T0044 BN96-05772A ASSY PDP MODULE P PL50HW025A,50HD W2A,PL 1
T0074 BN59-00611A REMOCON JASMINE , LILY,TM87C,SAMSUNG 28p 1
T0079 BN94-01223C ASSY PCB MISC-MAIN PS50C96HD,MAIN,F30A,B 1
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1
T0764 BN44-00162A SMPS-PDP TV HPS5053,SEM,AC/DC,460W,AC100 1
T1910 BN96-06091A ASSY PDP MODULE P-X-MAIN BOARD PL50HW025 1
T1911 BN96-06092A ASSY PDP MODULE P-Y-MAIN BOARD PL50HW025 1
T1914 BN96-06096A ASSY PDP MODULE P-ADDRESS E BU PL50HW025 1
T1915 BN96-06097A ASSY PDP MODULE P-ADDRESS F BU PL50HW025 1
T1917 BN96-06095A ASSY PDP MODULE P-LOGIC MAIN PL50HW025A, 1
T1960 BN96-06093A ASSY PDP MODULE P-Y-MAIN UPPER PL50HW025 1
T1961 BN96-06094A ASSY PDP MODULE P-Y-MAIN LOWWE PL50HW025 1
5-5 Samsung Electronics
Exploded View & Part List
5-4 PS50C96HDX/XEC Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-04709B ASSY COVER P-REAR 42Q9/C9,EU(iDTV),PCM T 1
M0027 BN96-05835A ASSY STAND P-BASE 42Q9/42C9,ABS,SF-0507, 1
M2893 BN39-00859A LEAD CONNECTOR CALLA 50",UL20276#30,UL/C 1
M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1
T0003 BN96-04712D ASSY COVER P-FRONT 42C9,ABS HB,BK23,STEA 1
T0044 BN96-04592A ASSY PDP MODULE P-MODULE 42HD W2,PL42AX0 1
T0074 BN59-00611A REMOCON JASMINE , LILY,TM87C,SAMSUNG 28p 1
T0079 BN94-01221C ASSY PCB MISC-MAIN PS42C96HD,F30A,BN41-0 1
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1
T0764 BN44-00161A SMPS-PDP TV HPS4253,SEM,AC/DC,370W,AC100 1
T1910 BN96-04593A ASSY PDP MODULE P-X-MAIN 42HD W2,PL42AX0 1
T1911 BN96-04594A ASSY PDP MODULE P-Y-MAIN 42HD W2,PL42AX0 1
T1914 BN96-04597A ASSY PDP MODULE P-ADDRESS-E BU 42HD W2,P 1
T1915 BN96-04598A ASSY PDP MODULE P-ADDRESS-F BU 42HD W2,P 1
T1917 BN96-04596A ASSY PDP MODULE P-LOGIC MAIN 42HD W2,PL4 1
T9698 BN96-04595A ASSY PDP MODULE P-Y-MAIN SCAN 42HD W2,PL 1
Samsung Electronics 5-6
MEMO
5-7 Samsung Electronics
