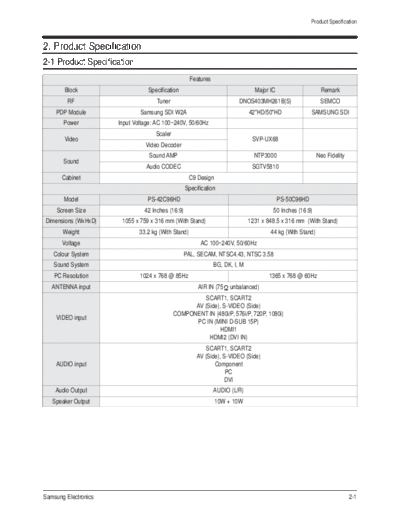

Image preview - the first page of the document
>> Download Product Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
RF Tuner DNOS403MH261B(S) SEMCO
PDP Module Samsung SDI W2A 42"HD/50"HD SAMSUNG SDI
Power Input Voltage: AC 100~240V, 50/60Hz
Scaler
Video SVP-UX68
Video Decoder
Sound AMP NTP3000 Neo Fidelity
Sound
Audio CODEC SGTV5810
Cabinet C9 Design
Specification
Model PS-42C96HD PS-50C96HD
Screen Size 42 Inches (16:9) 50 Inches (16:9)
Dimensions (WxHxD) 1055 x 759 x 316 mm (With Stand) 1231 x 848.5 x 316 mm (With Stand)
Weight 33.2 kg (With Stand) 44 kg (With Stand)
Voltage AC 100~240V, 50/60Hz
Colour System PAL, SECAM, NTSC4.43, NTSC 3.58
Sound System BG, DK, I, M
PC Resolution 1024 x 768 @ 85Hz 1365 x 768 @ 60Hz
ANTENNA input AIR IN (75 unbalanced)
SCART1, SCART2
AV (Side), S-VIDEO (Side)
COMPONENT IN (480i/P, 576i/P, 720P, 1080i)
VIDEO input
PC IN (MINI D-SUB 15P)
HDMI1
HDMI2 (DVI IN)
SCART1, SCART2
AV (Side), S-VIDEO (Side)
AUDIO input Component
PC
DVI
Audio Output AUDIO (L/R)
Speaker Output 10W + 10W
Samsung Electronics 2-1
Product Specification
2-2 Specifications Analysis
: application, X: non-application
Model PS-42C96HD (Lily-42HD) PS-50C96HD (Lily-50HD) PS-42P7HD (Alps-42HD)
Design
Display Type PDP TV PDP TV PDP TV
Built-In Tuner O O O
PC Resolution 1024 x 768 @ 85Hz 1365 x 768 @ 60Hz 1024 x 768 @75Hz
PDP Module W2A W2A V5.1
Basic
Screen Size 42 inches 50 inches 42 inches
Aspect Ratio 16 : 9 16 : 9 16 : 9
Dimensions (WxHxD) 1055 x 759 x 316 mm (With Stand) 1231 x 848.5 x 316 mm (With Stand) 1055 x 775 x 341 mm (With Stand)
Weight 33.2 kg (With stand) 44 kg (With stand) 40.4 kg (With Stand)
Brightness 1,500 Cd/m2 1,300 Cd/m2 1,100 Cd/m2
Picture Contrast Ratio 10000:1 10000:1 10000:1
Image Enhacer FBE2X FBE2X FBE
Equalizer O O O
Auto Volume O O O
Audio Surround Sound SRS TruSurround SRS TruSurround SRS TruSurround
Speaker Output 10 W + 10 W 10 W + 10 W 15 W + 15 W
Speaker 2CH 2.2CH (2Way) Included
PIP O O O
Double Screen O O X
Caption X X X
Still Image O O O
Features
My Color Control O O X
Color Weakness X X X
Energy Saving O O O
Screen Burn Protection O O O
Antenna 1 Input 1 Input 1 Input
CVBS 1AV(Side) 1AV(Side) 1AV(Rear)
S-Video O O 1 Input
Component(Y/PB/PR) 1 Input 1 Input 1 Input
PC(D-SUB) 1 Input 1 Input 1 Input
Connections
DVI O O O
HDMI 2 Input 2 Input 2 Input
Scart 2 Input 2 Input 2 Input
Optical O O O
Coaxial X X X
For the power supply and power consumption, refer to the label attached to the product.
2-2 Samsung Electronics
Product Specification
2-3 Accessories
Accessories Item Item code Remark
Remote Control BN59-00611A
Batteries 4301-000103
Power Cord 3903-000145
Owner's Instructions BN68-01171B
Warranty Card BN68-00514C
Supplied Accessories
Registration Card AA68-03575A
Safety Guide Manual AA68-03242E
Samsung Service center
Cloth-Clean BN63-01798A
Ferrite Core for
3301-001110
Earphone/Power Cord
Ferrite Core for
3301-001305
S-VIDEO/Power Cord
Cover-Bottom BN63-03055A
Screws (2ea) 6003-001621
S-VIDEO Cable
BN39-00149A
1200mm
Accessories that can be purchased
HDMI Cable
BN39-00641A
3000mm
additionally
HDMI/DVI cable Electronics Store/
BN39-00643A
3000mm Internal shopping mall
Component Cables (RCA)
BN39-00279A
1500mm
Scart Cable None
Samsung Electronics 2-3
Product Specification
Accessories Item Item code Remark
Accessories that can be purchased
PC Cable
BN39-00115A
1830mm
additionally
PC Audio Cable Electronics Store/
BN39-00061B
2000mm Internal shopping mall
Antenna Cable
BN39-00333A
3000mm
2-4 Samsung Electronics
