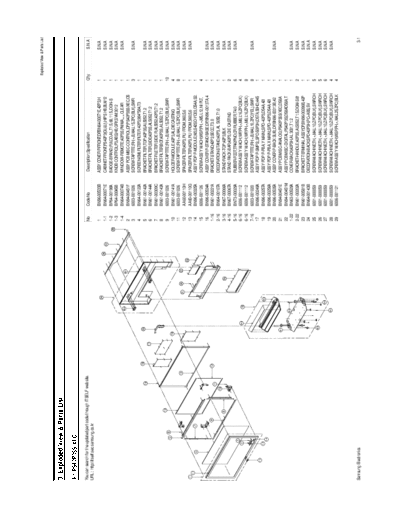

Image preview - the first page of the document
>> Download PS42P3SSXEC_KL-EX_1215671698 documenatation <<
Text preview - extract from the document
Exploded View & Parts List
3. Exploded View & Parts List
3-1 PS42P3SS/XEC
You can search for the updated part code through ITSELF web site. No Code No Description;Specification Q'ty S.N.A
URL : http://itself.sec.samsung.co.kr
1 BN96-00533B ASSY COVER P-FRONT;DP,BN64-00071E,42P3,H 1 S.N.A
1-1 BN64-00071E CABINET-FRONT;PS42P3(GUJU),HIPS HB,BLM12 1 S.N.A
1-2 BP64-00198A BADGE-BRAND;PJLCD,AL,T1.5,68,11.5,,DGN-S 1 S.N.A
1-3 BP64-00045B KNOB CONTROL;P3,ABS,HB,GRY,SVM3012 1 S.N.A
1-4 BN64-00074B WINDOW-REMOTE;42P3S,PMMA,,,,,,CLEAR 1 S.N.A
2 BN94-00451F ASSY PCB MISC-CONTROL;DP,PS42P3SS/XEC,D5 1
3 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 3 S.N.A
4 BN64-00122A SCREEN-EMI,FILTER;FILTER,42P3,984*584,T3 1
5 BN61-00142A BRACKET-FILTER,TOP;42P3S,AL5052,T1.2 1 S.N.A
6 BN61-00144A BRACKET-FILTER,SIDE;42P3S,AL5052,T1.2 1 S.N.A
7 BN61-00309C BRACKET-FILETER SIDE R;AL5052,42P3,T1.2 1 S.N.A
8 BN61-00143A BRACKET-FILTER,BOT;42P3S,AL5052,T1.2 1 S.N.A
9 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 10 S.N.A
10 BN61-00141A HOLDER-MODULE;42P3,AL,DIECASTING 4 S.N.A
11 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 8 S.N.A
12 AA60-00110H SPACER-FILTER;42P3,P/U FROM,960,5,6 1 S.N.A
13 AA60-00110G SPACER-FILTER;42P3,P/U FROM,560,5,6 1 S.N.A
14 BN96-00325A ASSY PDP P-MODULE;M3,S42SD-YD03,D54A,S2. 1
15 6006-001126 SCREW-ASS'Y MACH;WSP,PH,+,M5,L12,NI PLT, 4
16 BN96-00534A ASSY COVER P-STAND BASE;DP,BN96-00137A,4 1 S.N.A
1-16 BN61-00221A BRACKET-STAND;42P3,SECC,T3.0 1 S.N.A
2-16 BN64-00107A DECORATION-STAND;42P3,AL 5052,T1.0 1 S.N.A
3-16 BN67-00066A STAND RACK-TOP;42P3,BLK 1 S.N.A
4-16 BN67-00067A STAND RACK-BAR;42P3,DIE CASTING 2 S.N.A
5-16 BN73-00029A RUBBER-FOOT;TR42PND,CR RUBBER,T4.0 6 S.N.A
6-16 6006-001112 SCREW-ASS'Y MACH;WP,PH,+,M8,L16,ZPC(BLK) 4
6-16 6006-001112 SCREW-ASS'Y MACH;WP,PH,+,M8,L16,ZPC(BLK) 8
7-16 6003-001020 SCREW-TAPTITE;RH,+,B,M4,L10,ZPC(YEL),SWR 8 S.N.A
17 BN96-00249A ASSY PDP P-SMPS;,SPD-50P3H,D57A,50HD,445 1
18 BN96-00257A ASSY PDP P-PBA,Y MAIN;,SPD-42P3,D54A,42I 1
19 BN96-00256A ASSY PDP P-PBA,X MAIN;,SPD-42P3,D54A,42I 1
20 BN96-00535A ASSY COVER P-BACK SUB;,DP,BN96-00313B,42 1 S.N.A
21 BN94-00451E ASSY PCB MISC-ANALOG;PS42P3SS/XEC,D58A 1
22 BN94-00451M ASSY PCB MISC-DIGITAL;PS42P3S,D58AD58A,T 1
1-22 BN63-00529A COVER-BACK;42P3H,AL 3031,T1.2 1 S.N.A
2-22 BN61-00202A BRACKET-HANDLE;42P3S,AL5052,T1.5,DGM-S81 2 S.N.A
23 BN61-00581B BRACKET-TERMINAL ASSY;DP,BN96-00286B,42P 1 S.N.A
24 BN64-00143B DECORATION-BACK;SPD-42P3H,PC+ABS,5V 1 S.N.A
25 6001-000059 SCREW-MACHINE;TH,+,M4,L10,ZPC(BLK),SWRCH 5 S.N.A
26 6001-000059 SCREW-MACHINE;TH,+,M4,L10,ZPC(BLK),SWRCH 5 S.N.A
27 6001-000059 SCREW-MACHINE;TH,+,M4,L10,ZPC(BLK),SWRCH 6 S.N.A
28 6001-000059 SCREW-MACHINE;TH,+,M4,L10,ZPC(BLK),SWRCH 4 S.N.A
29 6006-001121 SCREW-ASS'Y MACH;WSP,PH,+,M4,L25,ZPC(BLK 4
Samsung Electronics 3-1
