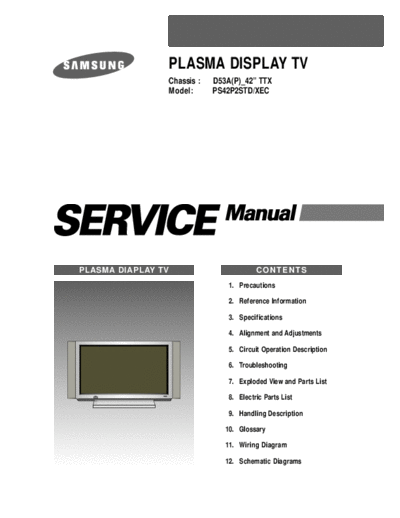

Image preview - the first page of the document
ps42p2std_ch_d53a


>> Download ps42p2std_ch_d53a documenatation <<

Text preview - extract from the document
                PLASMA DISPLAY TV
                Chassis :   D53A(P)_42" TTX
                Model:      PS42P2STD/XEC




PLASMA DIAPLAY TV                        CONTENTS
                                1. Precautions

                                2. Reference Information

                                3. Specifications

                                4. Alignment and Adjustments

                                5. Circuit Operation Description

                                6. Troubleshooting

                                7. Exploded View and Parts List

                                8. Electric Parts List

                                9. Handling Description

                               10. Glossary

                               11. Wiring Diagram

                               12. Schematic Diagrams
                                                                                                              Precautions



1. Precautions
    Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
    hazards such as electrical shock and X-rays.


1-1 Safety Precautions

1. Be sure that all of the built-in protective
   devices are replaced. Restore any missing
                                                                                                      (READING SHOULD
   protective shields.                                                                      LEAKAGE     NOT BE ABOVE
                                                                 DEVICE                     CURRENT        0.5mA)
                                                                 UNDER                       TESTER
2. When reinstalling the chassis and its                          TEST
                                                                               TEST ALL
   assemblies, be sure to restore all protective                            EXPOSED METAL
   devices, including: nonmetallic control knobs                              SURFACES

   and compartment covers.                                            2-WIRE CORD

                                                                      ALSO TEST WITH
3. Make sure that there are no cabinet openings                        PLUG REVERSED
                                                                    (USING AC ADAPTER                       EARTH
   through which people--particularly                                PLUG AS REQUIRED)                     GROUND
   children--might insert fingers and contact
   dangerous voltages. Such openings include
                                                                          Fig. 1-1 AC Leakage Test
   the spacing between fornt cabinet and back
   cabinet, excessively wide cabinet
                                                        6. Antenna Cold Check:
    ventilation slots, and improperly fitted back
                                                           With the unit's AC plug disconnected from the
   covers.
                                                           AC source, connect an electrical jumper across
                                                           the two AC prongs. Connect one lead of the
4. Leakage Current Hot Check (Figure 1-1):
                                                           ohmmeter to an AC prong. Connect the other
   Warning: Do not use an isolation
                                                           lead to the coaxial connector.
   transformer during this test. Use a leakage-
   current tester or a metering system that
                                                        7. High Voltage Limits:
   complies with American National Standards
                                                           High voltage must be measured each time ser-
   Institute (ANSI C101.1, Leakage Current for
                                                           vicing is done on the B+, horizontal deflection
   Appliances), and Underwriters Laboratories
   (UL Publication UL1950.5.2).                            or high voltage circuits.

5. With the unit completely reassembled, plug
   the AC line cord directly into the power
   outlet. With the unit's AC switch first in the
   ON position and then OFF, measure the
   current between a known earth ground (metal
   water pipe, conduit, etc.) and all exposed
   metal parts, including: antennas, handle
   brackets, metal cabinets, screwheads and
   control shafts. The current measured should
   not exceed 3.5 milliamp. Reverse the power-
   plug prongs in the AC outlet and repeat the
   test.




Samsung Electronics                                                                                                     1-1
Precautions


1-2 Safety Precautions (Continued)
                                                          voltage power supplies. Always inspect for
8. High voltage is maintained within specified
                                                          pinched, out-of-place, or frayed wiring. Do
   limits by close-tolerance, safety-related
                                                          not change the spacing between components
   components and adjustments. If the high
                                                          and the printed circuit board. Check the AC
   voltage exceeds the specified limits, check
                                                          power cord for damage. Make sure that leads
   each of the special components.
                                                          and components do not touch thermally hot
9. Design Alteration Warning:
                                                          parts.
   Never alter or add to the mechanical or
   electrical design of this unit. Example: Do not
                                                       15. Product Safety Notice:
   add auxiliary audio or video connectors. Such
                                                           Some electrical and mechanical parts have
   alterations might create a safety hazard. Also,
                                                           special safety-related characteristics which
   any design changes or additions will void the
                                                           might not be obvious from visual inspection.
   manufacturer's warranty.
                                                           These safety features and the protection they
                                                           give might be lost if the replacement compo-
10. Hot Chassis Warning:
                                                           nent differs from the original--even if the
    Some TV receiver chassis are electrically
                                                           replacement is rated for higher voltage,
    connected directly to one conductor of the AC
                                                           wattage, etc.
    power cord. If an isolation transformer is not
    used, these units may be safely serviced only
                                                          Components that are critical for safety are
    if the AC power plug is inserted so that the
                                                          indicated in the circuit diagram by shading,
    chassis is connected to the ground side of the
                                                          (   ) or ( ! ).
    AC source.
                                                            Use replacement components that have the
                                                          same ratings, especially for flame resistance
      To confirm that the AC power plug is inserted
                                                          and dielectric strength specifications.
      correctly, do the following: Using an AC
                                                          A replacement part that does not have the
      voltmeter, measure the voltage between the
                                                          same safety characteristics as the original
      chassis and a known earth ground. If the
                                                          might create shock, fire or other hazards.
      reading is greater than 1.0V, remove the AC
      power plug, reverse its polarity and reinsert.
      Re-measure the voltage between the chassis
      and ground.

11. Some TV chassis are designed to operate with
    85 volts AC between chassis and ground,
    regardless of the AC plug polarity. These units
    can be safely serviced only if an isolation
    transformer inserted between the receiver and
    the power source.

12. Some TV chassis have a secondary ground
    system in addition to the main chassis ground.
    This secondary ground system is not
    isolated from the AC power line. The two
    ground systems are electrically separated by
    insulating material that must not be defeated
    or altered.

13. Components, parts and wiring that appear to
    have overheated or that are otherwise
    damaged should be replaced with parts that
    meet the original specifications. Always
    determine the cause of damage or overheat-
    ing, and correct any potential hazards.

14. Observe the original lead dress, especially
    near the following areas: Antenna wiring,
    sharp edges, and especially the AC and high


1-2                                                                                      Samsung Electronics
                                                                                                          Precautions


1-3 Servicing Precautions

 Warning 1 : First read the "Safety Precautions" section of this manual. If some unforeseen circumstance creates a
             conflict between the servicing and safety precautions, always follow the safety precautions.
 Warning 2 : An electrolytic capacitor installed with the wrong polarity might explode.


                                                             8. Plasma display panels have partial afterim-
1. Servicing precautions are printed on the
                                                                ages when a same picture continues to be dis-
   cabinet. Follow them.
                                                                played for a certain time. This happens due to
                                                                the degradation of brightness caused by a
2. Always unplug the unit's AC power cord from
                                                                scale-down effect.
   the AC power source before attempting to: (a)
                                                                To prevent such afterimages when displaying
   Remove or reinstall any component or
                                                                a same picture for a certain time, be sure to
   assembly, (b) Disconnect an electrical plug or
                                                                reduce the level of brightness and contrast.
   connector, (c) Connect a test component in
                                                                ex) Contrast : 50 or 75, Brightness : 25
   parallel with an electrolytic capacitor.
                                                             9. Plasma display is an array of pixels(cells).
3. Some components are raised above the printed
                                                                Therefore, if at least 99.9% pixels keep normal,
   circuit board for safety. An insulation tube or
                                                                the appropriate panel is judged as `approved
   tape is sometimes used. The internal wiring is
                                                                product.' Even though some of pixels keep
   sometimes clamped to prevent contact with
                                                                luminescent or always light off, do not worry
   thermally hot components. Reinstall all such
                                                                because the panel is approved.
   elements to their original position.

4. After servicing, always check that the screws,
   components and wiring have been correctly
   reinstalled. Make sure that the portion around
   the serviced part has not been damaged.

5. Check the insulation between the blades of the
   AC plug and accessible conductive parts
   (examples: metal panels, input terminals and
   earphone jacks).

6. Never defeat any of the B+ voltage interlocks.
   Do not apply AC power to the unit (or any of
   its assemblies) unless all solid-state heat sinks
   are correctly installed.

7. Always connect a test instrument's ground
   lead to the instrument chassis ground before
   connecting the positive lead; always remove
   the instrument's ground lead last.




Samsung Electronics                                                                                              1-3
Precautions


1-4 Precautions for Electrostatically Sensitive Devices (ESDs)

1. Some semiconductor ("solid state") devices       5. Use only a grounded-tip soldering iron when
   are easily damaged by static electricity. Such      soldering or unsoldering ESDs.
   components are called Electrostatically
   Sensitive Devices (ESDs); examples include       6. Use only an anti-static solder removal device.
   integrated circuits and some field-effect           Many solder removal devices are not rated as
   transistors. The following techniques will          "anti-static"; these can accumulate sufficient
   reduce the occurrence of component damage           electrical charge to damage ESDs.
   caused by static electricity.
                                                    7. Do not remove a replacement ESD from its
2. Immediately before handling any semicon             protective package until you are ready to
   ductor components or assemblies, drain the          install it. Most replacement ESDs are
   electrostatic charge from your body by              packaged with leads that are electrically
   touching a known earth ground. Alternatively,       shorted together by conductive foam,
   wear a discharging wrist-strap device. (Be          aluminum foil or other conductive materials.
   sure to remove it prior to applying power--
   this is an electric shock precaution.)           8. Immediately before removing the protective
                                                       material from the leads of a replacement ESD,
3. After removing an ESD-equipped assembly,            touch the protective material to the chassis or
   place it on a conductive surface such as            circuit assembly into which the device will be
   aluminum foil to prevent accumulation of            installed.
   electrostatic charge.
                                                    9. Minimize body motions when handling
4. Do not use freon-propelled chemicals. These         unpackaged replacement ESDs. Motions such
   can generate electrical charges that damage         as brushing clothes together, or lifting a foot
   ESDs.                                               from a carpeted floor can generate enough
                                                       static electricity to damage an ESD.




1-4                                                                                   Samsung Electronics
                                                                             Reference Information



2. Reference Information

2-1 Tables of Abbreviations and Acronyms



                                         Table 2-1 Abbreviations

         A            Ampere                                  MV    Megavolt
         Ah           Ampere-hour                             MW    Megawatt
