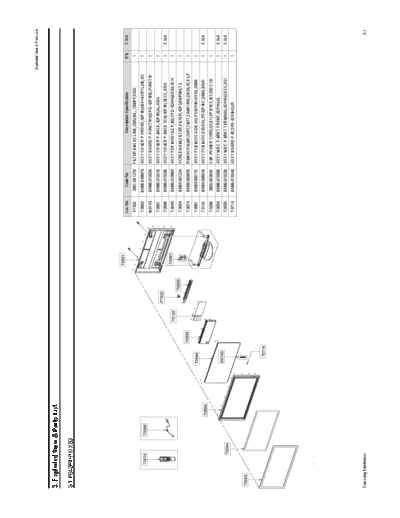

Image preview - the first page of the document
>> Download 04_Exploded View & Part List documenatation <<
Text preview - extract from the document
Exploded View & Parts List
3. Exploded View & Parts List
3-1 PS42P4H1X/XSG
Loc.No Code No Description Specification Q'ty S.N.A
FT532 2901-001278 FILTER-EMI AC LINE;250V,6A,-,1000PF,50X2 1
T0003 BN96-00997G ASSY COVER P-FRONT;42P4H,ABS+ACRYL,HB,AS 1
M0145 BN96-01033A ASSY BOARD P-FUNCTION;SPD-42P4HD,FUNCTIO 1
T0001 BN96-01031B ASSY COVER P-BACK;42P4H,AL,ASIA 1
T0008 BN96-01023B ASSY COVER P-BACK SUB;42P4H,SECC,ASIA 1 S.N.A
T0044 BN96-01099A ASSY PDP MODULE P;M3,SPD-42AH4,D55A,42 H 1
T0054 BN64-00122A SCREEN-EMI,FILTER;FILTER,42P3,984*584,T3 1
T0074 BN59-00397B REMOCON;MOZART,TM77,SAMSUNG,D65A,47,EX,P 1
T0091 BN94-00517E ASSY PCB MISC-SIDE A/V;PS42P4HX/XSA,D68A 1
T0132 BN94-00601B ASSY PCB MISC-DIGITAL;PS42P4H1,D68A,BN41 1 S.N.A
T0268 3903-000042 CBF-POWER CORD;DT,EU,FP3/YES,IEC320 C13/ 1
T0554 BN96-01030B ASSY MISC P-BRKT FRONT;42P4H,AL 1 S.N.A
T0555 BN96-01022B ASSY MISC P-BRKT TERMINAL;42P4H,SECC,ASI 1 S.N.A
T0714 BN96-01034A ASSY BOARD P-IR;SPD-42P4HD,IR 1
Samsung Electronics 3-1
Exploded View & Parts List
3-2 MODULE BLOCK
3-2 Samsung Electronics
