5-1
M0013
T0074 T0268
M0020
Exploded View & Part List
M0412
T0044
M0149 T0915 T0079
5. Exploded View & Part List

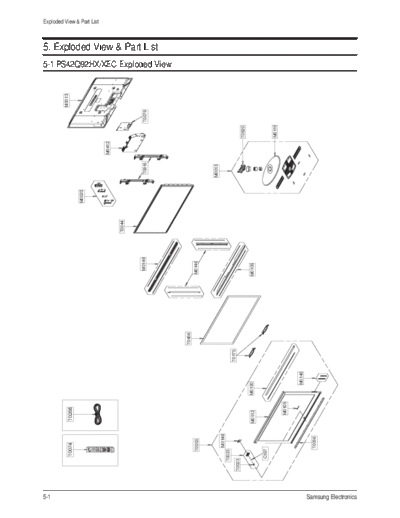

5-1 PS42Q92HX/XEC Exploded View
T0456
T0003 M0146
M0013
M0146
T0023
T0175
T0023
T0920
M0112 M0150 M0105
CIS7
M0111
M0105
M0145
T0056
Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1 S.A
M0013 BN96-04709A ASSY COVER P-REAR 42Q9/C9,EU(Ready),PCM 1 S.A
M0020 BN96-04849B ASSY BOARD P-SIDE AV CALLA 42",SJ07-01-0 1 S.N.A
M0105 BN67-00190A LENS-LED 42Q9,PC,light blue,Material of 1 S.N.A
M0111 BN63-03049B COVER-STAND 42Q9,ABS SF-0507,BK23 1 S.N.A
M0112 BN63-03066D COVER-FRONT 42Q9,ABS,HB,BK23,STEAM MOLD 1 S.N.A
M0145 BN96-04853B ASSY BOARD P-FUNCTION Lily/Calla,CT5000- 1 S.A
M0146 BN96-04687A ASSY BRACKET P-FILTER SIDE 42Q9,AL6063,T 2 S.N.A
M0146 BN96-04861D ASSY BOARD P-POWER & IR Lily/Calla,CT500 1 S.A
M0149 BN96-04685A ASSY BRACKET P-FILTER TOP 42Q9,AL6063,T1 1 S.N.A
M0150 BN96-04686A ASSY BRACKET P-FILTER BOTTOM 42Q9,AL6063 1 S.N.A
M0150 BN96-04691B ASSY BRACKET P-SUPPORT FILTER 42Q9,Al 60 1 S.N.A
M0412 BN96-04903C ASSY BRACKET P-PCB 42Q9,SECC T0.8 1 S.N.A
T0003 BN96-04708D ASSY COVER P-FRONT 42Q9,ABS HB,BK23,STEA 1 S.A
T0023 BN96-04707A ASSY COVER P-KNOB POWER C9/Q9,ABS HB 1 S.N.A
T0023 BN64-00567A KNOB POWER 42Q9,PC,VIOLET 1 S.N.A
T0044 BN96-04592A ASSY PDP MODULE P-MODULE 42HD W2,PL42AX0 1 S.A
T0056 BN63-03056B COVER-DECORATION 42Q9,ABS,SF-0500,HB,Tit 1 S.N.A
T0074 BN59-00602A REMOCON BORDEAUX PLUS,TM87C,samsung 1 S.A
T0079 BN94-01182B ASSY PCB MISC-MAIN PS42Q91H,PS42Q92H,EU, 1 S.A
T0175 BN96-04819A ASSY SPEAKER P 8ohm,Q9 42inch,10W,4P con 1 S.A
T0268 3903-000145 CBF-POWER CORD DT,EU,FP3/YES,U(IEC C13-R 1 S.A
T0456 BN67-00183A GLASS-FILTER EMI 42" Q7,P7,No B/C,MRT,42 1 S.A
T0915 BN61-02894B HOLDER-MODULE 42Q9,PC ABS 2 S.N.A
T0920 BN61-02990A GUIDE-STAND 42Q9,PC GF20% 1 S.N.A
Samsung Electronics 5-2
Exploded View & Part List
5-2 PS42Q92HX/XEC Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-04709A ASSY COVER P-REAR 42Q9/C9,EU(Ready),PCM 1
M0013 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1
M2893 BN39-00859A LEAD CONNECTOR CALLA 50",UL20276#30,UL/C 1
M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1
T0003 BN96-04708D ASSY COVER P-FRONT 42Q9,ABS HB,BK23,STEA 1
T0044 BN96-04592A ASSY PDP MODULE P-MODULE 42HD W2,PL42AX0 1
T0074 BN59-00602A REMOCON BORDEAUX PLUS,TM87C,samsung 28p+ 1
T0079 BN94-01182B ASSY PCB MISC-MAIN PS42Q91H,PS42Q92H,EU, 1
T0175 BN96-04819A ASSY SPEAKER P 8ohm,Q9 42inch,10W,4P con 1
T0764 BN44-00161A SMPS-PDP TV HPS4253,SEM,AC/DC,370W,AC100 1
T1910 BN96-04593A ASSY PDP MODULE P-X-MAIN 42HD W2,PL42AX0 1
T1911 BN96-04594A ASSY PDP MODULE P-Y-MAIN 42HD W2,PL42AX0 1
T1914 BN96-04597A ASSY PDP MODULE P-ADDRESS-E BU 42HD W2,P 1
T1915 BN96-04598A ASSY PDP MODULE P-ADDRESS-F BU 42HD W2,P 1
T1917 BN96-04596A ASSY PDP MODULE P-LOGIC MAIN 42HD W2,PL4 1
T9698 BN96-04595A ASSY PDP MODULE P-Y-MAIN SCAN 42HD W2,PL 1
