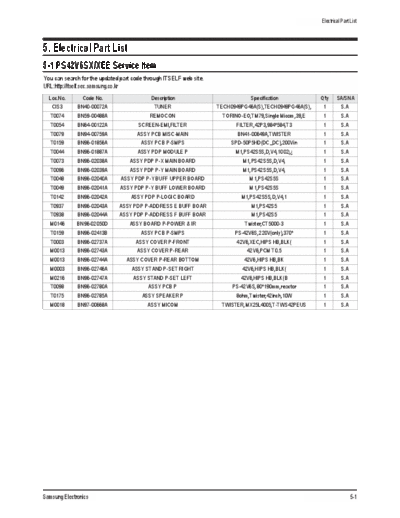

                                                                                                         Electrical Part List



5. Electrical Part List
5-1 PS42V6SX/XEE Service Item
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
  Loc.No.       Code No.                   Description                           Specification           Q'ty    SA/SNA
   CIS3       BN40-00072A                   TUNER                   TECH0949PG46A(S),TECH0949PG46A(S),    1         S.A
   T0074      BN59-00488A                  REMOCON                    TORINO-EO,TM79,Single Micom,39,E    1         S.A
   T0054      BN64-00122A             SCREEN-EMI,FILTER                    FILTER,42P3,984*584,T3         1         S.A
   T0079      BN94-00759A            ASSY PCB MISC-MAIN                    BN41-00649A,TWISTER            1         S.A
   T0159      BN96-01856A              ASSY PCB P-SMPS                   SPD-50P5HD(DC_DC),200Vin         1         S.A
   T0044      BN96-01887A             ASSY PDP MODULE P                   M1,PS42S5S,D,V4,1002
