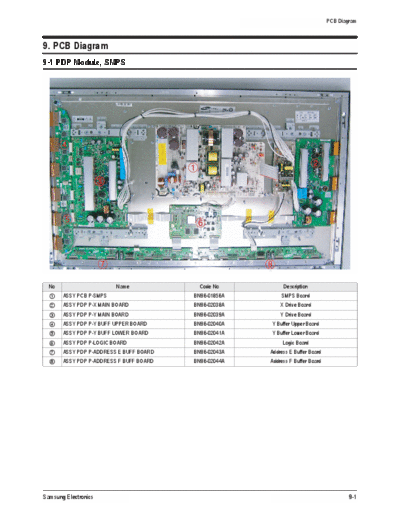

9. PCB Diagram
9-1 PDP Module, SMPS
No Name Code No Description
ASSY PCB P-SMPS BN96-01856A SMPS Board
ASSY PDP P-X MAIN BOARD BN96-02038A X Drive Board
ASSY PDP P-Y MAIN BOARD BN96-02039A Y Drive Board
ASSY PDP P-Y BUFF UPPER BOARD BN96-02040A Y Buffer Upper Board
ASSY PDP P-Y BUFF LOWER BOARD BN96-02041A Y Buffer Lower Board
ASSY PDP P-LOGIC BOARD BN96-02042A Logic Board
ASSY PDP P-ADDRESS E BUFF BOARD BN96-02043A Address E Buffer Board
ASSY PDP P-ADDRESS F BUFF BOARD BN96-02044A Address F Buffer Board
Samsung Electronics 9-1
PCB Diagram
9-2 Video Board, Function Key Borad, Power Button Board
No Name Code No Description
ASSY BOARD P-POWER & IR BN96-02050D Power Button Board
ASSY PCB MISC-MAIN BN94-00759A Main Board
ASSY BOARD P-FUNCTION BN96-02784A Function Key Board
9-2 Samsung Electronics
