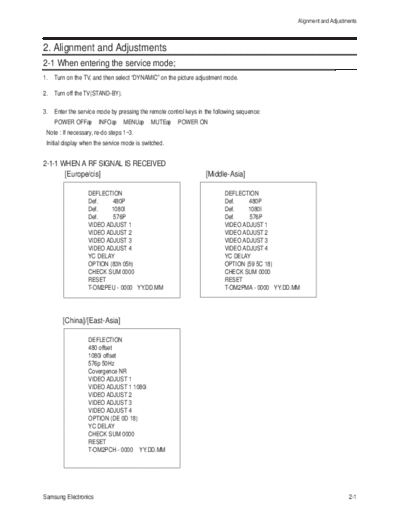

                                                                                                  Alignment and Adjustments



2. Alignment and Adjustments
2-1 When entering the service mode;
1.   Turn on the TV, and then select "DYNAMIC" on the picture adjustment mode.

2.   Turn off the TV(STAND-BY).

3.   Enter the service mode by pressing the remote control keys in the following sequence:
     POWER OFF
