Cover Signal
Light Protection IR Keypad LED x 3 Power
effect
Switch
7. Circuit Diagrams
FAN x 3
S-VHS In
CVBS In 0.65" WXGA
DMD PANEL
MAIN Board
Componenent
Projection
DMD
PC(RGB) Board
HDVI In
USB(for Downloading)
RS232C
Temp Optic

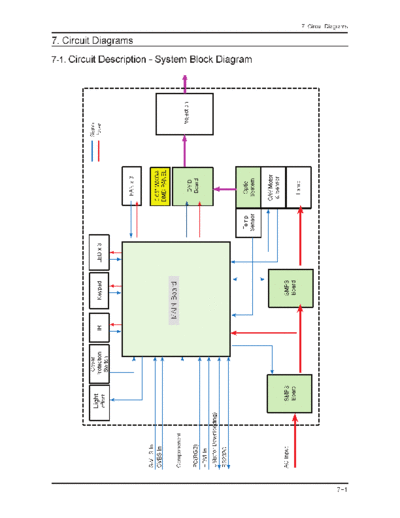

7-1. Circuit Description - System Block Diagram
Sensor System
C/W Motor
& Sensor
AC Input SMPS SMPS
Board Board
Lamp
7. Circuit Diagrams
7-1
7. Circuit Diagrams
7-1-1. System Block Description
Main Board : Receives various video signals and control signals to control or operate the DMD board, cooling fan,
SMPS board, lamp, and the ballast. It also processes video signals and transmits them to the DMD
board.
DMD Boar : Supplies power controlled by the Main board to the DMD panel to operate the DMD panel and transmits
the color wheel and sensor control signals to the Color Wheel and the Sensor board.
Ballast : Operates the lamp.
SMPS : Receives external AC power and supplies voltage to the Main board and the Ballast.
7-2
FAN 1/2/3 XDR DRAM
Clock Gen. Clock Gen. Flash Mem.
EEPROM (K4Y50084UE-
LED Indicatior (CDCDLP223) (CDCD5704) (S29AL032D70 -03)
IC118 JCB3)
IC126 IC128 IC121
Key Control IC122
7-2. Main board Block
SRAM
(M12L6416A-5T)
U104
Cover/Temp
USB 2 x LVDS DMD I/F
Composite Video Decoder DLP DATA PROCESSOR
DMD Power and DMD RESET
S-Video
(TVP5146) (DDP2230) Reset Driver
IC116 IC124 DMD_VCC2
(DAD2000)
Component IC130
HDMI Rx
PC(RGB) (MST3385)
HDMI IC117
RS-232C UART
(SP3232)
1.8V 5V Ballaster Control
Regulator SYNC PWM
Block TPS54350 Power & Motor 3.3V
CW INDEX
Drive 2.5V
12V (PMD1000) 1.2V
IC129 CW DRIVER
12V
F12V
7. Circuit Diagrams
7-3
7-4
CW INDEX CW INDEX
7. Circuit Diagrams
CW DRIVER CW DRIVER
2 x LVDS DMD I/F
DMD panel
IC102
DMD RESET
SDA, SCL EEPROM
IC101
3.3V
DMD_VCC2
7. Circuit Diagrams
7-3. Circuit Description - Power Block Diagram
7-5
7. Circuit Diagrams
Memo
7-6
7. Circuit Diagrams
7-3. Circuit Diagrams
7-3-1. Main Circuit Diagrams - PMD1000 Power Supplies
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-5
7. Circuit Diagrams
7-3-2. Main Circuit Diagrams - CW Index and 12V Input
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
P1P8V
C188
P3P3V P5V
P12V 10nF U101
COLOR WHEEL SENSOR DETECTION
TP126
1 2
L100
C108 C127 C128 R494 BD145
120uF 100nF 100uF 680ohm
6.3V 16V 16V CIC21J601NE
B
R177
P5V TP178 CW_INDEX
1
3-A3
IC110 C133 1/10W
MP1583DN 4.7Kohm
BD118 10nF
TP184
TP185
50V
MPZ2012S300A 1
2
BS
MGND1
SS
8
7
P3P3V_CW R484
360ohm
R486
360ohm
R492
33Kohm
R489
10Kohm
C478 C479
10uF
IN EN 1/10W IC131 100nF 6.3V
3 6
SW COMP FT107 LM393D
4 5 1 1
GND FB R160 1 4 R490 1 8
C201 C187 10Kohm OUT1 VCC
100uF 100nF 2 3 100Kohm 2 7
1/10W CW_SENSE IN1- OUT2
25V 25V XREF 3 6
IN1+ IN2-
4 5
C134 CMF-4S2012-900T04 VEE IN2+
1.5nF R176 C494 C500 R493
C135 50V 1/10W
10Kohm
330pF D142 1/10W 100nF 1nF 6.8Kohm
SK34
R159
10Kohm
P5V
C148
100nF P12V VCC2_DMD D5V
R514
3.3Kohm
1/10W IC109
SN74LVC1G07DCKR R509 R510 R111
5 1 4.7Kohm 4.7Kohm 1Kohm
VCC NC
2 R179 0ohm
4
A
3 1/10W
XREF POWER_ON_OFF
POWER_SW 3-A3
Y GND
OP101 OP103 OP100
P12V_FAN FAN_12V
CN103 Q100
SMW200-08P SI4435DY
1 S 8
TP150
1
2
2
3
G 7
6
P12V D5V
TP132
XREF
POWER_SW
3 4 5
TP148 D IC100
4
TP116 R143 BA17805FP
5 R142 10Kohm BD101
TP153 1/10W
6 1/10W 1 3
TP131 IN OUT TP128
TP130
7
8
P12V 4.7Kohm
GND C107
TP137 C101
82uF 100nF
2
D
BD113 R108 2Kohm G C125
POWER_SW XREF 1/10W 100nF
25V
C109 C110 S
Q101
10uF 10uF 2N7002LT1G
C131 C146 25V 25V
100uF 100nF
7-6
7. Circuit Diagrams
7-3-3. Main Circuit Diagrams - Video Input
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-7
7. Circuit Diagrams
7-3-4. Main Circuit Diagrams - HDMI Input
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-8
7. Circuit Diagrams
7-3-5. Main Circuit Diagrams - HDMI Interface (MST3385-140)
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-9
7. Circuit Diagrams
7-3-6. Main Circuit Diagrams - Video Decoder(TVP5146)
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-10
7. Circuit Diagrams
7-3-7. Main Circuit Diagrams - Front End Interface, DMD Flex Interface
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-11
7. Circuit Diagrams
7-3-8. Main Circuit Diagrams - GPIO, Serial Interface, Ballast Control
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-12
7. Circuit Diagrams
7-3-9. Main Circuit Diagrams - Flash Interfacee
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-13
7. Circuit Diagrams
7-3-10. Main Circuit Diagrams - Test Points, ARM Trace, RS232, JTAG
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-14
7. Circuit Diagrams
7-3-11. Main Circuit Diagrams - Keypad, LED, IR Interface
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-15
7. Circuit Diagrams
7-3-12. Main Circuit Diagrams - Fan, Peripherals
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-16
7. Circuit Diagrams
7-3-13. Main Circuit Diagrams - DAD2000 Reset Driver
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-17
7. Circuit Diagrams
7-3-14. Main Circuit Diagrams - Clock Generation
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-18
7. Circuit Diagrams
7-3-15. Main Circuit Diagrams - XDR DRAM Interface
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-19
7. Circuit Diagrams
7-3-16. Main Circuit Diagrams - XDR Termination
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-20
7. Circuit Diagrams
7-3-17. Main Circuit Diagrams - XDR Termination, Bypass Capacitors
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-21
7. Circuit Diagrams
7-3-18. Main Circuit Diagrams - DDP2230 Power, GND
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-22
7. Circuit Diagrams
7-3-19. DMD Panel Circuit Diagrams - DMD Flex Interface and Peripherals
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-23
7. Circuit Diagrams
7-3-20. DMD Panel Circuit Diagrams - DMD LVDS and Power
- This document is the technical property of Samsung Electronics. It can only be used by authorized persons.
7-24
