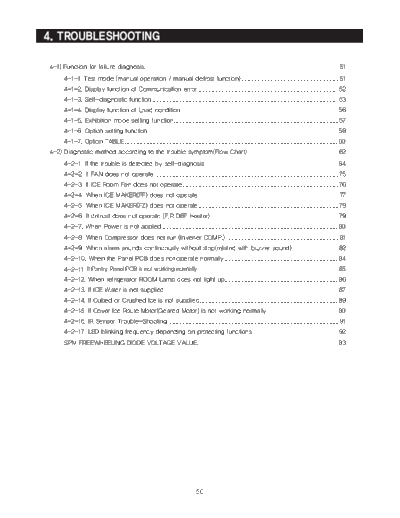

Image preview - the first page of the document
Troubleshooting


>> Download Troubleshooting documenatation <<

Text preview - extract from the document
50
 changed to the test mode and all displays on the front of panel will be off.

 sequence :
 Manual operation1(FF) Manual operation2(0F-r) -> manual defrost of fresh food compartments(rd) -> manual
 defrost of fresh and freezer compartments(fd) -> cancel(Display all off).

 canceled and it will be returned to previous mode.

1) Manual operation function




                                       8 seconds, (displays are all off)
                It will be changed to the test mode (manual operation) by pressing any key

1-1) If any key is pressed once in test mode, blinks "FF" on the display and it indicates the refrigerator has
     entered the manual operation. At this moment, buzzer beeps as an alarm.
1-2) If any key is pressed once at the manual operation1 status, OF-r will be displayed.
     FF and OF-r means manual operation 1 and 2 separately. These 2 functions operate with same RPM of
     COMP.
1-3) If manual operation is selected, compressor will run at once without 7 minutes delay in any mode.
     If the refrigerator is on the defrost cycle at the moment, defrost will be finished and manual operation will
     begin.
     (Be careful if manual operation get started at the moment of compressor off, over load could be occurred)
                       Compulsion working 1 : 3600RPM              Compulsion working : 3600RPM




1-4) If manual operation works, compressor & f-fan operate continuously for 24 hours and fresh food
     compartment will be controlled by the setting temperature.
1-5) When the manual operation runs, setting temperature will be selected automatically as below: freezer
     compartment -8
