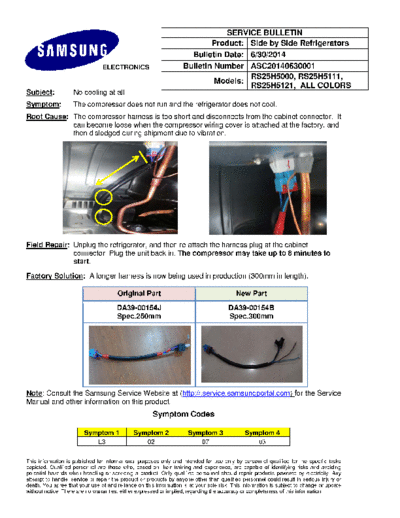

ASC20140630001


>> Download ASC20140630001 documenatation <<

Text preview - extract from the document
                                                                              SERVICE BULLETIN
                                                                           Product: Side by Side Refrigerators
                                                                     Bulletin Date: 6/30/2014
                                ELECTRONICS                        Bulletin Number ASC20140630001
                                                                                    RS25H5000, RS25H5111,
                                                                            Models:
                                                                                    RS25H5121, ALL COLORS
Subject:            No cooling at all.
Symptom:            The compressor does not run and the refrigerator does not cool.
Root Cause: The compressor harness is too short and disconnects from the cabinet connector. It
            can become loose when the compressor wiring cover is attached at the factory, and
            then dislodged during shipment due to vibration.




Field Repair: Unplug the refrigerator, and then re-attach the harness plug at the cabinet
              connector. Plug the unit back in. The compressor may take up to 8 minutes to
              start.

Factory Solution: A longer harness is now being used in production (300mm in length).

                                       Original Part                                      New Part
                                       DA39-00154J                                     DA39-00154B
                                       Spec.250mm                                      Spec.300mm




Note: Consult the Samsung Service Website at (http://.service.samsungportal.com) for the Service
Manual and other information on this product.
                                                      Symptom Codes

                         Symptom 1            Symptom 2              Symptom 3                Symptom 4
                            L3                   02                     07                       03
