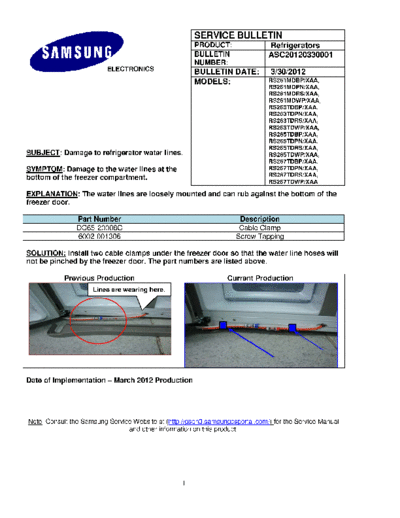

Image preview - the first page of the document
>> Download ASC20120330001 documenatation <<
Text preview - extract from the document
SERVICE BULLETIN
PRODUCT: Refrigerators
BULLETIN ASC20120330001
NUMBER:
ELECTRONICS BULLETIN DATE: 3/30/2012
MODELS: RS261MDBP/XAA,
RS261MDPN/XAA,
RS261MDRS/XAA,
RS261MDWP/XAA,
RS263TDBP/XAA,
RS263TDPN/XAA,
RS263TDRS/XAA,
RS263TDWP/XAA,
RS265TDBP/XAA,
RS265TDPN/XAA,
RS265TDRS/XAA,
SUBJECT: Damage to refrigerator water lines. RS265TDWP/XAA,
RS267TDBP/XAA,
SYMPTOM: Damage to the water lines at the RS267TDPN/XAA,
bottom of the freezer compartment. RS267TDRS/XAA,
RS267TDWP/XAA
EXPLANATION: The water lines are loosely mounted and can rub against the bottom of the
freezer door.
Part Number Description
DC65-20008C Cable Clamp
6002-001306 Screw Tapping
SOLUTION: Install two cable clamps under the freezer door so that the water line hoses will
not be pinched by the freezer door. The part numbers are listed above.
Previous Production Current Production
Lines are wearing here.
Date of Implementation ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
