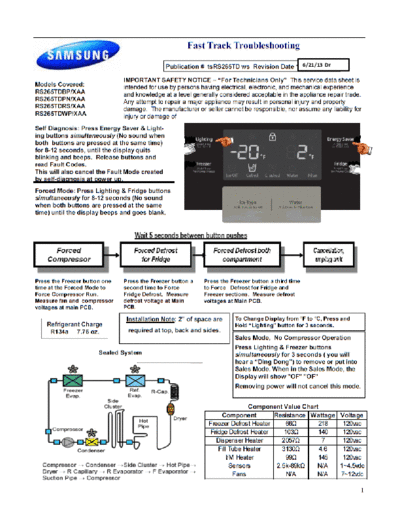

Image preview - the first page of the document



>> Download RS265TDBP documenatation <<

Text preview - extract from the document

6/21/13 Dr
                     Error Code Chart
             FZ SENSOR ERROR- The sensor is read as open or shorted,
 1 E Error   check the wiring connections in the respective compartment and
             at the Main PCB
             R SENSOR ERROR- The sensor is read as open or shorted, check
 2 E Error   the wiring connections in the respective compartment and at the
             Main PCB
             FZ DEF SENSOR ERROR- The sensor is read as open or shorted,
 4 E Error   check the wiring connections in the respective compartment and
             at the Main PCB
             R DEF SENSOR ERROR-- The sensor is read as open or shorted,
 5 E Error   check the wiring connections in the respective compartment and
             at the Main PCB
             AMBIENT-SENSOR ERROR- The sensor is read as open or
 6 E Error   shorted, check the wiring connections in the respective
             compartment and at the Main PCB
             HUMIDITY-SENSOR ERROR- The sensor is read as open or
13 E Error   shorted, check the wiring connections in the respective
             compartment and at the Main PCB
             IM SENSOR ERROR-- The sensor is read as open or shorted,
14 E Error   check the wiring connections at the Icemaker, the ice room and at
             the Main PCB
             FZ FAN ERROR-The Freezer Fan motor is read as not connected or
21 E Error   the fan has stopped, check the wiring connections in the freezer
             and at the Main PCB
             R FAN ERROR-The Ref. Fan motor is read as not connected or the
22 E Error   fan has stopped, check the wiring connections in the freezer and at
             the Main PCB
             C-FAN ERROR-The Comp. Fan motor is read as not connected or
23 E Error   the fan has stopped, check the wiring connections in the freezer
             and at the Main PCB
             FZ DEF FUNCTION ERROR-The freezer defrost heater is read as
24 E Error   open or the heater has been heating continuously for more than 80
             minutes.
             R DEF FUNCTION ERROR-The refrigerator defrost heater is read
25 E Error   as open or the heater has been heating continuously for more than
             80 minutes.
             ICE Maker function Error- Ice Maker In FZ Function will put out
26 E Error
             an error
             IM FUNCTION ERROR- The Icemaker release heater reads as open
39 E Error
             circuit or the ice rake did not return to the home position
             MAIN<->LCD COMM ERROR- The Main PCB and the LCD display
41 E Error
             are not communicating properly verify the wiring at both PCB's
             COMP STARTING FAILURE- The compressor did not start
81 E Error
             properly, check for an overload condition
             COMP ABNORMAL CURRENT DETECTION -Excessive current
83 E Error   detected at the Compressor check the compressor windings for
             shorts
             COMP MOTOR LOCKED OVER RPM ERROR- Compressor Over
84 E Error
             speed error check for low refrigerant levels
             COMP UNDER VOLTAGE- Low voltage to the compressor Check
85 E Error
             the DC supply from the Main PCB
             COMP OVER VOLTAGE- Over voltage to the compressor Check
86 E Error
             the DC supply from the Main PCB
