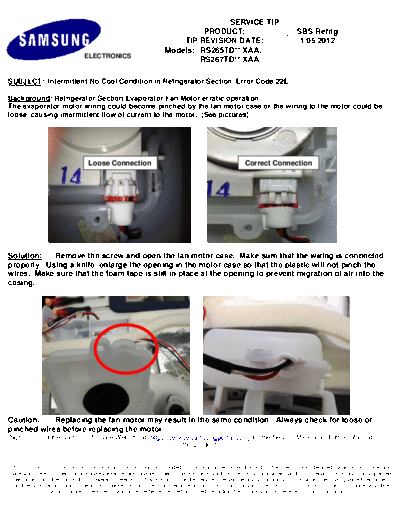

Image preview - the first page of the document



>> Download Service Tip SBS Fan Motor 1-05 documenatation <<

Text preview - extract from the document

                                                                                    SERVICE TIP
                                                                              PRODUCT:                                          SBS Refrig
                                                                         TIP REVISION DATE:                                      1/05/2012
                                                                     Models: RS265TD**/XAA,
                                 ELECTRONICS
                                                                             RS267TD**/XAA

SUBJECT: Intermittent No Cool Condition in Refrigerator Section, Error Code 22E

Background: Refrigerator Section Evaporator Fan Motor erratic operation.
The evaporator motor wiring could become pinched by the fan motor case or the wiring to the motor could be
loose, causing intermittent flow of current to the motor. (See pictures).




                                   Loose Connection                                                      Correct Connection




Solution:   Remove the screw and open the fan motor case. Make sure that the wiring is connected
properly. Using a knife, enlarge the opening in the motor case so that the plastic will not pinch the
wires. Make sure that the foam tape is still in place at the opening to prevent migration of air into the
casing.




Caution:    Replacing the fan motor may result in the same condition. Always check for loose or
pinched wires before replacing the motor.
Note: Consult the Samsung Service Website at (http://.service.samsungportal.com) for the Service Manual and other information on
                                                           this product.
